Bushed End Hydraulic Rams

At Catford Engineering we offer a wide range of hydraulic products. Browse our bushed end hydraulic cylinders specifications and pricing below.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Buy Online
Pricing
Enquire
Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491
iso compliance quality guarantee stamp with check mark

ISO 3834-2 (Fusion Welding Process)

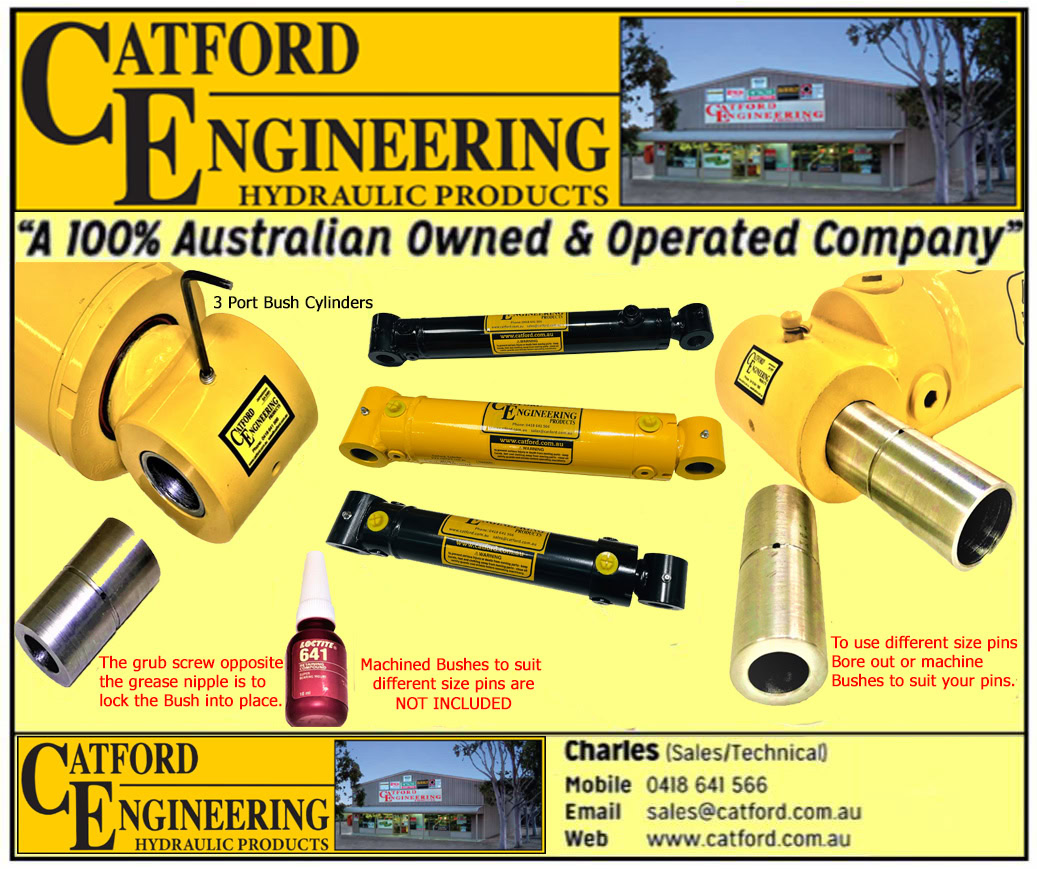

Bushed End Hydraulic Cylinders Specifications

Cylinder Type:   We use Metric Materials in Catford Cylinders.Double Acting with Bush end
3 Port Cylinder:Allowing simple easy access around machinery brackets
Cylinder Working Pressure:210 Bar – 3045 PSI
Seals Maximum Operating Pressures and Conditions:
  • Pressures: 414 Bar – 6000 PSI
  • Temperature: -30C to +110C
  • Speed: 0.5 Metres Per Second
  • Shock and Load Holding Capabilities
  • Double acting K-DAS piston seal providing positive displacement under all rated pressure situations
Rod Material & Hardening:
  • EN8D/C45 round bar
  • Toughened and Induction Hardened
  • Chrome Thickness: 20 to 30 Microns hard chromed piston rod for superior corrosion resistance
Tube Material:
  • CDS ST52/E355 steel tube
  • Seamless steel tube accurately honed to ensure smooth operation and extended seal life
Bush End Head with Ports, Rod End Bush and Piston Material:
  • EN8D/C45 tensile strength – 650 N/mm^2
  • Rod bush and barrel bush are fully machined, not foundry cast steel
Gland Material:SG IRON SG500/7 Spheroidal Graphit Cast Iron
Colour:Choice of Industrial Gloss Yellow or Industrial Gloss Black
Machining Tolerances:
  • All threads machined to 2A/B specification
  • All pin holes machined to D9 tolerance
  • All machine surface finishes to 3.2um Ra.
Download Brochure

Bushed End Hydraulic Cylinders Pricing

Part No.BoreStrokeRod diameterClosed lengthOpen lengthPort sizeBush HolediameterBushdiameterBush widthWeight KGPrice Inc.GST
Body endRod end
BRY262″
50mm		6″- 152mm1-1/4″
32mm		14″ – 356mm20″ – 508mm9/16″UN
‘0″ Ring		1″
25.4mm		2″
50mm		2-1/2″
64mm		2″
50mm		8$416
BRY288″- 203mm16″ – 406mm24″ – 609mm9$427
BRY21010″- 254mm18″ – 457mm28″ – 711mm10$445
BRY21212″- 305mm20″ – 508mm32″ – 813mm11$470
BRY21414″- 356mm22″ – 559mm36″ – 915mm12$481
BRY21616″- 406mm24″ – 610mm40″ – 1016mm13$505
BRY21818″- 457mm26″ – 660mm44″ – 1117mm14$530
BRY22020″- 508mm28″ – 711mm48″ – 1219mm15$550
BRY22424″- 610mm32″ – 813mm56″ – 1423mm16$580
Part No.BoreStrokeRod diameterClosed lengthOpen lengthPort sizeBush Hole diameterBushdiameterBush widthWeight KGPrice Inc.GST
Body endRod end
BRY2562-1/2″
63mm		6″- 152mm1-1/2″
40mm		14-1/4″ – 362mm20-1/4″ – 514mm3/4″ UN
“0” Ring		1-1/4″
31.75mm		2-3/8″
60mm		3″
77mm		2-1/4″
57mm		10$481
BRY2588″- 203mm16-1/4″ – 412mm24-1/4″ – 615mm11$495
BRY251010″- 254mm18″ – 457mm28″ – 711mm12$520
BRY251212″- 305mm20″ – 508mm32″ – 813mm13$535
BRY251414″- 356mm22″ – 559mm36″ – 915mm14$585
BRY251616″- 406mm24″ – 610mm40″ – 1016mm15$605
BRY251818″- 457mm26″ – 660mm44″ – 1117mm16$650
BRY252020″- 508mm28″ – 711mm48″ – 1219mm17$675
BRY252424″- 610mm32″ – 813mm56″ – 1423mm18$751
Part No.BoreStrokeRod diameterClosed lengthOpen lengthPort sizeBush Hole diameterBush diameterBush widthWeight KGPrice Inc.GST
Body endRod end
BRY383″
75mm		8″- 203mm1-3/4″
45mm		16-1/4″ – 412mm24-1/4″ – 615mm3/4″ UN
“0” Ring		1-1/4″
31.75mm		2-3/8″
60mm		3-1/2″
89mm		2-1/4″
57mm		15$635
BRY31010″- 254mm18-1/4″ – 463mm28-1/4″ – 717mm16$665
BRY31212″- 305mm20″ – 508mm32″ – 813mm17$697
BRY31414″- 356mm22″ – 559mm36″ – 915mm18$745
BRY31616″- 406mm24″ – 610mm40″ – 1016mm19$778
BRY31818″- 457mm26″ – 660mm44″ – 1117mm20$825
BRY32020″- 508mm28″ – 711mm48″ – 1219mm21$865
BRY32424″- 610mm32″ – 813mm56″ – 1423mm23$975
Part No.BoreStrokeRod diameterClosed lengthOpen lengthPort sizeBush Hole diameterBush diameterBush widthWeight KGPrice Inc.GST
Body endRod end
BRY484″
100mm		8″- 203mm2″
50mm		16″- 406mm24″- 609mm3/4″ UN
“0” Ring		1-1/4″
31.75mm		2-3/8″
60mm		4-5/8″
119mm		2-1/2″
63mm		25$975
BRY41212″- 305mm20″ – 508mm32″ – 813mm29$990
BRY41616″- 406mm24-1/4″ – 616mm40-1/4″ – 1022mm32$1,130
BRY41818″- 457mm26-1/4″ – 666mm44-1/4″ – 1123mm34$1,185
BRY42424″- 610mm32″ – 813mm56″ – 1423mm39$1,350

Catford Yellow Line Industrial Grade Hydraulic Bush Cylinders

      Cylinder Type:

  • Double acting with bush ends

      3 Port Cylinder:

  • Allowing simple easy access around machinery brackets

     Cylinder Working Pressure:

  • 210 Bar – 3045 PSI

     Cylinder Test Pressure:

  • 315 Bar – 4568 PSI

      Bushed End Head with Ports, Rod End Bush and Piston Material:

  • EN8D/C45 tensile strength – 650 N/mm^2
  • Rod bush and barrel bush are fully machined, not foundry cast steel.

      Tube Material:

  • CDS ST52/E355 steel tube
  • Seamless steel tube accurately honed to ensure smooth operation and extended seal life

      Seals Maximum Operating Pressures and              Conditions:

  • Pressures: 414 Bar – 6000 PSI
  • Temperature: -30°C to +110°C
  • Speed: 0.5 metres per second
  • Shock and load holding capabilities
  • Double acting K-DAS piston seal providing positive displacement under all rated pressure situations

     Gland Material:

  • SG IRON SG500/7 Spheroidal Graphite cast iron

     Machine Tolerances:

  • All threads machined to 2A/B specification
  • All pin holes machined to D9 tolerance
  • All machine surface finishes to 3.2um Ra.

      Rod Material & Hardening:

  • EN8D/C45 round bar
  • Toughened and induction hardened
  • Chrome thickness: 20 to 30 Microns hard chromed piston rod for superior corrosion resistance (rods chromed in house)

     All our products are certified worldwide with the following ISO standard:

  • ISO 9001 – 2008 standard
  • ISO 14001 & OSHAS 18001
  • ISO 3834-2 (Fusion Welding Process)

                                                                                                                            Colour:

                                                                                * Choice of industrial gloss yellow or industrial gross black *
