At Catford Engineering we offer a wide range of hydraulic products. Browse our bushed end hydraulic cylinders specifications and pricing below.
If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.
ISO 3834-2 (Fusion Welding Process)

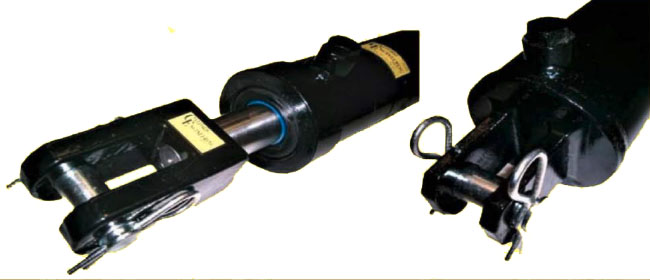

| Part No. | Bore | Stroke | Shaft Diameter | Closed Length | Port Size | Pin Diameter | Price (Incl. GST) |
|---|---|---|---|---|---|---|---|
| CR154 | 1-1/2″ | 4″ | 7/8″ | 14-1/4″ | 9/16″ UNF UN O-ring | 1″ | Sold Out |
| CR156 | 6″ | 16-1/4″ | $225 | ||||
| CR28 | 2″ | 8″ | 1-1/4″ | 20-1/4″ | 3/4″ UNF UN O-ring | $245 | |
| CR210 | 10″ | 20-1/4″ | $255 | ||||
| CR212 | 12″ | 22-1/4″ | $265 | ||||
| CR214 | 14″ | 24-1/4″ | $280 | ||||
| CR218 | 18″ | 28-1/4″ | Sold Out | ||||
| CR224 | 24″ | 34-1/4″ | $345 | ||||
| CR248 | 48″ | 58-1/4″ | $490 | ||||
| CR256 | 2-1/2″ | 6″ | 1-1/2″ | 16-1/4″ | $230 | ||
| CR2512S | 12″ | 22-1/4″ | $280 | ||||
| CR2512L | 12″ | 24-1/4″ Long Body | $310 | ||||
| CR2518 | 18″ | 30-1/4″ Long Body | $330 | ||||
| CR2524 | 24″ | 36-1/4″ Long Body | $410 | ||||
| CR38 | 3″ | 8″ | 20-1/4″ | $300 | |||
| CR312S | 12″ | 22-1/4″ | $330 | ||||
| CR312L | 12″ | 24-1/4″ Long Body | $345 | ||||
| CR316 | 16″ | 28-1/4″ | $365 | ||||
| CR318S | 18″ | 28-1/4″ | $400 | ||||
| CR318L | 18″ | 30-1/4″ Long Body | $420 | ||||
| CR324 | 24″ | 36-1/4″ Long Body | $510 | ||||
| CR358 | 3-1/2″ | 8″ | 1-3/4″ | 20-1/4″ | $320 | ||
| CR3516 | 16″ | 28-1/4″ Long Body | $460 | ||||
| CR3524 | 24″ | 36-1/4″ Long Body | $540 | ||||
| CR48 | 4″ | 8″ | 2″ | 20-1/4″ | $355 | ||
| CR412 | 12″ | 22-1/4″ | $450 | ||||
| CR418 | 18″ | 28-1/4″ | $535 | ||||
| CR424 | 24″ | 34-1/4″ | $610 |

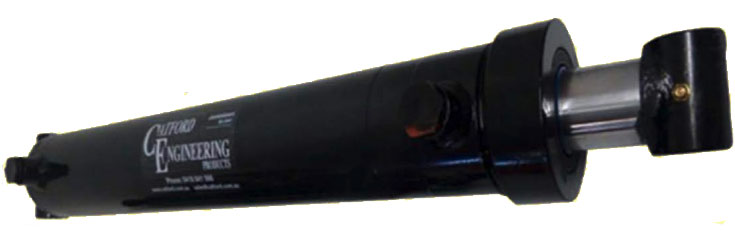

| Shaft Diameter | Eye | Eye Width | Price | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part No. | Bore | Stroke | Closed Length | Port Size | Diameter | Body End | Rod End | (Incl. GST) | |
| BR2512 | 2-1/2“ | 12″ | 1-1/2″ | 20″ | 3/4″ UNF | 3/4″ | 3-1/8″ | 2″ | Sold Out |
| BR2518 | 18″ | 26″ | 3-1/8″ | 2″ | Sold Out | ||||
| BR2524 | 24″ | 32″ | 3-1/8″ | 2″ | $360 | ||||
| BR324 | 3″ | 24″ | 1-3/4″ | 32″ | 1″ | 3-5/8″ | 2-1/4″ | $420 | |
| BR3524 | 3-1/2″ | 24″ | 2″ | 32″ | 4-1/8″ | 2-1/2″ | $460 | ||
| BR420 | 4″ | 20″ | 2-1/4″ | 32″ | 1-1/4″ | 4-3/4″ | 4″ | $495 | |

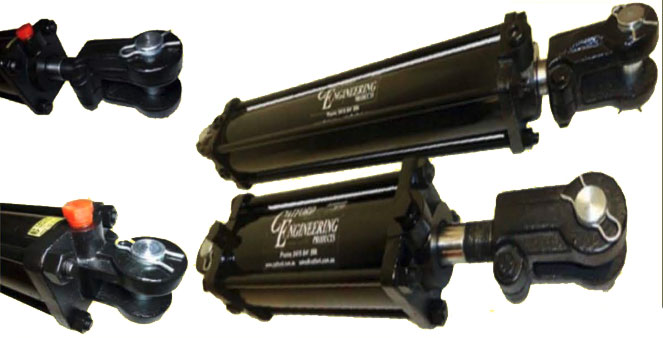

| Part No. | Bore | Stroke | Shaft Diameter | Closed Length | Port Size | Pin Diameter | Price (Incl. GST) |
|---|---|---|---|---|---|---|---|
| TR28 | 2″ | 8″ | 1-1/8″ | 20-1/4″ | NPT 3/8″ | 1″ | $190 |
| TR258 | 2-1/2″ | 20-1/4″ | $230 | ||||
| TR38 | 3″ | 1-1/4″ | 20-1/4″ | 1/2″ NPT | $245 | ||
| TR358 | 3-1/2″ | 20-1/4″ | $255 | ||||
| TR2512 | 2-1/2″ | 12″ | 1-1/8″ | 22-1/4″ | 3/8″ NPT | $255 | |
| TR312 | 3″ | 1-1/4″ | 22-1/4″ | 1/2″ NPT | $270 | ||
| TR316 | 16″ | 26-1/4″ | $295 | ||||
| TR318 | 18″ | 28-1/4″ | $310 | ||||
| TR48 | 4″ | 8″ | 20-1/4″ | $320 |
