At Catford Engineering we offer a wide range of hydraulic products. Browse our hydraulic gear pumps specifications and pricing below.
Due to fluctuations in the Australian dollar and the economic climate, please be advised that all prices are subject to change. Please contact us to confirm pricing.

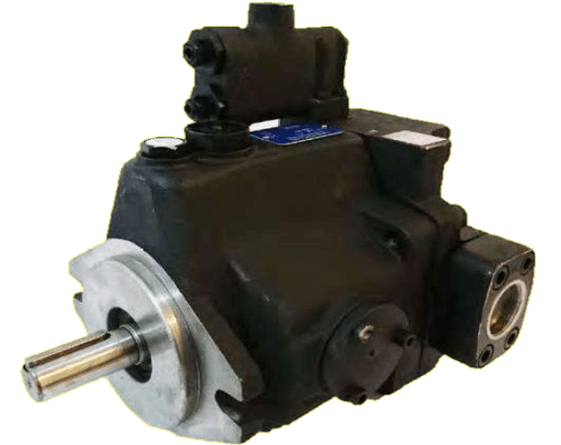

**Axial Piston Pumps 198 **Pump & Controller Options 199
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Displacement at 100psi | Pressure Adj. Range | Speed RPM | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| cm3/rev | 1500rpm Ipm | 180Orpm Ipm | Bar | Max | Min | KG | |||
| V15 | $ | 15.0 | 22.5 | 27.0 | 1:8~70 2:15~140 3:20~210 4:20~250 | 1800 | 500 | 13 | |
| V23 | $ | 23.0 | 35.4 | 41.4 | 1800 | 500 | 22 | ||
| V38 | $ | 37.8 | 56.7 | 68.0 | 1800 | 500 | 26 | ||
| V50 | $ | 51.5 | 77.2 | 92.7 | 1800 | 500 | 56 | ||
| V70 | $ | 69.7 | 104.5 | 125.4 | 1:8~70 2:15~140 3:20~210 | 1800 | 500 | 56 | |
| 1 | 2 | 3 | 4 | 5 | 6 | – | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| V | 15 | A | 3 | R | 40 |
| 1 | SERIES | |||
|---|---|---|---|---|
| Axial piston pump | Nominal pressure: 175 bar | V | ||
| Variable displacement | Maximum pressure: 280 bar | |||
| High pressure version | Single operation period: 250 bar (6ms), 315 bar (2.5ms) | |||
| 2 | SIZE & DISPLACEMENT | |||||
|---|---|---|---|---|---|---|
| 15 | 23 | 38 | 50 | 70 | ||
| Size | 1 | 2 | 3 | 4 | 4 | |
| Displacement cm3/rev | 15 | 23 | 37.8 | 51.5 | 69.7 | |
| 3 | CONTROL DEVICE | List price $ (V15/23/33) | List Price $ (V513/70) | |
|---|---|---|---|---|
| Standard pressure control | – | – | A | |
| Remote pressure control | $ | $ | G | |
| Load-sensing control high pressure | $ | $ | H LC |
| CONTROLS | SYMBOL | CHARACTERISTIC | SPECIFICATIONS |
|---|---|---|---|

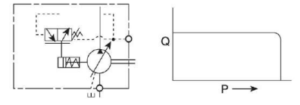

| A |  | 1. When system pressure increases and reaches required pressure, the flow decreases automatically and the pressure is constant. 2. Pressure and flow can be manually adjusted. | |

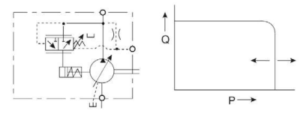

| G |  | 1. The same function of control type A. 2. Pressure can be adjusted remotely by the remote control valve. | |

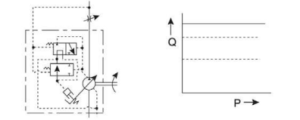

| HLC |  | 1. HL valve with two different pressures, control displacement. 2. The flow can be changed by HL valve, the sensing feedback can reach low oil temperature and energy saving. | |
| 4 | PRESSURE ADJUSTING | |||
|---|---|---|---|---|
| 8 – 70 bar | 1 | |||
| 15 – 140 bar | 2 | |||
| 20- 210 bar | 3 | |||
| 20 – 250 bar | 4 | |||
| 5 | ROTATION | |||
|---|---|---|---|---|
| Clockwise | R | |||
| Counter Clockwise | L | |||
| 6 | DIRECTION OF PIPE CONNECTIONS | |||
|---|---|---|---|---|
| Standard: side port (flange) | (blank) | |||
| 7 | SHAFT TYPE | Keyed (standard) | Spline (optional) | ||
|---|---|---|---|---|---|
| V15 | Keyed 3/4″ | (blank) | 13T 16/32 DP | S | |
| V23, V38 | Keyed 7/8″ | (blank) | 13T 16/32 DP | S | |
| V50, V70 | Keyed 1.1/4″ | (blank) | 14T 12/24 DP | S | |
| 8 | VOLTAGE – OPTION UNAVAILABLE | ||
|---|---|---|---|
| 9 | THREAD TYPE | |||
|---|---|---|---|---|
| BSPP (G) | 40 | |||

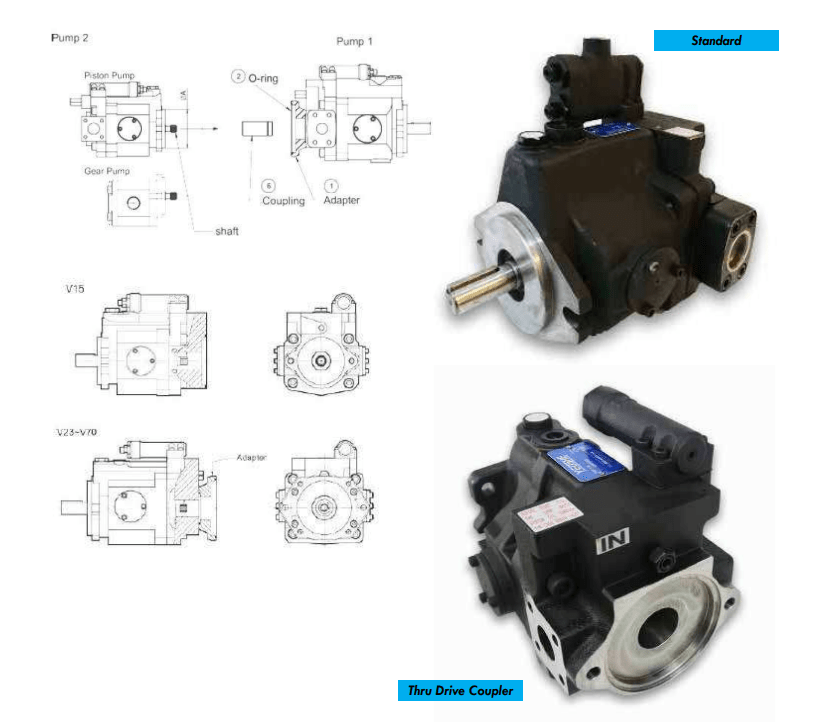

| 3 | THRU DRIVE & SECOND PUMP | Part | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | ||
|---|---|---|---|---|---|
| 0 82.55mm, SAE A | V15, V23, V38 | $ | D | ||
| 0 82.55mm, SAE A | V50, V70 | $ | D | ||
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Piston Pump Displacment | Thru Drive Mount | Spline |
|---|---|---|---|---|
| COUPV15-15 | $ | V15-17 | SAE A | 9 Tooth |
| COUPV23-1 | $ | V23-25 | SAE A | 9 Tooth |
| COUPV38-1 | $ | V38-42 | SAE A | 9 Tooth |
| COUPV70-1 | $ | V50-70 | SAE A | 9 Tooth |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Piston Pump |
|---|---|---|
| 5E00033 | $ | V15-17 |
| 5E00035 | $ | V23-25 |
| 5E00037 | $ | V38-42 |
| 5E00042 | $ | V50-70 |
