Gear Pumps, Motors & Flow Dividers

At Catford Engineering we offer a wide range of hydraulic products. Browse our Gear Pumps, Motors & Flow Dividers pricings below.

*Group 1, 2 & 3 Pumps *Log Splitter Pumps
*Group 1, 2 & 3 Gear Motors *Gear Flow Dividers

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Buy Online
Pricing
Enquire
Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491
Download Brochure

VIVOIL GROUP 0 PUMP NOMENCLATURE

ORDER CODES FOR VIVOIL GROUP 0 PUMPS

SeriesGroupPumpDisplacementFlangeShaftInlet PortOutlet PortRear Cover
X0P0502ABBA
DISPLACEMENT
0.17cc 01
0.25cc 02
0.45cc 04
0.57cc 05
0.76cc 06
0.98cc 07
1.27cc 09
1.52cc 11
2.30cc 13
SHAFT
A
REAR COVER
A
FLANGE
0102
PORTSINLETOUTLET
0.17ccBB
0.25ccBB
0.45ccBB
0.57ccBB
0.76ccBB
0.98ccBB
1.27ccBB
1.52ccBB
2.30ccBB
B = 1/4” BSPP

VIVOIL GROUP 0 PUMPS

Group 0 Pump DIN Mount, M7x1 Keyed Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
WorkingPeakABC
X0P0102ABBA$0.17220260700/90001/4″ BSPP1/4″ BSPP55.826.246.8
X0P0202ABBA$0.25220260700/90001/4″ BSPP1/4″ BSPP56.426.547.4
X0P0402ABBA$0.45220280700/90001/4″ BSPP1/4″ BSPP5827.349
X0P0502ABBA$0.57220280700/90001/4″ BSPP1/4″ BSPP5927.850
X0P0602ABBA$0.76220280700/90001/4″ BSPP1/4″ BSPP60.528.551.5
X0P0702ABBA$0.98220280700/60001/4″ BSPP1/4″ BSPP6229.353
X0P0902ABBA$1.27220280700/60001/4″ BSPP1/4″ BSPP64.530.555.5
X0P1102ABBA$1.52220280700/60001/4″ BSPP1/4″ BSPP66.531.557.5
X0P1302ABBA$2.3190210700/50001/4″ BSPP1/4″ BSPP72.534.563.5

Group 0 Pump Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX0P1.A$NBR

VIVOIL GROUP 1 PUMP NOMENCLATURE

ORDER CODES FOR VIVOIL GROUP 1 PUMPS

Series Group Pump Displacement Flange Shaft Inlet Port Outlet Port Rear Cover
X 1 P 27 01 F B B A
DISPLACEMENT
0.9cc 16
1.2cc 17
1.7cc 18
2.2cc 20
2.6cc 21
3.2cc 23
3.8cc 25
4.3cc 27
4.9cc 29
5.9cc 31
6.5cc 32
7.8cc 34
9.8cc 36
SHAFT
F
B
D

2

FLANGE
 LEFT  ROTATIONRIGHT  ROTATION
0102
6162

4344
4142

Please note:

Additional costs apply for
non-standard options

PORTS INLET OUTLET
0.9cc B B
1.2cc B B
1.7cc B B
2.2cc B B
2.6cc B B
3.2cc B B
3.8cc B B
4.3cc B B
4.9cc B B
5.9cc B B
6.5cc B B
7.8cc B B
9.8cc B B
B = 3/8” BSPP
REAR COVER

A
D
N-O1
10-105 bar
N-O2
70-210 bar
N-O3
140-350 bar

VIVOIL GROUP 1 PUMP REAR COVERS w/ INTEGRATED RELIEF VALVE

Group 1 Pump Rear Cover with Integrated Relief Valve

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Maximum Flow RateRelief Range
MinimumMaximum
N-01$50 Ipm10 bar105 bar
N-02$50 Ipm70 bar210 bar
N-03$50 Ipm140 bar350 bar

Please Note:

Pricing for rear cover with integrated relief valve is in addition to standard pump price.

VIVOIL GROUP 1 PUMPS

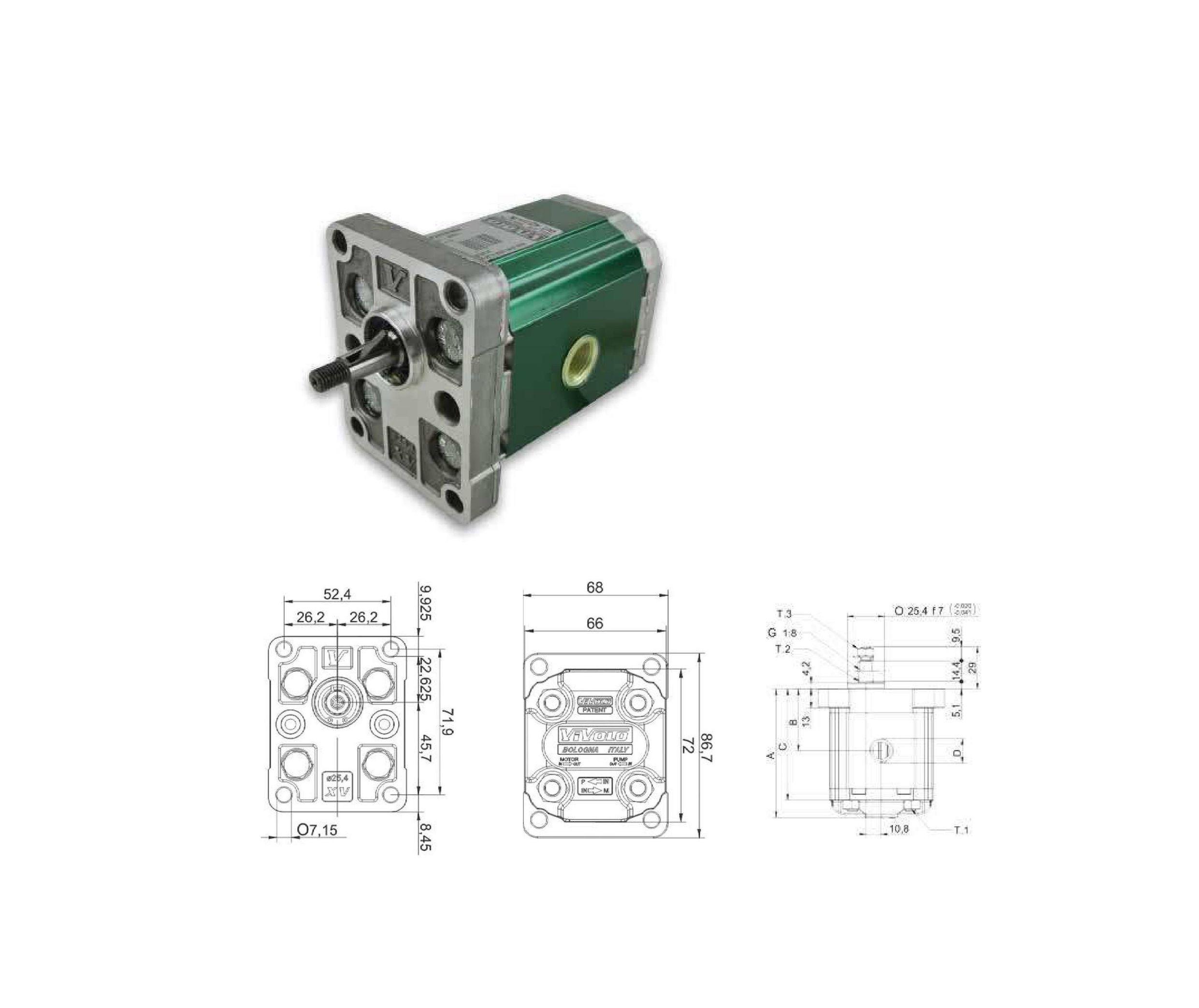

Group 1 Pump DIN Mount, 1:8 Tapered Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min
Speed
(RPM)		Port S Port PDimension (mm)
WorkingPeakABC
X1P1602FBBA$0.92402806000/7003/8″ BSPP3/8″ BSPP78.137.366.1
X1P1702FBBA$1.22502906000/7003/8″ BSPP3/8″ BSPP79.037.867.0
X1P1802FBBA$1.72502906000/7003/8″ BSPP3/8″ BSPP80.538.568.5
X1P2002FBBA$2.22502906000/7003/8″ BSPP3/8″ BSPP82.539.570.5
X1P2102FBBA$2.62503006000/7003/8″ BSPP3/8″ BSPP84.540.572.5
X1P2302FCBA$3.22503006000/7001/2″ BSPP3/8″ BSPP86.541.574.5
X1P2502FCBA$3.62503006000/7001/2″ BSPP3/8″ BSPP88.542.576.5
X1P2702FCBA$4.32503006000/7001/2″ BSPP3/8″ BSPP90.543.578.5
X1P2902FCBA$4.92503006000/7001/2″ BSPP3/8″ BSPP93.545.081.5
X1P3102FCBA$5.92503005000/7001/2″ BSPP3/8″ BSPP97.046.885.0
X1P3202FCBA$6.52503005000/7001/2″ BSPP3/8″ BSPP98.548.086.5
X1P3402FCBA$7.82202605000/7001/2″ BSPP3/8″ BSPP103.550.091.5
X1P3602FCBA$9.81902304000/7001/2″ BSPP3/8″ BSPP112.554.5100.5



Group 1 Pump Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX1P1.A$NBR
8KGX1P1.V$Viton

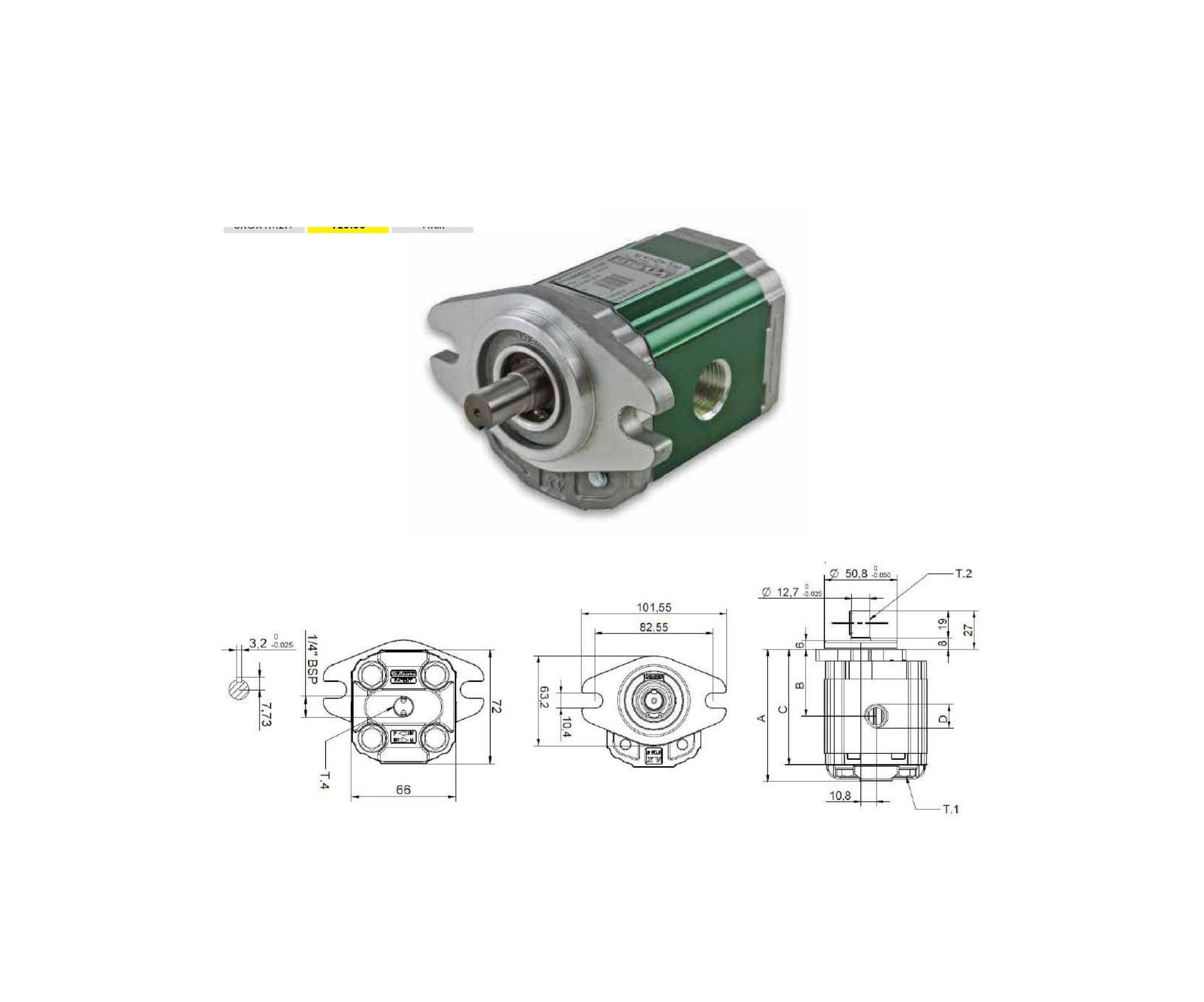

Group 1 Pump SAE AA Mount, 1/2” Keyed Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
WorkingPeakABC
X1P1662BBBA$0.92402806000/7003/8″ BSPP3/8″ BSPP82.641.870.6
X1P1762BBBA$1.22502906000/7003/8″ BSPP3/8″ BSPP83.542.371.5
X1P1862BBBA$1.72502906000/7003/8″ BSPP3/8″ BSPP85.043.073.0
X1P2062BBBA$2.22502906000/7003/8″ BSPP3/8″ BSPP87.044.075.0
X1P2162BBBA$2.62503006000/7003/8″ BSPP3/8″ BSPP89.045.077.0
X1P2362BCBA$3.22503006000/7001/2″ BSPP3/8″ BSPP91.046.579.0
X1P2562BCBA$3.82503006000/7001/2″ BSPP3/8″ BSPP93.047.081.0
X1P2762BCBA$4.32503006000/7001/2″ BSPP3/8″ BSPP95.048.083.0
X1P2962BCBA$4.92503006000/7001/2″ BSPP3/8″ BSPP98.049.586.0
X1P3162BCBA$5.92503005000/7001/2″ BSPP3/8″ BSPP101.551.389.5
X1P3262BCBA$6.52503005000/7001/2″ BSPP3/8″ BSPP105.052.593.0
X1P3462BCBA$7.82202605000/7001/2″ BSPP3/8″ BSPP108.054.596.0
X1P3662BCBA$9.81902304000/7001/2″ BSPP3/8″ BSPP117.059.0105.0



Group 1 Pump Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX1P2.A$NBR
8KGX1P2.V$Viton

Group 1 Pump BH Mount, Tang Drive Shaft (CCW Standard)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
WorkingPeakABC
X1P1641DBBA$0.92402806000/7003/8″ BSPP3/8″ BSPP82.641.870.6
X1P1741DBBA$1.22502906000/7003/8″ BSPP3/8″ BSPP83.542.371.5
X1P1841DBBA$1.72502906000/7003/8″ BSPP3/8″ BSPP85.043.073.0
X1P2041DBBA$2.22502906000/7003/8″ BSPP3/8″ BSPP87.044.075.0
X1P2141DBBA$2.62503006000/7003/8″ BSPP3/8″ BSPP89.045.077.0
X1P2341DCBA$3.22503006000/7001/2″ BSPP3/8″ BSPP91.046.579.0
X1P2541DCBA$3.62503006000/7001/2″ BSPP3/8″ BSPP93.047.081.0
X1P2741DCBA$4.32503006000/7001/2″ BSPP3/8″ BSPP95.048.083.0
X1P2941DCBA$4.92503006000/7001/2″ BSPP3/8″ BSPP98.049.586.0
X1P3141DCBA$5.92503005000/7001/2″ BSPP3/8″ BSPP101.551.389.5
X1P3241DCBA$6.52503005000/7001/2″ BSPP3/8″ BSPP105.052.593.0
X1P3441DCBA$7.82202605000/7001/2″ BSPP3/8″ BSPP108.054.596.0
X1P3641DCBA$9.81902304000/7001/2″ BSPP3/8″ BSPP117.059.0105.0

Group 1 Pump Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX1P2.A$NBR
8KGX1P2.V$Viton

VIVOIL GROUP 2 PUMP NOMENCLATURE

ORDER CODES FOR VIVOIL GROUP 2 PUMPS

Series Group Pump Displacement Flange Shaft Inlet Port Outlet Port Rear Cover
X 2 P 51 02 E C B A
DISPLACEMENT
4.2cc 41
6.0cc 43
8.4cc 45
10.8cc 47
14.4cc 49
16.8cc 51
19.2cc 53
22.8cc 55
26.2cc 57
30.0cc 59
34.2cc 61
39.6cc 63
PORTS INLET OUTLET
4.2cc B B
6.0cc B B
8.4cc C B
10.8cc C B
14.4cc C B
16.8cc D C
19.2cc D C
22.8cc D C
26.2cc D C
30.0cc D C
34.2cc D C
39.6cc D C
B = 1/2” BSPP
C = 3/4” BSPP
D = 1” BSPP
FLANGE
 LEFT ROTATIONRIGHT ROTATION
0102
5152
4142
2122
1112
REAR COVER
A D N-O1 10-105 bar
N-O2 70-210 bar
N-O3 140-350 bar
RELIEF VALVE & PRIORITY HEAD OPTIONS ON NEXT PAGE
SHAFT
F
E
A
B
I
10 & 11 Tooth Shaft – see page 103

Please note:

Additional costs apply for
non-standard options

VIVOIL GROUP 2 PUMP INTEGRATED RELIEF REAR COVERS & PRIORITY HEADS

Group 2 Pump Rear Cover with Integrated Relief Valve

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Maximum Flow RateRelief Range
MinimumMaximum
N-01$50 Ipm10 bar105 bar
N-02$50 Ipm70 bar210 bar
N-03$50 Ipm140 bar350 bar

Please Note:
Pricing for rear cover with integrated
relief valve and rear cover with priority
head is in addition to standard pump
price.

Priority Head Internal Excess Flow

Rear Cover Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

QC PortFlow Adjustment
MinimumMaximum
CB62$3/8″ BSPP3 Ipm6 lpm
CB58$3/8″ BSPP6 Ipm11 lpm
CB63$3/8- BSPP8 Ipm16 lpm
CB64$3/8″ BSPP13 Ipm25 lpm
CB70$3/8″ BSPP25 Ipm45 lpm

Priority Head Internal Excess Flow

Rear Cover Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

QC/QR PortsFlow Adjustment
MinimumMaximum
CA62$3/8″ BSPP3 Ipm6 Ipm
CA58$3/8″ BSPP6 Ipm11 Ipm
CA63$3/8″ BSPP8 Ipm16 Ipm
CA64$3/8″ BSPP13 Ipm25 Ipm
CA70$3/8″ BSPP25 Ipm45 Ipm

VIVOIL GROUP 2 PUMPS

Group 2 Pump DIN Mount, 1:8 Tapered Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
WorkingPeakABC
X2P4102EBBA$4.22603003500/7001/2″ BSPP1/2″ BSPP87.241.777.2
X2P4302EBBA$62603003500/7001/2″ BSPP1/2″ BSPP90.243.280.2
X2P4502ECBA$8.42603003500/7003/4″ BSPP1/2″ BSPP94.245.284.2
X2P4702ECBA$10.82603003500/7003/4″ BSPP1/2″ BSPP98.247.288.2
X2P4902ECBA$14.42502903500/7003/4″ BSPP1/2″ BSPP104.250.294.2
X2P5102EDCA$16.82302703500/7001″ BSPP3/4″ BSPP108.252.298.2
X2P5302EDCA$19.22102503000/7001″ BSPP3/4″ BSPP112.254.2102.2
X2P5502EDCA$22.82002403000/7001″ BSPP3/4″ BSPP118.257.2108.2
X2P5702EDCA$26.21702103000/7001″ BSPP3/4″ BSPP122.259.2112.2
X2P5902EDCA$301602002500/7001″ BSPP3/4″ BSPP130.263.2120.2
X2P6102EDCA$34.21501902500/7001″ BSPP3/4″ BSPP137.266.7127.2
X2P6302EDCA$39.61401802000/7001″ BSPP3/4″ BSPP146.271.2136.2



Group 2 Pump Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX2P1.A$NBR
8KGX2P1.V$Viton

Group 2 Pump Standard German Mount, 1:5 Tapered Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min
Speed
(RPM)		Port SPort PDimension (mm)
WorkingPeakABC
X2P4142FBBA$4.22603003500/7001/2″ BSPP1/2″ BSPP89.741.179.7
X2P4342FBBA$62603003500/7001/2″ BSPP1/2″ BSPP92.741.182.7
X2P4542FCBA$8.42603003500/7003/4″ BSPP1/2″ BSPP96.743.186.7
X2P4742FCBA$10.82603003500/7003/4″ BSPP1/2″ BSPP100.747.590.7
X2P4942FCBA$14.42502903500/7003/4″ BSPP1/2″ BSPP106.747.596.7
X2P5142FDCA$16.82302703500/7001″ BSPP3/4″ BSPP110.747.5100.7
X2P5342FDCA$19.22102503000/7001″ BSPP3/4″ BSPP114.747.5104.7
X2P5542FDCA$22.82002403000/7001″ BSPP3/4″ BSPP120.755110.7
X2P5742FDCA$26.21702103000/7001″ BSPP3/4″ BSPP124.755114.7
X2P5942FDCA$301602002500/7001″ BSPP3/4″ BSPP132.763.2122.7
X2P6142FDCA$34.21501902500/7001″ BSPP3/4″ BSPP139.763.2129.7
X2P6342FDCA$39.61401802500/7001″ BSPP3/4″ BSPP148.763.2138.7

Group 2 Pump SAE A Mount, 5/8” Keyed Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min
Speed
(RPM)		Port SPort PDimension (mm)
WorkingPeakABC
X2P4152BBBA$4.22603003500/7001/2″ BSPP1/2″ BSPP88.039.478.0
X2P4352BBBA$62603003500/7001/2″ BSPP1/2″ BSPP91.039.481.0
X2P4552BCBA$8.42603003500/7003/4″ BSPP1/2″ BSPP95.041.485.0
X2P4752BCBA$10.82603003500/7003/4″ BSPP1/2″ BSPP99.045.889.0
X2P4952BCBA$14.42502903500/7003/4″ BSPP1/2″ BSPP105.045.895.0
X2P5152BDCA$16.82302703500/7001″ BSPP3/4″ BSPP109.045.899.0
X2P5352BDCA$19.22102503000/7001″ BSPP3/4″ BSPP113.045.8103.0
X2P5552BDCA$22.82002403000/7001″ BSPP3/4″ BSPP119.053.3109.0
X2P5752BDCA$26.21702103000/7001″ BSPP3/4″ BSPP123.053.3113.0
X2P5952BDCA$301602002500/7001″ BSPP3/4″ BSPP131.061.5121.0
X2P6152BDCA$34.21501902500/7001″ BSPP3/4″ BSPP138.061.5128.0
X2P6352BDCA$39.61401802000/7001″ BSPP3/4″ BSPP147.061.5137.0



Group 2 Pump SAE A Mount, 5/8” 9 Tooth Splined Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min
Speed
(RPM)		Port SPort PDimension (mm)
WorkingPeakABC
X2P4152IBBA$4.22603003500/7001/2″ BSPP1/2″ BSPP88.039.478.0
X2P4352IBBA$62603003500/7001/2″ BSPP1/2″ BSPP91.039.481.0
X2P4552ICBA$8.42603003500/7003/4″ BSPP1/2″ BSPP95.041.485.0
X2P4752ICBA$10.82603003500/7003/4″ BSPP1/2″ BSPP99.045.889.0
X2P4952ICBA$14.42502903500/7003/4″ BSPP1/2″ BSPP105.045.895.0
X2P5152IDCA$16.82302703500/7001″ BSPP3/4″ BSPP109.045.899.0
X2P5352IDCA$19.22102503000/7001″ BSPP3/4″ BSPP113.045.8103.0
X2P5552IDCA$22.82002403000/7001″ BSPP3/4″ BSPP119.053.3109.0
X2P5752IDCA$26.21702103000/7001″ BSPP3/4″ BSPP123.053.3113.0
X2P5952IDCA$301602002500/7001″ BSPP3/4″ BSPP131.061.5121.0
X2P6152IDCA$34.21501902500/7001″ BSPP3/4″ BSPP138.061.5128.0
X2P6352IDCA$39.61401802000/7001″ BSPP3/4″ BSPP147.061.5137.0



Group 2 Pump SAE A Mount, 10 Tooth Shaft (Cast Iron End Plates)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
WorkingPeakABC
G2P5152RDCA$16.8230230700/35001″ BSPP3/4″ BSPP107.053101.0
G2P5552RDCA$22.8200220700/30001″ BSPP3/4″ BSPP117.058111.0
G2P5752RDCA$26.2170190700/30001″ BSPP3/4″ BSPP121.060115.0
G2P5952RDCA$30160180700/25001″ BSPP3/4″ BSPP129.064123.0
G2P6152RDCA$34.2150170700/25001″ BSPP3/4″ BSPP136.067.5130.0



Group 2 Pump SAE A Mount, 11 Tooth Shaft (Cast Iron End Plates)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
WorkingPeakABC
G2P4152SBBA$4.2260300700/35001/2″ BSPP1/2″ BSPP86.042.580.0
G2P4352SCBA$6260300700/35003/4″ BSPP1/2″ BSPP89.04483.0
G2P4552SCBA$8.4260300700/35003/4″ BSPP1/2″ BSPP93.04687.0
G2P4752SCBA$10.8260300700/35003/4″ BSPP1/2″ BSPP97.04891.0
G2P4952SCBA$14.4250290700/35003/4″ BSPP1/2″ BSPP103.05197.0
G2P5152SCBA$16.8230270700/35003/4″ BSPP1/2″ BSPP107.053101.0
G2P5352SDCA$19.2210250700/30001″ BSPP3/4″ BSPP111.055105.0
G2P5552SDCA$22.8200240700/30001″ BSPP3/4″ BSPP117.058111.0
G2P5752SDCA$26.2170210700/30001″ BSPP3/4″ BSPP121.060115.0



VIVOIL GROUP 3 PUMP NOMENCLATURE

ORDER CODES FOR VIVOIL GROUP 3 PUMPS

SeriesGroupPumpDisplacementFlangeShaftInlet PortOutlet PortRear Cover
X3P6632IDDA
DISPLACEMENT
14.9cc 66
17.4cc 68
21.1cc 70
27.0cc 72
32.3cc 74
38.5cc 78
43.4cc 79
47.2cc 80
50.9cc 81
54.6cc 82
60.8cc 83
64.5cc 85
70.7cc 86
74.5cc 87
86.9cc 89
FLANGE
 LEFT
ROTATION		RIGHT
ROTATION

01

02

31

32

SHAFT

A

H

I

REAR COVER

A

D

PORTS INLET OUTLET
14.9cc D D
17.4cc E D
21.1cc E D
27.0cc E D
32.3cc E D
38.5cc E D
43.4cc F E
47.2cc F E
50.9cc F E
54.6cc F E
60.8cc F E
64.5cc F E
70.7cc F E
74.5cc F F
86.9cc F F
D = 3/4” BSPP
E = 1” BSPP
F = 1.1/4” BSPP

Please note:

Additional costs apply for
non-standard options

VIVOIL GROUP 3 PUMPS

Group 3 Pump DIN Mount, 1:8 Tapered Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
WorkingPeakAB
X3P6602ADDA$14.93003203000/7003/4″ BSPP3/4″ BSPP124.061.0
X3P6802AEDA$17.43003203000/7001″ BSPP3/4″ BSPP126.062.0
X3P7002AEDA$21.12803003000/7001″ BSPP3/4″ BSPP129.063.5
X3P7202AEDA$272502703000/7001″ BSPP3/4″ BSPP133.065.5
X3P7402AEDA$32.32502703000/7001″ BSPP3/4″ BSPP138.068.0
X3P7802AEDA$38.52502702800/7001″ BSPP3/4″ BSPP143.070.5
X3P7902AFEA$43.42502702800/7001.1/4″ BSPP1″ BSPP147.072.5
X3P8002AFEA$47.22302502800/7001.1/4″ BSPP1″ BSPP150.074.0
X3P8102AFEA$50.92302502800/7001.1/4″ BSPP1″ BSPP153.075.5
X3P8202AFEA$54.62302502300/7001.1/4″ BSPP1″ BSPP156.077.0
X3P8302AFEA$60.82302502300/7001.1/4″ BSPP1″ BSPP161.079.5
X3P8502AFEA$64.52102302300/7001.1/4″ BSPP1″ BSPP164.081.0
X3P8602AFEA$70.72002202300/7001.1/4″ BSPP1″ BSPP169.083.5
X3P8702AFFA$74.51802002300/7001.1/4″ BSPP1.1/4″ BSPP172.085.0
X3P8902AFFA$86.91501702300/7001.1/4″ BSPP1.1/4″ BSPP182.090.0



Group 3 Pump Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX3P1.A$NBR
8KGX3P1.V$Viton

Group 3 Pump SAE B Mount, 7/8” Keyed Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
WorkingPeakAB
X3P7032HEDA$21.12803003000/7001″ BSPP3/4″ BSPP129.063.5
X3P7232HEDA$27.02502703000/7001″ BSPP3/4″ BSPP133.065.5
X3P7432HEDA$32.32502703000/7001″ BSPP3/4″ BSPP138.068.0
X3P7832HEDA$38.52502702800/7001″ BSPP3/4″ BSPP143.070.5
X3P7932HFEA$43.42502702800/7001.1/4″ BSPP1″ BSPP147.072.5
X3P8032HFEA$47.22302502800/7001.1/4″ BSPP1″ BSPP150.074.0
X3P8132HFEA$50.92302502800/7001.1/4″ BSPP1″ BSPP153.075.5
X3P8232HFEA$54.62302502300/7001.1/4″ BSPP1″ BSPP156.077.0
X3P8332HFEA$60.82302502300/7001.1/4″ BSPP1″ BSPP161.079.5
X3P8532HFEA$64.52102302300/7001.1/4″ BSPP1″ BSPP164.081.0
X3P8732HFFA$74.51802002300/7001.1/4″ BSPP1.1/4″ BSPP172.085.0



Group 3 Pump SAE B Mount, 7/8” 13 Tooth Splined Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMaximum Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
WorkingPeakAB
X3P6632IDDA$14.93003203000/7003/4″ BSPP3/4″ BSPP124.061.0
X3P6832IEDA$17.43003203000/7001″ BSPP3/4″ BSPP126.062.0
X3P7032IEDA$21.12803003000/7001″ BSPP3/4″ BSPP129.063.5
X3P7232IEDA$272502703000/7001″ BSPP3/4″ BSPP133.065.5
X3P7432IEDA$32.32502703000/7001″ BSPP3/4″ BSPP138.068.0
X3P7832IEDA$38.52502702800/7001″ BSPP3/4″ BSPP143.070.5
X3P7932IFEA$43.42502702800/7001.1/4″ BSPP1″ BSPP147.072.5
X3P8032IFEA$47.22302502800/7001.1/4″ BSPP1″ BSPP150.074.0
X3P8132IFEA$50.92302502800/7001.1/4″ BSPP1″ BSPP153.075.5
X3P8232IFEA$54.62302502300/7001.1/4″ BSPP1″ BSPP156.077.0
X3P8332IFEA$60.82302502300/7001.1/4″ BSPP1″ BSPP161.079.5
X3P8532IFEA$64.52102302300/7001.1/4″ BSPP1″ BSPP164.081.0
X3P8632IFEA$70.72002202300/7001.1/4″ BSPP1″ BSPP169.083.5
X3P8732IFFA$74.51802002300/7001.1/4″ BSPP1.1/4″ BSPP172.085.0
X3P8932IFFA$86.91501702300/7001.1/4″ BSPP1.1/4″ BSPP182.090.0



VIVOIL MULTIPLE PUMP NOMENCLATURE

ORDER CODES FOR VIVOIL MULTIPLE PUMPS

 Body  ShapeNo. of  ElementsFlange/RotationShaftPortsRear CoverDisplacement CCs
9M202EGA16
Body Shape
M Standard
S Shaped
T Separated Stages
A Single Inlet
No. of ElementsAdaptor

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

2+0P + 0P$
1P + 0P$
1P + 1P$
2P + 1P$
2P + 0P$
2P + 2P$
3P + 1P$
3P + 0P$
3P + 2P$
3P + 3P$



Flange & Rotation
DIN FlangeSAE FlangeGroup
CWCCWCWCCW
0201n/an/aGroup 0
02016261Group 1
02015251Group 2
02013231Group 3
Shaft
A Group 0 7mm Keyed
F Group 1 DIN 1:8 Taper
E Group 2 DIN 1:8 Taper
I 5/8” 9T Spline SAE A
B 5/8” Keyed SAE A
A Group 3 DIN 1:8 Taper
H 7/8” Keyed SAE B
I 7/8” 13T Spline SAE B
Ports
G BSPP
Rear CoverList Price $ Excluding GST
Group 1Group 2Group 3
AStandard blank cover–––
BRear suction port146.00154.00370.00
CRear pressure port146.00154.00370.00
DRear suction & pressure ports146.00154.00370.00
ORear relief with internal drain310.00380.00–
Displacement
Group 0Group 1Group 2Group 3
Pump

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Pump

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Pump

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Pump

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

10.17cc$160.9cc$414.2cc$6614.9cc$
20.25cc$171.2cc$436.0cc$6817.4cc$
40.45cc$181.7cc$458.4cc$7021.1cc$
50.57cc$202.2cc$4710.8cc$7227.0cc$
60.76cc$212.6cc$491 4.4cc$7432.3cc$
70.98cc$233.2cc$5116.8cc$7838.5cc$
91.27cc$253.6cc$5319.2cc$7943.4cc$
111.52cc$274.3cc$5522.8cc$8047.2cc$
132.30cc$294.9cc$5726.2cc$8150.9cc$
   315.9cc$5930.0cc$8254.6cc$
   326.5cc$6134.2cc$8360.8cc$
   347.8cc$6339.6cc$8564.5cc$
   369.8cc$   8670.7cc$
         8774.5cc$
         8986.9cc$

GROUP 1 PUMPS

Group 1 Pump DIN Mount, 1:8 Tapered Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCPressureMax/Min Speed (RPM)Port PPort S
RatedMaximum
1APG-1.1-L46-Z02-R-SS$1.1200 bar250 bar6000/6003/8″ BSPP3/8″ BSPP
1APG-1.6-L46-Z02-R-SS$1.6200 bar250 bar6000/6003/8″ BSPP3/8″ BSPP
1APG-2.1-L46-Z02-R-SS$2.1200 bar250 bar6000/6003/8″ BSPP3/8″ BSPP
1APG-2.7-L46-Z02-R-SS$2.7200 bar250 bar6000/6003/8″ BSPP3/8″ BSPP
1APG-3.2-L46-Z02-R-SS$3.2200 bar250 bar5000/6003/8″ BSPP3/8″ BSPP
1APG-3.7-L46-Z02-R-SS$3.7200 bar250 bar4500/6003/8″ BSPP3/8″ BSPP
1APG-4.2-L46-Z02-R-SS$4.2200 bar250 bar4000/6003/8″ BSPP3/8″ BSPP
1APG-4.8-L46-Z02-R-SS$4.8160 bar200 bar3500/6003/8″ BSPP3/8″ BSPP
1APG-5.8-L46-Z02-R-SS$5.8160 bar200 bar2900/6003/8″ BSPP3/8″ BSPP
1APG-8.0-L46-Z02-R-SS$8.0160 bar200 bar2100/6003/8″ BSPP3/8″ BSPP

GROUP 2 PUMPS

Group 2 Pump DIN Mount, 1:8 Tapered Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCPressureMax/Min Speed (RPM)Port PPort SDimension (mm)
RatedMaximumML
2APG-4-L04-Z03-R-SS-K$4175 bar200 bar3500/5001/2″ BSPP1/2″ BSPP93.044.5
2APG-6-L04-Z03-R-SS-K$6175 bar200 bar3500/5001/2″ BSPP1/2″ BSPP96.046.0
2APG-8-LO8-Z03-R-SS-K$8175 bar200 bar3500/5001/2″ BSPP3/4″ BSPP93.347.7
2APG-10-L08-Z03-R-SS-K$10175 bar200 bar3500/5001/2′ BSPP3/4″ BSPP102.649.3
2APG-12-L08-Z03-R-SS-K$12175 bar200 bar3500/5001/2″ BSPP3/4″ BSPP105.951.0
2APG-14-L08-Z03-R-SS-K$14175 bar200 bar3500/5001/2″ BSPP3/4″ BSPP109.352.7
2APG-16-L03-Z03-R-SS-K$16175 bar200 bar3500/5001/2″ BSPP3/4″ BSPP112.754.0
2APG-18-L03-Z03-R-SS-K$18175 bar200 bar3500/5003/4″ BSPP1″ BSPP116.056.0
2APG-20-L03-Z03-R-SS-K$20175 bar200 bar3500/5003/4″ BSPP1″ BSPP119.357.7
2APG-23-L03-Z03-R-SS-K$23175 bar200 bar3000/5003/4″ BSPP1″ BSPP122.659.3
2APG-25-L03-Z03-R-SS-K$25175 bar200 bar3000/5003/4″ BSPP1″ BSPP127.661.8
2APG-28-L03-Z03-R-SS-K$28160 bar200 bar3000/5003/4″ BSPP1″ BSPP132.664.3
2APG-30-L03-Z03-R-SS-K$30160 bar200 bar3000/5003/4″ BSPP1″ BSPP135.966.0

Group 2 Pump SAE A Mount, 5/8” Keyed Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCPressureMax/Min Speed  (RPM)Port PPort S
RatedMaximum
2APG-4-L39-P02-R-SS-K$4175 bar200 bar3500/5007/8″ UNO1.1/16″ UNO
2APG-6-L39-P02-R-SS-K$6175 bar200 bar3500/5007/8″ UNO1.1/16″ UNO
2APG-8-L42-P02-R-SS-K$8175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-10-L42-P02-R-SS-K$10175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-12-L42-P02-R-SS-K$12175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-14-L42-P02-R-SS-K$14175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-16-L42-P02-R-SS-K$16175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-18-L42-P02-R-SS-K$18175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-20-L42-P02-R-SS-K$20175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-23-L42-P02-R-SS-K$23175 bar200 bar3000/5001.1/16- UNO1.5/16″ UNO
2APG-25-L42-P02-R-SS-K$25175 bar200 bar3000/5001.1/16″ UNO1.5/16″ UNO
2APG-28-L42-P02-R-SS-K$28160 bar200 bar3000/5001.1/16″ UNO1.5/16″ UNO
2APG-30-L42-P02-R-SS-K$30160 bar200 bar3000/5001.1/16″ UNO1.5/16″ UNO



Group 2 Pump SAE A Mount, 5/8” 9 Tooth Spline Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCPressureMax/Min Speed  (RPM)Port PPort S
RatedMaximum
2APG-4-L39-S03-R-SS-K$4175 bar200 bar3500/5007/8″ UNO1.1/16″ UNO
2APG-6-L39-S03-R-SS-K$6175 bar200 bar3500/5007/8″ UNO1.1/16″ UNO
2APG-8-L42-S03-R-SS-K$8175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-10-L42-S03-R-SS-K$10175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-12-L42-S03-R-SS-K$12175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-14-L42-S03-R-SS-K$14175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-16-L42-S03-R-SS-K$16175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-18-L42-S03-R-SS-K$18175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-20-L42-S03-R-SS-K$20175 bar200 bar3500/5001.1/16″ UNO1.5/16″ UNO
2APG-23-L42-S03-R-SS-K$23175 bar200 bar3000/5001.1/16- UNO1.5/16″ UNO
2APG-25-L42-S03-R-SS-K$25175 bar200 bar3000/5001.1/16″ UNO1.5/1 6″ UNO
2APG-28-L42-S03-R-SS-K$28160 bar200 bar3000/5001.1/16″ UNO1.5/16″ UNO
2APG-30-L42-S03-R-SS-K$30160 bar200 bar3000/5001.1/16″ UNO1.5/16″ UNO

GROUP 3 PUMPS

Group 3 Pump DIN Mount, 1:8 Tapered Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCPressureMax/Min Speed (RPM)Port PPort SDimension (mm)
RatedMaximum   ML
3APG-22-L69-Z05-R-SS-K$22175 bar200 bar3000/4003/4″ BSPP3/4″ BSPP128.565.5
3APG-26-L03-Z05-R-SS-K$26175 bar200 bar3000/4003/4″ BSPP1″ BSPP131.567.0
3APG-34-L03-Z05-R-SS-K$34175 bar200 bar3000/4003/4″ BSPP1″ BSPP137.069.8
3APG-39-L03-Z05-R-SS-K$39175 bar200 bar3000/4003/4″ BSPP1″ BSPP141.071.8
3APG-43-L11-Z05-R-SS-K$43175 bar200 bar2800/4001″ BSPP1.1/4″ BSPP143.573.0
3APG-51-L11-Z05-R-SS-K$51175 bar200 bar2800/4001″ BSPP1.1/4″ BSPP149.576.0
3APG-60-L11-Z05-R-SS-K$60175 bar200 bar2800/4001″ BSPP1.1/4″ BSPP156.079.3
3APG-70-L60-Z05-R-SS-K$70175 bar200 bar2500/4001.1/4  BSPP1.1/2″ BSPP163.082.8
3APG-78-L60 Z05-R-SS-K$78160 bar200 bar2300/4001.1/4″ BSPP1.1/2″ BSPP171.085.0
3APG-89-L60-Z05-R-SS-K$89140 bar180 bar2000/4001.1/4  BSPP1.1/2″ BSPP176.088.0



Group 3 Pump SAE B Mount, 7/8” Keyed Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCPressureMax/Min Speed (RPM)Port PPort S
RatedMaximum
3APG-22-L42-P16-R-SS-K$22175 bar200 bar3000/4001.1/16″ UNO1.5/16″ UNO
3APG-26-L42-P16-R-SS-K$26175 bar200 bar3000/4001.1/16″ UNO1.5/16″ UNO
3APG-34-L42-P16-R-SS-K$34175 bar200 bar3000/4001.1/16″ UNO1.5/16″ UNO
3APG-39-L42-P16-R-SS-K$39175 bar200 bar3000/4001.1/16″ UNO1.5/16″ UNO
3APG-43-L51 -P16-R-SS-K$43175 bar200 bar2800/4001.1/16″ UNO1.5/8″ UNO
3APG-51-L51 -P16-R-SS-K$51175 bar200 bar2800/4001.1/16″ UNO1.5/8″ UNO
3APG-60-L53-P16-R-SS-K$60175 bar200 bar2800/4001.5/16″ UNO1.5/8″ UNO
3APG-70-L53-P16-R-SS-K$70175 bar200 bar2500/4001.5/16″ UNO1.5/8″ UNO
3APG-78-L53-P16-R-SS-K$78160 bar200 bar2300/4001.5/16″ UNO1.5/8″ UNO
3APG-89-L53-P16-R-SS-K$89140 bar180 bar2000/4001.5/16″ UNO1.5/8″ UNO



Group 3 Pump SAE B Mount, 7/8” 13 Tooth Spline Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCPressureMax/Min Speed (RPM)Port PPort S
RatedMaximum
3APG-22-L42-S05-R-SS-K$22175 bar200 bar3000/4001.1/16″ UNO1.5/16″ UNO
3APG-26-L42-S05-R-SS-K$26175 bar200 bar3000/4001.1/16″ UNO1.5/16″ UNO
3APG-34-L42-S05-R-SS-K$34175 bar200 bar3000/4001.1/16″ UNO1.5/16″ UNO
3APG-39-L42-S05-R-SS-K$39175 bar200 bar3000/4001.1/16″ UNO1.5/16″ UNO
3APG-43-L51-S05-R-SS-K$43175 bar200 bar2800/4001.1/16″ UNO1.5/8″ UNO
3APG-51-L51 -S05-R-SS-K$51175 bar200 bar2800/4001.1/16″ UNO1.5/8″ UNO
3APG-60-L53-S05-R-SS-K$60175 bar200 bar2800/4001.5/16″ UNO1.5/8″ UNO
3APG-70-L53-S05-R-SS-K$70175 bar200 bar2500/4001.5/16″ UNO1.5/8″ UNO
3APG-78-L53-S05-R-SS-K$78160 bar200 bar2300/4001.5/16″ UNO1.5/8″ UNO
3APG-89-L53-S05-R-SS-K$89140 bar180 bar2000/4001.5/16″ UNO1.5/8″ UNO



LOG SPLITTER PUMPS

Log Splitter Pumps

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CC Hi-FlowCC Lo-FlowUnload Pressure RangeMaximum PressureSuctionPressure
CBT8.8/2.1-L08-C$8.82.130-60 bar200 bar3/4″ BSPP1/2″ BSPP
CBT8.8/3.0-L08-C$8.83.030-60 bar200 bar3/.4″ BSPP1/2″ BSPP
CBT13.0/2.1-L08-C$13.02.130-60 bar200 bar3/4″ BSPP1/2″ BSPP
CBT13.0/3.0-L08-C$13.03.030-60 bar200 bar3/4″ BSPP1/2″ BSPP
CBT13.0/4.2-L08-C$13.04.230-60 bar200 bar3/4″ BSPP1/2″ BSPP
CBT15.2/7.6-L03-C$15.27.630-60 bar200 bar1″ BSPP3/4″ BSPP
CBT22.9/7.6-L03-C$22.97.630-60 bar200 bar1″ BSPP3/4″ BSPP



VIVOIL GROUP 1 MOTORS NOMENCLATURE

ORDER CODES FOR VIVOIL GROUP 1 MOTORS

Series Group Motor Displacement Flange Shaft Inlet Port Outlet Port Rear Cover
X 1 M 27 1 F B B E
DISPLACEMENT
0.9cc 16
1.2cc 17
1.7cc 18
2.2cc 20
2.6cc 21
3.2cc 23
3.6cc 25
4.3cc 27
4.9cc 29
5.9cc 31
6.5cc 32
7.8cc 34
9.8cc 36
SHAFT

F

B

FLANGE

01

02

REAR COVER

E

F

K

PORTS INLET OUTLET
0.9cc B B
1.2cc B B
1.7cc B B
2.2cc B B
2.6cc B B
3.2cc B B
3.6cc B B
4.3cc B B
4.9cc B B
5.9cc B B
6.5cc B B
7.8cc B B
9.8cc B B
B = 3/8” BSPP

Please note:

Additional costs apply for
non-standard options

VIVOIL GROUP 1 MOTORS

Group 1 Motor DIN Mount, 1:8 Tapered Shaft



Part #List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax Pressure (bar)Min Start Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
InletDrainABC
X1M1601FBBE$0.92406306000/7003/8″ BSPP3/8″ BSPP78.137.366.1
X1M1701FBBE$1.22506306000/7003/8″ BSPP3/8″ BSPP79.037.867.0
X1M1801FBBE$1.72506306000/7003/8″ BSPP3/8″ BSPP80.538.568.5
X1M2001FBBE$2.22506256000/7003/8″ BSPP3/8″ BSPP82.539.570.5
X1M2101FBBE$2.62506206000/7003/8″ BSPP3/8″ BSPP84.540.572.5
X1M2301FBBE$3.22506156000/7003/8″ BSPP3/8″ BSPP86.541.574.5
X1M2501FBBE$3.62506156000/7003/8″ BSPP3/8″ BSPP88.542.576.5
X1M2701FBBE$4.32506156000/7003/8″ BSPP3/8″ BSPP90.543.578.5
X1M2901FBBE$4.92506156000/7003/8″ BSPP3/8″ BSPP93.545.081.5
X1M3101FBBE$5.92506155000/7003/8″ BSPP3/8″ BSPP97.046.885.0
X1M3201FBBE$6.52506105000/7003/8″ BSPP3/8″ BSPP98.548.086.5
X1M3401FBBE$7.82206105000/7003/8″ BSPP3/8″ BSPP103.550.091.5
X1M3601FBBE$9.81906104000/7003/8″ BSPP3/8″ BSPP112.554.5100.5



Group 1 Motor Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX1M1.A$NBR
8KGX1M1.V$Viton

Group 1 Motor SAE AA Mount, 1/2” Keyed Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax Pressure (bar)Min Start Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
InletDrainABC
X1M1661BBBE$0.92406306000/7003/8″ BSPP3/8″ BSPP82.641.870.6
X1M1761BBBE$1.22506306000/7003/8″ BSPP3/8″ BSPP83.542.371.5
X1M1861BBBE$1.72506306000/7003/8″ BSPP3/8″ BSPP85.043.073.0
X1M206IBBBE$2.22506256000/7003/8″ BSPP3/8″ BSPP87.044.075.0
X1M2161BBBE$2.62506206000/7003/8″ BSPP3/8″ BSPP89.045.077.0
X1M2361BBBE$3.22506156000/7003/8″ BSPP3/8″ BSPP91.046.579.0
X1M2561BBBE$3.62506156000/7003/8″ BSPP3/8″ BSPP93.047.081.0
X1M2761BBBE$4.32506156000/7003/8″ BSPP3/8″ BSPP95.048.083.0
X1M2961BBBE$4.92506156000/7003/8″ BSPP3/8″ BSPP98.049.586.0
X1M3161BBBE$5.92506155000/7003/8″ BSPP3/8″ BSPP101.551.389.5
X1M3261BBBE$6.52506105000/7003/8″ BSPP3/8″ BSPP105.052.593.0
X1M3461BBBE$7.82206105000/7003/8″ BSPP3/8″ BSPP108.054.596.0
X1M3661BBBE$9.81906104000/7003/8″ BSPP3/8″ BSPP117.059.0105.0



Group 1 Motor Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX1M2.A$NBR
8KGX1M2.V$Viton

VIVOIL GROUP 2 MOTORS NOMENCLATURE

ORDER CODES FOR VIVOIL GROUP 2 MOTORS

Series Group Motor Displacement Flange Shaft Inlet Port Outlet Port Rear Cover
x 2 M 51 32 A C C F
DISPLACEMENT
4.2cc 41
6.0cc 43
8.4cc 45
10.8cc 47
14.4cc 49
16.8cc 51
19.2cc 53
22.8cc 55
26.2cc 57
30.0cc 59
34.2cc 61
39.6cc 63
PORTS INLET OUTLET
4.2cc B B
6.0cc B B
8.4cc B B
10.8cc B B
14.4cc C C
16.8cc C C
19.2cc C C
22.8cc C C
26.2cc D D
30.0cc D D
34.2cc D D
39.6cc D D
 B = 1/2″ BSPP
C = 3/4″ BSPP
D = 1″ BSPP
FLANGE
01 25
31 13
REAR COVER

E

F

K

001

<tbody

SHAFT

F

E

A

B

I

VIVOIL GROUP 2 MOTORS

Group 2 Motor DIN Mount, 1:8 Tapered Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax Pressure (bar)Min Start Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
InletDrainABC
X2M4101EBBE$4.23006303500/7001/2″ BSPP1/2″ BSPP87.241.777.2
X2M4301EBBE$6.03006253500/7001/2″ BSPP1/2″ BSPP90.243.280.2
X2M4501EBBE$8.43006203500/7001/2″ BSPP1/2″ BSPP94.245.284.2
X2M4701EBBE$10.83006203500/7001/2″ BSPP1/2″ BSPP98.247.288.2
X2M4901ECCE$14.42906153500/7003/4″ BSPP3/4″ BSPP104.250.294.2
X2M5101ECCE$16.82706153500/7003/4″ BSPP3/4″ BSPP108.252.298.2
X2M5301ECCE$19.22506153000/7003/4″ BSPP3/4″ BSPP112.254.2102.2
X2M5501ECCE$22.82406153000/7003/4″ BSPP3/4″ BSPP118.257.2108.2
X2M5701EDDE$26.22106153000/7001″ BSPP1″ BSPP122.259.2112.2
X2M5901EDDE$30.02006152500/7001″ BSPP1″ BSPP130.263.2120.2
X2M6101EDDE$34.21906152500/7001″ BSPP1″ BSPP137.266.7127.2
X2M6301EDDE$39.61806152000/7001″ BSPP1″ BSPP146.271.2136.2



Group 2 Motor Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX2M1.A$NBR
8KGX2M1.V$Viton

Group 2 Motor SAE A Mount, 5/8” Keyed Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax Pressure (bar)Min Start Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
InletDrainABC
X2M4131BBBE$4.23006303500/7001/2″ BSPP1/2″ BSPP88.039.478.0
X2M4331BBBE$6.03006253500/7001/2″ BSPP1/2″ BSPP91.039.481.0
X2M4531BBBE$8.43006203500/7001/2″ BSPP1/2″ BSPP95.041.485.0
X2M4731BBBE$10.83006203500/7001/2″ BSPP1/2″ BSPP99.045.889.0
X2M4931BCCE$14.42906153500/7003/4″ BSPP3/4″ BSPP105.045.895.0
X2M5131BCCE$16.82706153500/7003/4″ BSPP3/4″ BSPP109.045.899.0
X2M5331BCCE$19.22506153000/7003/4″ BSPP3/4″ BSPP113.045.8103.0
X2M5531BCCE$22.82406153000/7003/4″ BSPP3/4″ BSPP119.053.3109.0
X2M5731BDDE$26.22106153000/7001″ BSPP1″ BSPP123.053.3113.0
X2M5931BDDE$30.02006152500/7001″ BSPP1″ BSPP131.061.5121.0
X2M6131BDDE$34.21906152500/7001″ BSPP1″ BSPP138.061.5128.0
X2M6331BDDE$39.61806152000/7001″ BSPP1″ BSPP147.061.5137.0



Group 2 Motor SAE A Mount, 5/8” 9 Tooth Splined Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax Pressure (bar)Min Start Pressure (bar)Max/Min Speed (RPM)Port SPort PDimension (mm)
InletDrainABC
X2M4131IBBE$4.23006303500/7001/2″ BSPP1/2″ BSPP88.039.478.0
X2M4331IBBE$6.03006253500/7001/2″ BSPP1/2″ BSPP91.039.481.0
X2M4531IBBE$8.43006203500/7001/2″ BSPP1/2″ BSPP95.041.485.0
X2M4731IBBE$10.83006203500/7001/2″ BSPP1/2″ BSPP99.045.889.0
X2M4931ICCE$14.42906153500/7003/4″ BSPP3/4″ BSPP105.045.895.0
X2M5131ICCE$16.82706153500/7003/4″ BSPP3/4″ BSPP109.045.899.0
X2M5331ICCE$19.22506153000/7003/4″ BSPP3/4″ BSPP113.045.8103.0
X2M5531ICCE$22.82406153000/7003/4″ BSPP3/4″ BSPP119.053.3109.0
X2M5731IDDE$26.22106153000/7001″ BSPP1″ BSPP123.053.3113.0
X2M5931IDDE$30.02006152500/7001″ BSPP1″ BSPP131.061.5121.0
X2M6131IDDE$34.21906152500/7001″ BSPP1″ BSPP138.061.5128.0
X2M6331IDDE$39.61806152000/7001″ BSPP1″ BSPP147.061.5137.0



VIVOIL GROUP 3 MOTORS NOMENCLATURE

ORDER CODES FOR VIVOIL GROUP 3 MOTORS

SeriesGroupMotorDisplacementFlangeShaftInlet PortOutlet PortRear Cover
x3M6632IDDE

VIVOIL GROUP 3 MOTORS

Group 3 Motor DIN Mount, 1:8 Tapered Shaft

DISPLACEMENT
14.9cc 66
17.4cc 68
21.1cc 70
27.0cc 72
32.3cc 74
38.5cc 78
43.4cc 79
47.2cc 80
50.9cc 81
54.6cc 82
60.8cc 83
64.5cc 85
70.7cc 86
74.5cc 81
86.9cc 89
FLANGE
01
31
SHAFT
A
H
I
PORTS INLET OUTLET
14.9cc D D
17.4cc D D
21.1cc D D
27.0cc E E
32.3cc E E
38.5cc E E
43.4cc E E
47.2cc E E
50.9cc E E
54.6cc E E
60.8cc E E
64.5cc E E
70.7cc F F
74.5cc F F
86.9cc F F

D = 3/4″ BSPP
E = 1″ BSPP
F = 1.1/4″ BSPP

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax Pressure (bar)Min Start PressureMax/Min Speed (RPM)Port SPort PDimension (mm)
InletDrainAB
X3M6601ADDE$14.93206203000/7003/4″ BSPP3/4″ BSPP124.061.0
X3M6801ADDE$17.43206203000/7003/4″ BSPP3/4″ BSPP126.062.0
X3M7001ADDE$21.13006153000/7003/4″ BSPP3/4″ BSPP129.063.5
X3M720IAEEE$27.02706103000/7003/4″ BSPP3/4″ BSPP133.065.5
X3M7401 AEEE$32.32706103000/7001″ BSPP1″ BSPP138.068.0
X3M7801 AEEE$38.52706102800/7001″ BSPP1″ BSPP143.070.5
X3M7901AEEE$43.42506102800/7001″ BSPP1″ BSPP147.072.5
X3M8001AEEE$47.22506102800/7001″ BSPP1″ BSPP150.074.0
X3M8101AEEE$50.92506102800/7001″ BSPP1″ BSPP153.075.5
X3M8201AEEE$54.62506102300/7001″ BSPP1″ BSPP156.077.0
X3M8301AFFE$60.82206102300/7001.1/4″ BSPP1.1/4″ BSPP161.079.5
X3M8501AFFE$64.52206102300/7001.1/4″ BSPP1.1/4″ BSPP164.081.0
X3M8601AFFE$70.72106102300/7001.1/4″ BSPP1.1/4″ BSPP169.083.5
X3M8701AFFE$74.51906102300/7001.1/4″ BSPP1.1/4″ BSPP172.085.0
X3M8901AFFE$86.91606102300/7001.1/4″ BSPP1.1/4″ BSPP182.090.0



Group 3 Motor Seal Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Material
8KGX3M1.A$NBR
8KGX3M1.V$Viton
35a

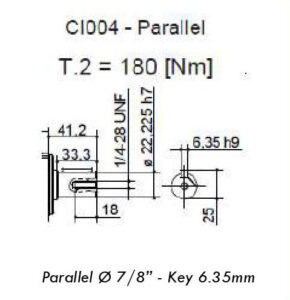

Group 3 Motor SAE B Mount, 7/8” Keyed Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax Pressure (bar)Min Start PressureMax/Min Speed (RPM)Port SPort PDimension (mm)
InletDrainAB
X3M7031BDDE$21.13006153000/7003/4″ BSPP3/4″ BSPP129.063.5
X3M7231HEEE$27.02706103000/7003/4″ BSPP3/4″ BSPP133.065.5
X3M7431HEEE$32.32706103000/7001″ BSPP1″ BSPP138.068.0
X3M7831HEEE$38.52706102800/7001″ BSPP1″ BSPP143.070.5
X3M7931HEEE$43.42506102800/7001″ BSPP1″ BSPP147.072.5
X3M8031HEEE$47.22506102800/7001″ BSPP1″ BSPP150.074.0
X3M8131HEEE$50.92506102800/7001″ BSPP1″ BSPP153.075.5
X3M8231HEEE$54.62506102300/7001″ BSPP1″ BSPP156.077.0
X3M8331HFFE$60.82206102300/7001.1/4″ BSPP1.1/4″ BSPP161.079.5
X3M8631HFFE$70.72106102300/7001.1/4″ BSPP1.1/4″ BSPP169.083.5
X3M8731HFFE$74.51906102300/7001.1/4″ BSPP1.1/4″ BSPP172.085.0
X3M8931HFFE$86.91606102300/7001.1/4″ BSPP1.1/4″ BSPP182.090.0



Group 3 Motor SAE B Mount, 7/8” 13 Tooth Splined Shaft

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax Pressure (bar)Min Start PressureMax/Min Speed (RPM)Port SPort PDimension (mm)
InletDrainAB
X3M6631IDDE$14.93206203000/7003/4″ BSPP3/4″ BSPP124.061.0
X3M7031IDDE$21.13006153000/7003/4″ BSPP3/4″ BSPP129.063.5
X3M7231IEEE$27.02706103000/7003/4″ BSPP3/4″ BSPP133.065.5
X3M7431IEEE$32.32706103000/7001″ BSPP1″ BSPP138.068.0
X3M7831IEEE$38.52706102800/7001″ BSPP1″ BSPP143.070.5
X3M7931IEEE$43.42506102800/7001″ BSPP1″ BSPP147.072.5
X3M8031IEEE$47.22506102800/7001″ BSPP1″ BSPP150.074.0
X3M8131IEEE$50.92506102800/7001″ BSPP1″ BSPP153.075.5
X3M8231IEEE$54.62506102300/7001″ BSPP1″ BSPP156.077.0
X3M8331IFFE$60.82206102300/7001.1/4″ BSPP1.1/4″ BSPP161.079.5
X3M8531IFEE$64.52206102300/7001.1/4″ BSPP1.1/4″ BSPP164.081.0
X3M8631IFFE$70.72106102300/7001.1/4″ BSPP1.1/4″ BSPP169.083.5
X3M8731IFEE$74.51906102300/7001.1/4″ BSPP1.1/4″ BSPP172.085.0
X3M8931IFFE$86.91606102300/7001.1/4″ BSPP1.1/4″ BSPP182.090.0



VIVOIL GEAR FLOW DIVIDERS

2-Way Rotary Gear Flow Dividers, Differential Relief

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Displacement per SectionBody SizeMax Pressure (bar)Inlet Flow Ratings (Ipm)Port Size (BSPP)Relief Range (bar)
MinRecommendedMaxInOut
9RV02B04$0.45Group 02101.22.46.01/4″1/4″35-175
9RV02B06$0.76Group 02102.04.09.61/4″1/4″35-175
9RV02B09$1.27Group 02103.06.014.41/4″1/4″35-175
9RV02A18$1.70Group 12204.08.018.01/2″3/8″7-210
9RV02A23$3.20Group 12207.015.036.01/2″3/8″7-210
9RV02A32$6.50Group 122013.026.060.01/2″3/8″7-210
9RV02B45$8.40Group 221021.630.245.03/4″1/2″70-210
9RV02B47$10.80Group 221026.438.855.03/4″1/2″70-210
9RV02B51$16.80Group 220040.860.485.03/4″1/2″70-210
9RV02B55$22.80Group 218052.882.0110.03/4″1/2″70-210
9RV02B59$30.00Group 216072.0108.0150.01”3/4″70-210
9RV02B63$39.60Group 213096.0142.6200.01”3/4″70-210
9RV02B70$21.00Group 328050.076.0105.01”1/2″70-210
9RV02B78$38.00Group 325082.0120.0182.01”3/4″70-210
9RV02B81$51.00Group 3230102.0153.0234.01.1/4″1”70-210
9RV02B85$64.00Group 3210114.0166.0256.01.1/4″1”70-210



4-Way Rotary Gear Flow Dividers, Differential Relief

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Displacement per SectionBody SizeMax Pressure (bar)Inlet Flow Ratings (Ipm)Port Size (BSPP)Relief Range (bar)
MinRecomendedMaxInOut
9RV04B04$0.45Group 02102.44.812.01/4″1/4″35-175
9RV04B06$0.76Group 02104.08.019.21/4″1/4″35-175
9RV04B09$1.27Group 02106.012.028.81/4″1/4″35-175
9RV04A18$1.70Group 12208.016.036.01/2″3/8″7-210
9RV04A23$3.20Group 122014.030.072.01/2″3/8″7-210
9RV04A32$6.50Group 122026.052.0120.01/2″3/8″7-210
9RV04B45$8.40Group 221043.260.490.03/4″1/2″70-210
9RV04B47$10.80Group 221052.877.6110.03/4″1/2″70-210
9RV04B51$16.80Group 220081.6120.8170.03/4″1/2″70-210
9RV04B55$22.80Group 2180105.6164.0220.03/4″1/2″70-210
9RV04B59$30.00Group 2160144.0216.0300.01″3/4″70-210
9RV04B63$39.60Group 2130192.0285.2400.01″3/4″70-210
9RV04B70$21.00Group 3280100.0152.0210.01″1/2″70-210
9RV04B78$38.00Group 3250164.0240.0364.01″1/2″70-210
9RV04B81$51.00Group 3230204.0306.0468.01.1/4″1″70-210
9RV04B85$64.00Group 3210228.0332.0512.01.1/4″1″70-210



2-Way Rotary Gear Flow Dividers, Differential Relief

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Maximum Pressure (bar)Inlet Flow Ratings (Ipm)Port Size (BSPP)Pressure Drop (bar)
ContinuousDifferentialMinMaxInOut
1FDF-1.6-L05-2$2401243101/2″3/8″16-19
1FDF-3.18-L08-2$2401246203/4″1/2″16-19
1FDF-5.29 L08-2$24012410323/4″1/2″16-19
1FDF-8.42-L08-2$24012416423/4″1/2″16-19
2FDF-14-L08-2$22020028703/4″1/2″11-14
2FDF-25-L03-2$220200501251″3/4″11-14

4-Way Rotary Gear Flow Dividers, Differential Relief

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Maximum Pressure (bar)Inlet Flow Ratings (Ipm)Port Size (BSPP)Pressure Drop(bar)
ContinuousDifferentialMinMaxInOut
1FDF-1.6-L05-4$2401243101/2″3/8″16-19
1FDF-3.18-L08-4$2401246203/4″1/2″16-19
1FDF-5.29 L08-4$24012410323/4″1/2″16-19
1FDF-8.42-L08-4$24012416501″1/2″16-19
2FDF-14-L08-4$220200281401″3/4″11-14
2FDF-25-L03-4$220200502501.1/2″1″11-14

6-Way Rotary Gear Flow Dividers, Differential Relief

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Maximum Pressure (bar)Inlet Flow Ratings (lpm)Port Size (BSPP)Pressure Drop(bar)
ContinuousDifferentialMinMaxInOut
1FDF-2.0-L05 -6$24012412361/2″3/8″16-19

Product Enquiry

Eg. 5x Part Number
Please enter your physical address for your us to quote on freight delivery.
=

Lot 25, Mannanarie Road, JAMESTOWN SA
PO Box 178 , JAMESTOWN South Australia 5491

Call Charles 0418 641 566

© 2024 Catford Engineering. All Rights Reserved.
Website by Tracey Dewell Designs
Login to your account
