Hydraulic Rams - Australian Made

At Catford Engineering we offer a wide range of hydraulic products. Browse our hydraulic Australian made cylinders/rams and parts.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

*AG Cylinders 1.5” Bore  *AG Cylinders 2.0” Bore  *AG Cylinders 2.5” Bore  *AG Cylinders 3.0” Bore *AG Cylinders 3.5” Bore  *AG Cylinders 4.0” Bore  *AG Cylinders 5.0” Bore  *AG Toplink Cylinders 2.5” Bore  *Phasing Cylinders  *Short Closed Length Cylinders  *Special Length Cylinders  *Landing Legs  *Chute Jack Cylinders  *Cylinder/ram Attachments  *Common Swivel Foot  *Whoa-Stop Cylinder/ram Stroke Control Segments  *Cylinder/ram Pins, Plugs & Breathers  *Cylinder/ram Seal Kits

*WARNING: Hydraulic cylinders without a hose burst valve, pilot operated check valve or counter balance valve directly mounted to the cylinder/ram will not meet Australian Standard AS1418.8, nor occupational health & safety rules.

Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491

Hydraulic Cylinders / Rams

AG Cylinders 1.5" Bore Pricing

Part Number

List Price Exc GST

StrokeClosedOpenDescription
InchmmInchmm
TAG 1502D$450.002″11.5″292.113.5″342.9

Maximum Pressure:
3500psi

Ports:
9/16″ UNO

Pins:
3/4″ pins

TAG 1504D$460.004″13.5″342.917.5″444.5
TAG 1506D$470.006″15.5″393.721.5″546.1
TAG 1508D$480.008″17.5″444.525.5″647.7
TAG 1510D$490.0010″19.5″495.329.5″749.3
TAG 1512D$510.0012″21.5″546.133.5″850.9
TAG 1514D$530.0014″23.5″596.937.5″952.5
TAG 1516D$550.0016″25.5″647.741.5″1054.1
TAG 1518D$570.0018″27.5″698.545.5″1155.7
TAG 1520D$590.0020″29.5″749.349.5″1257.3
TAG 1524D$630.0024″33.5″850.957.5″1460.5
TAG 1530D$690.0030″39.5″1003.369.5″1765.3
TAG 1536D$750.0036″45.5″1155.781.5″2070.1
TAG 1548D$910.0048″57.5″1460.5105.5″2679.7

AG Cylinders 2.0" Bore Pricing

Part NumberList Price Exc GSTStrokeClosedOpenDescription
InchmmInchmm
TAG 2002D$430.002″14.25″361.9516.25″412.75

Maximum Pressure:
3500psi

Ports:
9/16″ UNO

Pins:
1″ pins

TAG 2004D$435.004″16.25″412.7520.25″514.35
TAG 2006D$440.006″18.25″463.5524.25″615.95
TAG 2008D$445.008″20.25″514.3528.25″717.55
TAG 2010D$460.0010″22.25″565.1532.25″819.15
TAG 2012D$480.0012″24.25″615.9536.25″920.75
TAG 2014D$505.0014″26.25″666.7540.25″1022.35
TAG 2016D$525.0016″28.25″717.5544.25″1123.95
TAG 2018D$545.0018″30.25″768.3548.25″1225.55
TAG 2020D$580.0020″32.25″819.1552.25″1327.15
TAG 2022D$615.0022″34.25″869.9556.25″1428.75
TAG 2024D$620.0024″36.25″920.7560.25″1530.35
TAG 2026D$680.0026″38.25″971.5564.25″1631.95
TAG 2028D$705.0028″40.25″1022.3568.25″1733.55
TAG 2030D$725.0030″42.25″1073.1572.25″1835.15
TAG 2036D$765.0036″48.25″1225.5584.25″2139.95
TAG 2042D$895.0042″54.25″1377.9596.25″2444.75
TAG 2048D$940.0048″60.25″1530.35108.25″2749.55
TAG 2054D$1060.0054″66.25″1682.75120.25″3054.35

AG Cylinders 2.5" Bore Pricing

Part NumberList Price Exc GSTStrokeClosedOpenDescription
InchmmInchmm
TAG 2504D$435.004″16.25″412.7520.25″514.35

Maximum Pressure:
3500psi

Ports:
3/4″ UNO

Pins:
1″ pinsT

TAG 2506D$440.006″18.25″463.5524.25″615.95
TAG 2508D$445.008″20.25″514.3528.25″714.55
TAG 2510D$470.0010″22.25″565.1532.25″819.15
TAG 2512D$495.0012″24.25″615.9536.25″920.75
TAG 2514D$520.0014″26.25″666.7540.25″1022.25
TAG 2516D$540.0016″28.25″717.5544.25″1123.25
TAG 2518D$560.0018″30.25″768.3548.25″1225.55
TAG 2520D$600.0020″32.25″819.1552.25″1327.15
TAG 2522D$610.0022″34.25″869.9556.25″1428.75
TAG 2524D$630.0024″36.25″920.7560.25″1530.35
TAG 2526D$686.0026″38.25″971.5564.25″1631.95
TAG 2528D$724.0028″40.25″1022.2568.25″1733.55
TAG 2530D$740.0030″42.25″1073.1572.25″1835.15
TAG 2536D$800.0036″48.25″1225.5584.25″2139.95
TAG 2542D$895.0042″54.25″1377.9596.25″2444.75
TAG 2548D$920.0048″60.25″1530.35108.25″2749.55
TAG 25-1500D$1144.001500mm71.30″1811.15130.36″3311.15
TAG 25-2000D$1424.002000mm90.98″2311.1169.73″4311.15
TAG 25-2500D$1704.002500mm110.67″2811.15209.10″5311.15

AG Cylinders 3.0" Bore Pricing

Part NumberList Price Exc GSTStrokeClosedOpenDescription
InchmmInchmm
TAG 3004D$520.004″16.25″412.7520.25″514.35

Maximum Pressure:
3500psi

Ports:
3/4″ UNO

Pins:
1″ pins

TAG 3006D$525.006″18.25″463.5524.25″615.95
TAG 3008D$530.008″20.25″514.3528.25″714.55
TAG 3010D$540.0010″22.25″565.1532.25″819.15
TAG 3012D$570.0012″24.25″615.9536.25″920.75
TAG 3014D$620.0014″26.25″666.7540.25″1022.25
TAG 3016D$650.0016″28.25″717.5544.25″1123.25
TAG 3018D$655.0018″30.25″768.3548.25″1225.55
TAG 3020D$715.0020″32.25″819.1552.25″1327.15
TAG 3022D$735.0022″34.25″869.9556.25″1428.75
TAG 3024D$755.0024″36.25″920.7560.25″1530.35
TAG 3026D$795.0026″38.25″971.5564.25″1631.95
TAG 3028D$815.0028″40.25″1022.3568.25″1733.55
TAG 3030D$835.0030″42.25″1073.1572.25″1835.15
TAG 3036D$925.0036″48.25″1225.5584.25″2139.95
TAG 3042D$1025.0042″54.25″1377.9596.25″2444.75
TAG 3048D$1085.0048″60.25″1530.35108.25″2749.55

AG Cylinders 3.5" Bore Pricing

Number PartList Price Exc GSTStrokeClosedOpenDescription
InchmmInchmm
TAG 3506D$660.006″18.25″463.5524.25″615.95

Maximum Pressure:
3500psi

Ports:
3/4″ UNO

Pins:
1″ pins

TAG 3508D$680.008″20.25″514.3528.25″714.55
TAG 3510D$700.0010″22.25″565.1532.25″819.15
TAG 3512D$740.0012″24.25″615.9536.25″920.75
TAG 3514D$790.0014″26.25″666.7540.25″1022.25
TAG 3516D$840.0016″28.25″717.5544.25″1123.25
TAG 3518D$880.0018″30.25″768.3548.25″1225.55
TAG 3520D$925.0020″32.25″819.1552.25″1327.15
TAG 3524D$1020.0024″36.25″920.7560.25″1530.35
TAG 3530D$1140.0030″42.25″1073.1572.25″1835.15
TAG 3536D$1280.0036″48.25″1225.5584.25″2139.95
TAG 3542D$1450.0042″54.25″1377.9596.25″2444.75
TAG 3548D$1530.0048″60.25″1530.35108.25″2749.55

AG Cylinders 4.0" Bore Pricing

Part NumberList Price Exc GSTStrokeRodClosedOpenDescription
InchmmInchmm
TAG 4004D$760.004″ 16.25″412.7520.25″514.35

Maximum Pressure:
3500psi

Ports:
3/4″ UNO

Pins:
1″ pins

TAG 4006D$780.006″ 18.25″463.5524.25″615.95
TAG 4008D$800.008″ 20.25″514.3528.25″717.55
TAG 4012D$880.0012″ 24.25″615.9536.25″920.75
TAG 4016D$990.0016″ 28.25″717.5544.25″1123.95
TAG 4018D$1040.0018″ 30.25″768.3548.25″1225.55
TAG 4020D$1100.0020″1.75″32.25″819.1552.25″1327.15
TAG 4024D$1195.0024″ 36.25″920.7560.25″1530.35
TAG 4030D$1360.0030″ 42.25″1073.1572.25″1835.15
TAG 4036D$1510.0036″ 48.25″1225.5584.25″2139.95
TAG 4042D$1660.0042″ 54.25″1377.9596.25″2444.75
TAG 4048D$1820.0048″ 60.25″1530.35108.25″2749.55
TAG 4012D-200$950.0012″ 24.25″615.9536.25″920.75
TAG 4016D-200$960.0016″2″28.25″717.5544.25″1123.95
TAG 4018D-200$1110.0018″ 30.25″768.3548.25″1225.55
TAG 4024D-200$1265.0024″ 36.25″920.7560.25″1530.35

AG Cylinders 5.0" Bore Pricing

Number PartList Price Exc GSTStrokeClosedOpenDescription
InchmmInchmm
TAG 5008D$1030.008″20.25″514.3528.25″717.55

Maximum Pressure:
3500psi

Ports:
3/4″ UNO

Pins:
1″ pins

TAG 5012D$1150.0012″24.25″615.9536.25″920.75
TAG 5016D$1270.0016″28.25″717.5544.25″1123.95
TAG 5018D$1320.0018″30.25″768.3548.25″1225.55
TAG5020D$1360.0020″32.25″819.1552.25″1327.15
TAG 5024D$1470.0024″36.25″920.7560.25″1530.35
TAG 5030D$1600.0030″42.25″1073.1572.25″1835.15
TAG 5036D$1710.0036″48.25″1225.5584.25″2139.95
TAG 5048D$1980.0048″60.25″1530.35108.25″2749.55

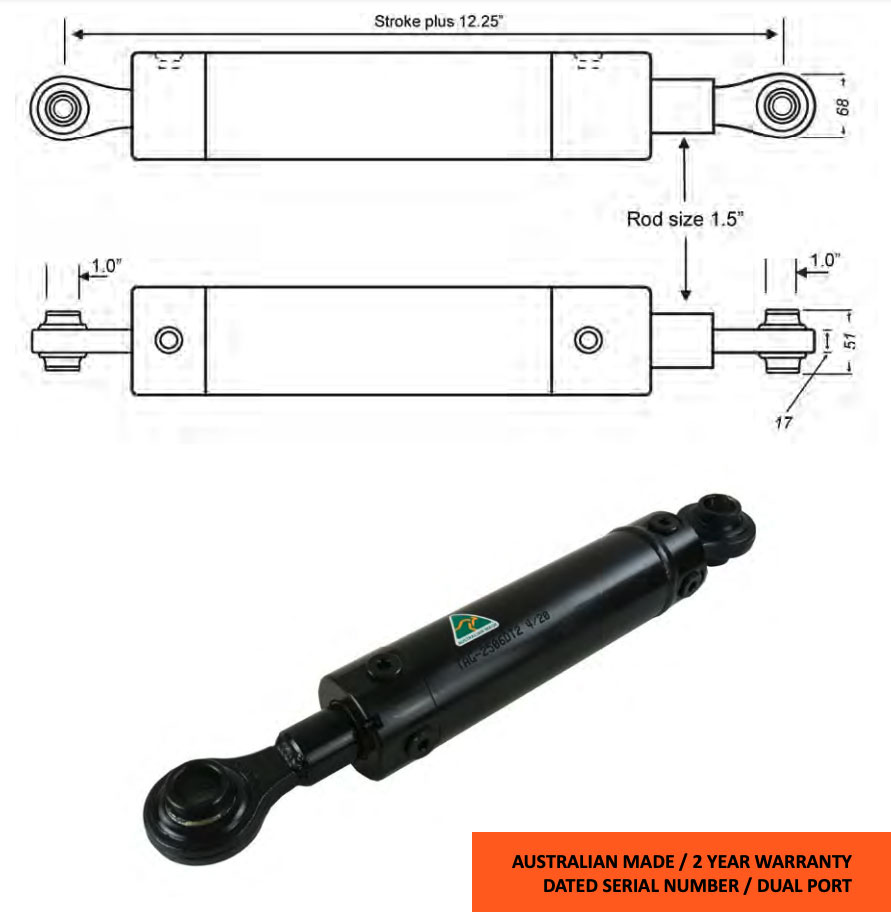

AG Toplink Cylinders 2.5" Bore Pricing

Part NumberList Price Exc GSTStrokeClosedOpenDescription
InchmmInchmm
TAG 2504DT2$510.004″16.25″412.7520.25″514.35

Maximum Pressure:
3500psi

Ports:
3/4″ UNO

Pins:
1″ pins

TAG 2506DT2$520.006″18.25″463.5524.25″615.95
TAG 2508DT2$530.008″20.25″514.3528.25″717.55
TAG 2510DT2$540.0010″22.25″565.1532.25″819.15
TAG 2512DT2$550.0012″24.25″615.9536.25″920.75

Phasing Cylinders

Hydraulic Phasing Cylinders - 8" Stroke Pricing

Part NumberList Price Exc GSTBoreStrokeRodClosedOpen
DiameterInchmmInchmm
TVP300008125$780.003.00″8″1.25″20.25″514.3528.25″717.55
TVP325008125$895.003.25″
TVP350008125$942.003.50″
TVP3750081375$1022.003.75″1.375″
TVP4000081375$999.004.00″
TVP4250081375$1103.004.25″
TVP450008150$1190.004.50″1.50″
TVP475008150$1368.004.75″
TVP500008150$1432.005.00″

Hydraulic Phasing Cylinders - 12" Stroke Pricing

Part NumberList Price Exc GSTBoreStrokeRod DiameterClosedOpen
InchmmInchmm
TVP300012125$860.003.00″12″1.25″24.25″615.9536.25″920.75
TVP325012125$970.003.25″
TVP3500121251005.003.50″
TVP3750121375$1103.003.75″1.375″
TVP4000121375$1086.004.00″
TVP4250121375$1276.004.25″
TVP450012150$1363.004.50″1.50″
TVP475012150$1571.004.75″
TVP500012150$1709.005.00″

Hydraulic Phasing Cylinders - 16" Stroke Pricing

Part NumberList Price Exc GSTBoreStrokeRod DiameterClosedOpen
InchmmInchmm
TVP300016125$913.003.00″16″1.25″28.25″717.5544.25″1123.95
TVP325016125$1057.003.25″
TVP350016125$1103.003.50″
TVP3750161375$1196.003.75″1.375″
TVP4000161375$1190.004.00″
TVP4250161375$1294.004.25″
TVP450016150$1398.004.50″1.50″
TVP475016150$1629.004.75″
TVP500016150$1733.005.00″

Hydraulic Phasing Cylinders - 18" Stroke Pricing

Part NumberList Price Exc GSTBoreStrokeRod DiameterClosed Open
InchmmInchmm
TVP300018125$919.003.00″18″1.25″30.25″768.3548.25″1225.55
TVP325018125$1057.003.25″
TVP350018125$1126.003.50″
TVP3750181375$1230.003.75″1.375″
TVP4000181375$1201.004.00″
TVP4250181375$1363.004.25″
TVP450018150$1415.004.50″1.50″
TVP475018150$1652.004.75″
TVP500018150$1756.005.00″

Hydraulic Phasing Cylinders - 24" Stroke Pricing

Part NumberList Price Exc GSTBoreStrokeRod DiameterClosedOpen
InchmmInchmm
TVP300024125$965.003.00″24″1.25″36.25″920.7560.251530.35
TVP325024125$1184.003.25″
TVP350024125$1299.003.50″
TVP3750241375$1386.003.75″1.375″
TVP4000241375$1329.004.00″
TVP4250241375$1571.004.25″
TVP450024150$1698.004.50″1.50″
TVP475024150$1976.004.75″
TVP500024150$2241.005.00″

Hydraulic Phasing Cylinders - 36" Stroke Pricing

Part NumberList Price Exc GSTBoreStrokeRod DiameterClosedOpen
InchmmInchmm
TVP300036125$1484.003.00″36″1.25″48.25″1225.5584.252139.95
TVP325036125$1854.003.25″
TVP350036125$1860.003.50″
TVP3750361375$2114.003.75″1.375″
TVP4000361375$2056.004.00″
TVP4250361375$2374.004.25″
TVP450036150$2379.004.50″1.50″
TVP475036150$2489.004.75″
TVP500036150$2489.005.00″

2” Short Closed Length Cylinders

Part NumberList  Price Exc GSTStrokeClosedOpenDescription
InchmmInchmm
TAG 2004DSHCC$468.004″13.5″342.917.5″444.5Maximum Pressure: 3500psi
Ports: 9/16″
Pins: 3/4″
Rod: 1″
TAG 2006DSHCC$478.006″15.5″393.721.5″546.1
TAG 2008DSHCC$488.008″17.5″444.525.5″647.7
TAG 2012DSHCC$518.0012″21.5″546.133.5″850.9
TAG 2016DSHCC$568.0016″25.5″647.741.5″1054.1

Special Length Cylinders

Part NumberList Price Exc GSTStrokeClosed Centre mmOpen CentreMax PressurePorts/PinsRod
TAG 25-1500D$1144.0015001811.153311.153250psi3/4″ ports1″ pins1.1/2″
TAG 25-2000D$1424.0020002311.154311.15
TAG 25-2500D$1704.0025002811.155311.15
TAG 25-3000D$1984.0030003311.156311.15
TAG 30-1800D-200$2181.0018002111.153911.152″
TAG 30-1900D-200$2362.0019002211.154111.15
TAG 35-2000D$2362.0020002311.154311.151.3/4″

Other Cylinders

Landing Legs

Part NumberList Price Exc GSTRodBoreAStrokeMax PressurePorts
TF301620LEG-S$1455.002″3″245mm16″3500psi9/16″ UNO
TF302020LEG-S$1590.00346mm20″
TF302420LEG-S$1670.00480mm24″

Concrete Truck Chute Jack Cylinders with Check Valve

Part NumberList Price Exc GSTStrokeClosed CentreOpen CentreMax PressurePorts/PinsRod
TCB 30300$725.00300mm564mm864mm3250psi9/16″ ports 16mm eyes1.1/4″

Cylinder Parts

Cylinder Attachments

Part NumberList Price Exc GSTTypeThreadPin SizeMaterialADimensions B(mm) C
CL075$131.00Female Clevis3/4″ UNF0.75″Steel512143
CL100S (short)$151.001.1/4″ UNF1.0″SG Iron6028.666
CL100$154.008827.557.5
CL100STEEL$173.00Steel28.666
CL125CAST$260.001.25″2964
CL150$211.00Block End1.5″n/a63.5
CLM075$172.003/4″ UNF0.75″51n/a40
CLM100$202.001.1/4″ UNF1.0″8750
B310$93.00Ball EndWeld on0.75″58n/a
B311$93.001.0″51

Common Swivel Foot

Part NumberList Price Exc GSTDescription
FOOTMTFEMALE50$303.00Fits any of our hydraulic cylinders (1.1/4″ UNF thread)

Whoa-Stop Cylinder Stroke Control Segments (Made in USA)

Part NumberList Price Exc GSTFor Shaft SizesSet Contains Sizes
WA1090$128.001.128″ > 1.500″0.875″ – 1.000″ – 1.250″ – 1.500″
WA1087$250.001.750″ > 2.000″1.000″ – 1.500″ – 2.000″ – 2.250″

Cylinder Pins

Part NumberList Price Exc GSTADimensions BC
CLPN075-46.5$45.003/4″46.5mm57.5mm
CLPN1-69$41.001″69mm81.5mm
CLPN1-60$41.0060mm72mm
CLPN1-76$41.0076mm90mm
CLPN125-87$60.001.1/4″76mm96mm

Pin Selection Guide

Cylinder Size Size Clevis Pin Base End Pin
TAG 15 3/4" CLPN075-46.5 CLPN075-46.5
TAG 20 SHORT CC
TAG 20 1" CLPN1-69 CLPN1-60
TAG 25
TAG 30 CLPN1-76 CLPN1-69
TAG 35 CLPN1-76
TAG 40
TAG 50

Plugs & Breathers

Part NumberList Price Exc GSTDescription
A9431$37.00Cylinder breather – brass cloth mesh filter – aluminium – 9/16-18 UNO thread
16329A$42.00Cylinder breather – brass cloth mesh filter – aluminium – 3/4-16 UNO thread
DT-SAE6$4.009/16″ UNO plug – hex key – low profile
DT-SAE8$5.003/4″ UNO plug – hex key – low profile

Seal Kits

Part NumberList Price Exc GSTCylinder TypeBore SizeShaft Size
SK15087CAT$119.00TAG Cylinder1.5″0.875″
SK20125CAT$131.002.0″1.25″
SK2515CAT$131.002.5″1.5″
SK3015CAT$142.003.0″
SK35175CAT$144.003.5″1.75″
SK40175CAT$161.004.0″
SK5020CAT$216.005.0″2.0″

Product Enquiry

Eg. 5x Part Number
Please enter your physical address for your us to quote on freight delivery.
=

Login to your account
