Helical Spiral Guard

 5/5

Helical Spiral Guard; Nylon Sleeving for Hydraulic Hose

At Catford Engineering we offer a wide range of hydraulic products. Browse our Spiral Guard specifications and pricing below.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491

Helical Spiral Guard	Nylon sleeving

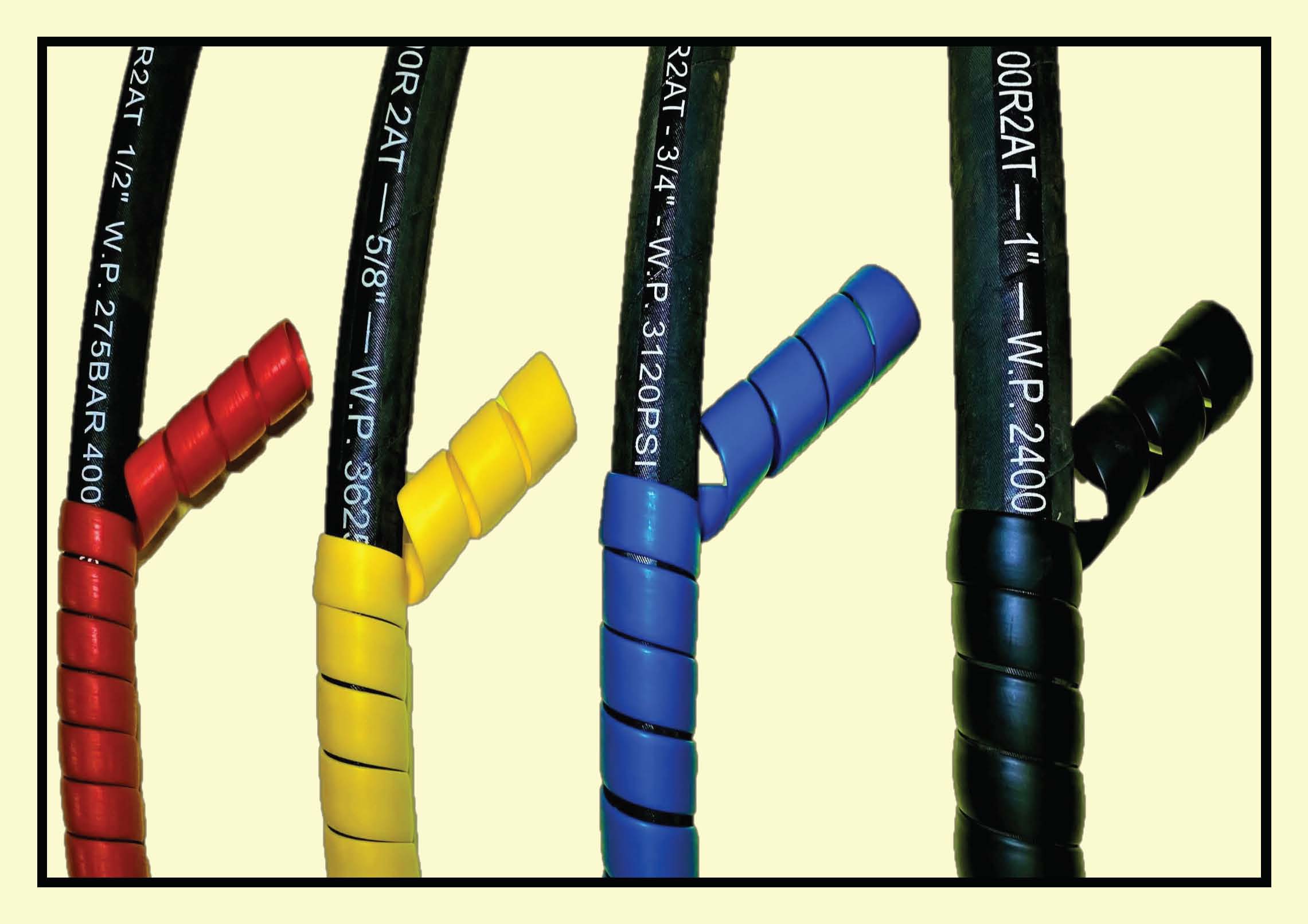

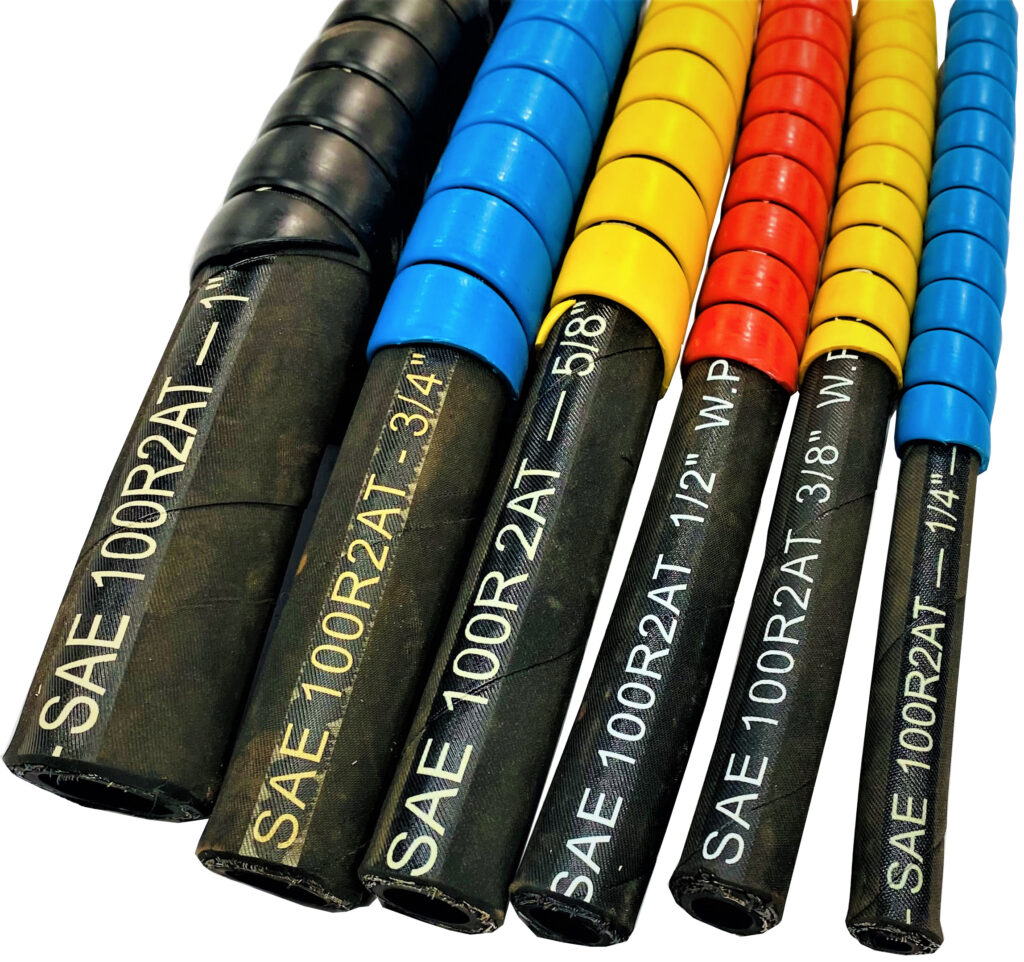

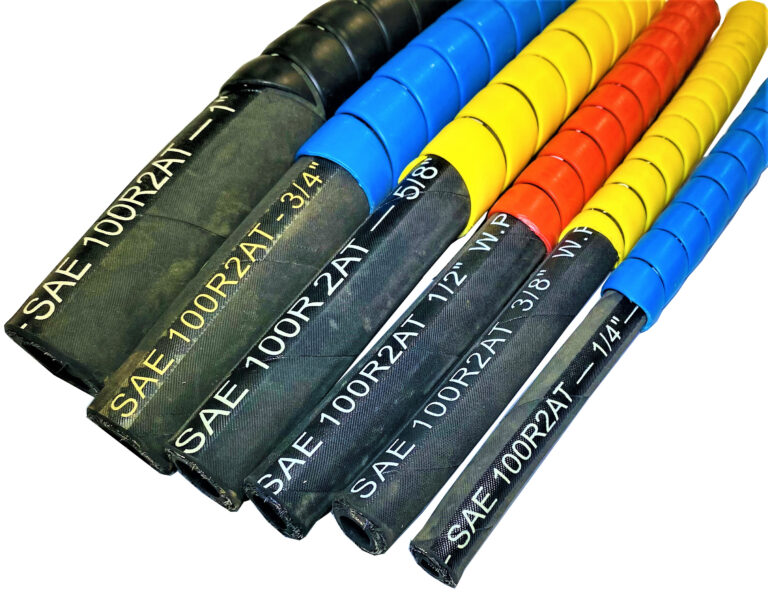

	Catford Spiral Guard is a lightweight product that is a cost-effective way of protecting your hydraulic hoses and cables from abrasion and impact. Sold in 2 metre lengths.

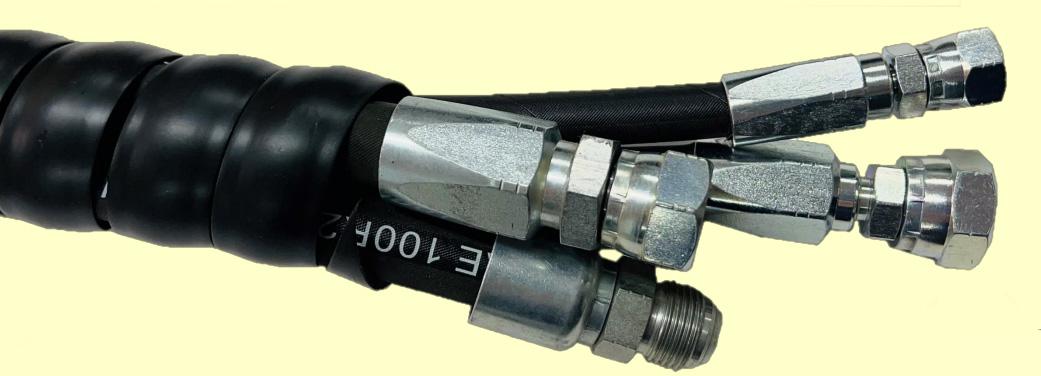

Further Specifications:	Exceptional anti-crushing and abrasion resistance Suitable for use in temperature ranges of: -40°F to +248°F Easy to fit – does not cause injury U.V. resistant Suitable for single or multiple hose bundles Could be easily fitted on site without removal of hoses Self-lubricating to reduce wear on hoses and cables Greatly extends the working life of hydraulic hoses/cable
Colours:	Black, Red, Yellow, Blue

Part Number	I.D.	Suits O.D. Hose	Colour	Price
HPS-12-Black	12	1/4″ Two Braid	Black	2 metres for $6.60
HPS-12-Blue	12	1/4″ Two Braid	Blue	2 metres for $6.60
HPS-12-Yellow	12	1/4″ Two Braid	Yellow	2 metres for $6.60
HPS-16-Black	16	3/8” Two Braid	Black	2 metres for $9.90
HPS-16-Bue	16	3/8” Two Braid	Blue	2 metres for $9.90
HPS-16-Yellow	16	3/8” Two Braid	Yellow	2 metres for $9.90
HPS-18-Black	18	1/2″ & 5/8” Two Braid	Black	2 metres for $12.00
HPS-18-Blue	18	1/2″ & 5/8” Two Braid	Blue	2 metres for $12.00
HPS-18-Yellow	18	1/2″ & 5/8” Two Braid	Yellow	2 metres for $12.00
HPS-18-Red	18	1/2” & 5/8” Two Braid	Red	2 metres for $12.00
HPS-25-Black	25	3/4″ & 1” Two Braid	Black	2 metres for $22.00
HPS-25-Blue	25	3/4″ & 1” Two Braid	Blue	2 metres for $22.00
HPS-25-Yellow	25	3/4” & 1” Two Braid	Yellow	2 metres for $22.00
HPS-25-Red	25	3/4″ & 1” Two Braid	Red	2 metres for $22.00

Part Number	I.D.	Suits O.D. Hose	Colour	Price
HPS-45-Black	45	1-1/4″ & 1-1/2″ Two & Four Braid or Hose Bundles	Black	2 metres for $44.00
HPS-60-Black	60	2″ Two & Four Braid or Hose Bundles	Black	2 metres for $66.00
