Hydraulic Hand Pumps, Diverter & Ball Valves

5/5

Hand Pumps, Diverter and Ball Valves

At Catford Engineering we offer a wide range of hydraulic products. Browse our hydraulic hand pumps, diverter & ball valves specifications and pricing below.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491

Hydraulic Hand Pumps, Diverter & Ball Valves Pricing

Manual Diverter Valves 3 Port

Part Number List Price $ Ports Max Pressure Max Flow Spool Crossover
DDF3380A 88.00 3/8″ BSPP 350 Bar 60 lpm Open Centre
DDF3120A 113.00 1/2″ BSPP 90 lpm
DDF3340A 129.00 3.4" BSPP 120 lpm
DDF3100A 180.00 1" BSPP 300 Bar 200 lpm
DDF3380B 93.00 3/8″ BSPP 350 Bar 60 lpm Closed Centre
DDF3120B 124.00 1/2″ BSPP 90 lpm
DDF3340B 134.00 3.4" BSPP 120 lpm
DDF3100B 185.00 1" BSPP 300 Bar 200 lpm

Manual Diverter Valves 6 Port

Part NumberList Price $PortsMax PressureMax FlowSpool Crossover
DDF6380A185.003/8″ BSPP350 Bar60 lpmOpen Centre
DDF6120AA242.001/2″ BSPP90 lpm
DDF6340A263.003.4″ BSPP120 lpm
DDF6100A386.001″ BSPP300 Bar200 lpm
DDF6380B201.003/8″ BSPP350 Bar60 lpmClosed Centre
DDF6120B258.001/2″ BSPP90 lpm
DDF6340B278.003.4″ BSPP120 lpm
DDF6100B402.001″ BSPP300 Bar200 lpm

Manual Diverter Valves 4 Port

Part NumberList Price $PortsMax PressureMax FlowSpool Crossover
IDF4380A139.003/8″ BSPP350 Bar60 lpmClosed Centre
IDF4120AA144.001/2″ BSPP90 lpm
IDF4340A206.003.4″ BSPP120 lpm
IDF4100A221.001″ BSPP300 Bar200 lpm
IDF4380B134.003/8″ BSPP350 Bar60 lpmOpen Centre
IDF4120B139.001/2″ BSPP90 lpm
IDF4340B201.003.4″ BSPP120 lpm
IDF4100B216.001″ BSPP300 Bar200 lpm

Manual Diverter Valves 8 Port

Part Number List Price $ Ports Max Pressure Max Flow Spool Crossover
IDF8380A 288.00 3/8″ BSPP 350 Bar 60 lpm Closed Centre
IDF8120AA 304.00 1/2″ BSPP 90 lpm
IDF8340A 427.00 3.4″ BSPP 120 lpm
IDF8100A 469.00 1″ BSPP 300 Bar 200 lpm
IDF8380B 278.00 3/8″ BSPP 350 Bar 60 lpm Open Centre
IDF8120B 288.00 1/2″ BSPP 90 lpm
IDF8340B 412.00 3.4″ BSPP 120 lpm
IDF8100B 453.00 1″ BSPP 300 Bar 200 lpm

Replacement Handles

Part NumberList Price $To FitPort Size
120001499.00DDF/IDF1/4″, 3/8″, 1/2″
1200003010.003/4″, 1″

Solenoid Diverter Valves 3 Port

Part Number List Price $ Ports Max Pressure Max Flow Spool Crossover
HVC-10-12VDC 330.00 1/2" BSPP 210 bar 80 lpm open
HVC-10-24VDC

Solenoid Diverter Valves 6 Port

Part Number List Price $ Ports Max Pressure Max Flow Bankable Spool Crossover
MOP-06-12VDC 402.00 3/8″ BSPP 250 bar 50 lpm Yes Closed
MOP-06-24VDC Drain 1/4″ BSPP
Part Number List Price $ Ports Max Pressure Max Flow Bankable Spool Crossover
ZVH-06-12VDC 433.00 3/8″ BSPP 210 bar 50 lpm Yes Open
ZVH-06-24VDC
Part Number List Price $ Ports Max Pressure Max Flow Bankable Spool Crossover
SCS4-1S-1Y-1G4-12VDC 510.00 1/2″ BSPP 315 bar 80 lpm Yes Closed
SCS4-1S-1Y-2G4-24VDC Drain 1/4″ BSPP
Part NumberList Price $PortsMax PressureMax FlowBankableSpool Crossover
SVK-10-12VDC536.003/4″ BSPP250 bar80 lpmYesClosed
SVK-10-24VDCDrain 1/4″ BSPP
Part Number List Price $ Ports Max Pressure Max Flow Bankable Spool Crossover
KVH6-MB-G1/2 422.00 1/2″ BSPP 250 bar 50 lpm No Closed

Ball Valves 2 Port

Part Number List Price $ Ports Max Pressure Max Flow Material
RAS2140P 62.00 1/4" BSPP 500 Bar 25 lpm Steel
RAS2380P 67.00 3/8" BSPP 35 lpm
RAS2120P 82.00 1/2" BSPP 60 lpm
RAS2340P 134.00 3/4" BSPP 400 Bar 100 lpm
RAS2100P 165.00 1" BSPP 350 Bar 150 lpm
RAS2114P 175.00 1.1/4" BSPP
RAS2112P 196.00 1.1/2" BSPP

Ball Valves 3 Port (L port design)

Part Number List Price $ Ports Max Pressure Max Flow Material
RAS3140P 124.00 1/4″ BSPP 400 Bar 25 lpm Steel
RAS3380P 134.00 3/8″ BSPP 35 lpm
RAS3120P 144.00 1/2″ BSPP 350 Bar 60 lpm
RAS3340P 227.00 3/4″ BSPP 100 lpm
RAS3100P 268.00 1″ BSPP 150 lpm
RAS3114P 288.00 1.1/4″ BSPP
RAS3112P 330.00 1.1/2″ BSPP

Replacement Handles

Part NumberList Price $To FitPort Size
8980000142.00RAS2/RAS31/4″, 3/8″, 1/2″
8980000274.003/4″, 1″, 1.1/4″, 1.1/2″

Locking Devices

Part Number List Price $ To Fit Port Size Material
LK6-F 62.00 RAS2/RAS3
Ball Valves
1/4″, 3/8″, 1/2″ Steel
LK20-F 94.00 3/4″, 1″, 1.1/4″, 1.1/2″
Part NumberList Price $To FitPort SizeMaterial
SB698.00

RAS2/RAS3

Ball Valves

1/4″, 3/8″, 1/2″Steel
SB20160.003/4″, 1″, 1.1/4″, 1.1/2″

Single Acting Hand Pumps with Relief - Remote Mounting

Single Acting Hand Pumps with Relief - Tank Mount

Part NumberList Price $SizeOptimal PressureMaximum PressureDescription
PMP20-BYB-E-S407.0020 cc150 bar350 barPressure relief valve. Dual action hand pump for single-acting cylinder for fixing to wall.
PMP50-BYB-E-S458.0050 cc50 bar280 bar
PMP70-BYB-E-S649.0070 cc80 bar200 bar
PMP20-BYB-S407.0020 cc150 bar350 barAs above, with release hand knob
PMP50-BYB-S458.0050 cc50 bar280 bar
PMP70-BYB-S649.0070 cc80 bar200 bar

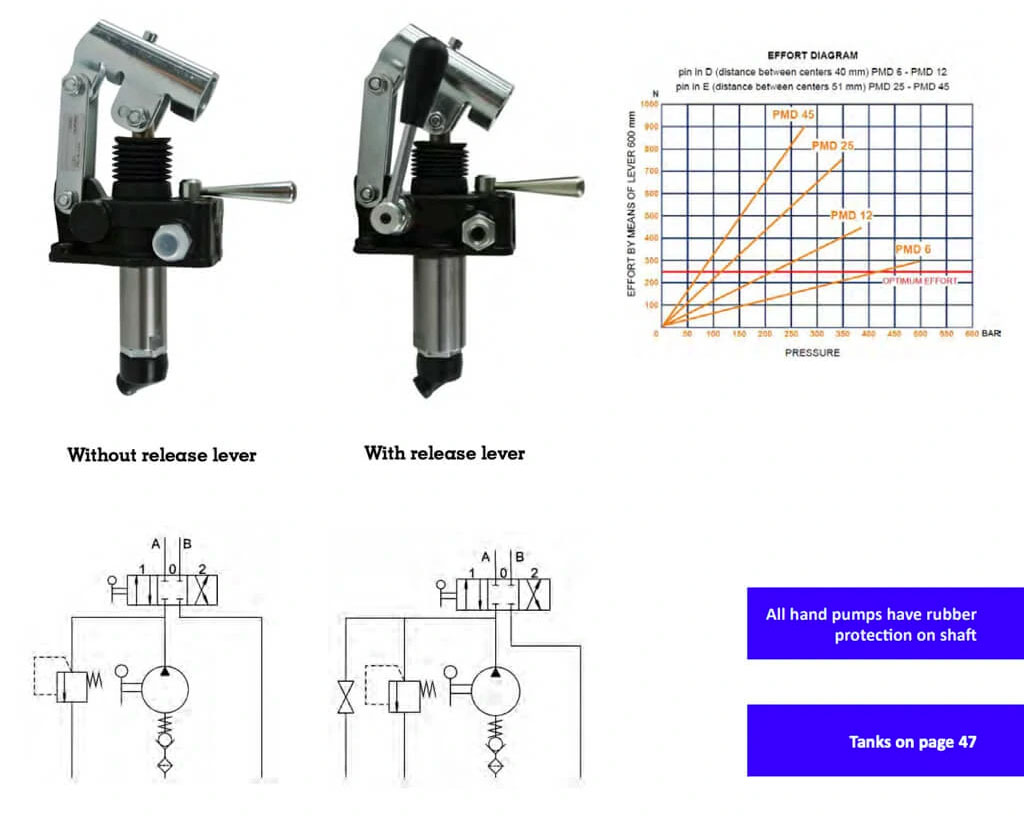

Double Acting Hand Pumps with Relief - Tank Mount

Part NumberList Price $SizeOptimal PressureMaximum PressureDescription
PMD12-BYB-S443.0012 cc220 bar380 barPressure relief valve. 4/3 flow divider closed centre. Dual action hand pump for double-acting cylinder for fixing to tank
PMD25-BYB-S448.0025 cc120 bar350 bar
PMD45-BYB-S469.0045 cc80 bar280 bar
PMD12-BYA-L-S500.0012 cc220 bar380 barAs above, with release lever
PMD25-BYA-L-S505.0025 cc120 bar350 bar
PMD45-BYA-L-S525.0045 cc80 bar280 bar
Part NumberList Price $SizeOptimal PressureMaximum PressureDescription
PM12-BYB-S407.0012 cc220 bar380 barPressure relief valve with hand knob. Dual action hand pump for single-acting cylinder for fixing to tank
PM25-BYB-S407.0025 cc120 bar350 bar
PM45-BYB-S407.0045 cc80 bar250 bar
PM12-BYA-L-S417.0012 cc220 bar380 barAs above, with release lever instead of hand knob
PM25-BYA-L-S422.0025 cc120 bar350 bar
PM45-BYA-L-S427.0045 cc80 bar250 bar

Hi-Lo Hand Pumps with Relief - Tank Mount

Part NumberList Price $SizeMaximum PressureRelief
PM2V-5/80-A-BYB-PM-S1329.0080 cc
(stage 1)
5 cc
(stage 2)
500 bar (stage 1)20 bar (stage 2)Adjustable relief 50-500 bar

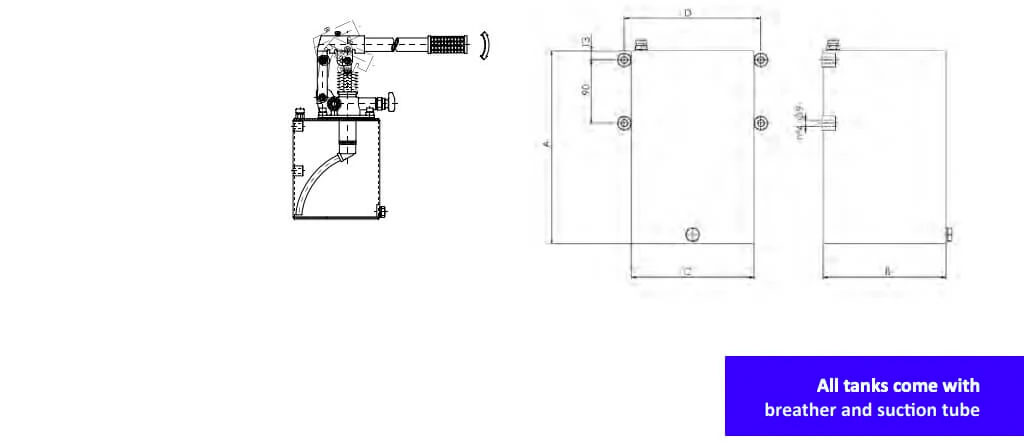

Tanks

Part NumberList Price $SizeABCD
6500.0140134.001 L120mm150mm100mm120mm
6500.0141139.002 L185mm
6500.0142160.003 L255mm
6500.0143191.005 L200mm175mm175mm195mm
6500.0144227.007 L275mm
6500.0145273.0010 L380mm

Hand Pump Parts

Part NumberList Price $Description
0038.0001.00.0022.00Rubber boot – pump shafts
6800.000941.00Pump handle
3000.0000.01.0031.00Gasket & bolt kit – PM pumps
3000.0001.00.0031.00Gasket & bolt kit – PMD pumps
3000.0005.00.0046.00Lowering value (blue knob)
3000.0006.00.0036.00Relief valve
3000.0007.00.0057.00Unload valve (lever)
036.0006.00.0039.00Tank Breather
