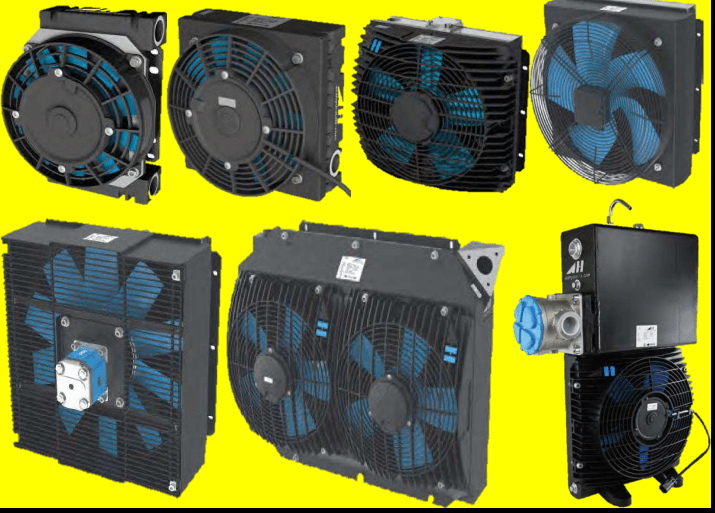

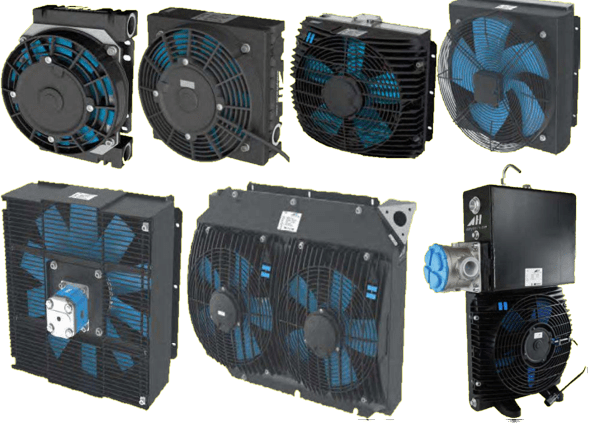

ASA Coolers & Accessories

At Catford Engineering we offer a wide range of hydraulic products. Browse our hydraulic Australian made ASA Coolers & Accessories.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

*Lowline *TT Rail *ASA *CC *Connector Kits
*Brazed Plate Heat Exchangers

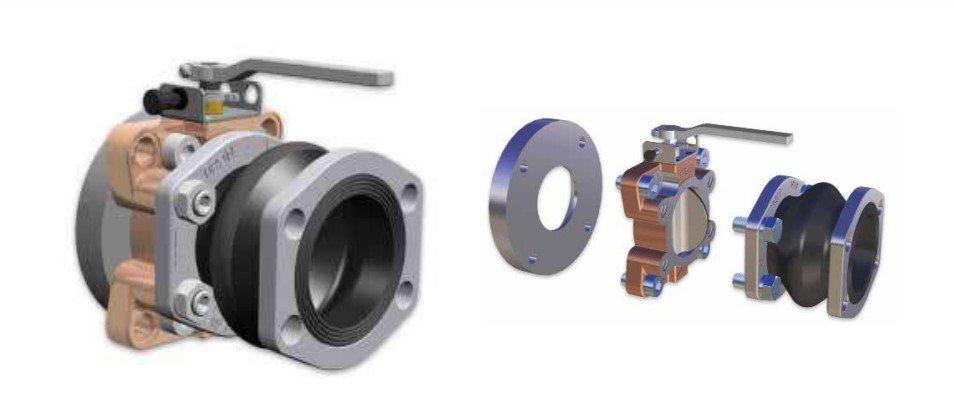

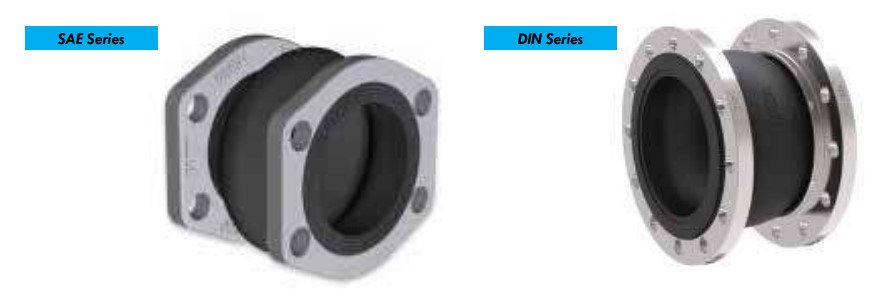

*Compensators *Vibration Mounts *Pump Units

*NOTE: All prices stated within are exclusive of GST

Buy Online
Pricing
Enquire
Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491
Download Brochure

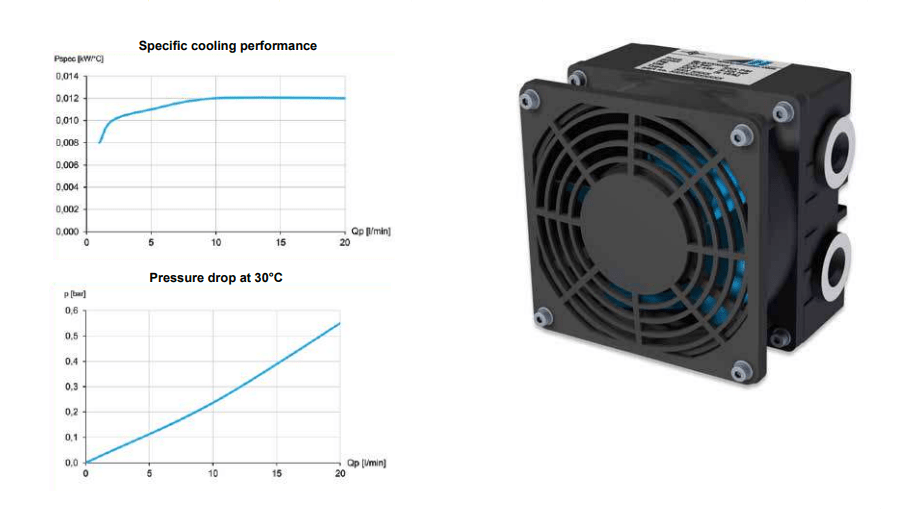

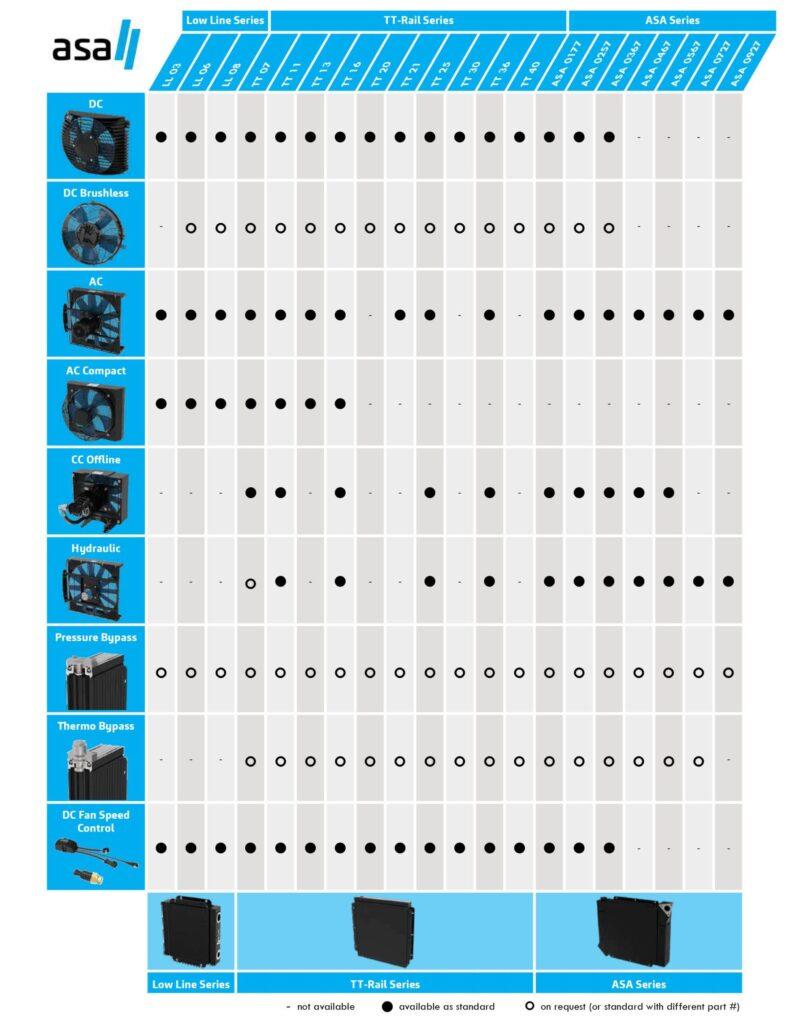

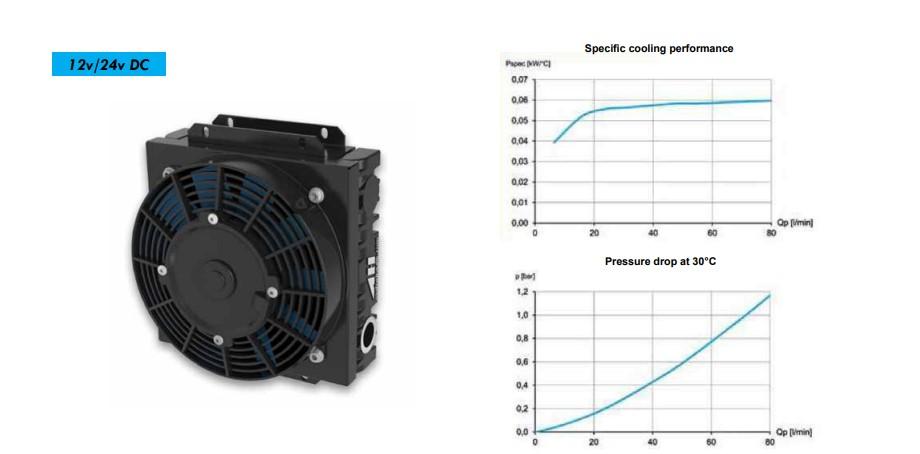

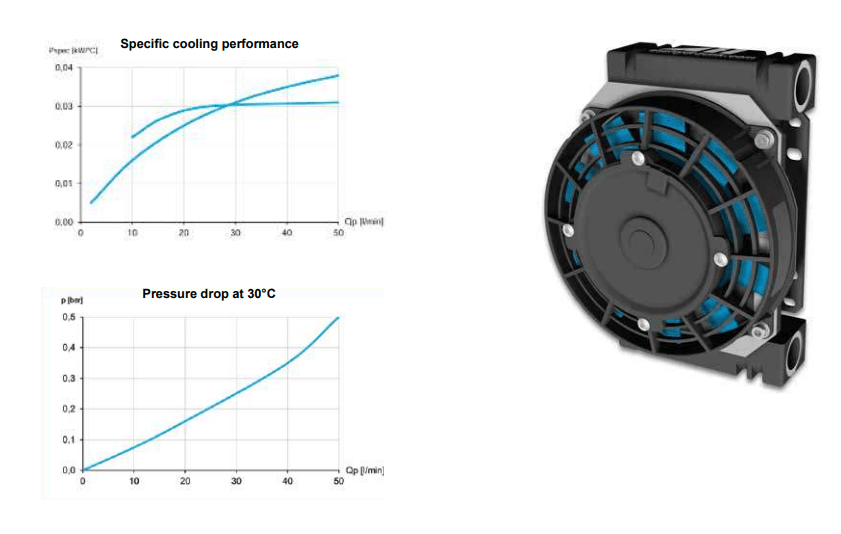

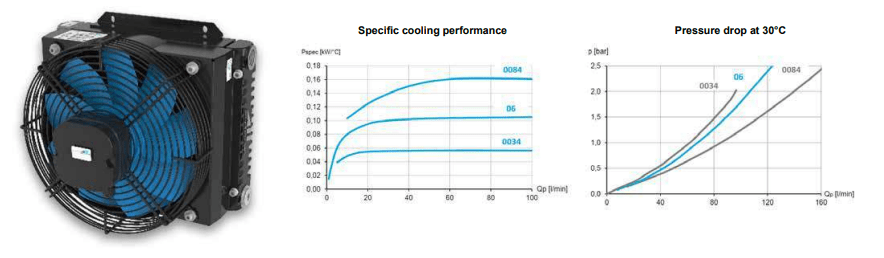

LOW LINE SERIES OIL COOLERS

ASA0013 Low Line Series

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageCurrentPortsMax PressureDimensions mm
HwD
ASA0013GD01$12v DC0.30a1/2″ BSPP26 Bar11912092
ASA0013GD02$24v DC0.15a1/2″ BSPP26 Bar11912092
ASA0013GE01$240v AC0.12a1/2″ BSPP26 Bar11912092



ASA0023 Low Line Series

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageCurrentPortsMax PressureDimensions mm
HwD
ASA0023GDO1$12v DC5.4a3/4″ BSPP26 Bar18022998
ASA0023GDO2$24v DC2.7a3/4″ BSPP26 Bar18022998
ASA0023GE02$240v AC0.25a3/4″ BSPP26 Bar18022998

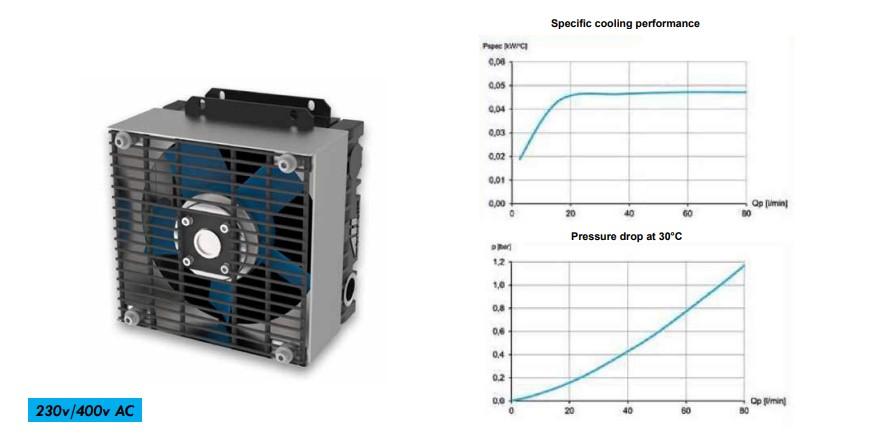

ASA0033 Low Line Series

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageCurrentPortsMax PressureDimensions mm
HWD
ASA0033GDO1$12v DC5.4a3/4″ BSPP26 Bar239212115
ASA0033GDO2$24v DC2.7a3/4″ BSPP26 Bar239212115
ASA0033G102$230/400v AC0.2a3/4″ BSPP26 Bar239214143

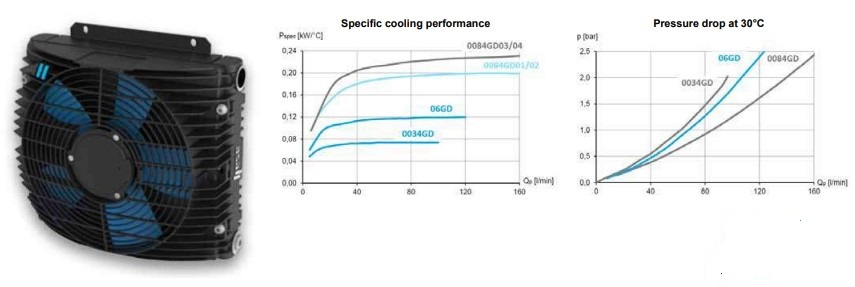

Low Line Series DC

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageCurrentBypassPortsMax PressureDimensions mm
HWD
ASA0034GDO1$12v DC8.5an/a3/4″ BSPP26 Bar255250134
ASA0034GDO1BP$12v DC8.5aInternal3/4″ BSPP26 Bar255250134
ASA0034GDO2$24v DC4.2an/a3/4″ BSPP26 Bar255250134
ASA0034GDO2BP$24v DC4.2aInternal3/4″ BSPP26 Bar255250134
ASATTO6GDO3$12v DC7.4an/a3/4″ BSPP26 Bar290320145
ASATTO6GDO3BP$12v DC7.4aInternal3/4″ BSPP26 Bar290320145
ASATTO6GDO4$24v DC3.7an/a3/4″ BSPP26 Bar290320145
ASATTO6GDO4BP$24v DC3.7aInternal3/4″ BSPP26 Bar290320145
ASA0084GDO1$12v DC12.2an/a1″ BSPP26 Bar380386136
ASA0084GDO1BP$12v DC12.2aInternal1″ BSPP26 Bar380386136
ASA0084GDO2$24v DC5.6an/a1″ BSPP26 Bar380386136
ASA0084GDO2BP$24v DC5.6aInternal1″ BSPP26 Bar380386136
ASA0084GDO3$12v DC21.2an/a1″ BSPP26 Bar380386157
ASA0084GDO3BP$12v DC21.2aInternal1″ BSPP26 Bar380386157
ASA0084GDO4$24v DC10.6an/a1″ BSPP26 Bar380386157
ASA0084GDO4BP$24v DC10.6aInternal1″ BSPP26 Bar380386157

Low Line Series AC Compact

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageCurrentBypassPortsMax PressureDimensions mm
HwD
ASA0034GC2E$240v AC0.25an/a3/4″ BSPP26 Bar255250246
ASA0034GC2EBP$240v AC0.25aInternal3/4″ BSPP26 Bar255250246
ASATTO6GC2E$240v AC0.45an/a3/4″ BSPP26 Bar290323226
ASATTO6GC2EBP$240v AC0.45aInternal3/4″ BSPP26 Bar290323226
ASA0084GC2E$240v AC0.55an/a1″ BSPP26 Bar380386226
ASA0084GC2EBP$240v AC0.55aInternal1″ BSPP26 Bar380386226

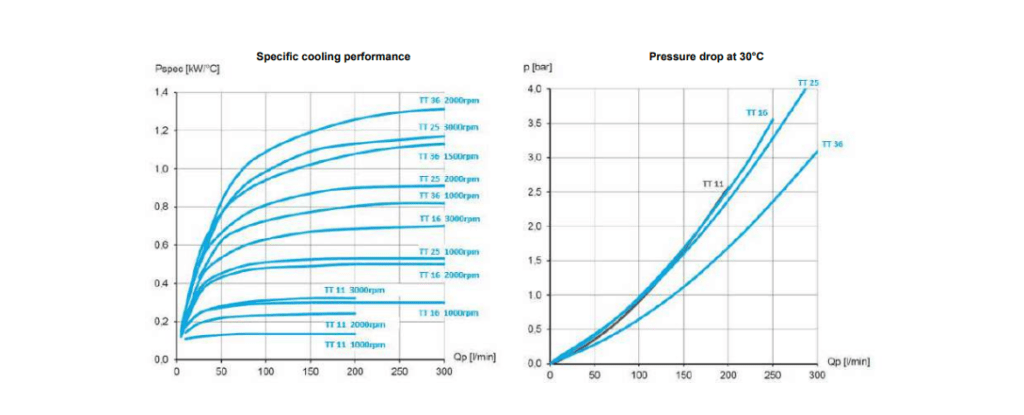

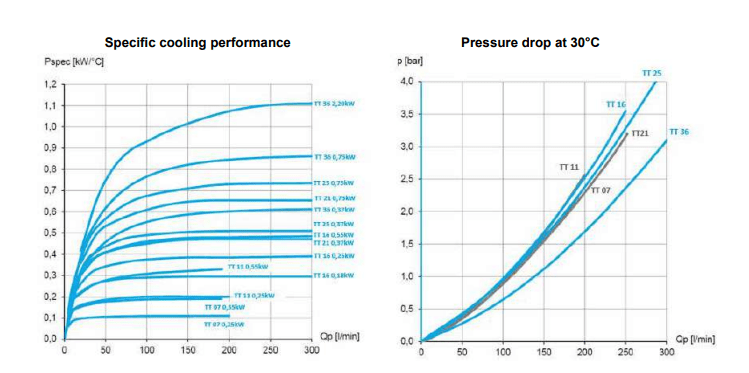

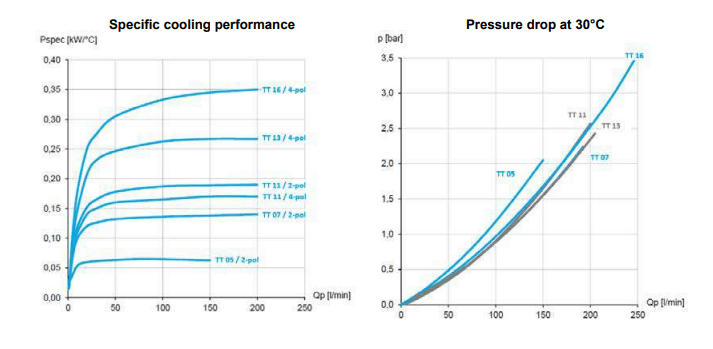

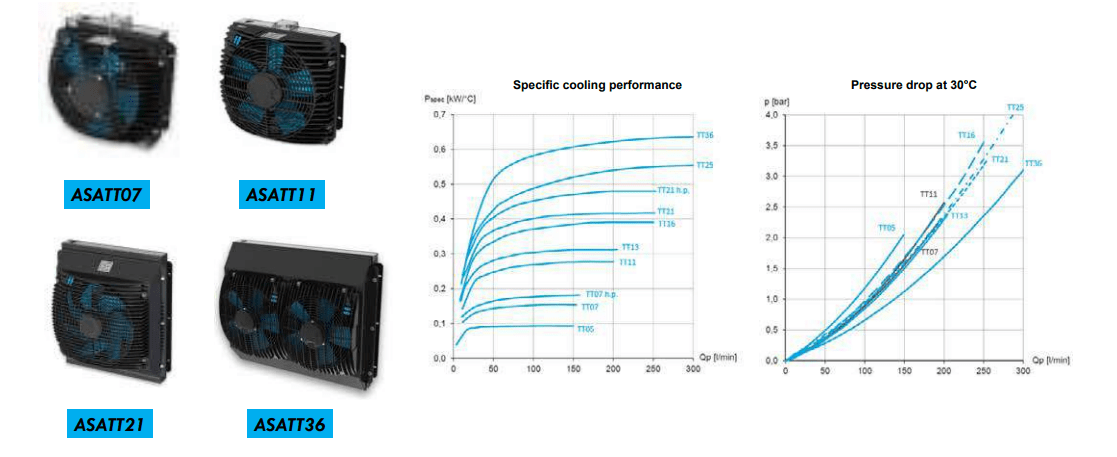

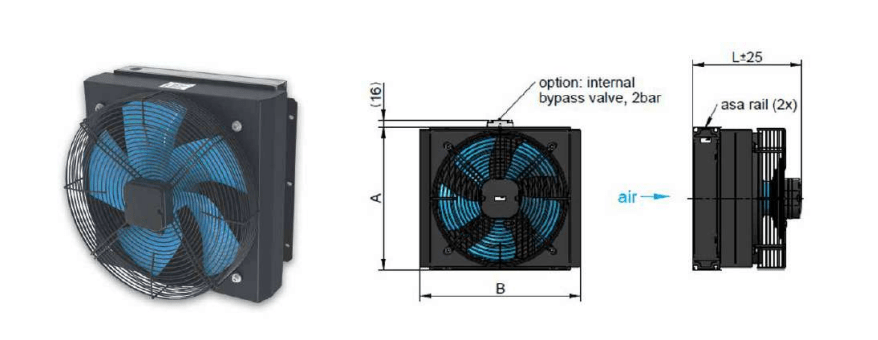

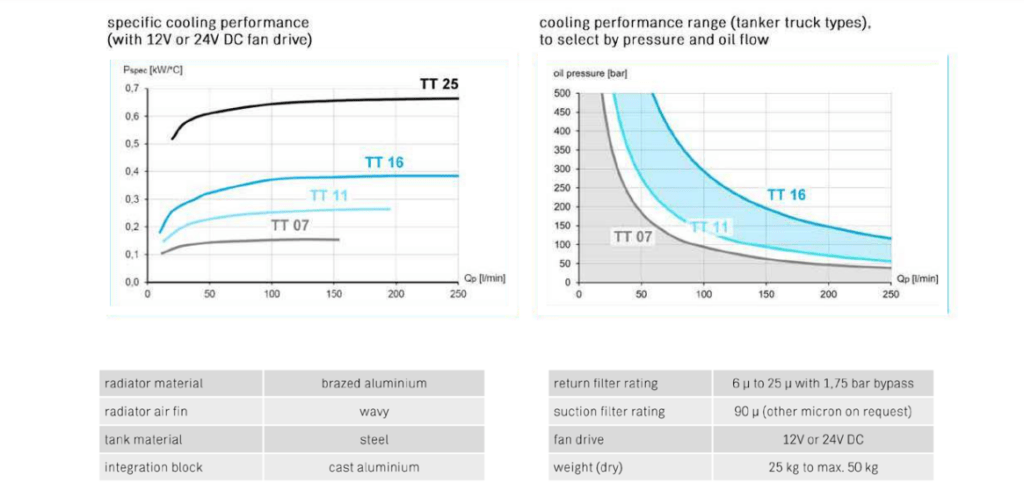

TT RAIL SERIES OIL COOLERS

TT Rail Series - DC

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageCurrentBypassMax PressureDimensions
HWD
ASATT07RD01$12v10.4an/a26 Bar300320160
ASATT07RD02$24v5.2an/a26 Bar300320160
ASATT07RD03$12v16.2an/a26 Bar300320176
ASATT07RD04$24v8.1an/a26 Bar300320176
ASATT11RD01$12v20.8an/a26 Bar340380175
ASATT11RD02$24v10.4an/a26 Bar340380175
ASATT13RD01$12v20.8an/a26 Bar420405205
ASATT13RD02$24v10.4an/a26 Bar420405205
ASATT16RD01$12vI8.6an/a26 Bar465460190
ASATT16RD02$24v9.3an/a26 Bar465460190
ASATT21RD01$12v18.6an/a26 Bar605460243
ASATT21RD02$24v9.3an/a26 Bar605460243
ASATT25RD01$12v18.6an/a26 Bar605555257
ASATT25RD02$24v9.3an/a26 Bar605555257
ASATT36RD01$12v2 x 22.6an/a26 Bar605730250
ASATT36RD02$24v2 x 11.4an/a26 Bar605730250
ASATT07RD01BP$12v10.4a2 bar *26 Bar300320160
ASATT07RD02BP$24v5.2a2 bar *26 Bar300320160
ASATT07RD03BP$12v16.2a2 bar *26 Bar300320176
ASATT07RD04BP$24v8.1a2 bar *26 Bar300320176
ASATT11RD01BP$12v20.8a2 bar *26 Bar340380175
ASATT11RD02BP$24v10.4a2 bar *26 Bar340380175
ASATT13RD01BP$12v20.8a2 bar *26 Bar420405205
ASATT13RD02BP$24v10.4a2 bar *26 Bar420405205
ASATT16RD01BP$12v18.6a2 bar *26 Bar465460190
ASATT16RD02BP$24v9.3a2 bar *26 Bar465460190
ASATT21RD0IBP$12v18.6a2 bar *26 Bar605460243
ASATT21RD02BP$24v9.3a2 bar *26 Bar605460243
ASATT25RD01BP$12v18.6a2 bar *26 Bar605555257
ASATT25RD02BP$24v9.3a2 bar *26 Bar605555257
ASATT36RD01BP$12v2 x 22.6a2 bar *26 Bar605730250
ASATT36RD02BP$24v2 x 11.4a2 bar *26 Bar605730250

TT Rail Series Compact - 240v AC (Motor included)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageCurrentBypassMax PressureDimensions mm
ABL
ASATTO7RC2E$240v0.45an/a26 Bar300325260
ASATT11RC4E$240v0.42an/a26 Bar340385260
ASATT11RC2E$240v0.55an/a26 Bar340385260
ASATT13RC4E$240v0.66an/a26 Bar420410260
ASATT16RC4E$240v0.85an/a26 Bar465465285
ASATT07RC2EBP$240v0.45a2 bar*26 Bar300325260
ASATT11RC4EBP$240v0.42a2 bar*26 Bar340385260
ASATT11RC2EBP$240v0.55a2 bar*26 Bar340385260
ASATT13RC4EBP$240v0.66a2 bar*26 Bar420410260
ASATT16RC4EBP$240v0.85a2 bar*26 Bar465465285

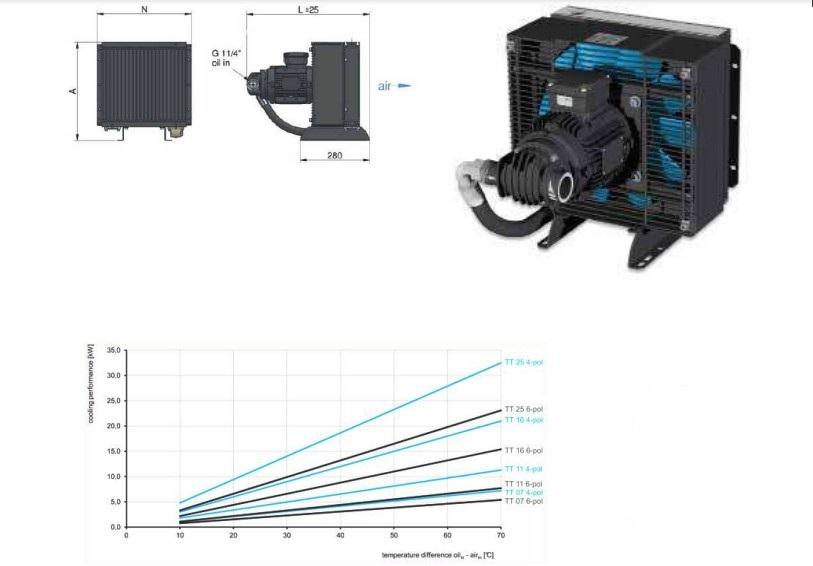

TT Rail Series - 240v/415v AC (Motor not included)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Motor SizeBypassMax PressureDimensions mm
ABCL
ASATT07RA00NM$0.25kW 4P / 0.55kW 2P, D71 (B14)n/a26 Bar300320193396
ASATT11RAOONM$0.25kW 4P / 0.55kW 2P, D71 (B14)n/a26 Bar340380193398
ASATT16RA40NM$0.18kW 6P / 0.25kW 4P, D71 (B14)n/a26 Bar465462219414
ASATT16RA20NM$0.55kW 2P, D71 (B14)n/a26 Bar465462219414
ASATT21RA00NM$0.37kW 6P / 0.75kW 4P, D80 (B14)n/a26 Bar605558222444
ASATT25RA00NM$0.37kW 6P / 0.75kW 4P, D80 (B14)n/a26 Bar605558219440
ASATT07RA00BPNM$0.25kW 4P / 0.55kW 2P, D71 (B14)2 bar*26 Bar300320193396
ASATT11RA00BPNM$0.25kW 4P / 0.55kW 2P, D71 (B14)2 bar*26 Bar340380193398
ASATT16RA40BPNM$0.18kW 6P / 0.25kW 4P, D71 (B14)2 bar*26 Bar465462219414
ASATT16RA20BPNM$0.55kW 2P, D71 (B14)2 bar*26 Bar465462219414
ASATT21RA00BPNM$0.37kW 6P / 0.75kW 4P, D80 (B14)2 bar*26 Bar605558222444
ASATT25RA00BPNM$0.37kW 6P / 0.75kW 4P, D80 (B14)2 bar*26 Bar605558219440

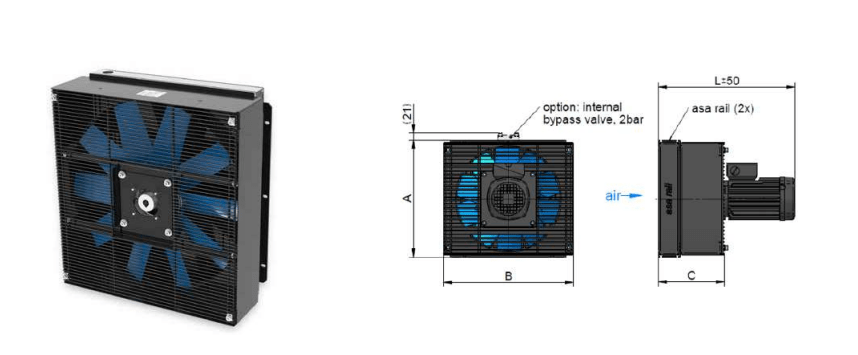

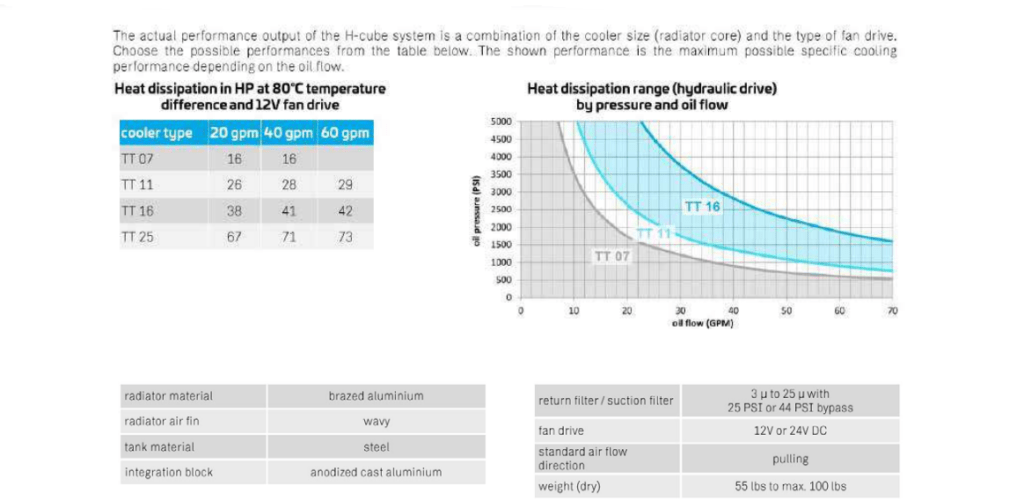

TT Rail Series - Hydraulic Drive

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Motor SizeBypassMax PressureDimensions mm
ABCL
ASATT11RH11$Group 2 DIN 11ccn/a26 bar340380194276
ASATT16RH11$Group 2 DIN 11ccn/a26 bar465462219292
ASATT25RH11$Group 2 DIN 11ccn/a26 bar605558219292
ASATT36RH11$Group 2 DIN 11ccn/a26 bar605736239367
ASATT11RH11BP$Group 2 DIN 11cc2 bar*26 bar340380194276
ASATT16RH11BP$Group 2 DIN 11cc2 bar*26 bar465462219292
ASATT25RH11BP$Group 2 DIN 11cc2 bar*26 bar605558219292
ASATT36RH11BP$Group 2 DIN 11cc2 bar*26 bar605736239367

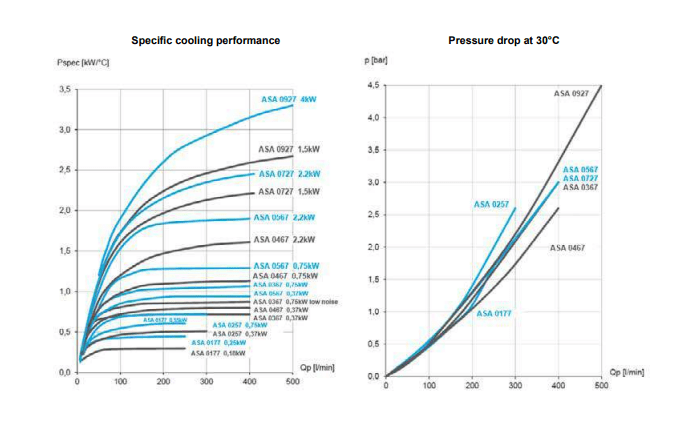

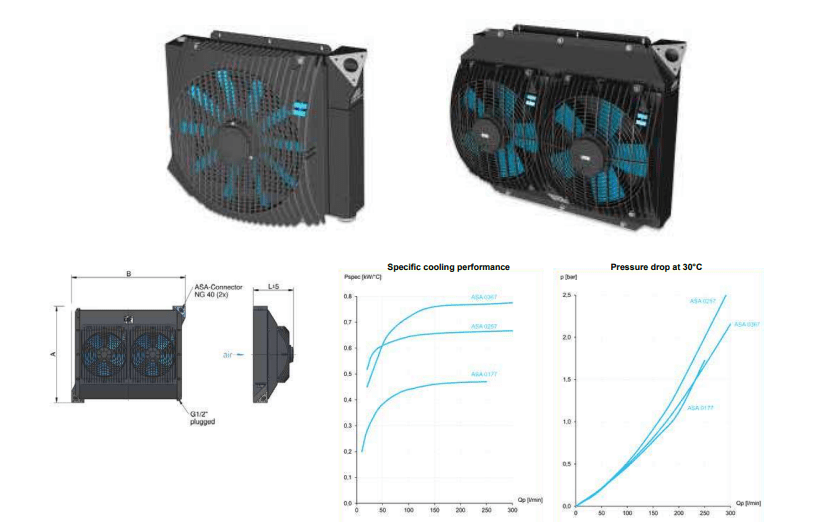

ASA SERIES OIL COOLERS

ASA Series - DC

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageCurrentBypassMax PressureDimensions mm
ABL
ASA0177AD01$12v18.6an/a26 Bar470590228
ASA0177AD02$24v9.3an/a26 Bar470590228
ASA0257AD01$12v20.8an/a26 Bar555690259
ASA0257AD02$24v10.4an/a26 Bar555690259
ASA0257AD03$12v2 x 20.8an/a26 Bar555690259
ASA0257AD04$24v2 x 10.4an/a26 Bar555690259
ASA0367AD01$12v2 x 20.8an/a26 Bar650770271
ASA0367AD02$24v2 x 10.4an/a26 Bar650770271
ASA0177AD01BP$12v18.6a2 bar26 Bar470590228
ASA0177AD02BP$24v9.3a2 bar26 Bar470590228
ASA0257AD03BP$12v2 x 20.8a2 bar26 Bar555690259
ASA0257AD04BP$24v2 x 10.4a2 bar26 Bar555690259
ASA0367AD01BP$12v2 x 20.8a2 bar26 Bar650770271
ASA0367AD02BP$24v2 x 10.4a2 bar26 Bar650770271

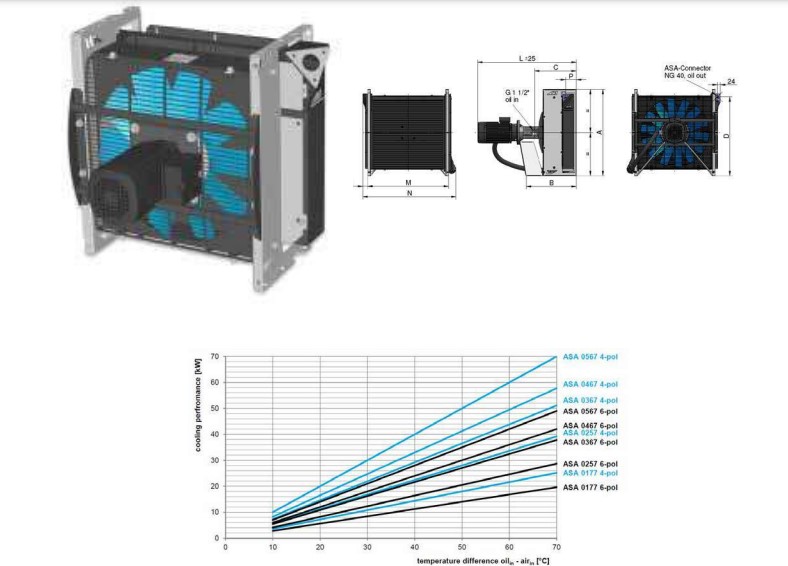

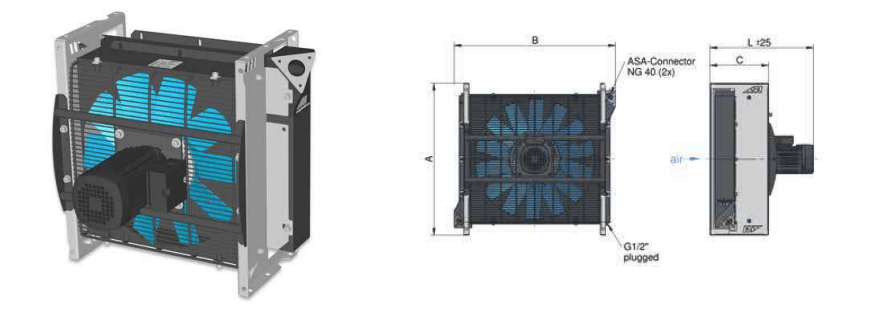

ASA Series - 240/415v AC (Motor not included)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Motor SizeBypassDimensions mm
ABCL
ASA0177AA20NM$0.55kW 2P – D71(B14)26 Bar530582260486
ASA0177AA40NM$0.25kW 4P I 0.18kW 6P – D71(B14)26 Bar530582260486
ASA0257AA47NM$0.75kW 4P – D80(B14)26 Bar635682270520
ASA0257AA66NM$0.37kW 6P   D80(B14)26 Bar635682270520
ASA0367AA46NM$0.75kW 4P – D80(B14)26 Bar720762280533
ASA0367AA66NM$0.37kW 6P – D80(B14)26 Bar720762280533
ASA0467AA47NM$0.75kW 4P – D80(B14)26 Bar785837290550
ASA0467AA66NM$0.37kW 6P – D80(B14)26 Bar785837290550
ASA0567AA47NM$0.75kW 4P – D80(B14)26 Bar860920290543
ASA0567AA66NM$0.37kW 6P – D80(B14)26 Bar860920290543
ASA0727AA4ANM$2.2kW 6P – D100(B14)26 Bar9601012360640
ASA0727AA6ANM$1.5kW 6P – D100(B14)26 Bar9601012360640
ASA0927AA6ANM$1.5kW 2P   D100(B14)26 Bar11001170320664

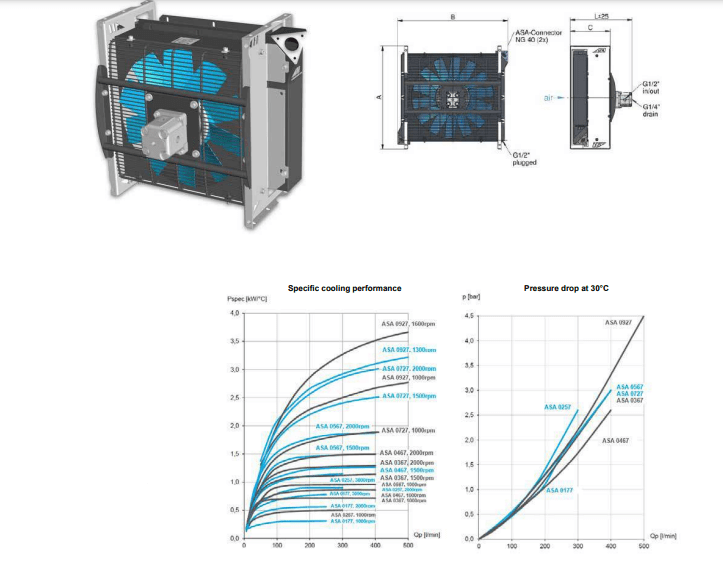

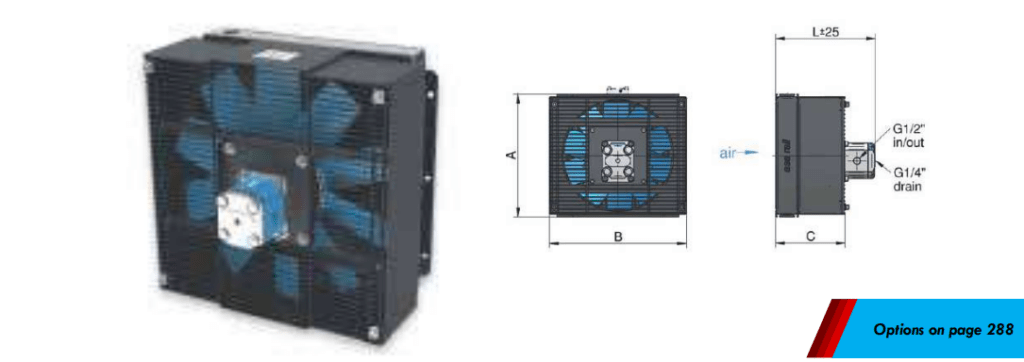

ASA Series - Hydraulic Drive

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Motor SizeBypassDimensions mm
ABL
ASA0177AH11$Group 2 DIN 11cc26 bar530582364
ASA0257AH11$Group 2 DIN 11cc26 bar635682383
ASA0367AH11$Group 2 DIN 11cc26 bar720762430
ASA0467AH11$Group 2 DIN 11cc26 bar785837448
ASA0567AH11$Group 2 DIN 11cc26 bar860920448
ASA0727AH11$Group 2 DIN 11cc26 bar9601012521
ASA0927AH11$Group 2 DIN 11cc26 bar11001170475

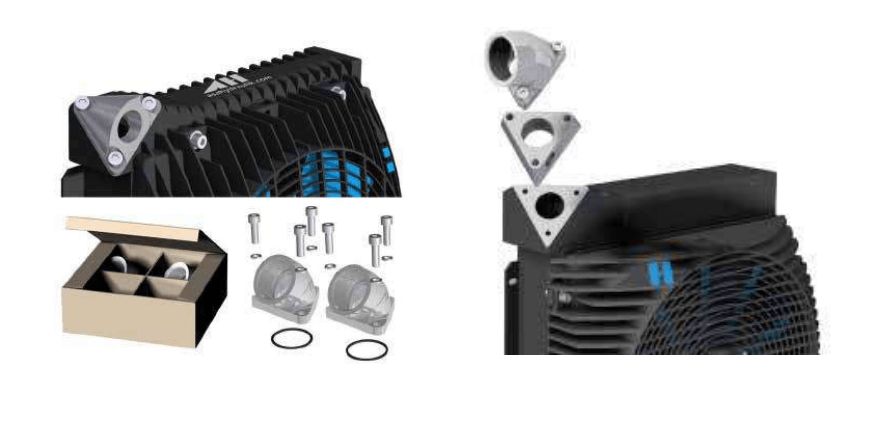

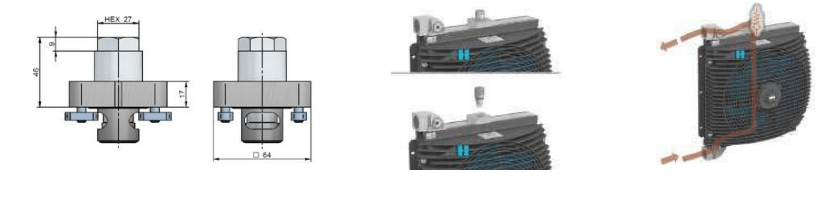

CONNECTOR KITS

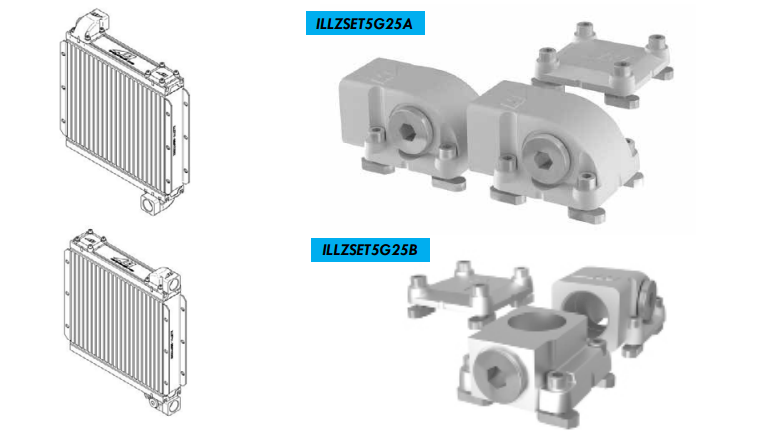

TT Series Connector Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Port SizeType
ILLZSET5G25$1″ BSPP2 x 90°
ILLZSET5G32$1.1/4″ BSPP2 x90°
ILLZSET5G25A$1″ BSPP2 x Straight
ILLZSET5G25B$1″ BSPP1 x 90°, 1 x Straight

ASA Series Connector Kit

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Port SizeType
ILLZASA32G32$1.1/4″ BSPP2 connectors required per cooler
ILLZASA40G40$1.1/2″ BSPP2 connectors required per cooler
ILLZASA32U20$1.5/8″ UNO2 connectors required per cooler
ILLZASA40U24$1.7/8″ UNO2 connectors required per cooler
ILLZASA40-40G12$1/2″ port sandwich plate

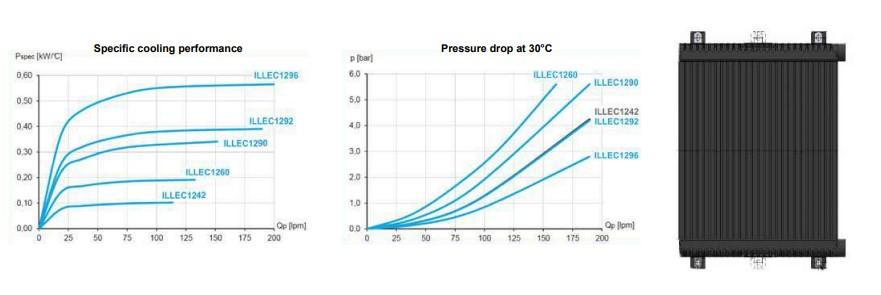

RAIL FILTER SERIES & 12-SERIES RADIATOR CORES

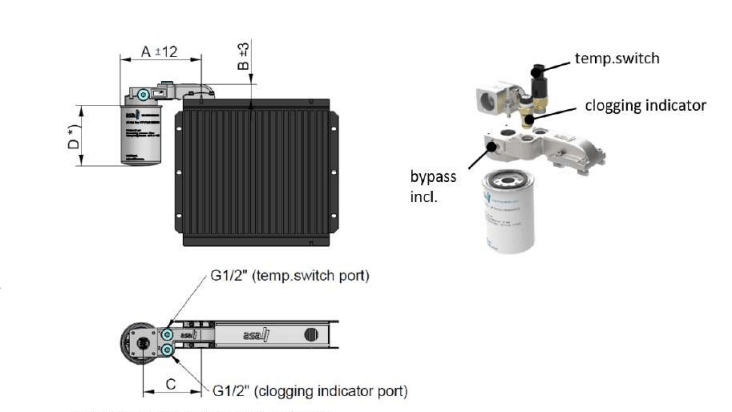

Rail Filter Series

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Spin-on Port SizeMax FlowMicronBypassDimensions mm
ABCD
ILLZRF11G2010$3/4″ BSPP60 lpm10µm2 bar18833135146
ILLZRF11G2025$3/4″ BSPP60 lpm25µm2 bar18833135146
ILLZRF12G2010$3/4″ BSPP100 lpm10µm2 bar18833135191
ILLZRF12G2025$3/4″ BSPP100 lpm25µm2 bar18833135191
ILLZRF21G3210$1.1/4″ BSPP180 lpm10µm2 bar22847160181
ILLZRF21G3225$1.1/4″ BSPP180 lpm25µm2 bar22847160181
ILLZRF22G3210$1.1/4″ BSPP220 lpm10µm2 bar22847160240
ILLZRF22G3225$1.1/4″ BSPP220 lpm25µm2 bar22847160240

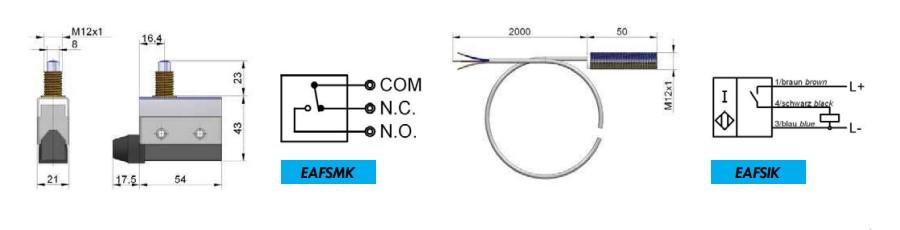

HFZVEG15$Electrical clogging indicator G 1/2″
HFZVOG15$Optical clogging indicator G 1/2″

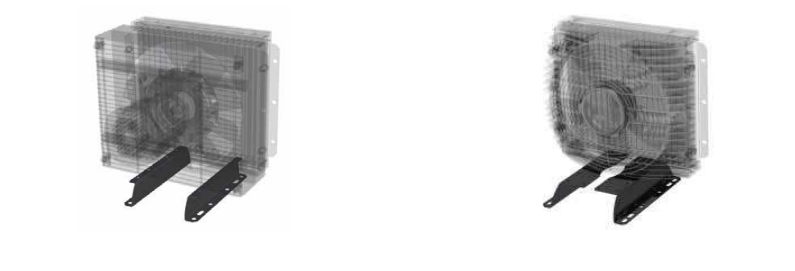

Foot Mounting Kits

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
ILLEFUSSTT06K$Mounting feet set (fits TT06)
ILLEFUSSTTK$Mounting feet set (fits TT07-25)
ILLEFUSSTTHDK$Heavy duty mounting feet set (fits TT07-25)

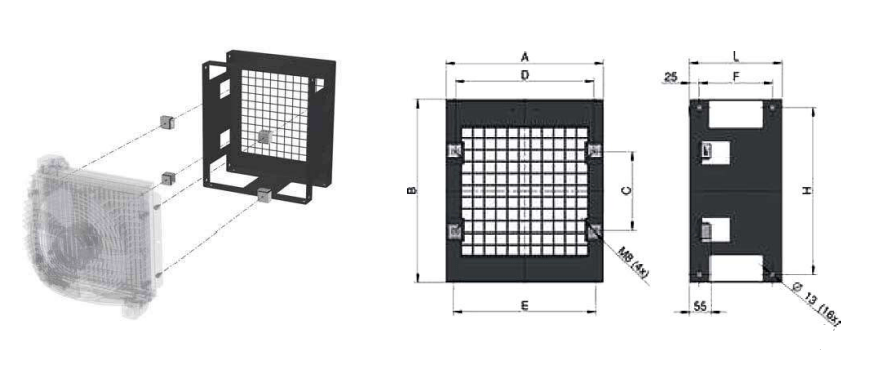

ACCESSORIES

Protection Housings

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
ILLEGAKTTO7GT$Protection housing kit TT07 Rail
ILLEGAKTT11GT$Protection housing kit TT11 Rail
ILLEGAKTT16GT$Protection housing kit TT16 Rail

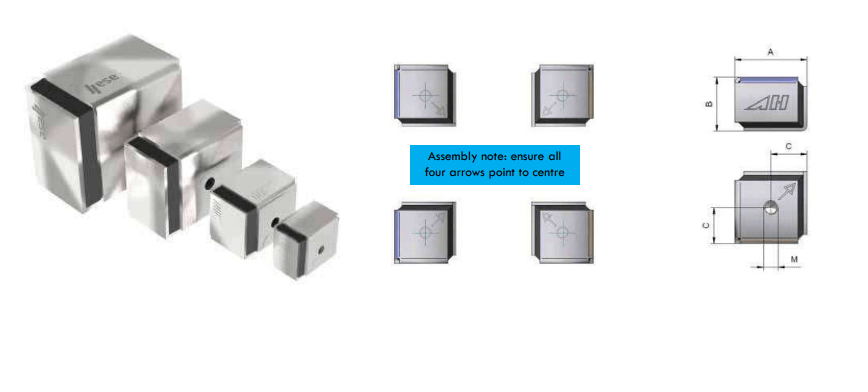

Rubber Vibration Absorbers

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

MaterialWeightMDimensions mm
ABC
MDGQ403008IIK$Zinc coated steel & natural rubber0.13M8 x 10403020
MDGQ504510IIK$Zinc coated steel & natural rubber0.28M10 x 12504525
MDGQ755512IIK$Zinc coated steel & natural rubber0.659M12 x 15755537.5
MDGQ1007516IIK$Zinc coated steel & natural rubber1.92M16 x 16.51007550

TEMPERATURE CONTROLLERS

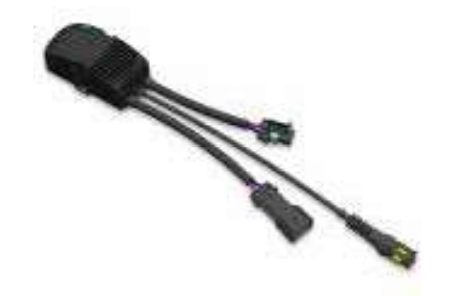

Temperature Controller DC

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Max Power Fan MotorMax Current FanProtectionWeightSupply
ILLZTC12-2K$310w21a (14, 7v DC)IP670.25kg12v DC (9v-15v)
ILLZTC24-2K$340w12a (24v DC)IP670.25kg24v DC (18v-32v)

Technical Data

MaterialPolyamide
Mounting InstructionsAny mounting position
Temperature SensorILLZTT5069K (control range 44-45°C)
Temperature SwitchILLZTH5069K (set point 50°C, soft start)
Temperature SwitchILLZTH6069K (set point 60°C, soft start)
Temperature SwitchILLZTH9069K (set point 90°C, soft start)
Ambient Temperature Range-20°C to +85°C
Storage Temperature Range-60°C to +110°C
12v & 24v DC Coolers CombinationsLL04, LL06 / TT07-25 Rail / ASA0177 – 0367

When using with ILLZTT5069K sensor:

Fan rotation is controlled according to
actual oil temperature from 45°c to
55°c (maximum fan speed reached).

When using with any IP69 type switch:

Only on/off function, with the
advantage that start
current is ramped up by controller,

Temperature Controller AC

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageTemperature RangeProtectionWeight
ILLZTCACK$115/230v AC-30°C to +120°CIP400.56kg

Technical Data

Material Steel sheet metal, powder coated
Mounting Instructions Any mounting position
Switch Control Range -30°C to +120°C
Contacts Rating C.1-10(2,5)a/250v
Contacts Rating C.2-6(2,5)a/250v
Maximum Head Temperature +85°C
Maximum Bulb Temperature +150°C
Storage Temperature Range -15°C to +55°C
Combinations For use with T107-TT25 only
Screenshot 2022-02-03 002530

TEMPERATURE SENSORS & SWITCHES

Temperature Sensors

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

DescriptionConnectionProtectionWeight
ILLZTT5069K$Temperature Sensor 1/2″ BSPAMP Superseal 1.5IP69K0.09kg

Technical Data

Screw Part Material Brass
Mounting Instructions Any mounting position
Maximum Tightening Torque 50 Nm
Oil Temperature Range -20°C to +100°C
Ambient Temperature Range -20°C to +85°C
Storage Temperature Range -60°C to 110°C
Temperature Control Unit 12v DC ILLZTC12-2K
Temperature Control Unit 24v DC ILLZTC24-2K
2v & 24v DC Coolers Combinations LL04, LL06 / TT07-25 Rail / ASA0177-0367

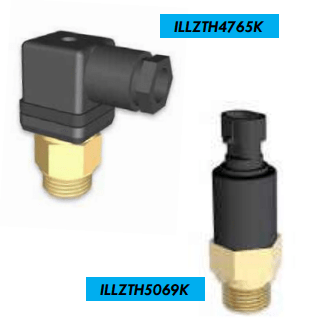

Temperature Switches

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

ConnectionProtectionWeightSwitch Temperature
ILLZTH5069K$AMP Superseal 1.5IP 69K0.10kg50°C +/-5
ILLZTH6069K$AMP Superseal 1.5IP 69K0.10kg60°C +/-5
ILLZTH9069K$AMP Superseal 1.5IP 69K0.10kg90°C +/-5
ILLZTH4765K$ISO 4400IP 650.09kg50°C +/-5
ILLZTH6065K$ISO 4400IP 650.09kg60°C +/-5

Technical Data

Screw Part Material Brass
Mounting Instructions Any position
Maximum Tightening Torque 50 Nm
Number of Cycles 100,000
Counter Connector Included
Contact N.O. (Normal Open)
Minimum Current 200ma
Maximum Current 12v AC (10a), 24v AC (10a), 120v AC (15a), 230v AC
Oil Temperature Range -20°C to +100°C
Ambient Temperature Range -20°C to +85°C
Storage Temperature Range -60°C to 110°C
Combinations All 1/2″ BSPP coolers & connectors

Temperature Bypass Valve (TT Series only)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

To suitMax Working Temp.Relief Temp.Closing Temp.Max Pressure
ILLZBPT5022K$TT Rail TT07-TT1380°C< 58°C50-60°C26 bar
ILLZBPT5027K$TT Rail TT16-TT2580°C< 58°C50-60°C26 bar

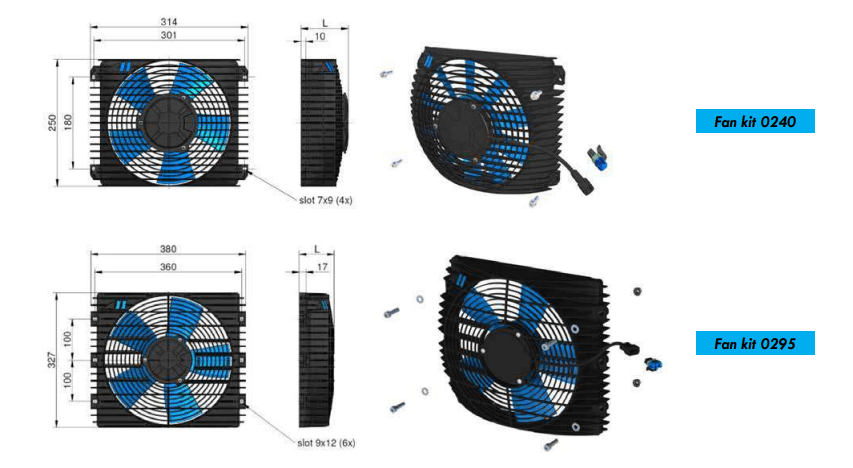

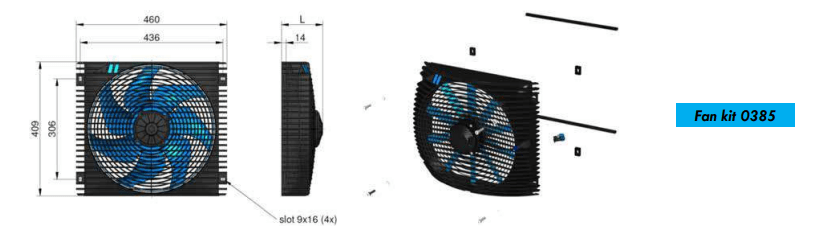

ASA FAN KITS

ASA Fan Kits

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageCurrentAirflowFits Cooler
ILLELE1434A1$12v DC5.4aPullLow Line 0043G, 0053G
ILLELE1434A2$24v DC2.7aPullLow Line 0043G, 0053G
ILLELE2250A1$12v DC5.4aPullLow Line 0023G
ILLELE2250A2$24v DC2.7aPullLow Line 0023G
ILLELE0240A1$12v DC7.4aPullLow Line 06G
ILLELE0240A2$24v DC3.7aPullLow Line 06G
ILLELE0240A3$12v DC10.4aPullTT Rail 07RD01
ILLELE0240A4$24v DC5.2aPullTT Rail 07RD02
ILLELE0240O5$12v DC16.2aPullTT Rail 07RD03
ILLELE0240O6$24v DC8.1aPullTT Rail 07RD04
ILLELE0295A1$12v DC15.4aPullLow Line 0084GD01
ILLELE0295A2$24v DC7.7aPullLow Line 0084GD02
ILLELE0295A5$12v DC20.8aPullASA 0115, 257AD03 & 0367, TT Rail 11 & 13, Low Line 0084GD03
ILLELE0295A6$24v DC10.4aPullASA 0115, 257AD04 & 0367, TT Rail 11 & 13, Low Line 0084GD04
ILLELE0295S5$12v DC20.8aPushASA 0115, 257AD03 & 0367, TT Rail 11 & 13, Low Line 0084GD03
ILLELE0295S6$24v DC10.4aPushASA 0115, 257AD04 & 0367, TT Rail 11 & 13, Low Line 0084GD04
ILLELE0385A1$12v DC18.6aPullASA 0176 – 0257AD01, TT Rail 16 – 25
ILLELE0385A2$24v DC9.3aPullASA 0176 – 0257AD02, TT Rail 16 – 25
ILLELE0385S1$12v DC18.6aPushASA 0176 – 0257AD01, TT Rail 16 – 25
ILLELE0385S2$24v DC9.3aPushASA 0176 – 0257AD02, TT Rail 16 – 25

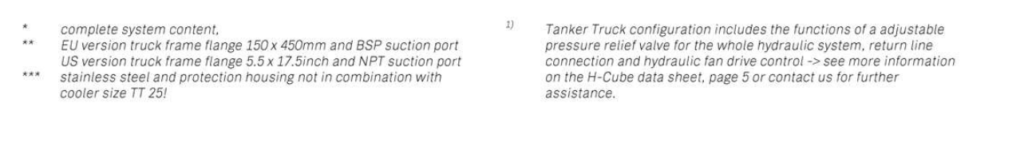

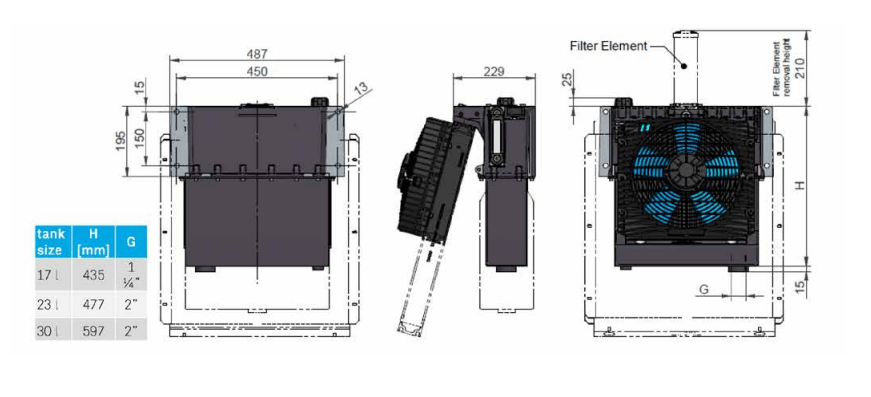

H-CUBE SERIES: MODULAR COOLER, FILTER, TANK & CONTROL LINK

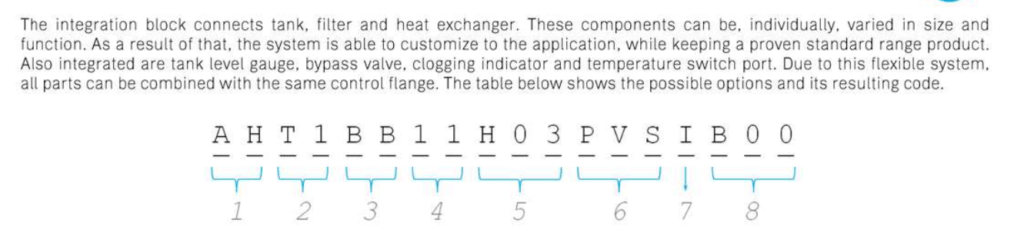

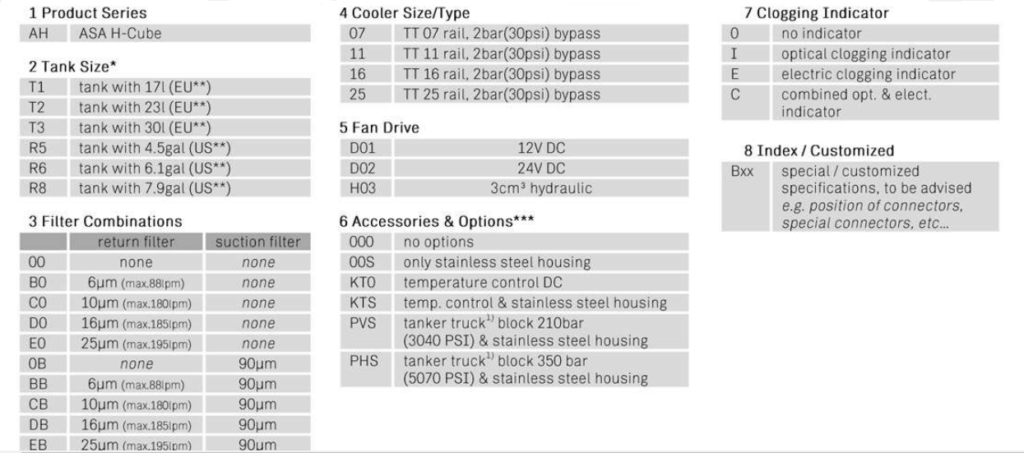

Design your own H-cube!

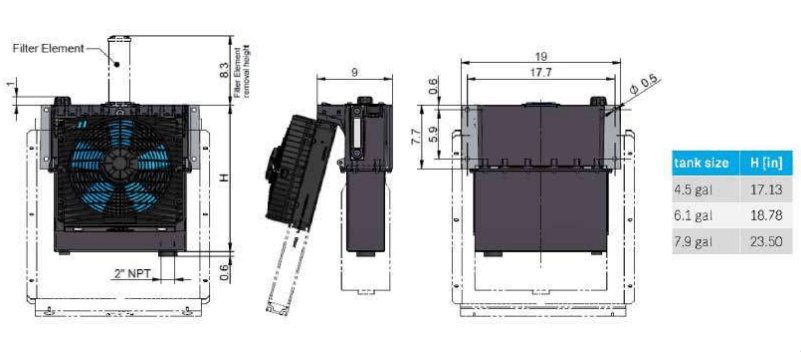

H-Cube Series (US Version)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Tank SizeFan DriveFilterCooler SizeOptionsClogging Indicator
AH R5 DO 16 D02 KTO I$4.5 gallon24v DC16µm return filter*TT16 Rail 2bar bypassTemperature
Control DC		Optical
AH R8 DO 16 D02 KTO I$7.9 gallon24v DC16µm return filter*TT16 Rail 2bar bypassOptical
AH R5 DO 16 H03 PVS 000 I$4.5 gallon3cc Hydraulic16µm return filter*TT16 Rail 2bar bypassStainless
Steel
Housing**		Optical
AH R8 DO 16 H03 PVS 000 I$7.9 gallon3cc Hydraulic16µm return filter*TT16 Rail 2bar bypassOptical

H-Cube Series (EU Version)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Tank SizeFan DriveFilterCooler SizeOptionsClogging
Indicator
AH T3 DO 25 D02 KTO E$30 Litre24v DC16µm return filter*TT25 Rail 2bar bypassTemperature Control DCElectric

OIL/AIR COOLERS, 12 SERIES RADIATOR CORES

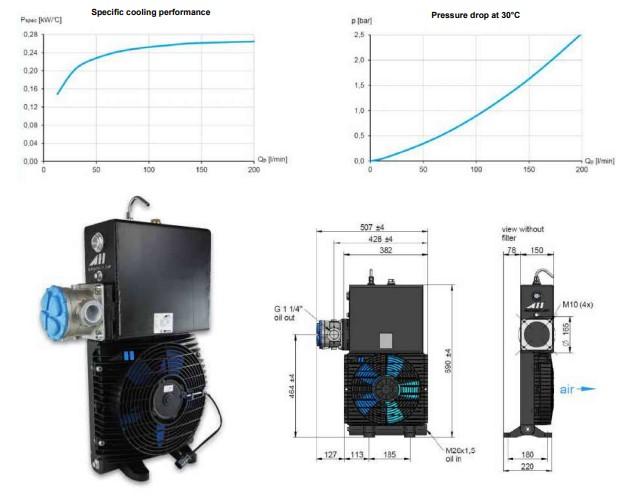

Oil/Air Cooler with Integrated Suction Filter & Tanks

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

MotorCurrentVoltageMax PressureProtectionTank
ILLC01101FTF$0.25 kW15.0a12v1.2 barIP6812 Itr
ILLC01102FTF$0.25 kW7.7a24v1.2 barIP6812 Itr

12 Series Radiator Cores

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

MaterialMax PressurePortsSize (mm)
ILLEC1242K$Aluminium26 barSAE 16330 x 220
ILLEC1260K$Aluminium26 barSAE 16540 x 220
ILLEC1290K$Aluminium26 barSAE 16540 x 320
ILLEC1292K$Aluminium26 barSAE 16540 x 420
ILLEC1296K$Aluminium26 barSAE 20540 x 630



PLATE HEAT EXCHANGERS

Brazed Plate Heat Exchangers

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Max PressurePorts F/GDimensions mm
ABCDEHK
ILWPL10014EP$30 bar1/2″ BSPP7320564.54217227–
ILWPL20020EP$30 bar3/4″ BSPP80194824015427–
ILWPL22030EP$30 bar1″& 3/4″ BSPP106306109502502740
ILWPL22060EP$30 bar1″& 3/4″ BSPP106306181502502740
ILWPL40050EP$30 bar1″ BSPP124304157702502775
ILWPL53020EP$30 bar1″ BSPP12450485644442775
ILWPL53040EP$30 bar1″ BSPP124504133644442775
ILWPL53060EP$30 bar1″ BSPP124504181644442775
ILWPL70020EP$30 bar1.1/2″ BSPP24652886.517445627150
ILWPL70060EP$30 bar1.1/2″ BSPP24652818317445627150
ILWPL70120EP$30 bar1.1/2- BSPP24652832717445627150
ILWPL70160EP$30 bar1.1/2″ BSPP24652842317445627150

SHELL TUBE HEAT EXCHANGER

OFFLINE COOLING SYSTEMS

CC Series - TT Rail - AC (Gerotor Pump)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Motor SizeMax PressureFlowDimensions mm
ANL
ASATT07RA47CC$0.75kW 4P 415v10 bar30 Ipm355320493
ASATT11RA47CC$0.75kW 4P 415v10 bar30 Ipm395380495
ASATT16RA47CC$0.75kW 4P 415v10 bar30 Ipm520460511
ASATT25RA47CC$0.75kW 4P 415v7 bar30 Ipm660558511



Connector Kits

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Port SizeType
ILLZATT53G25K$1″ BSPPRail connector

CC Series - Offline - AC (Screw Pump)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Motor PowerMotor CurrentOil FlowMax PressureWeightDimensions mm
ABLN
ASA0177AA49CC$1.5 kW 4P3.35 a60 Ipm10 bar70.7530400807601
ASA0257AA49CC$1.5 kW 4P3.35 a60 Ipm10 bar80635410817701
ASA0367AA49CC$1.5 kW 4P3.35 a60 Ipm8 bar90.4720420827781
ASA0467AA49CC$1.5 kW 4P3.35 a60 Ipm8 bar107.7785420837856
ASA0567AA49CC$1.5 kW 4P3.35 a60 Ipm8 bar108.1860410837931
ASA0177AA68CC$0.75 kW 6P1.95a40 Ipm9 bar66.7530400807601
ASA0257AA68CC$0.75 kW 6P1.95a40 Ipm9 bar76635410817701
ASA0367AA68CC$0.75 kW 6P1.95a40 Ipm8 bar86.4720420827781
ASA0467AA68CC$0.75 kW 6P1.95a40 Ipm8 bar103.7785420837856
ASA0567AA68CC$0.75 kW 6P1.95a40 Ipm8 bar104.1860410837931

PUMP UNITS

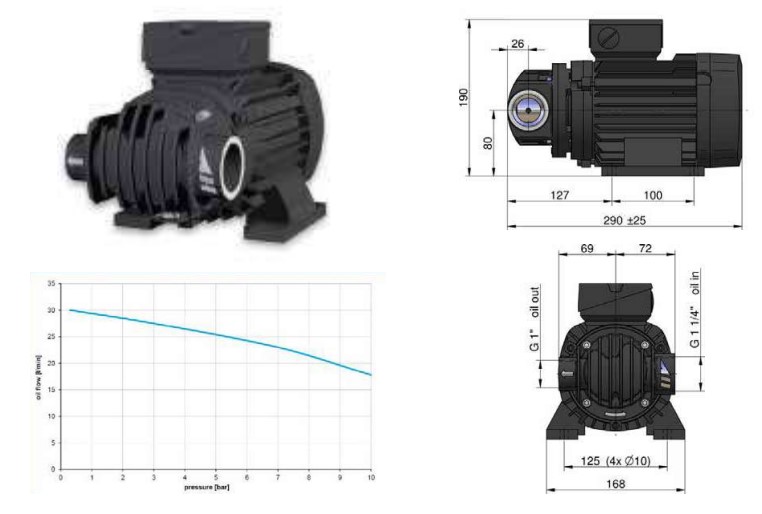

Gerotor Pump Unit - 230/400v 50Hz

Part#HY0200758GHY0201108G
List Price $ Excluding GST$2329.00$3386.00
Motor Power0.75 kW1.10 kW
Maximum Oil Viscosity100 cSt250 cSt
Maximum Current2.1a2.6a
60 HzPossible, 276/480vOn request
Weight13.8kg16.6kg
Oil Flow30 Ipm
Negative Pressure-0.4 bar
Poles4 pole
Ambient Temperature-20°C to +40°C
Maximum Working Pressure10 bar
Maximum Oil Temperature80°C (100°C on request)
FluidsMineral oils
Pump HousingAluminium
GerotorSintered Steel

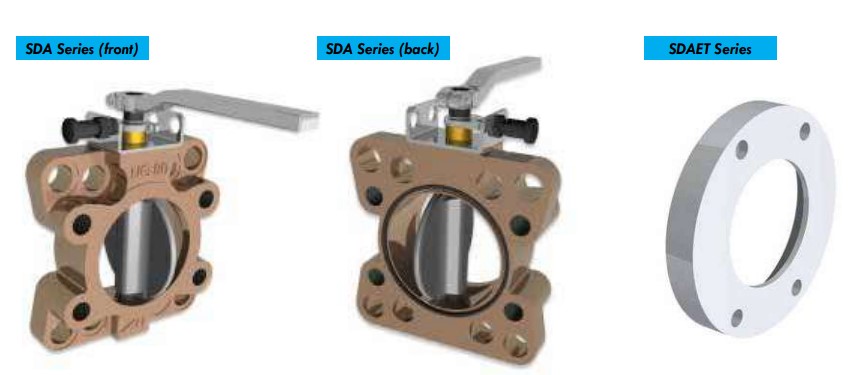

BUTTERFLY VALVES

Suction Butterfly Valves

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

SizeMax Working PressureDifferential Pressure
SDA0040$DIN40 SAE 1.1/2″7 bar6 bar
SDA0050$DIN50 SAE 2″7 bar6 bar
SDA0063$DIN65 SAE 2.1/2″7 bar6 bar
SDA0080$DIN80 SAE 3″7 bar6 bar
SDA0100$DIN100 SAE 4″7 bar6 bar
SDA0125$DIN125 SAE 5″7 bar6 bar

Adaptor Flange

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

DescriptionMaterial
SDAET040K$Adaptor NG40ST37 Steel
SDAET063K$Adaptor NG50 & 63ST37 Steel
SDAET080K$Adaptor NG80ST37 Steel
SDAET100K$Adaptor NG100ST37 Steel
SDAET125K$Adaptor NG125ST37 Steel

Compensators - SAE

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

SizeMaterialMax Working Pressure
SDKSS025$NG25 SAE 1″NBR/CR Steel1.5 bar (absolute)
SDKSS032$NG32 SAE 1.1/4″NBR/CR Steel1.5 bar (absolute)
SDKSS040$NG40 SAE 1.1/2″NBR/CR Steel1.5 bar (absolute)
SDKSS050$NG50 SAE 2″NBR/CR Steel1.5 bar (absolute)
SDKSS063$NG63 SAE 2.1/2″NBR/CR Steel1.5 bar (absolute)
SDKSS080$NG80 SAE 3″NBR/CR Steel1.5 bar (absolute)
SDKSS092$NG90 SAE 3.1 /2″NBR/CR Steel1.5 bar (absolute)
SDKSS100$NG100 SAE 4″NBR/CR Steel1.5 bar (absolute)
SDKSS126$NG1 25 SAE 5″NBR/CR Steel1.5 bar (absolute)

Compensators - DIN

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

SizeMaterialNominal Pressure
SDKHDD6D60032N00$NG32NBR/CR SteelUp to 16 bar
SDKHDD6D60040N00$NG40NBR/CR SteelUp to 16 bar
SDKHDD6D60050N00$NG50NBR/CR SteelUp to 16 bar
SDKHDD6D60065N00$NG65NBR/CR SteelUp to 16 bar
SDKHDD6D60080N00$NG80NBR/CR SteelUp to 16 bar
SDKHDD6D60100N00$NG100NBR/CR SteelUp to 16 bar
SDKHDD6D60125N00$NG125NBR/CR SteelUp to 16 bar
SDKHDD6D60200N00$NG200NBR/CR SteelUp to 16 bar
SDKHDD6D60300N00$NG300NBR/CR SteelUp to 16 bar

Limit Switches

Part Numbers

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
EAFSMK$Mechanical Limit Switch
EAFSIK$Inductive Limit Switch

Lot 25, Mannanarie Road, JAMESTOWN SA
PO Box 178 , JAMESTOWN South Australia 5491

Call Charles 0418 641 566

© 2024 Catford Engineering. All Rights Reserved.
Website by Tracey Dewell Designs
Login to your account
