Stroke Limiting Collar Stoppers for Hydraulic Cylinders

5/5

Stroke Limiting Collar Stoppers for Hydraulic Rams

At Catford Engineering we offer a wide range of hydraulic products. Browse our stroke limiting collar stoppers specifications and pricing below.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491

Stroke Limiting Collar Stoppers Pricing

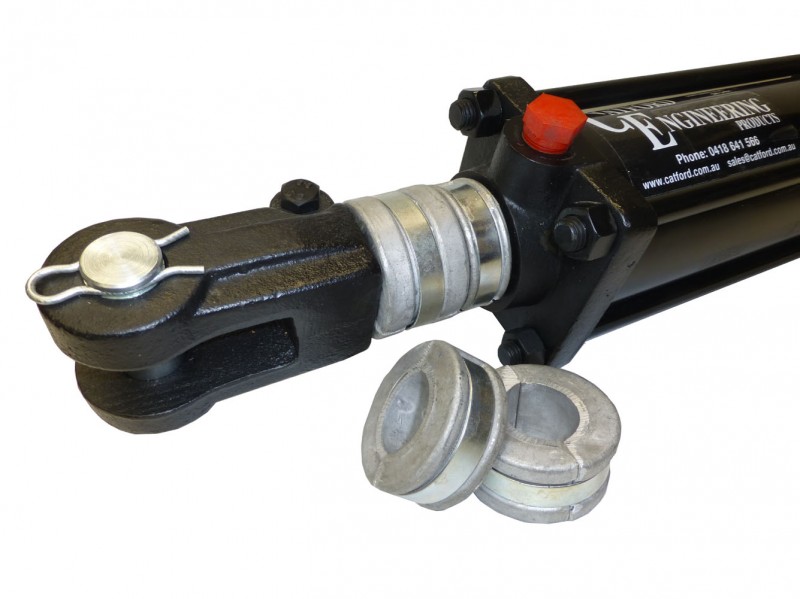

Stroke Limiting Collar Stoppers for Hydraulic Cylinders / Rams

Ideal for use in machinery where the cylinder does not need to fully close. With different width collars, you can change the closed length of your hydraulic rams to suit your application.

ROD2932-35 – $55 inc. per set.
Rod size: Suits piston rod diam:
ROD2932-35: 1-1/8″ – 29mm to 1-1/4″ – 32mm
Number of segments: Four
 Segment width: 21mm / 13/16″, 25mm / 1″, 32mm / 1-1/4″, 38mm / 1-1/2″

ROD3540-36 – $55 inc. per set.
Rod size: Suits piston rod diam:
ROD3540-36: 1-3/8″ – 35mm to 1-1/2″ – 40mm
Number of segments: Four
 Segment width: 21mm / 13/16″, 25mm / 1″, 32mm / 1-1/4″, 38mm / 1-1/2″

ROD4550-36 – $99 inc. per set.
Rod size: Suits piston rod diam:
ROD4550-36: 1-3/4″ – 45mm to 2″ – 50mm
Number of segments: Four
 Segment width: 25mm / 1″, 38mm / 1-1/2″, 50mm / 2″, 108mm / 4-1/4″

ROD4045-35 – $99 inc. per set.
Rod size: Suits piston rod diam:
 ROD4045-35: 1-1/2″ – 40mm to 1-3/4″ – 45mm
Number of segments: Four
 Segment width: 25mm / 1″, 38mm / 1-1/2″, 50mm / 2″, 108mm / 4-1/4″

Stroke Limiting Collar Stoppers Specifications

Ideal for: Use in machinery where the cylinder does not need to fully close. With different width collars, you can change the closed length of your hydraulic rams to suit your application.
Rod Size: Suits piston rod diam: (small cylinder stoppers)
(1) ROD2932-35: 1-1/8″ – 29mm to 1-1/4″ – 32mm
(2) ROD3540-36:
1-3/8″ – 35mm to 1-1/2″ – 40mm
Number of Segments:
Four
Segment Width:
21mm / 13/16″, 25mm / 1″, 32mm / 1-1/4″, 38mm / 1-1/2″
Rod Size: Suits piston rod diam: (large cylinder stoppers)
(1) ROD4550-36: 1-3/4″ – 45mm to 2″ – 50mm
(2) ROD4045-35: 1-1/2″ – 40mm to 1-3/4″ – 45mm
Number of Segments
Four
Segment Width: 25mm / 1″, 38mm / 1-1/2″, 50mm / 2″, 108mm / 4-1/4″
