Inline and Cartridge Valves

At Catford Engineering we offer a wide range of hydraulic products. Browse our inline and cartridge valves specifications and pricing below.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Buy Online

Pricing

Enquire

Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491

ISO 3834-2 (Fusion Welding Process)

INLINE & CARTRIDGE VALVES

COUNTER BALANCE VALVES

Single Counter Balance Valve Internal Vent

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	Material
CB40SL01	$	1/4” BSPP	100-350 bar	40 lpm	4:1	Aluminium
VBCR1401S	$	1/4″ BSPP	30-210 bar	30 Ipm	4.25:1	Steel
VBCR1401S8	$	1/4″ BSPP	30-210 bar	30 Ipm	8.75:1	Steel
VBCL3801	$	3/8″ BSPP	30-210 bar	40 Ipm	4.25:1	Steel
VBCL3801S3	$	3/8″ BSPP	30-210 bar	40 Ipm	3:1	Steel
VBCL3801S8	$	3/8″ BSPP	30-210 bar	40 Ipm	8:1	Steel
VBCR3802S	$	3/8″ BSPP	60-350 bar	40 Ipm	4.25:1	Steel
VBCR3802S8	$	3/8″ BSPP	60-350 bar	40 Ipm	8.75:1	Steel
VBCL1201	$	1/2″ BSPP	30-210 bar	60 Ipm	4.25:1	Steel
VBCL1201S3	$	1/2″ BSPP	30-210 bar	60 Ipm	3:1	Steel
VBCL1201S8	$	1/2″ BSPP	30-210 bar	60 Ipm	8:1	Steel
VBCR1202S	$	1/2″ BSPP	60-350 bar	60 Ipm	4.25:1	Steel
VBCR1202S8	$	1/2″ BSPP	60-350 bar	60 Ipm	8.75:1	Steel
VBCL3402	$	3/4″ BSPP	60-350 bar	120 Ipm	6.2:1	Steel

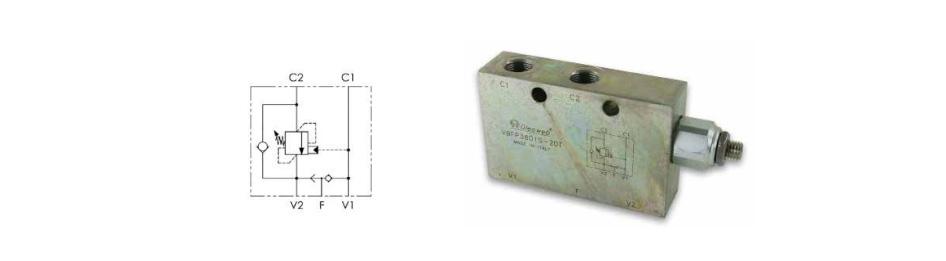

Single Counter Balance Valve Internal Vent, Brake Release

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	Material
VBFP3801S	$	3/8″ BSPP	30-210 bar	40 Ipm	4.25:1	Steel

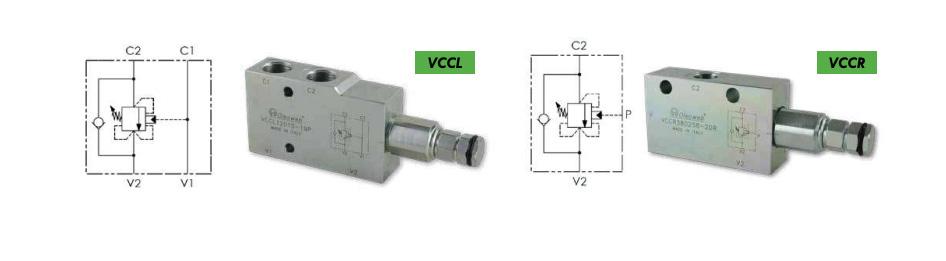

Single Counter Balance Valve External Vent

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	Material
VCCR1401S	$	1/4″ BSPP	30-210 bar	30 Ipm	4.25:1	Steel
VCCR1401S8	$	1/4″ BSPP	30-210 bar	30 Ipm	8.75:1	Steel
VCCL3801	$	3/8″ BSPP	30-210 bar	40 Ipm	4.25:1	Steel
VCCR3802S	$	3/8″ BSPP	40-350 bar	40 Ipm	4.25:1	Steel
VCCR3802S8	$	3/8″ BSPP	40-350 bar	40 Ipm	8.75:1	Steel
VCCL1202	$	1/2″ BSPP	60-350 bar	60 Ipm	4.25:1	Steel
VCCR1202S	$	1/2″ BSPP	60-350 bar	60 Ipm	4.25:1	Steel
VCCR1202S8	$	1/2″ BSPP	60-350 bar	60 Ipm	8.75:1	Steel

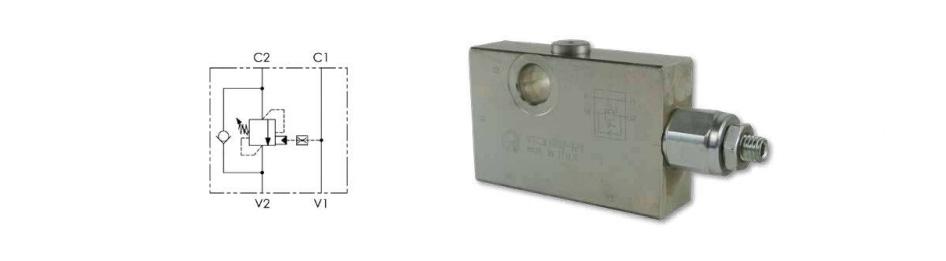

Single Counter Balance Valve, Banjo Bolt

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	Material
VBCB3801S	$	3/8″ BSPP	30-210 bar	40 Ipm	4.25:1	Steel
VBCB3802S	$	3/8″ BSPP	60-350 bar	40 Ipm	4.25:1	Steel

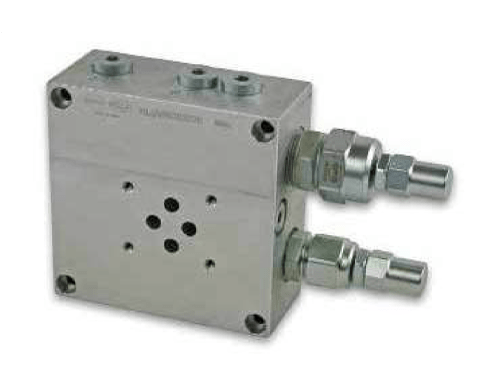

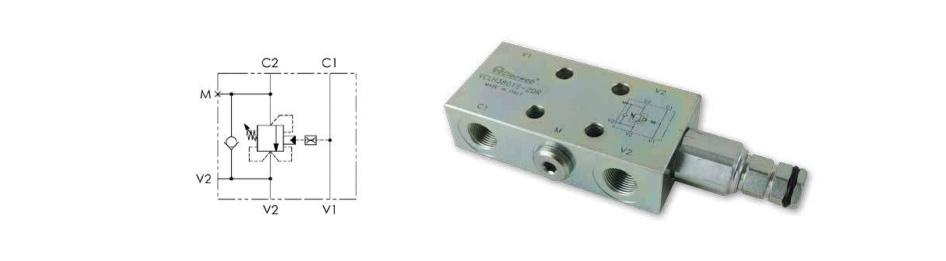

Single Counter Balance Valve, Manifold Mount

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	M Part	Material
VCLH38001S	$	3/8″ BSPP	30-210 bar	40 lpm	4:1	1/4″ BSPP	Steel

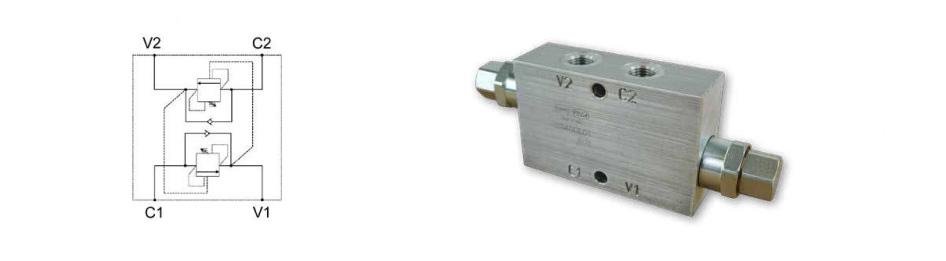

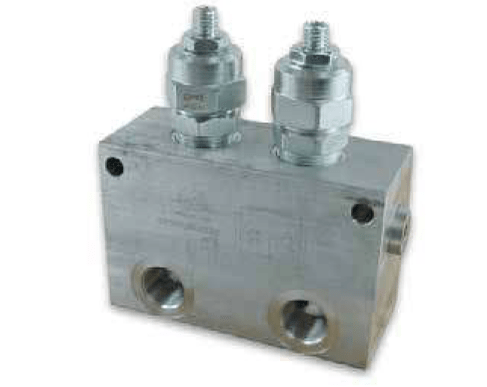

Dual Counter Balance Valve Internal Vent

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	Material
CB4ODLO1	$	1/4″ BSPP	50-350 bar	25 lpm	4:1	Aluminium

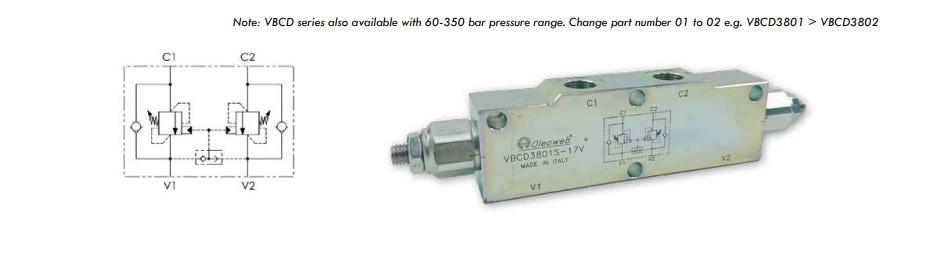

Dual Counter Balance Valve Internal Vent

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	Material
VBCD3801	$	3/8″ BSPP	30-210 bar	40 lpm	4.25:1	Steel
VBCD3801S3	$	3/8″ BSPP	30-210 bar	40 lpm	3:1	Steel
VBCD3801S8	$	3/8″ BSPP	30-210 bar	40 lpm	8:1	Steel
VBCD1201	$	1/2″ BSPP	30-210 bar	60 lpm	4.25:1	Steel
VBCD1201S3	$	1/2″ BSPP	30-210 bar	60 lpm	3:1	Steel
VBCD1201S8	$	1/2″ BSPP	30-210 bar	60 lpm	8:1	Steel
VBCD3402	$	3/4″ BSPP	60-350 bar	120 lpm	6.2:1	Steel

Dual Counter Balance Valve External Vent

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	Material
VBCC3801	$	3/8″ BSPP	30-210 bar	40 Ipm	4.25:1	Steel
VBCC3802	$	3/8″ BSPP	60-350 bar	40 Ipm	4.25:1	Steel
VBCC1201	$	1/2″ BSPP	30-210 bar	60 Ipm	4.25:1	Steel
VBCC1202	$	1/2- BSPP	60-350 bar	60 Ipm	4.25:1	Steel

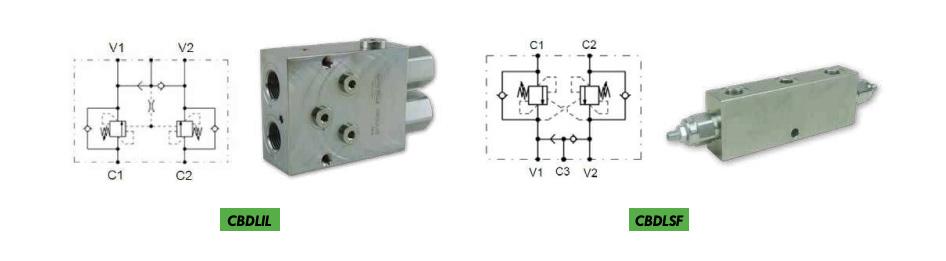

Dual Counter Balance Valve Internal Vent, Brake Release Shuttle

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	Material
CBDLIL03	$	1/2″ BSPP	100-350 bar	80 Ipm	4.2:1	Steel
CBDLSF02	$	3/8″ BSPP	100-350 bar	60 Ipm	4.2:1	Steel
CBDLSF03	$	1/2″ BSPP	100-350 bar	60 Ipm	4.2:1	Steel

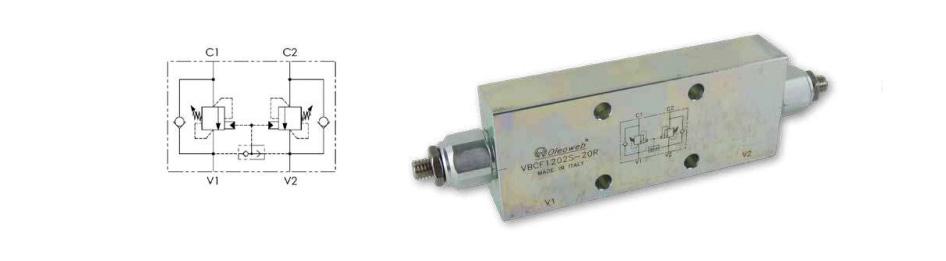

Dual Counter Balance Valve, Manifold Mount

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Pressure Range	Max Flow	Ratio	Material
VBCF1202	$	1/2″ BSPP	60-350 bar	60 lpm	1:4.25	Steel

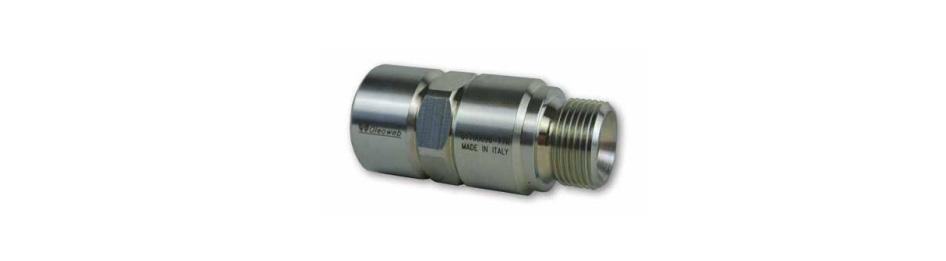

Hose Burst Valve Housing (see VUBA cartridges on following page)

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Thread Type	Material
61100087	$	1/4″ BSPP	Male/Female	Steel
61100088	$	3/8″ BSPP	Male/Female	Steel
61100089	$	1/2″ BSPP	Male/Female	Steel
61100090	$	3/4″ BSPP	Male/Female	Steel
61100091	$	1″ BSPP	Male/Female	Steel
61100092	$	1/4″ BSPP	Female/Female	Steel
61100093	$	3/8″ BSPP	Female/Female	Steel
61100094	$	1/2″ BSPP	Female/Female	Steel
61100095	$	3/4″ BSPP	Female/Female	Steel



Hose Burst Valve Installation Tool

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Valve Type
61700001	$	VUBA140
61700002	$	VUBA380
61700003	$	VUBA120
61700004	$	VUBA340

INLINE & CARTRIDGE VALVES

HOSE BURST VALVES

Hose Burst Valve Cartridge

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Thread	Max Pressure	Max Flow
VUBA140	$	1/4″ BSPP	350 bar	25 lpm
VUBA380	$	3/8″ BSPP	350 bar	50 lpm
VUBA120	$	1/2″ BSPP	350 bar	80 lpm
VUBA340	$	3/4″ BSPP	350 bar	150 lpm
VUBA100	$	1″ BSPP	350 bar	180 lpm

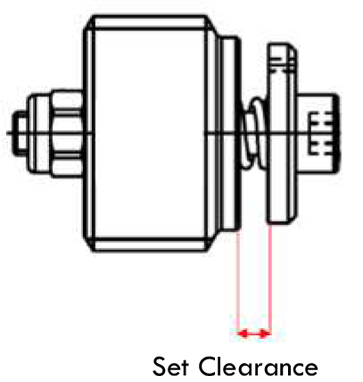

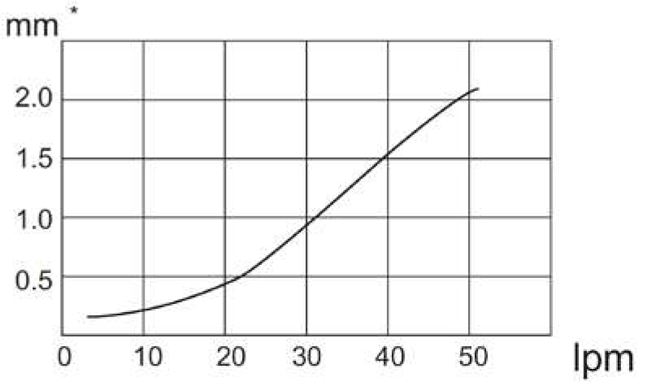

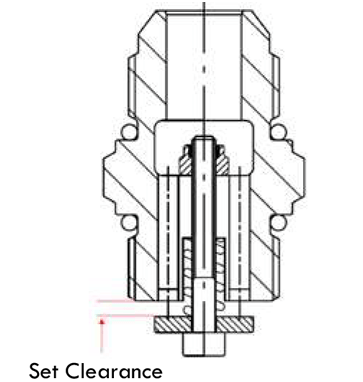

Part #		CLEARANCE SETTING (mm)
		0	0.1	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2	1.3	1.4	1.5	1.6	1.7	1.8	1.9	2
VUBA140	FLOW (lpm)	0	3	6	9.3	12.7	16	17	18	19.2	20.3	21.5	22.3	23	23.7	24.3	25	25.4	26	26.3	26.7	27
VUBA380		0	3	6	10	14	18	20.5	23	25	27	29	30	31	32.3	33.7	35	36.4	37	38.7	40.3	42
VUBA120		0	4	8	12.7	17.3	22	26.5	31	34	37	40	42.5	45	47.7	50.3	53	55.8	58.6	61.4	64.2	67
VUBA340		0	9	18	25.3	32.7	40	48.5	57	61.7	66.3	71	77	83	88.7	94.3	100	106	111	116	120	124
VUBA100		0	3.5	7	12.0	17	22	27.5	33	39	45	51	53.5	56	60.7	65.3	70	72.4	74.8	77.2	79.6	82

Hose Burst Adaptor

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Pressure	Max Flow
VUBASAE8	$	3/4″ UNO – 3/4″ JICM	315 bar	50 lpm

INLINE & CARTRIDGE VALVES

CHECK VALVES

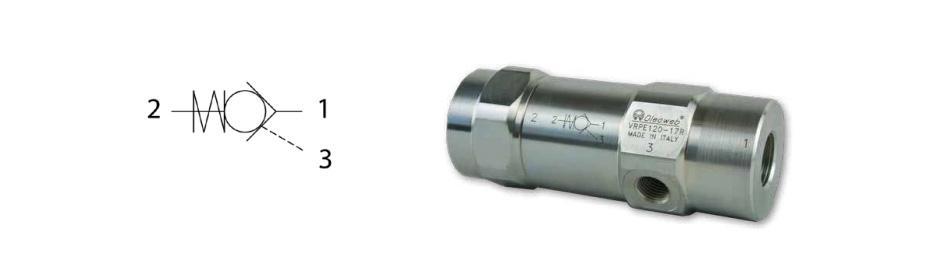

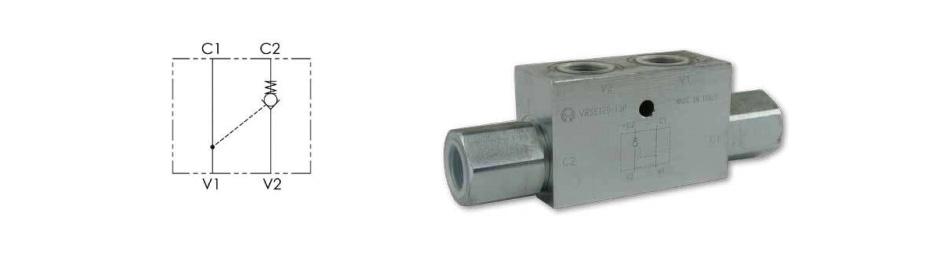

Single Inline Pilot Check Valve Internal Pilot

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Pilot Ratio	Material
VRSE140	$	1/4″ BSPP	15 lpm	320 bar	1:4	Steel
VRSE380	$	3/8″ BSPP	35 lpm	320 bar	1:4	Steel
VRSE120	$	1/2″ BSPP	45 lpm	320 bar	1:4	Steel
VRSE340	$	3/4″ BSPP	70 lpm	320 bar	1:2.9	Steel

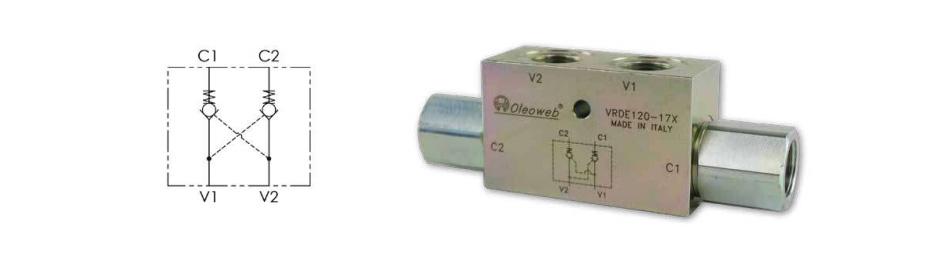

Dual Inline Pilot Check Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Pilot Ratio	Material
VRDE140	$	1 /4″ BSPP	15 lpm	320 bar	1:4	Steel
VRDE380	$	3/8″ BSPP	35 lpm	320 bar	1:4	Steel
VRDE120	$	1 /2″ BSPP	45 lpm	320 bar	1:4	Steel
VRDE340	$	3/4″ BSPP	70 lpm	320 bar	1:2.9	Steel

Single Inline Pilot Check Valve External Pilot

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Pilot Ratio	Material
VRPE140	$	1/4″ BSPP	25 lpm	350 bar	1:5.3	Steel
VRPE380	$	3/8″ BSPP	40 lpm	350 bar	1:4.4	Steel
VRPE120	$	1/2″ BSPP	60 lpm	350 bar	1:4.2	Steel
VRPE340	$	3/4″ BSPP	100 lpm	300 bar	1:4	Steel
VRPE100	$	1″ BSPP	150 lpm	300 bar	1:4.1	Steel

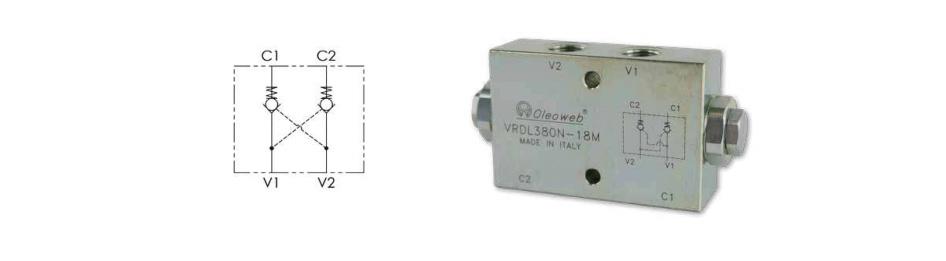

Dual Line-Mount Pilot Check Valve Internal Pilot

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Pilot Ratio	Material
VRDL380	$	3/8″ BSPP	35 lpm	350 bar	1:7	Steel
VRDL120	$	1/2″ BSPP	50 lpm	350 bar	1:7	Steel

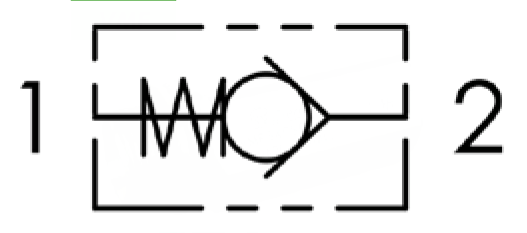

Inline Check Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Pilot Ratio	Material
VUR180	$	1/8″ BSPP	5 Ipm	400 bar	0.5 bar *	Steel
VUR140	$	1/4″ BSPP	15 Ipm	400 bar	0.5 bar *	Steel
VUR380	$	3/8″ BSPP	30 Ipm	400 bar	0.5 bar *	Steel
VUR120	$	1/2″ BSPP	50 Ipm	400 bar	0.5 bar *	Steel
VUR340	$	3/4″ BSPP	90 Ipm	400 bar	0.5 bar *	Steel
VUR100	$	1″ BSPP	150 Ipm	350 bar	0.5 bar *	Steel
VUR114	$	1.1/4″ BSPP	200 Ipm	350 bar	0.5 bar *	Steel
VUR112	$	1.1/2″ BSPP	300 Ipm	350 bar	0.5 bar *	Steel
VUR200	$	2″ BSPP	430 Ipm	250 bar	0.5 bar *	Steel
VMF380SP1	$	3/8″ BSPP	30 Ipm	400 bar	0.5 bar *	Steel
VMF120SP1	$	1/2″ BSPP	50 Ipm	400 bar	0.5 bar *	Steel
VMF340SP1	$	3/4″ BSPP	90 Ipm	400 bar	0.5 bar *	Steel

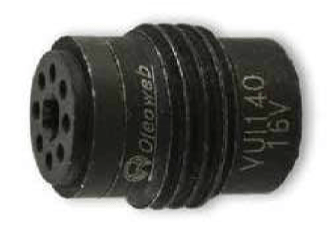

Cartridge Check Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Pilot Ratio	Material
VUI140	$	1/4″ BSPP	20 Ipm	350 bar	0.5 bar	Steel
VUI380	$	3/8″ BSPP	30 Ipm	350 bar	0.5 bar	Steel
VUI120	$	1/2″ BSPP	50 Ipm	350 bar	0.5 bar	Steel
VUI340	$	3/4″ BSPP	80 Ipm	350 bar	0.5 bar	Steel

INLINE & CARTRIDGE VALVES

FLOW CONTROL VALVES

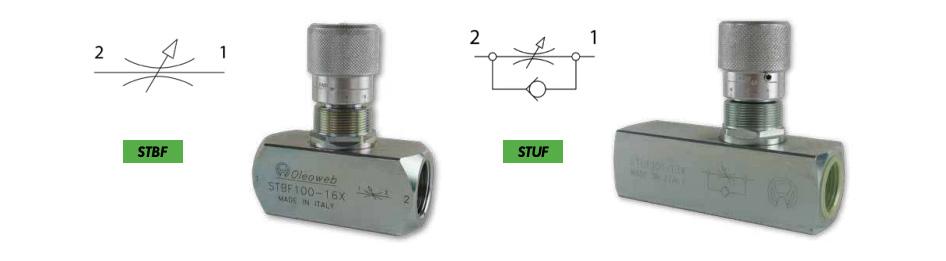

Needle Flow Control Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
STBF140	$	1/4″ BSPP	15 lpm	400 bar	Steel
STBF380	$	3/8″ BSPP	30 lpm	400 bar	Steel
STBF120	$	1/2″ BSPP	50 lpm	400 bar	Steel
STBF340	$	3/4″ BSPP	80 lpm	400 bar	Steel
STBF100	$	1″ BSPP	150 lpm	400 bar	Steel
STBF114	$	1.1/4″ BSPP	200 lpm	350 bar	Steel
STBF112	$	1.1/2″ BSPP	300 lpm	350 bar	Steel

Needle Flow Control Valve with Reverse Flow Check

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
STUF140	$	1/4″ BSPP	15 lpm	400 bar	Steel
STUF380	$	3/8″ BSPP	30 lpm	400 bar	Steel
STUF120	$	1/2″ BSPP	50 lpm	400 bar	Steel
STUF340	$	3/4″ BSPP	80 lpm	400 bar	Steel
STUF100	$	1″ BSPP	150 lpm	400 bar	Steel
STUF114	$	1.1/4″ BSPP	200 lpm	350 bar	Steel
STUF112	$	1.1/2″ BSPP	300 lpm	350 bar	Steel

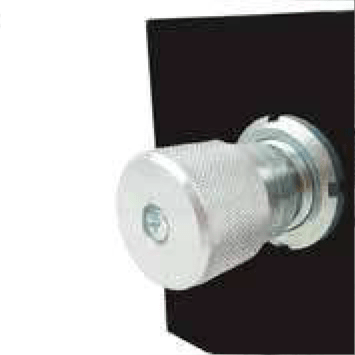

Panel Mount Nuts

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Valve
84100022	$	STBF/STUF140-380
84100023	$	STBF/STUF120
84100024	$	STBF/STUF340-100
84100030	$	STBF/STUF112-114

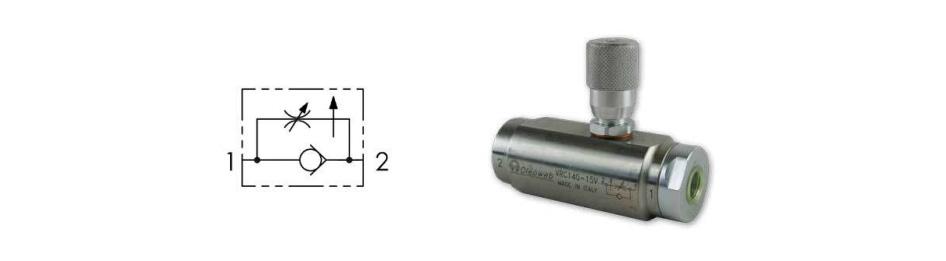

Pressure Compensated Flow Control Valve with Reverse Flow Check

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
VRC140	$	1/4″ BSPP	10 lpm	250 bar	Steel
VRC380	$	3/8″ BSPP	18 lpm	250 bar	Steel
VRC120	$	1/2″ BSPP	33 lpm	250 bar	Steel

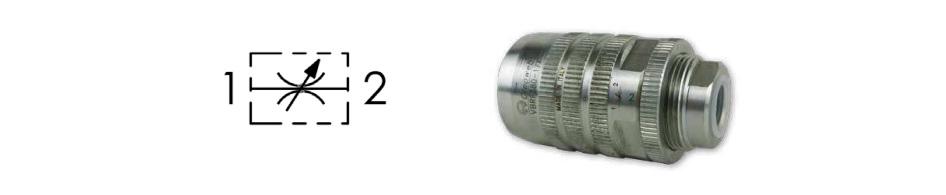

Barrel Flow Control Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
VBRF140	$	1/4″ BSPP	15 lpm	350 bar	Steel
VBRF380	$	3/8″ BSPP	30 lpm	350 bar	Steel
VBRF120	$	1/2″ BSPP	45 lpm	350 bar	Steel
VBRF340	$	3/4″ BSPP	85 lpm	300 bar	Steel
VBRF100	$	1″ BSPP	150 lpm	250 bar	Steel

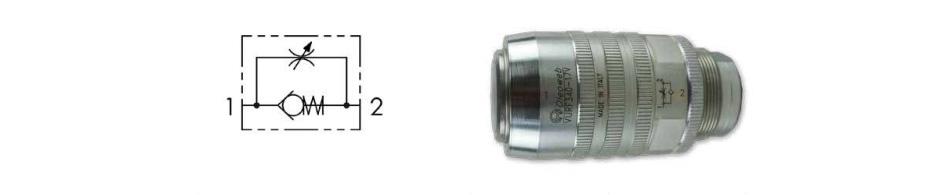

Barrel Flow Control Valve with Reverse Flow Check

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
VURF140	$	1/4″ BSPP	15 Ipm	350 bar	Steel
VURF380	$	3/8″ BSPP	30 Ipm	350 bar	Steel
VURF120	$	1/2″ BSPP	45 Ipm	350 bar	Steel
VURF340	$	3/4″ BSPP	85 Ipm	300 bar	Steel
VURF100	$	1″ BSPP	150 Ipm	250 bar	Steel

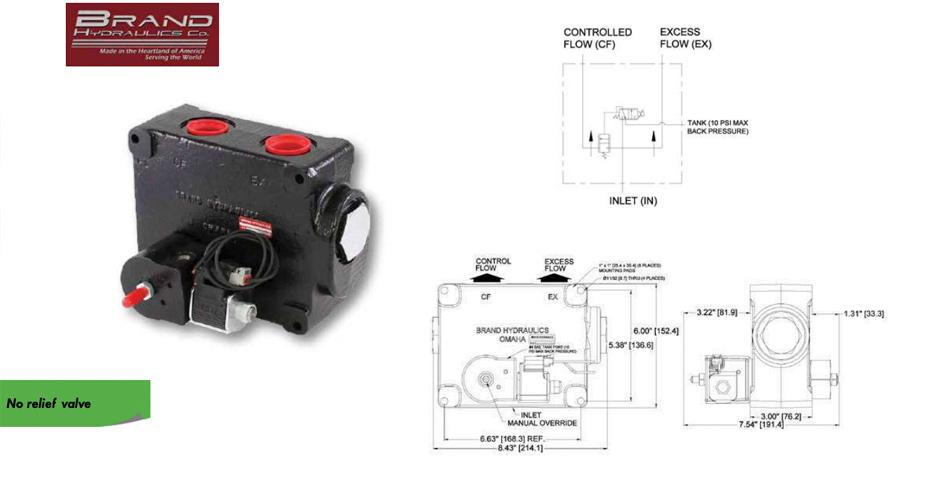

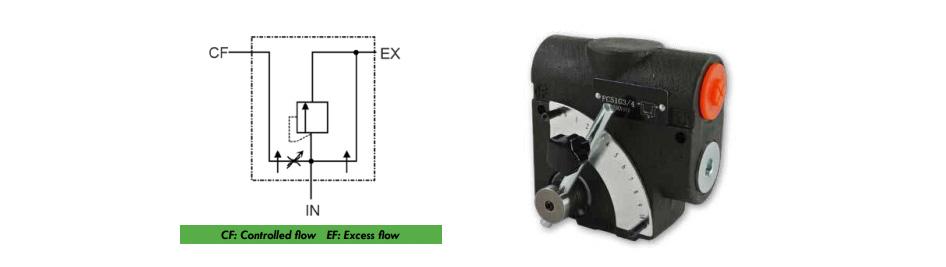

Pressure Compensated Priority Flow Control

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
FC51G1/2	$	1/2″ BSPP	61 lpm	207 bar	Cast iron
FC51G3/4	$	3/4″ BSPP	114 lpm	207 bar	Cast iron
FC51G3/8	$	3/8″ BSPP	30 lpm	207 bar	Cast iron
FCB51G1/2	$	1/2″ BSPP with relief	61 lpm	207 bar	Cast iron
FCB51G3/4	$	3/4″ BSPP with relief	114 lpm	207 bar	Cast iron
FCB51G3/8	$	3/8″ BSPP with relief	30 lpm	207 bar	Cast iron
FCB51-HK	$	Replacement handle kit
FCB51-SK	$	Seal kit

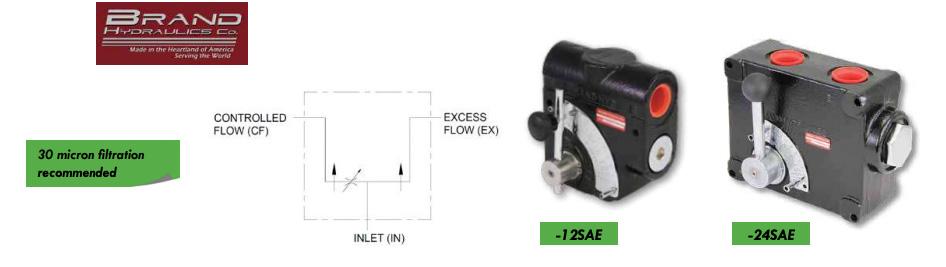

Pressure Compensated Priority Flow Control Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Flow Path	Port Size	Flow	Max Pressure	Relief Valve
PFC51-8SAE	$	Standard flow control	3/4” UN	0-30 lpm	3000 psi	n/a
PFC51-10SAE	$	Standard flow control	7/8” UN	0-61 lpm	3000 psi	n/a
PFC51-12SAE	$	Standard flow control	1.1/16” UN	0-114 lpm	3000 psi	n/a
PFC51-16SAE	$	Standard flow control	1.5/16” UN	0-189.2 lpm	3000 psi	n/a
PFC51-24SAE	$	Standard flow control	1.7/8” UN	0-340.7 lpm	3000 psi	n/a

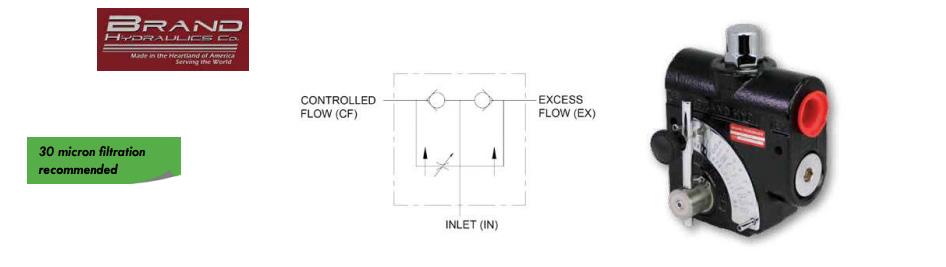

Pressure Compensated Priority Flow Control Valve with Free Reverse Flow

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Flow Path	Port Size	Flow	Max Pressure	Relief Valve
PFC55-10SAE37	$	Free reverse flow	7/8” UN	0-30 lpm	3000 psi	n/a
PFC55-10SAE	$	Free reverse flow	7/8” UN	0-61 lpm	3000 psi	n/a
PFC55-12SAE	$	Free reverse flow	1.1/16” UN	0-114 lpm	3000 psi	n/a

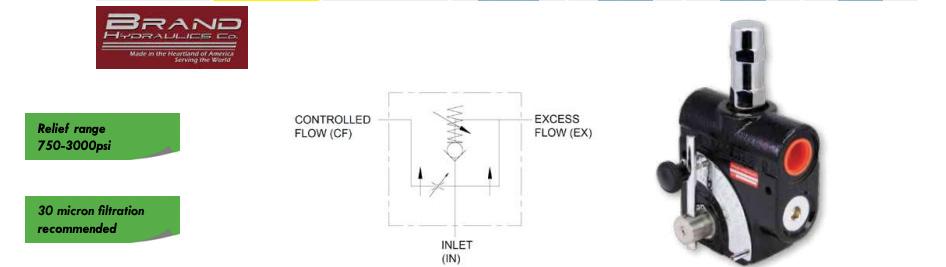

Pressure Compensated Priority Flow Control Valve with Relief Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Flow Path	Port Size	Flow	Max Pressure	Relief Preset
PFCR51-8	$	Standard flow control	3/4” UN	0-30 lpm	3000 psi	1500 psi
PFCR51-10	$	Standard flow control	7/8” UN	0-61 lpm	3000 psi	1500 psi
PFCR51-12	$	Standard flow control	1.1/16” UN	0-114 lpm	3000 psi	1500 psi

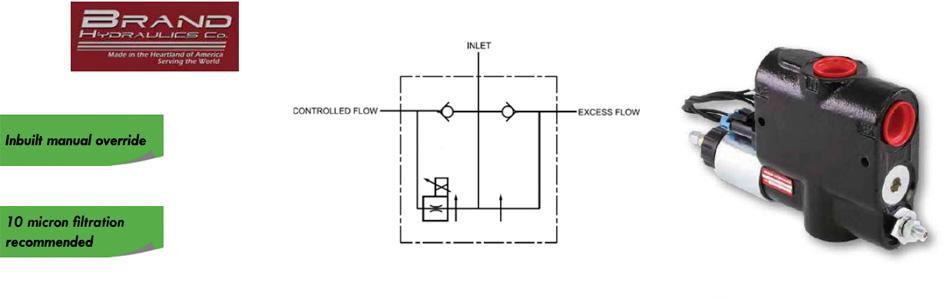

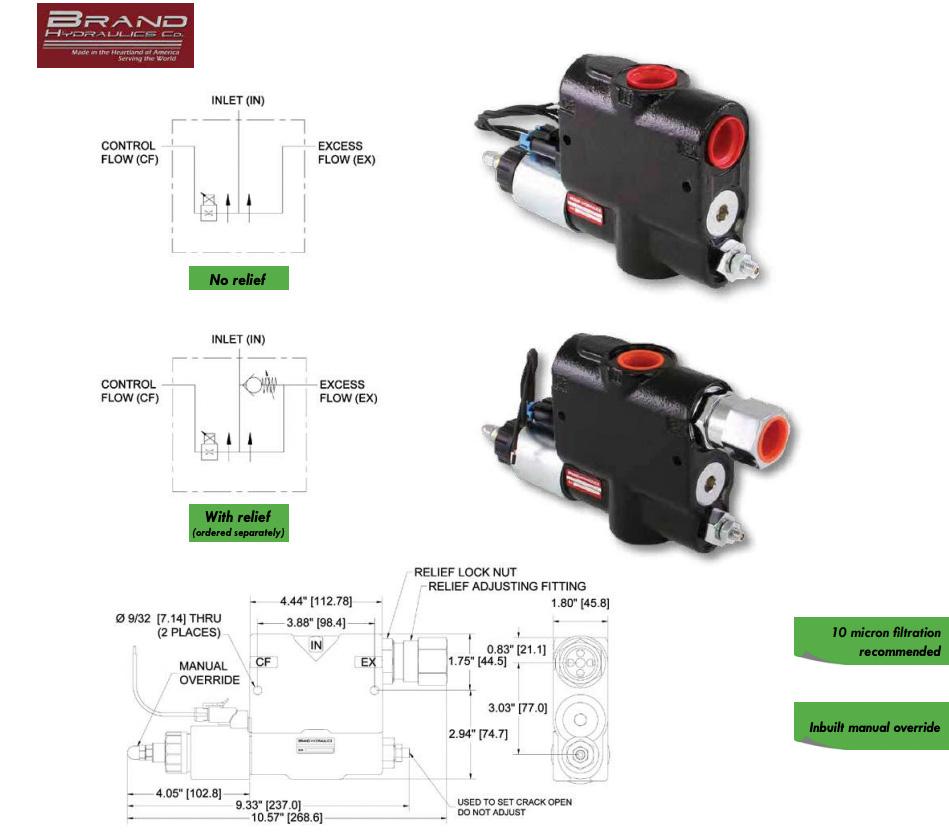

Electronically Adjustable Proportional Pressure Compensated Flow Control Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Flow Path	Port Size	Flow	Voltage	Max Amps	Max Pressure
PEFC12-10-122P	$	2-port no reverse flow	1.1/16″ UN	0-37.8 lpm	12v DC	1.0 amp	3000 psi
PEFC12-25-122P	$	2-port no reverse flow	1.1/16″ UN	0-94.6 lpm	12v DC	1.0 amp	3000 psi
PEFC12-10-12	$	3-port no reverse flow	1.1/16″ UN	0-37.8 lpm	12v DC	1.0 amp	3000 psi
PEFC12-15-12	$	3-port no reverse flow	1.1/16″ UN	0-56.8 lpm	12v DC	1.0 amp	3000 psi
PEFC12-20-12	$	3-port no reverse flow	1.1/16″ UN	0-75.7 lpm	12v DC	1.0 amp	3000 psi
PEFC12-25-12	$	3-port no reverse flow	1.1/16″ UN	0-94.6 lpm	12v DC	1.0 amp	3000 psi
PEFC12-30-12	$	3-port no reverse flow	1.1/16″ UN	0-113.6 lpm	12v DC	1.0 amp	3000 psi
PEFC12-10-24	$	3-port no reverse flow	1.1/16″ UN	0-37.8 lpm	24v DC	0.5 amp	3000 psi
PEFC12-15-24	$	3-port no reverse flow	1.1/16″ UN	0-56.8 lpm	24v DC	0.5 amp	3000 psi
PEFC12-20-24	$	3-port no reverse flow	1.1/16″ UN	0-75.7 lpm	24v DC	0.5 amp	3000 psi
PEFC12-25-24	$	3-port no reverse flow	1.1/16″ UN	0-94.6 lpm	24v DC	0.5 amp	3000 psi
PEFC12-30-24	$	3-port no reverse flow	1.1/16″ UN	0-113.6 lpm	24v DC	0.5 amp	3000 psi
EFCR-K	$	Relief valve 750-3000 psi

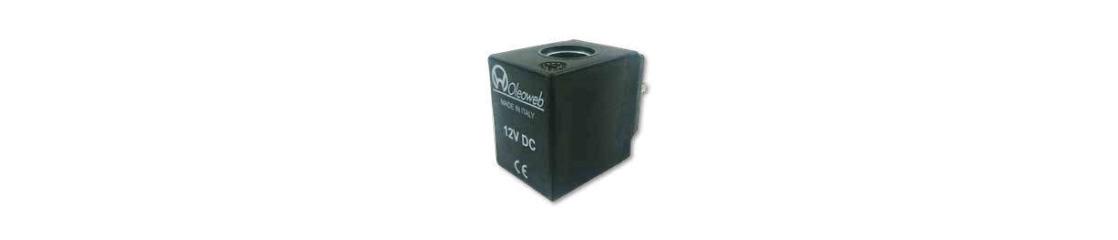

C961	$	12v DC coil
C962	$	24v DC coil

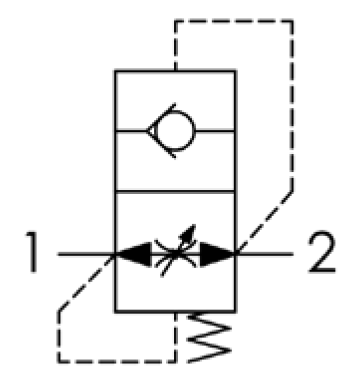

Electronically Adjustable Proportional Pressure Compensated Flow Control Valve with Free Reverse Flow

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Flow Path	Port Size	Flow	Voltage	Max Amps	Relief Valve	Ports
PEFCC l 2-10-12	$	Free reverse flow	1.1/16″ UN	0-37.8 lpm	12v DC	1 .0 amp	n/a	3-port
PEFCC l 2-15-12	$	Free reverse flow	1.1/16″ UN	0-56.8 lpm	12v DC	1 .0 amp	n/a	3-port
PEFCC l 2-20-12	$	Free reverse flow	1.1/16″ UN	0-75.7 lpm	12v DC	1 .0 amp	n/a	3-port
PEFCC l 2-25-12	$	Free reverse flow	1.1/16″ UN	0-94.6 lpm	12v DC	1 .0 amp	n/a	3-port
PEFCC l 2-30-12	$	Free reverse flow	1.1/16″ UN	0-113.6 lpm	12v DC	1 .0 amp	n/a	3-port
PEFCC l 2-10-24	$	Free reverse flow	1.1/16″ UN	0-37.8 lpm	24v DC	0.5 amp	n/a	3-port
PEFCC l 2-15-24	$	Free reverse flow	1.1/16″ UN	0-56.8 lpm	24v DC	0.5 amp	n/a	3-port
PEFCC l 2-20-24	$	Free reverse flow	1.1/16″ UN	0-75.7 lpm	24v DC	0.5 amp	n/a	3-port
PEFCC l 2-25-24	$	Free reverse flow	1.1/16″ UN	0-94.6 lpm	24v DC	0.5 amp	n/a	3-port
PEFCC l 2-30-24	$	Free reverse flow	1.1/16″ UN	0-113.6 lpm	24v DC	0.5 amp	n/a	3-port
C961	$	12v DC coil
C962	$	24v DC coil

Electronically Adjustable Proportional Pressure Compensated Flow Control Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Flow Path	Port Size	Flow	Voltage	Max Pressure	Ports
LEFC164512DM	$	No reverse flow	1.5/16” UN	0-170.2 lpm	12v DC	3000 psi	3-port
LEFC165512DM	$	No reverse flow	1.5/16” UN	0-208.2 lpm	12v DC	3000 psi	3-port
LEFC164524DM	$	No reverse flow	1.5/16” UN	0-170.2 lpm	24v DC	3000 psi	3-port
LEFC165524DM	$	No reverse flow	1.5/16” UN	0-208.2 lpm	24v DC	3000 psi	3-port

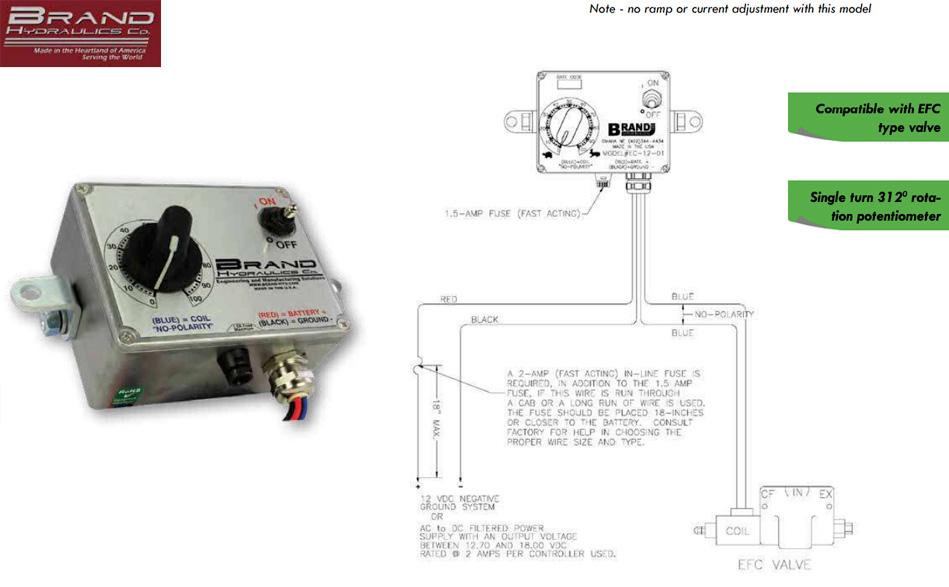

Electronic Control Box

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Outputs	Supply Voltage	Output Voltage	PWM Output	IP Rating
EC-12-01	$	X1 PWM	12.7-18v DC	12.7-18v DC	1.0 amp	IP65/NEMA4

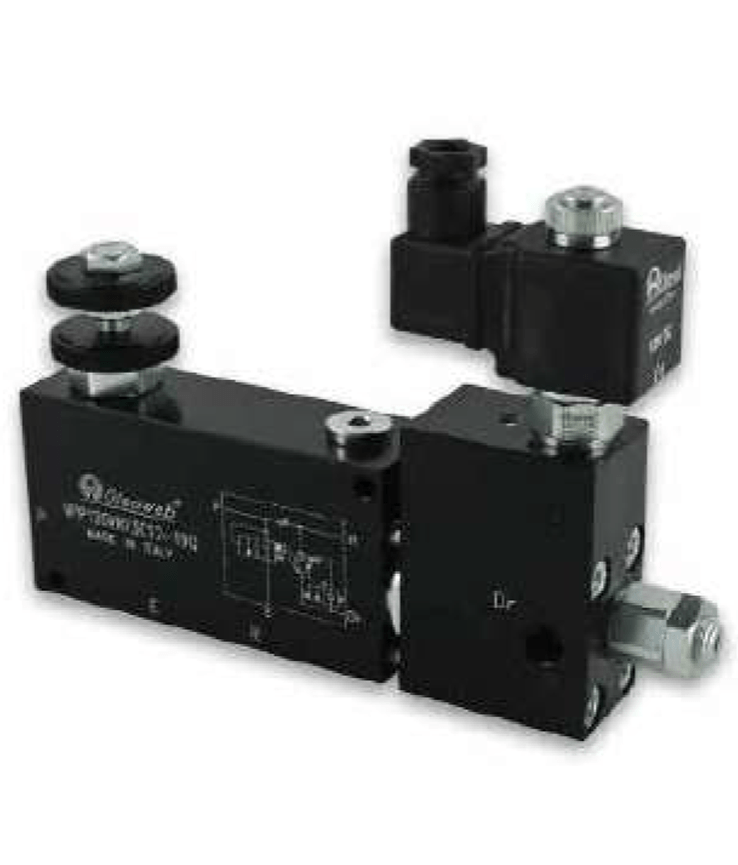

Pressure Compensated Priority Flow Control Solenoid Actuated with Relief

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Relief	Material
VPP380VRV3	$	3/8″ BSPP	50 Ipm	250 bar	30-210 bar	Aluminium
VPP120VRV3	$	1/2″ BSPP	90 Ipm	250 bar	30-210 bar	Aluminium

Priority Flow Control - Excess to line

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Regulated Max Flow	Max Pressure	Material
VPP380	$	3/8″ BSPP	50 Ipm	30 Ipm	250 bar	Aluminium
VPP120	$	1/2″ BSPP	90 Ipm	50 Ipm	250 bar	Aluminium
VPP340	$	3/4″ BSPP	150 Ipm	80 Ipm	250 bar	Aluminium
PVEL05	$	1″ BSPP	190 Ipm	120 Ipm	260 bar	Aluminium

INLINE & CARTRIDGE VALVES

FLOW CONTROL & CROSS LINE RELIEF VALVES

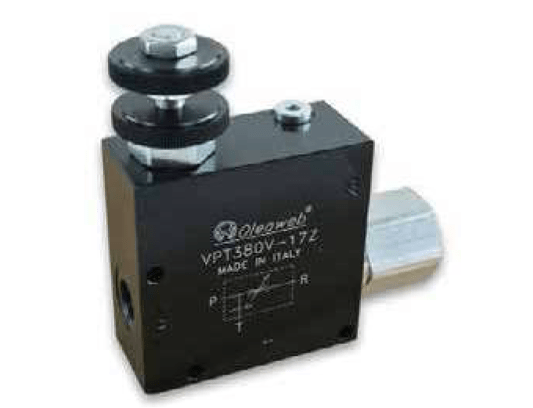

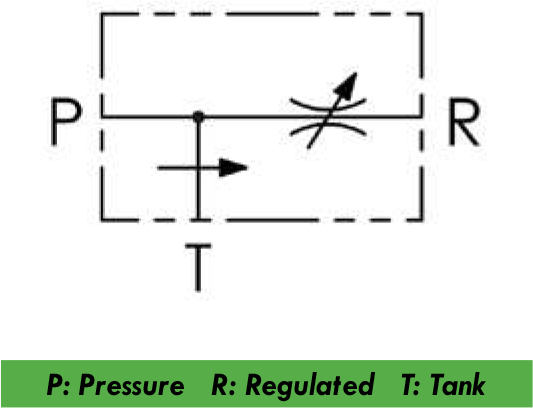

Priority Flow Control - Excess to tank

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Flow in R	Max Pressure	Material
VPT380	$	3/8″ BSPP	50 Ipm	30 Ipm	250 bar	Aluminium
VPT120	$	1 /2″ BSPP	80 Ipm	50 Ipm	250 bar	Aluminium
VPT340	$	3/4″ BSPP	150 Ipm	80 Ipm	250 bar	Aluminium
VPT100	$	1″ BSPP	240 Ipm	150 Ipm	260 bar	Aluminium

Priority Flow Control with Control Valve Interface Relief on Regulate Flow

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Flow	Max Press.	Preset Regulated Flow	Port Size	Control Valve	Relief Range	Material
PD-QV/40-MOP/25	$	90 lpm	350 bar	4-20 lpm	3/4” BSPP	See page XXX	20-210 bar	Steel

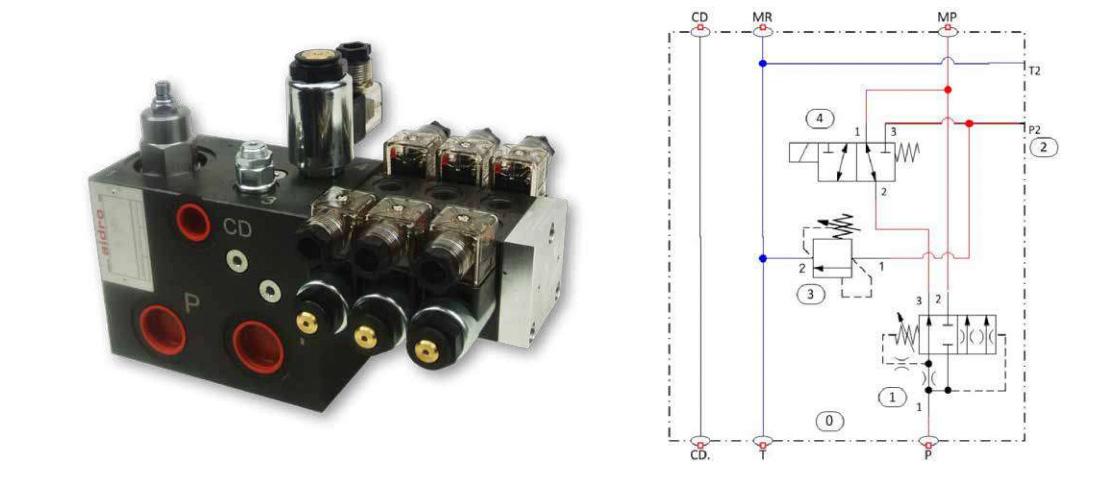

Priority Flow Control with Control Valve Interface/Solenoid Unload Valve & Relief on Regulate Flow

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Flow	Max Press.	Preset Regulated Flow	Port Size	Control Valve	Unload Valve	Relief Range	Material
PD-QV/MOP-12VDC	$	240 lpm	350 bar	7 lpm	CD: 1/2” BSPP MP,MR,P,T: 1” BSPP	See page XXX	Normally Open 12v DC	20-210 bar	Steel

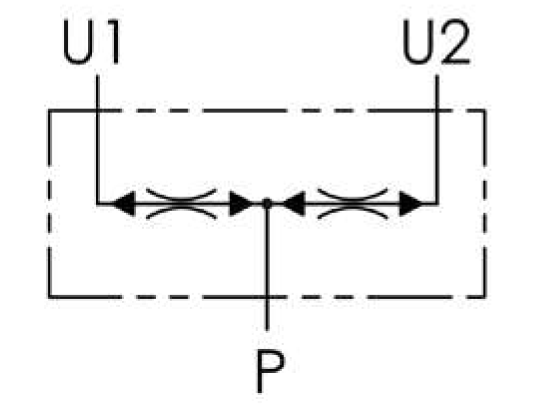

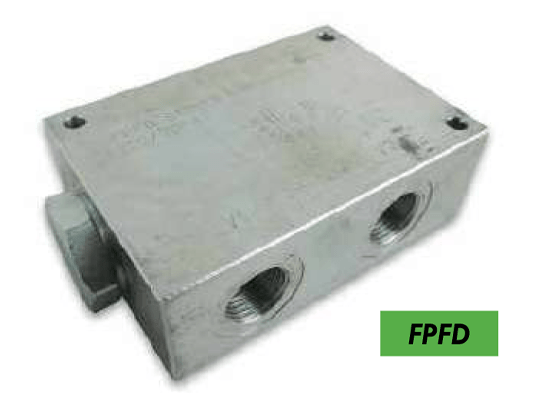

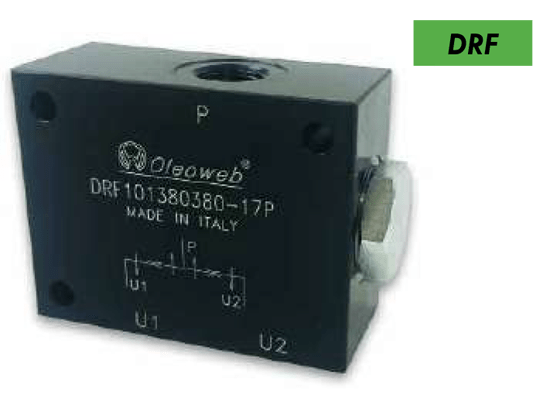

Cartridge Flow Dividers & Combiner

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	P-Port	U-Port	Max Flow	Max Pressure	Material
DRF101380	$	3/8″ BSPP	3/8″ BSPP	2-5 Ipm	250 bar	Aluminium
DRF102380	$	3/8″ BSPP	3/8″ BSPP	3-10 Ipm	250 bar	Aluminium
DRF103380	$	3/8″ BSPP	3/8″ BSPP	7-20 Ipm	250 bar	Aluminium
DRF104380	$	3/8″ BSPP	3/8″ BSPP	15-40 Ipm	250 bar	Aluminium
FPFDS12CB3412E	$	3/4″ BSPP	1/2″ BSPP	75-100 Ipm	250 bar	Aluminium
FPFDS16CB1616A	$	1″ BSPP	3/4″ BSPP	80-115 Ipm	250 bar	Aluminium
FPFDS16CB1616E	$	1″ BSPP	3/4″ BSPP	115-150 Ipm	250 bar	Aluminium

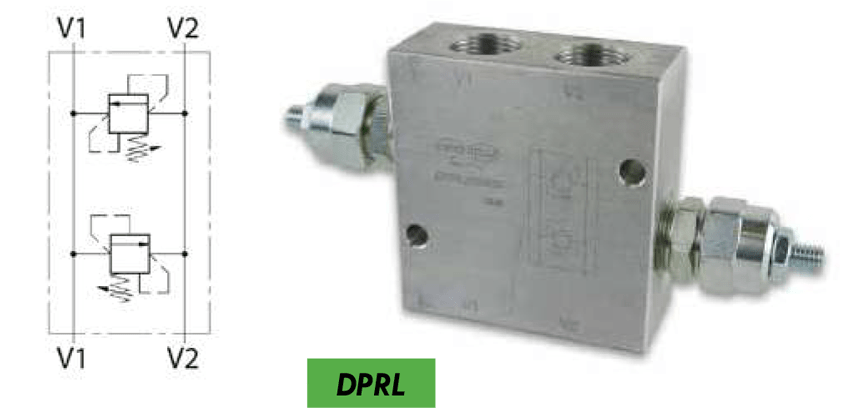

Dual Cross Line Relief Valve Direct Acting

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
VBDC3802	$	3/8″ BSPP	40 Ipm	20-210 bar	Steel
VBDC3803	$	3/8″ BSPP	40 Ipm	40-350 bar	Steel
VBDC1202	$	1/2″ BSPP	40 Ipm	20-210 bar	Steel
VBDC1203	$	1/2″ BSPP	40 Ipm	40-350 bar	Steel
DPRL800420A	$	3/4″ BSPP	80 Ipm	30-260 bar	Aluminium

INLINE & CARTRIDGE VALVES

CROSS LINE RELIEF & UNLOADING VALVES

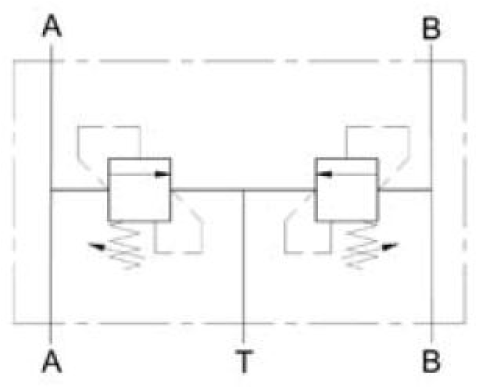

Dual Pressure Relief Common Tank Line Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
DPRSU800320A	$	1/2″ BSPP	80 Ipm	260 bar	Aluminium

Inline Unloading Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports					Max Flow		Max Pressure	Material
		M	C	HP	LP	T	HP	LP
HLUV-03-20-30	$	1/4″	1/2″	3/8″	1/2″	3/4″	30 Ipm	60 Ipm	360 bar	Steel
HLUV-04-20-30	$	1/4″	3/4″	1/2″	3/4″	1″	20 Ipm	100 Ipm	360 bar	Steel

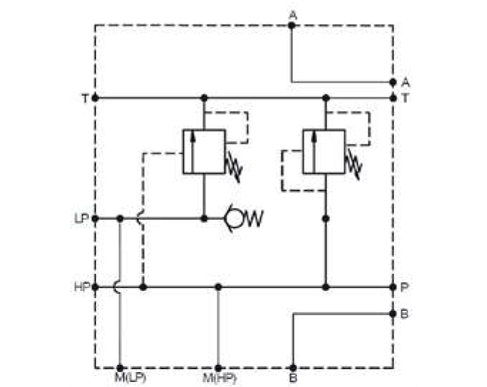

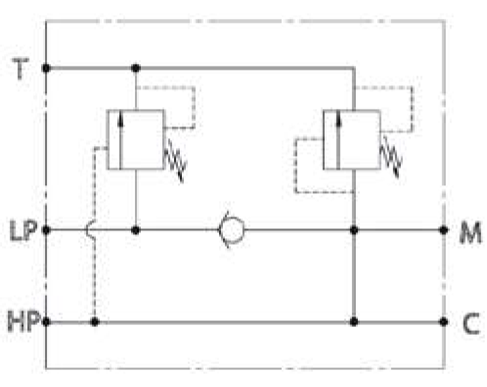

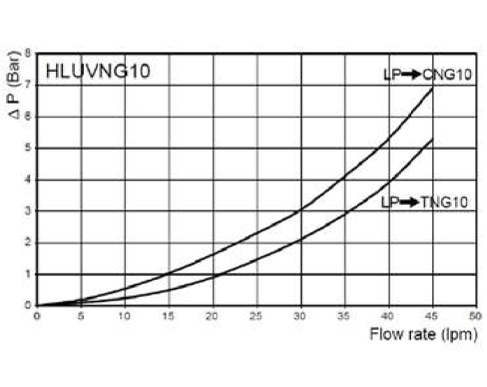

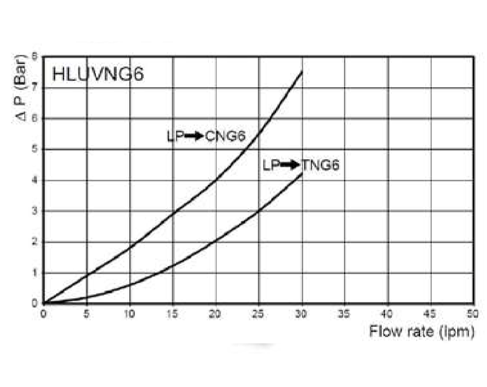

High Low Unloading Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	To Suit	Relief	Unload	Material
HLUVNG6-20-30	$	Cetop 3	100-350 bar	20-260 bar	Aluminium
HLUVNG10-20-30	$	Cetop 5	100-350 bar	20-260 bar	Aluminium

INLINE & CARTRIDGE VALVES

UNLOADING VALVES & RELIEF VALVES

Pilot Operated Unloading Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports BSPP			Max Flow	Max Pressure	Pilot Pressure Range	Relief Pressure Range	Material
		P + A	T	PIL
VMSIP80R03-1	$	1/2″	3/8″	1/4″	40 Ipm	250 bar	100-250 bar	30-260 bar	Steel

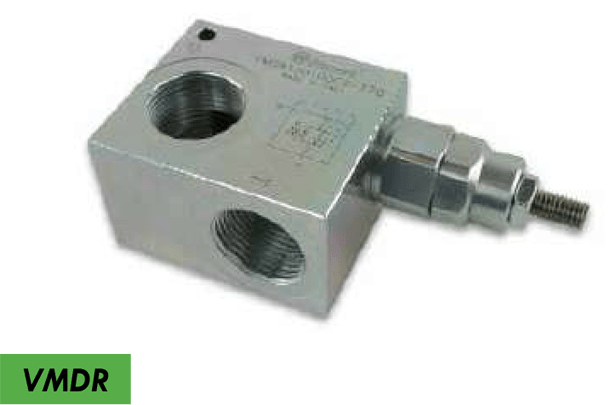

Inline Relief Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
VMDR1-1401C	$	1/4″ BSPP	20 Ipm	10-40 bar	Steel
VMDR1-1402C	$	1/4″ BSPP	20 Ipm	20-110 bar	Steel
VMDR1-1403C	$	1/4″ BSPP	20 Ipm	30-210 bar	Steel
VMDR1 -1404C	$	1/4″ BSPP	20 Ipm	40-350 bar	Steel
VMDR40-3801C	$	3/8″ BSPP	40 Ipm	10-110 bar	Steel
VMDR40-3802C	$	3/8″ BSPP	40 Ipm	20-210 bar	Steel
VMDR40-3803C	$	3/8″ BSPP	40 Ipm	40-300 bar	Steel
VMDR40-1201C	$	1/2″ BSPP	40 Ipm	10-110 bar	Steel
VMDR40-1202C	$	1/2″ BSPP	40 Ipm	20-210 bar	Steel
VMDR40-1203C	$	1/2″ BSPP	40 Ipm	40-300 bar	Steel
VMDR90-1201C	$	1/2″ BSPP	80 Ipm	10-100 bar	Steel
VMDR90-1202C	$	1/2″ BSPP	80 Ipm	20-250 bar	Steel
VMDR90-1203C	$	1/2″ BSPP	80 Ipm	40-350 bar	Steel
VMDR120-3401C	$	3/4″ BSPP	120 Ipm	10-100 bar	Steel
VMDR120-3402C	$	3/4″ BSPP	120 Ipm	20-250 bar	Steel
VMDR120-3403C	$	3/4″ BSPP	120 Ipm	40-350 bar	Steel
VMDR120-1001C	$	1″ BSPP	120 Ipm	10-100 bar	Steel
VMDR120-1002C	$	1″ BSPP	120 Ipm	20-250 bar	Steel
VMDR120-1003C	$	1″ BSPP	120 Ipm	40-350 bar	Steel
81300127	$	Adjustment Handle – VMDR40/VMDR90/VMDR120 Series

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Pressure range	Max Pressure	Material

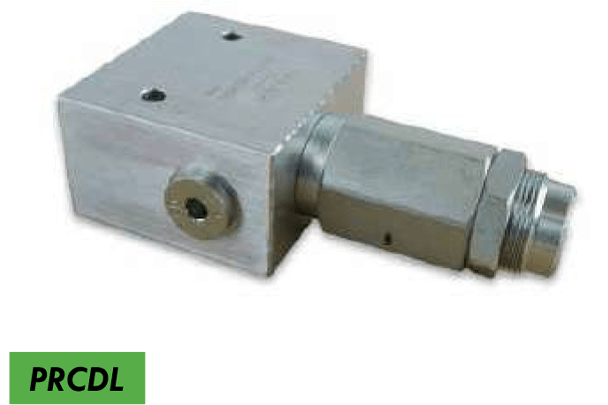

PRCDL1500430	$	3/4″ BSPP	150 lpm	100-350 bar	250 bar	Aluminium
PRCDL2500530	$	1″ BSPP	240 lpm	120-350 bar	250 bar	Aluminium

INLINE & CARTRIDGE VALVES

INLINE RELIEF, PRESSURE REDUCING & END STROKE VALVES

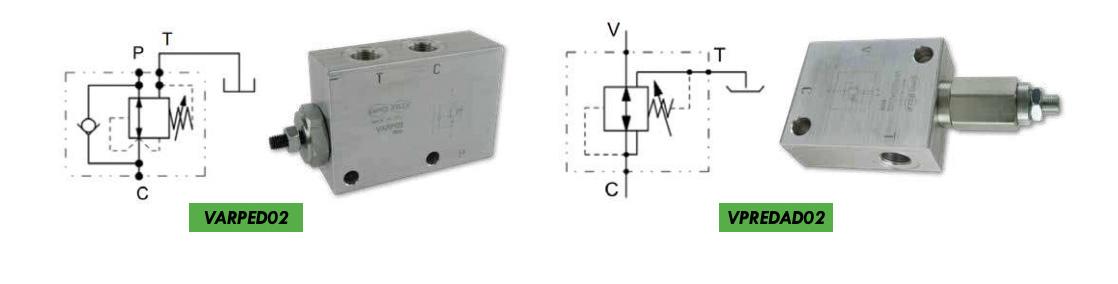

Pressure Reducing Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Max Pressure Range	Material
VARPED02	$	3/8″ BSPP	20 Ipm	260 bar	10-140 bar	Aluminium

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure In	Max Regulated Pressure	Material
VPREDAD02	$	3/8″ BSPP	30 Ipm	250 bar	140 bar	Aluminium

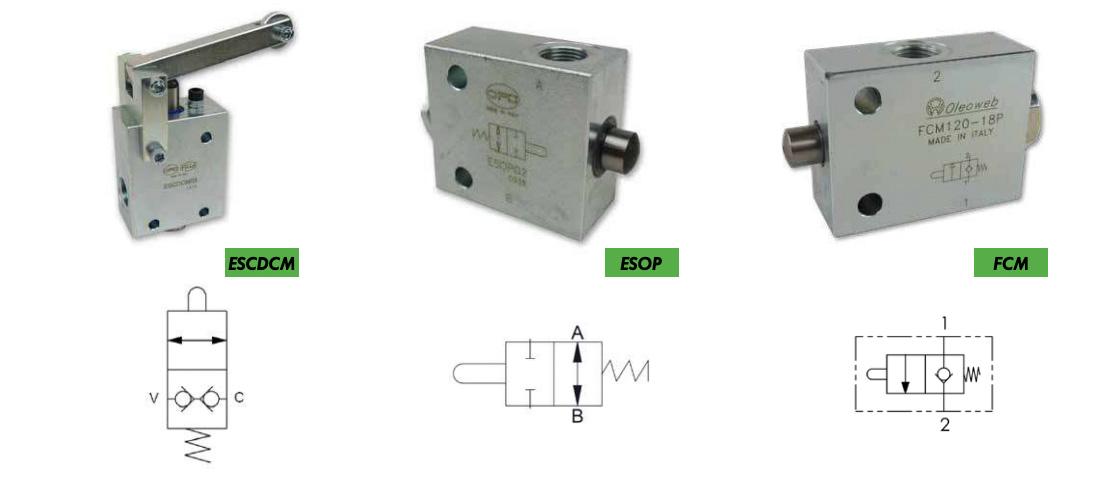

End Stroke Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Function	Material
FCM380N	$	3/8″ BSPP	40 Ipm	350 bar	Normally Closed	Steel
FCM120N	$	1/2″ BSPP	60 Ipm	300 bar	Normally Closed	Steel
ESOP02	$	3/8″ BSPP	30 Ipm	350 bar	Normally Open	Steel
ESOP03	$	1/2″ BSPP	60 Ipm	350 bar	Normally Open	Steel
ESCDCM 03	$	1/2″ BSPP	80 Ipm	400 bar	Normally Closed	Steel

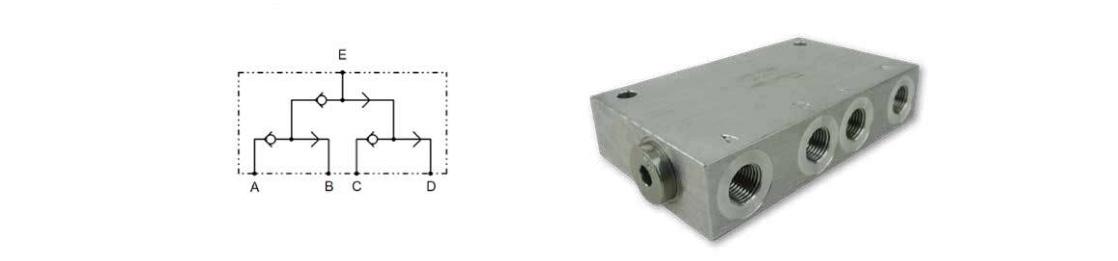

Multiple Circuit Sensing Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
VSEL3VHC01	$	1/4″ BSPP	10 Ipm	250 bar	Aluminium

INLINE & CARTRIDGE VALVES

SHUTTLE & SEQUENCE VALVES

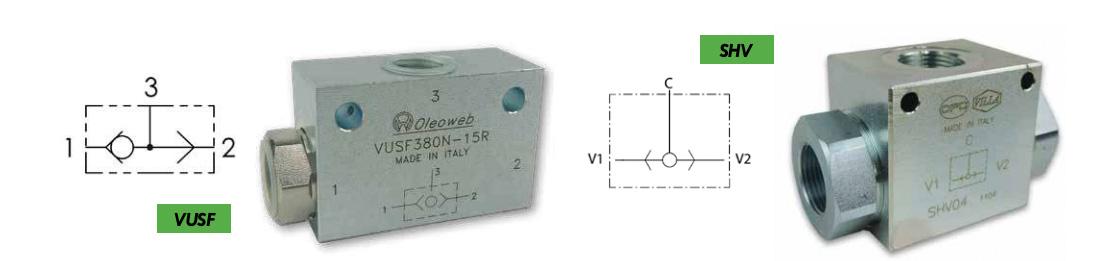

Load Shuttle Ball Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Material
VUSF140N	$	1/4″ BSPP	20 Ipm	350 bar	Steel
VUSF380N	$	3/8″ BSPP	40 Ipm	350 bar	Steel
VUSF120N	$	1/2″ BSPP	60 Ipm	350 bar	Steel
SHV04	$	3/4″ BSPP	140 Ipm	350 bar	Steel
SHV05	$	1″ BSPP	180 Ipm	300 bar	Steel

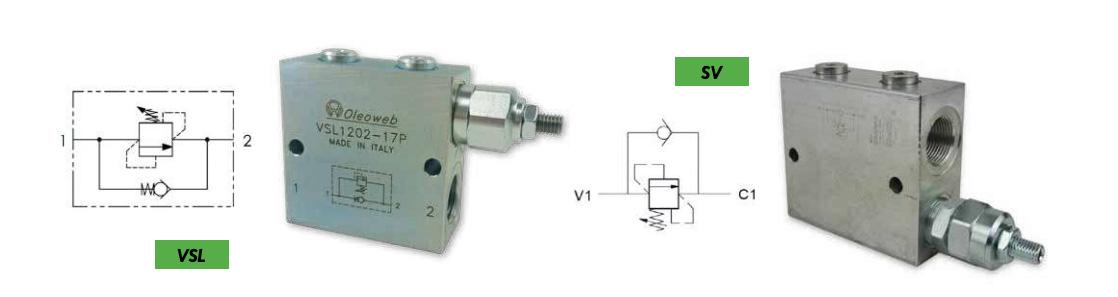

Sequence Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Adj.Pressure	Max Pressure	Material
VSL1402	$	1/4″ BSPP	20 Ipm	210 bar	350 bar	Steel
VSL1403	$	1/4″ BSPP	20 Ipm	300 bar	350 bar	Steel
VSL3802	$	3/8″ BSPP	40 Ipm	210 bar	350 bar	Steel
VSL3803	$	3/8″ BSPP	40 Ipm	300 bar	350 bar	Steel
VSL1202	$	1/2″BSPP	40 Ipm	210 bar	350 bar	Steel
VSL1203	$	1/2″BSPP	40 Ipm	300 bar	350 bar	Steel
SV800420A	$	3/4″ BSPP	80 Ipm	260 bar	350 bar	Aluminium
SV1500530C	$	1″BSPP	200 Ipm	260 bar	350 bar	Aluminium

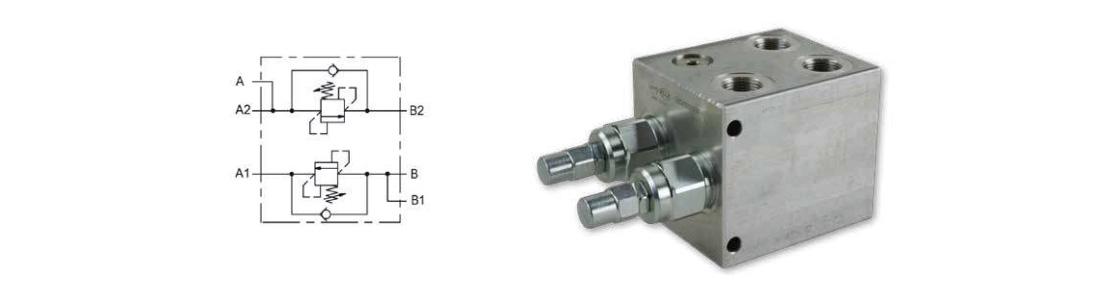

Dual Sequence Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Pilot Ratio	Range	Material
DSV0220SF	$	3/8″ BSPP	60 Ipm	4.2:1	60-210 bar	Aluminium

INLINE & CARTRIDGE VALVES

SEQUENCE VALVES & ROTATING COUPLINGS

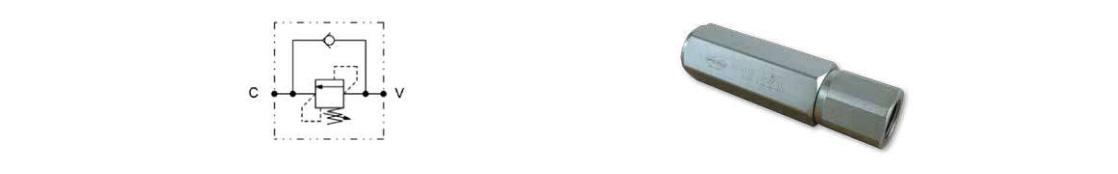

Sequence Valve - Line Mount

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Range	Material
SVL0210	$	3/8″ BSPP	40 Ipm	350 bar	30-120 bar	Steel
SVL0310	$	1/2″ BSPP	80 Ipm	350 bar	30-140 bar	Steel

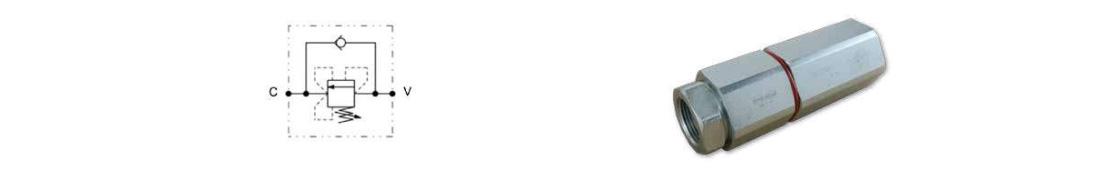

Sequence Valve - Line Mount, Back Pressure Proof

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Range	Material
SVLCC0410	$	3/4″ BSPP	120 Ipm	350 bar	50-140 bar	Steel
SVLCC0420	$	3/4″ BSPP	120 Ipm	350 bar	80-250 bar	Steel

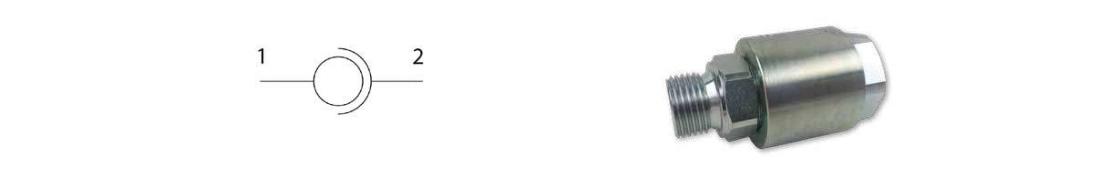

Rotating Coupling - Straight

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Max Rotation Pressure
GGIL140	$	1/4″ BSPP	25 Ipm	400 bar	200 bar
GGIL380	$	3/8″ BSPP	35 Ipm	400 bar	200 bar
GGIL120	$	1/2″ BSPP	60 Ipm	350 bar	150 bar
GGIL340	$	3/4″ BSPP	100 Ipm	350 bar	150 bar
GGIL100	$	1″ BSPP	180 Ipm	350 bar	100 bar
GGIL114	$	1.1/4′ BSPP	200 Ipm	250 bar	125 bar
GGIL112	$	1.1/2′ BSPP	250 Ipm	210 bar	105 bar
GGIL200	$	2″ BSPP	300 Ipm	180 bar	90 bar

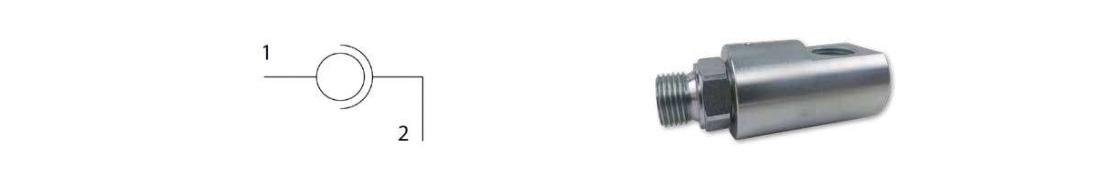

Rotating Coupling - 90°

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Ports	Max Flow	Max Pressure	Max Rotation Pressure
GG90140	$	1/4″ BSPP	25 Ipm	400 bar	200 bar
GG90380	$	3/8″ BSPP	35 Ipm	400 bar	200 bar
GG90120	$	1/2″ BSPP	60 Ipm	350 bar	150 bar
GG90340	$	3/4″ BSPP	100 Ipm	350 bar	150 bar
GG90100	$	1″ BSPP	180 Ipm	350 bar	100 bar
GG90114	$	1.1/4″ BSPP	200 Ipm	250 bar	125 bar
GG90112	$	1.1/2″ BSPP	250 Ipm	210 bar	105 bar
GG90200	$	2″ BSPP	300 Ipm	180 bar	90 bar

INLINE & CARTRIDGE VALVES

QUICK HITCH VALVES

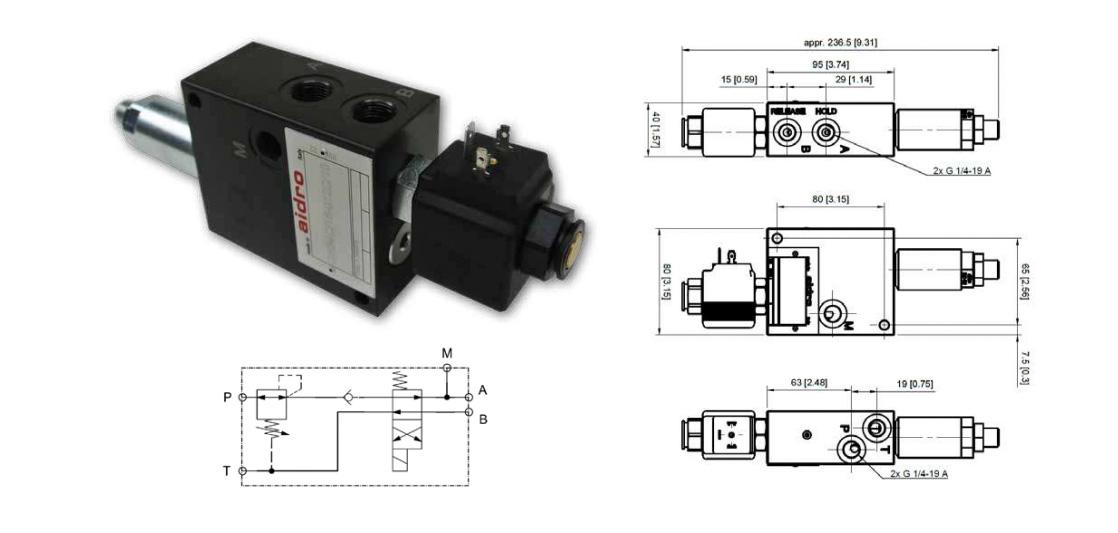

Quick Hitch Valve with Pressure Reducing

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Voltage	Ports	Max Flow	Max Inlet Pressure	Regulated Pressure
QH34C/16-012C/10	$	12v DC	1/4” BSPP	20 lpm	350 bar	50-160 bar
QH34C/16-024C/10	$	24v DC	1/4” BSPP	20 lpm	350 bar	50-160 bar

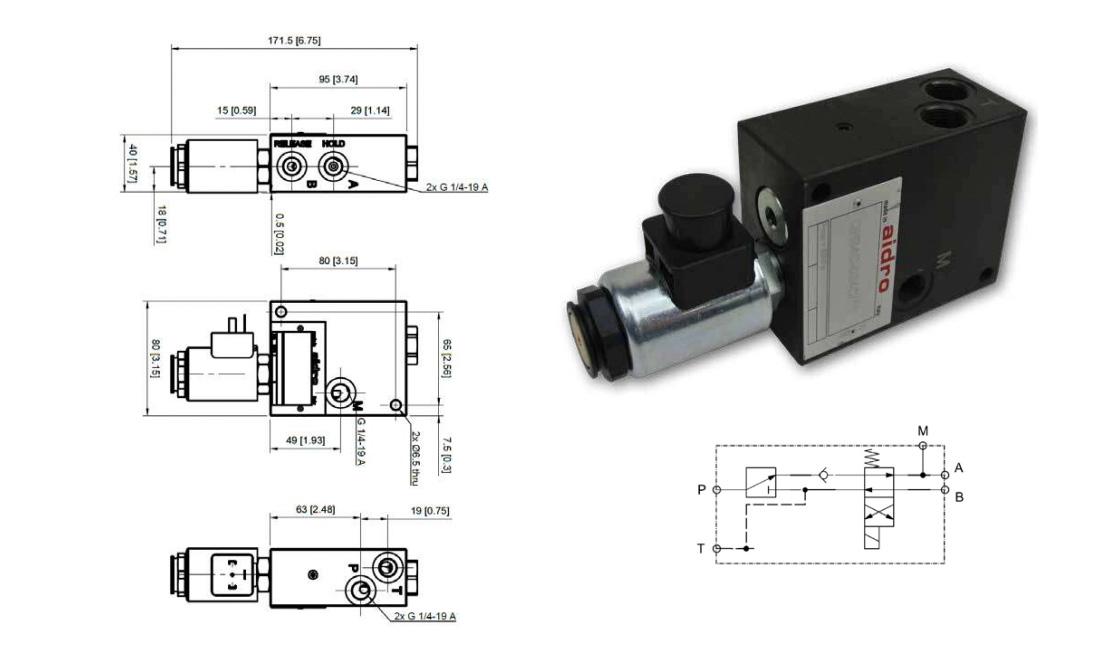

Quick Hitch Valve without Pressure Reducing

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Voltage	Ports	Max Flow	Max Inlet Pressure
QH34C-012C/10	$	12v DC	1/4” BSPP	20 lpm	350 bar
QH34C-024C/10	$	24v DC	1/4” BSPP	20 lpm	350 bar

INLINE & CARTRIDGE VALVES

CARTRIDGE VALVES

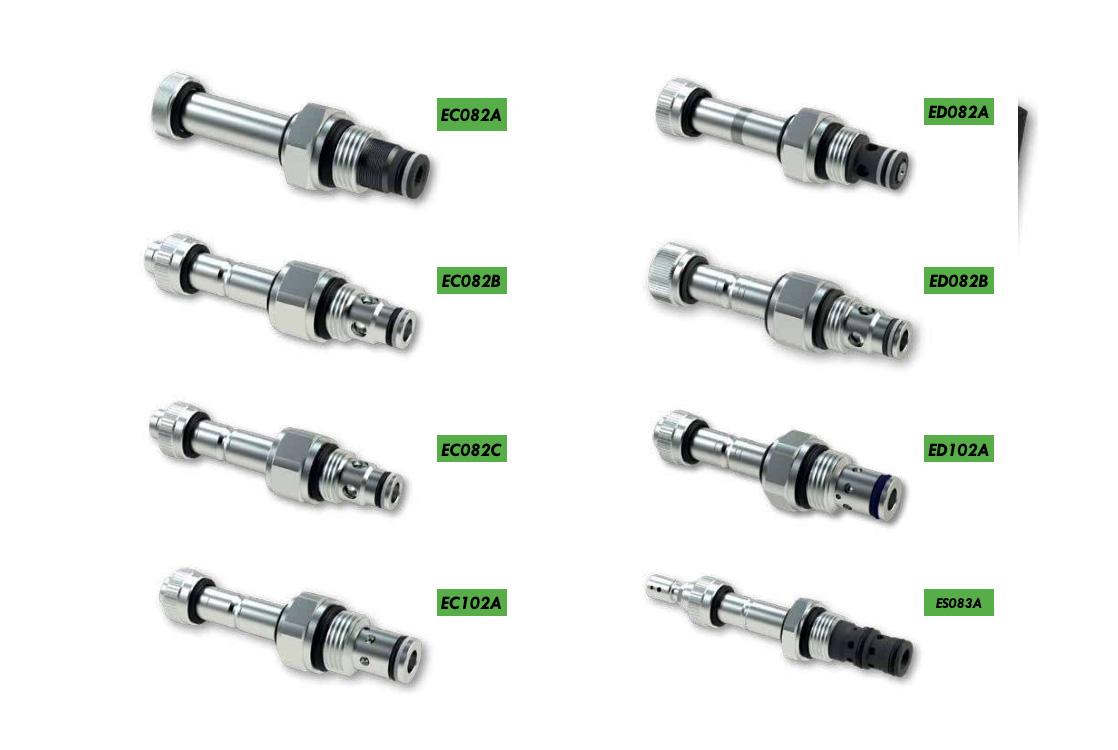

2-Way Electric Operated Solenoid Valves Normally Closed

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Pressure	Max Flow	Manual Override	Cavity	Coil Core
EC082A-CNN	$	210 bar	22 Ipm	No	08-2	18W	EC
EC082A-CNV	$	210 bar	22 Ipm	Yes	08-2	22W	EC360
EC082B-CNN	$	350 bar	40 Ipm	No	08-2	22W	EC360
EC082C-CNN	$	350 bar	40 Ipm	No	08-2	22W	EC360
EC082C-CNV	$	350 bar	40 Ipm	Yes	08-2	22W	EC360
EC102A-CNN	$	350 bar	70 Ipm	No	10-2	22W	EC360
EC102A-CNV	$	350 bar	70 Ipm	Yes	10-2	22W	EC360
F.72.0.12.2.08.A.0.A.0.0	$	350 bar	150 Ipm	No	12-2	22W	EC360
F.72.0.12.2.08.A.0.B.0.0	$	350 bar	150 Ipm	Yes	12-2	22W	EC360

2-Way Electric Operated Solenoid Valves Normally Closed Dual Check

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Pressure	Max Flow	Manual Override	Cavity	Coil Core
ED082A-CNP	$	210 bar	22 Ipm	Yes	08-2	22W	EC360
ED082B-CNN	$	350 bar	40 Ipm	No	08-2	22W	EC360
ED082B-CNV	$	350 bar	40 Ipm	Yes	08-2	22W	EC360
VEM6	$	320 bar	30 Ipm	Yes	08-2	22W	EC360
ED102A-CNN	$	350 bar	70 Ipm	No	10-2	22W	EC360
ED102A-CNV	$	350 bar	70 Ipm	Yes	10-2	22W	EC360
VEM10	$	320 bar	50 Ipm	Yes	10-2	22W	EC360
F.72.0.12.2.12.A.0.A.0.0	$	350 bar	150 Ipm	No	12-2	22W	EC360

2-Way Electric Operated Solenoid Valve Normally Open

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Pressure	Max Flow	Manual Override	Cavity	Coil Core
EC082A-ONN	$	210 bar	22 Ipm	No	08-2	18W	EC
EC082C-ONN	$	350 bar	40 Ipm	No	08-2	22W	EC360
EC102A-ONN	$	350 bar	70 Ipm	No	10-2	22W	EC360
F.72.0.12.2 09.A.0.A.0.0	$	350 bar	150 Ipm	No	12-2	22W	EC360

2-Way Electric Operated Solenoid Valves Dual Check Normally Open

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Pressure	Max Flow	Manual Override	Cavity	Coil Core
ED082B-ONN	$	350 bar	40 Ipm	No	08-2	22W	EC360
ED102A-ONN	$	350 bar	70 Ipm	No	10-2	22W	EC360
F.72.0.12.2.13.A.0.A.0.0	$	350 bar	150 Ipm	No	12-2	22W	EC360
F.72.0.12.2.13.A.0.C.0.0	$	350 bar	150 Ipm	Yes	12-2	22W	EC360

3-Way 2 Position Cartridge Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Pressure	Max Flow	Manual Override	Cavity	Coil Core
ES083A-1NN	$	210 bar	12 Ipm	No	08-3	22W	EC360
ES083A-1NV	$	210 bar	12 Ipm	Yes	08-3	22W	EC360
ES083A-22N	$	210 bar	12 Ipm	No	08-3	22W	EC360
ES083A-2NV	$	210 bar	12 Ipm	Yes	08-3	22W	EC360

INLINE & CARTRIDGE VALVES

CARTRIDGE MANIFOLDS, COILS & DIN PLUGS

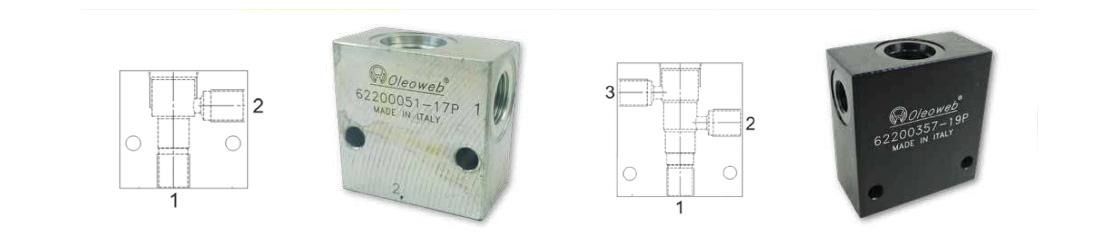

Cartridge Manifold

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Ports	Max Pressure	Material
62200357	$	SAE8-3	1/4″ BSPP	210 bar	Aluminium
62200358	$	SAE8-3	3/8″ BSPP	210 bar	Aluminium
62200032	$	SAE8-2	1/4″ BSPP	350 bar	Steel
62200051	$	SAE8-2	3/8″ BSPP	350 bar	Steel
62200373	$	SAE10-3	3/8″ BSPP	210 bar	Aluminium
62200374	$	SAE10-3	1/2″ BSPP	210 bar	Aluminium
62200451	$	SAE10-2	3/8″ BSPP	350 bar	Steel
62200452	$	SAE10-2	1/2″ BSPP	350 bar	Steel
62200419	$	SAE12 2	3/4″ BSPP	350 bar	Steel
62200420	$	SAE12-2	1″ BSPP	350 bar	Steel

Coils

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Voltage	Power	Core	Length
EC012DC	$	12v DC	18 watt *	13.2mm	40mm
EC024DC	$	24v DC	18 watt *	13.2mm	40mm
EC11050	$	110v AC	18 watt *	13.2mm	40mm
EC22050 **	$	220v AC	18 watt	13.2mm	40mm
EC36012DC	$	12v DC	22 watt	13.2mm	40mm
EC36024DC	$	24v DC	22 watt	13.2mm	40mm
EC36220RAC ***	$	220v AC RAC	22 watt	13.2mm	40mm

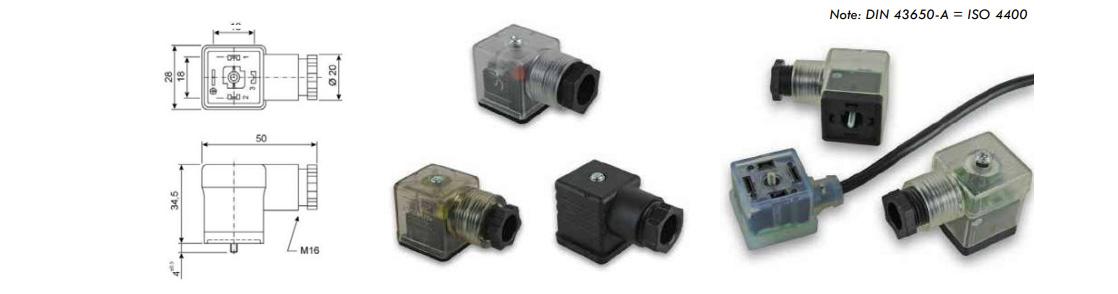

DIN Plugs

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Description	DIN Size	Terminals	Body	LED
DP-IP67-AC/DC-250	$	1-250V AC+DC, IP67	DIN 43650-A	3	Clear	Yes
DP-IP67-AC/DC-38	$	1-38V AC+DC, IP67	DIN 43650-A	3	Clear	Yes
DP-IP67-AC/DC-3M	$	1-38V AC+DC, 3m Cable, IP67	DIN 43650-A	3	Clear	Yes
DP-LED-AC	$	AC	DIN 43650-A	3	Clear	Yes
DP-LED-DC	$	DC	DIN 43650-A	3	Clear	Yes
DP-REC-LV	$	Rectifier AC to DC (1-48v)	DIN 43650-A	3	Clear	Yes
DP-REC	$	Rectifier AC to DC (70-250v)	DIN 43650-A	3	Clear	No

INLINE & CARTRIDGE VALVES

CARTRIDGE VALVES

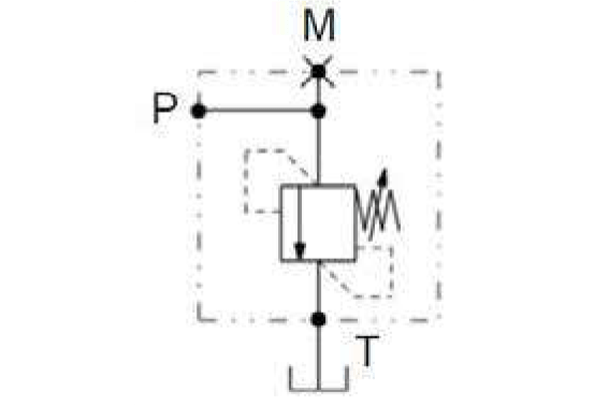

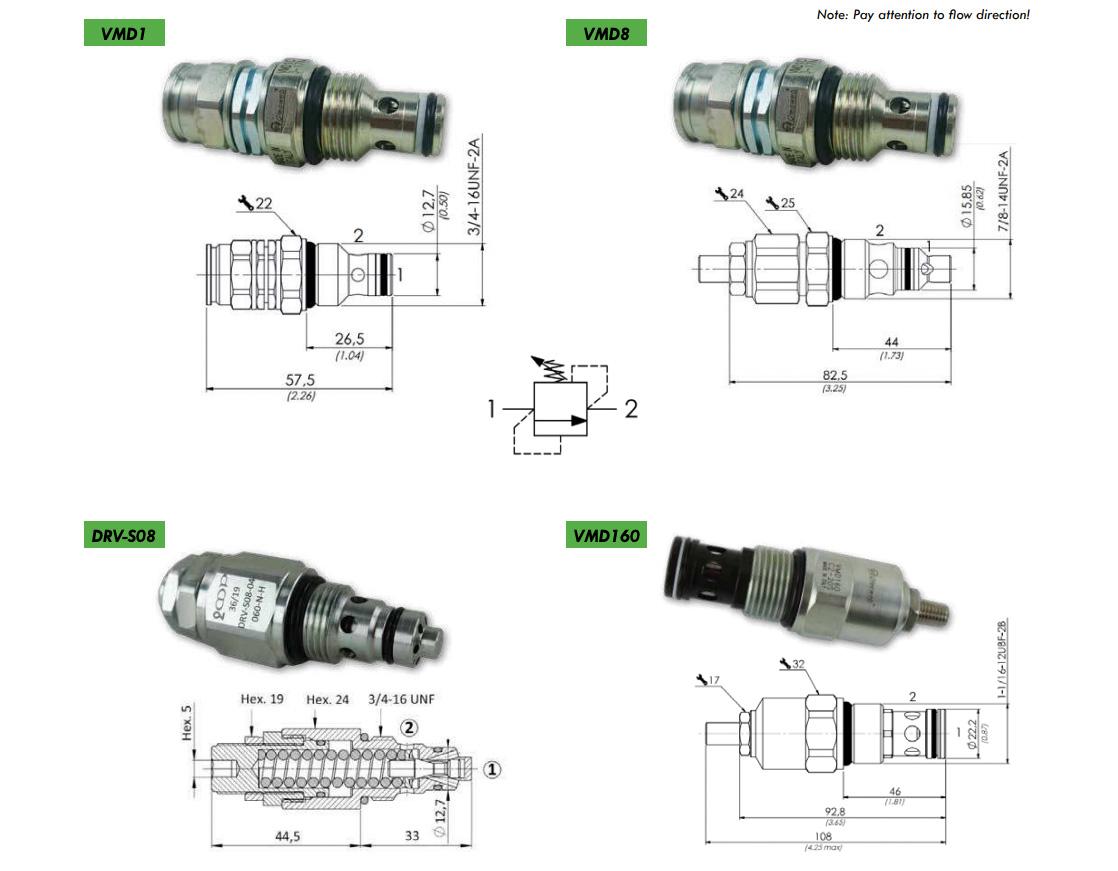

Relief Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Relief Type	Max Flow	Range
VMD1-C1	$	SAE8-2	Direct Acting	20 Ipm	10-40 bar
VMD1-C2	$	SAE8-2	Direct Acting	20 Ipm	20-110 bar
VMD1-C3	$	SAE8-2	Direct Acting	20 Ipm	30-210 bar
VMD1-C4	$	SAE8-2	Direct Acting	20 Ipm	40-350 bar
DRV-S08-04-60-N-H	$	SAE8-2	Direct Acting	30 Ipm	16-60 bar
DRV-S08-04-135-N-H	$	SAE8-2	Direct Acting	30 Ipm	25-135 bar
DRV-S08-04-220-N-H	$	SAE8-2	Direct Acting	30 Ipm	50-220 bar
DRV-S08-04-350-N-H	$	SAE8-2	Direct Acting	30 Ipm	120-350 bar
CPS-08	$	SAE8-2	Steel cavity blanking plug
VMD8-C1	$	SAE10-2	Direct Acting	40 Ipm	10-90 bar
VMD8-C2	$	SAE10-2	Direct Acting	40 Ipm	20-210 bar
VMD8-C3	$	SAE10-2	Direct Acting	40 Ipm	70-350 bar
CPS-10	$	SAE10-2	Steel cavity blanking plug
VMD160-C1	$	SAE12-2	Direct Acting Differential Pressure	160 Ipm	10-120 bar
VMD160-C2	$	SAE12-2	Direct Acting Differential Pressure	160 Ipm	100-250 bar
VMD160-C3	$	SAE12-2	Direct Acting Differential Pressure	160 Ipm	190-350 bar
81300095	$	SAE12-2	Tamper Proof Cap for VMD160
81300127	$	SAE12-2	Hand Knob For VMD160

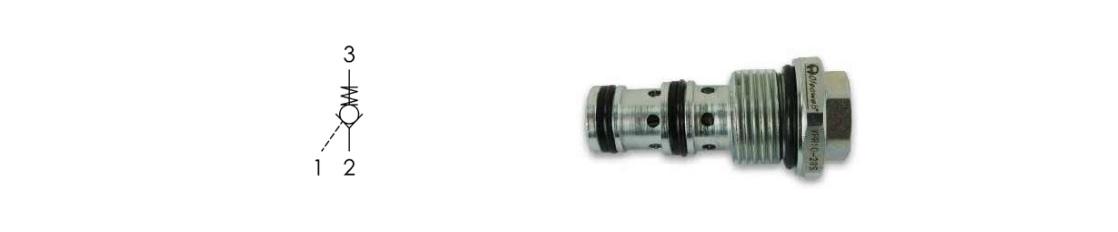

Single Acting Pilot Operated Check Valve Cartridge

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Max Flow	Max Pressure
VPR08	$	SAE8-3	15 Ipm	350 bar
VPR10	$	SAE10-3	30 Ipm	350 bar

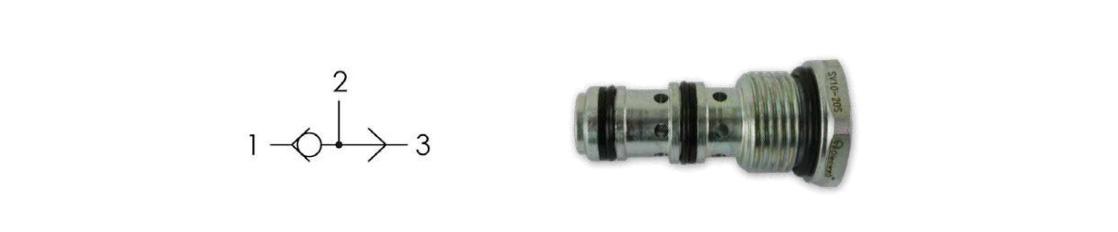

Cartridge Load Shuttle Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Max Flow	Max Pressure
SV08	$	SAE8-3	15 Ipm	350 bar
SV10	$	SAE10-3	30 Ipm	350 bar

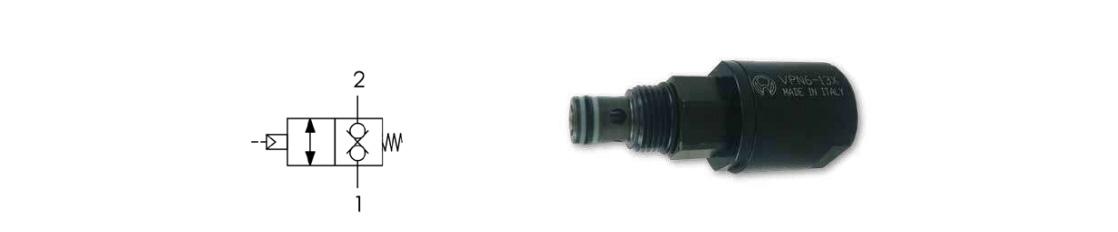

Pneumatic Pilot Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Max Flow	Max Pressure
VPN6	$	SAE8-2	40 Ipm	350 bar

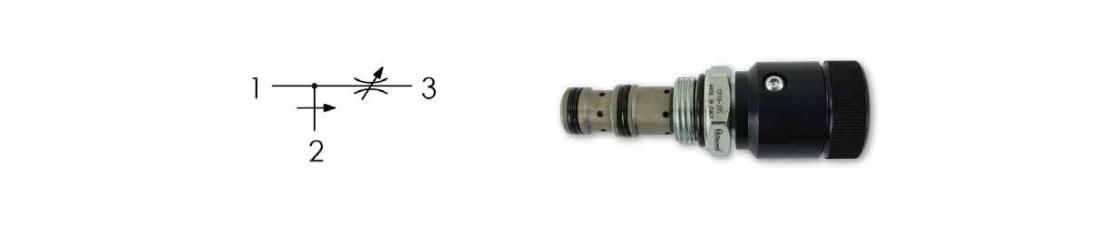

Priority Flow Control Cartridge Valve Pressure Compensated

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Max Flow	Regulated Max Flow	Max Pressure
CP10	$	SAE10-3	50 Ipm	30 Ipm	350 bar

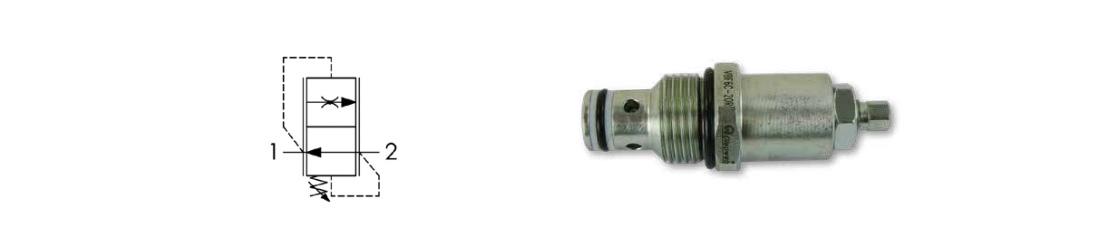

Flow Control Cartridge Valve Pressure Compensated

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Controlled Flow		Max Pressure
			Min	Max
VCF63C	$	SAE8-2	1.3 lpm	5.1 lpm	350 bar
VCF65C	$	SAE8-2	2.6 lpm	9.1 lpm	350 bar
VCF67C	$	SAE8-2	4 lpm	14.4 lpm	350 bar
12000354	$	Hand knob adjustment for VCF6

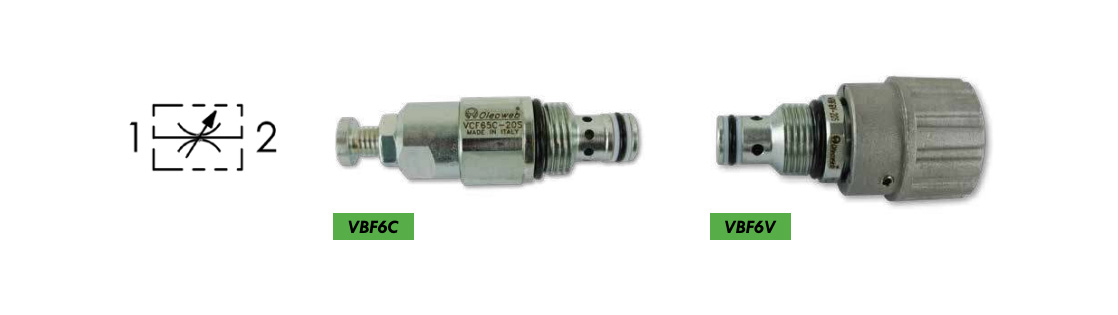

Bidirectional Flow Control Cartridge

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Max Flow	Max Pressure
VBF6C	$	SAE08-2	30 Ipm	350 bar
VBF6V	$	SAE08-2	30 Ipm	350 bar

INLINE & CARTRIDGE VALVES

CARTRIDGE VALVES & CARTRIDGE HAND PUMPS

Cartridge Check Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Pilot Ratio	Auxiliary Port	Max Flow	Max Pressure
CUR6SP1	$	SAE8-2	1 bar	n/a	25 Ipm	350 bar
CUR6SP3	$	SAE8-2	3 bar	n/a	25 Ipm	350 bar
CUR6SP45	$	SAE8-2	4.5 bar	n/a	25 Ipm	350 bar
CUR6SP1M	$	SAE8-2	1 bar	1/4″ BSPP	25 Ipm	350 bar

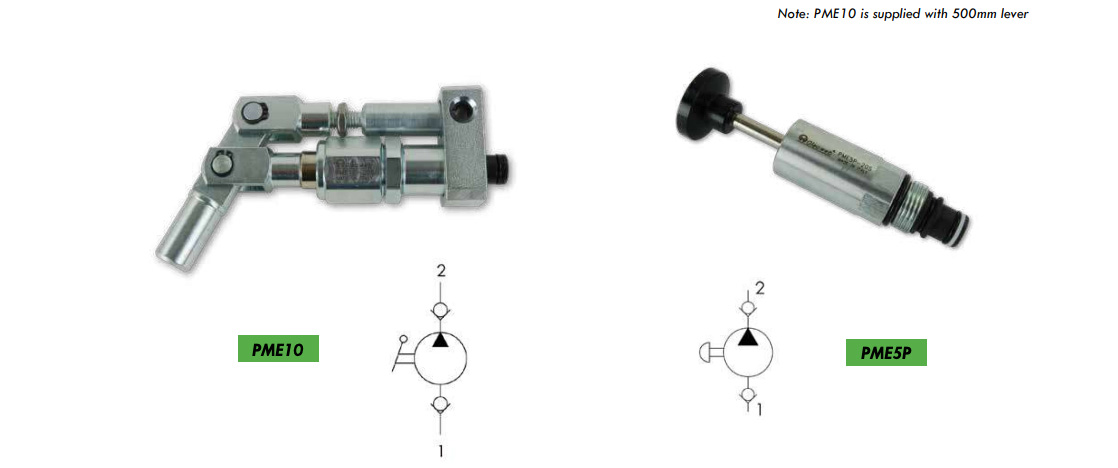

Cartridge Hand Pump

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Cavity	Displacement	Max Pressure
PME10	$	SAE10-2	0.6 cc	200 bar
PME5P	$	SAE08-2	0.6 cc	50 bar

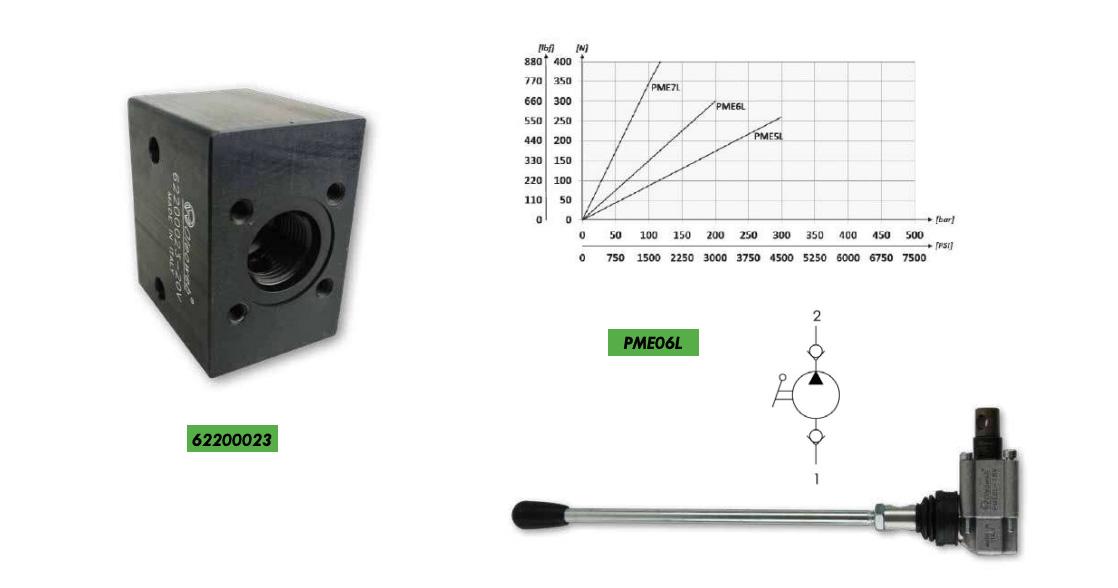

Inline Cartridge Hand Pump

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Displacement	Max Pressure
PME6L	$	0.6 cc	200 bar
62200023	$	Manifold to suit PME06L – 1/4” BSPP ports, 200 bar max pressure

Product Enquiry

Name *

First

Last

Product Part Number & Quantity *

Eg. 5x Part Number

Physical Address for Freight *

Please enter your physical address for your us to quote on freight delivery.

Email *

Phone *

Request *

Custom Captcha *

=

Submit
