Hydraulic Power Units, Parts & Accessories

At Catford Engineering we offer a wide range of hydraulic products. Browse our Hydraulic Power Units, Parts & Accessories pricings below.

*DC & AC Power Units, Continuous Duty Power Units
*Industrial Power Units *Petrol & Diesel Power Units
*Controllers *Tanks *DC & AC Motors *Start Solenoids
*Accessories

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Buy Online
Pricing
Enquire
Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491
Download Brochure

HYDRAULIC POWER UNITS, PARTS & ACCESSORIES

INDUSTRIAL POWER UNITS

Total Price = GROUP 1 $ + GROUP 2 $ + GROUP 3 $ + GROUP 4 $
Note: These prices are a guide only, as every industrial power unit has different specifications.
Please contact us for a detailed quotation.

GROUP 1 - Motor

Motor Size

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltsDetails
0.55 kW$240v AC

The pricing within this group incorporates components arranged within the electric motor:

Motor
Coupling
Bell Housing
Gaskets

0.75 kW$240v AC
1.1 kW$240v AC
1.5 kW$240v AC
2.2 kW$240v AC
3.0 kW$240v AC
3.7 kW$240v AC
0.55 kW$415v AC
0.75 kW$415v AC
1.1 kW$415v AC
1.5 kW$415v AC
2.2 kW$415v AC
3.0 kW$415v AC
4.0 kW$415v AC
5.5 kW$415v AC
7.5 kW$415v AC
11.0 kW$415v AC
15.0 kW$415v AC
18.5 kW$415v AC
22.0 kW$415v AC
30.0 kW$415v AC

GROUP 2 - Pump

Pump

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Details
Group 1 Pump$

The pricing within this group incorporates components arranged
within the pump(s) – based on Vivoil single & tandem pumps:

PumpSuction Strainer
Check Valve
Hose & Fittings

Group 2 Pump$
Group 3 Pump$
Hi-lo Group 2/1 Tandem$
Hi-lo Group 2/2 Tandem$
Hi-lo Group 3/2 Tandem$



GROUP 3 - Tank

Tank

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Details
10 L$The pricing within this group incorporates components arranged
within the tank:
Powder-Coated Tank & Lid
Filler Breather
Temperature Level Gauge
Cork Gasket
Return Filter
(note – no return filter on 10L tank)
25 L$
40 L$
70 L$
120 L$
200 L$
300 L$
400 L$

GROUP 4 - Manifold & Valve

Valve ConfigurationSTANDARD RANGE (Made in China)

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PREMIUM RANGE (Made in Italy)

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Coil OptionsDetails
1/2″ P + T Manifold$n/a

Optional coils are
available on the
Premium Range:

115v AC
230v AC

(Additional cost)

The pricing within this group incorporates
components arranged within the
manifold and valve:

Manifold
Gauge
Isolator
Hose & Fittings

A cartridge unloader valve is
included with multiple valves.

A pressure gauge is included as
standard with the manifold

3/4″ P + T Manifold$n/a
Cetop 3 – 1 valve$$
Cetop 3 – 2 valves$$
Cetop 3 – 3 valves$$
Cetop 3 – 4 valves$$
Cetop 3 – 5 valves$$
Cetop 3 – 6 valves$$
Cetop 5 – 1 valve$$
Cetop 5 – 2 valves$$
Cetop 5 – 3 valves$$
Cetop 5 – 4 valves$$
Cetop 5 – 5 valves$$



CONTINUOUS DUTY POWER UNIT NOMENCLATURE

Series Motor & Voltage Valve Valve Type Unload Valve Suction Pump CC Tank Special
BP13 025AA 132 E U H 42 5B V
MOTOR
240v AC
025AA0.25 kW
037AA0.37 kW
055AA0.55 kW
075AA0.75 kW
11AA1.1 kW
15AA1.5 kW
22AA2.2 kW
30AA3.0 kW
37AA3.7 kW
415v AC
025AC0.25 kW
037AC0.37 kW
055AC0.55 kW
075AC0.75 kW
11AC1.1 kW
15AC1.5 kW
22AC2.2 kW
30AC3.0 kW
37AC3.7 kW
40AC4.0 kW
All electric motors are 4 pole
For more information, see page 47
VALVE
010P & T
030Single Acting
03MSingle Acting w/ override
1311 x Double Acting
1322 x Double Acting
1333 x Double Acting
VALVE TYPE
Dual Solenoid Single Solenoid Manual Lever
Z ZA ZM Closed Centre
C CA CM Tandem Centre
H HA HM Open Centre
Y YA YM A & B to T
– S SM Crossover S/A
Technical info – see pages 154-9, 164-6
UNLOAD VALVE
U Unload Valve
– No Unload
SUCTION
H Horizontal Mount
V Vertical Mount
PUMP
090.9 cc
121.2 cc
171.7 cc
212.1 cc
272.7 cc
323.2 cc
373.7 cc
424.2 cc
484.8 cc
585.8 cc
707.0 cc
808.0 cc
989.8 cc
TANK
2B MT2AB 7.5L
3B MT3AB 10L
4B MT4AB 12L
5B MT5AB 15L
8B MT18AB 18L
6B MT6AB 19L
4H HR5ABC 30L
5H HR6ABC 38L
6H No Tank
Technical information – see page 49
SPECIAL
MPR Motor Pump w/ Relief Valve
MP Motor Pump
SV Sandwich Valve
SVHP Sandwich Valve Handpump
SVM Sandwich Valve Manual Override
COV CETOP Override
V Vivoil Pump
Multiple special options separated by /

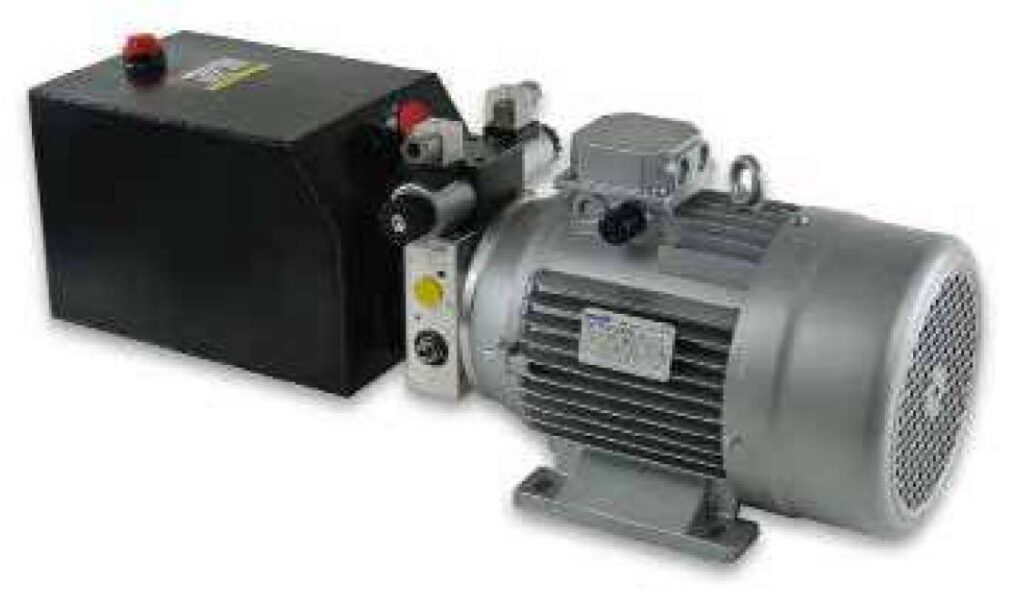

CONTINUOUS DUTY POWER UNITS

BP13 Series Power Unit - 240v AC, 0.25kW to 0.75kW

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerRPMFunctionPumpPortsTank UsableRelief Set
BP13-025AA010H083B$0.25 kW1320P + T0.8 cc9/16″ UNO10 L1600 psi
BP13-037AA010H083B$0.37 kW1380P + T0.8 cc9/16″ UNO10 L2500 psi
BP13-055AA010H113B$0.55 kW1400P + T1.1 cc9/1 6″ UNO10 L2500 psi
BP13-075AA010H113B$0.75 kW1410P + T1.1 cc9/16″ UNO10 L2500 psi
BP13-025AA131CH083B$0.25 kW1320D/A0.8 cc9/1 6″ UNO10 L1600 psi
BP13-037AA131CH083B$0.37 kW1380D/A0.8 cc9/1 6″ UNO10 L2500 psi
BP13-055AA131CH113B$0.55 kW1400D/A1.1 cc9/1 6″ UNO10 L2500 psi
BP13-075AA131CH1138$0.75 kW1410D/A1.1 cc9/1 6″ UNO10 L2500 psi



BP13 Series Power Unit - 415v AC, 0.25kW to 0.75kW

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerRPMFunctionPumpPortsTank UsableRelief Set
BP13-025AC010H083B$0.25 kW1380P + T0.8 cc9/16″ UNO10L1600 psi
BP13-037AC010H083B$0.37 kW1380P + T0.8 cc9/16″ UNO10L2500 psi
BP13-055AC010H113B$0.55 kW1400P + T1.1 cc9/16″ UNO10L2500 psi
BP13-075AC010H113B$0.75 kW1410P + T1.1 cc9/16″ UNO10L2500 psi
BP13-025AC131CH083B$0.25 kW1380D/A0.8 cc9/1 6″ UNO10L1600 psi
BP13-037AC131CH083B$0.37 kW1380D/A0.8 cc9/1 6″ UNO10L2500 psi
BP13-055AC131CH113B$0.55 kW1400D/A1.1 cc9/16″ UNO10L2500 psi
BP13-075AC131CH113B$0.75 kW1410D/A1.1 cc9/16″ UNO10L2500 psi

Size Chart

Motor Power Dimension (mm)
A (240v) A (415v) B C
0.25 kW 230 210 58 43
0.37 kW 225 215 58 43
0.55 kW 250 240 58 43
0.75 kW 250 240 68 43
1.1 kW 285 260 68 43

BP13 Series Power Unit - 240v AC, 1.1kW to 3.7kW

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerRPMFunctionPumpPortsTank UsableRelief Set
BP13-11AA010H213B$1.1 kW1410P + T2.1 cc9/16″ UNO10 L2500 psi
BP13-15AA010H213B$1.5 kW1420P + T2.1 cc9/16″ UNO10 L2500 psi
BP13-22AA010H428B$2.2 kW1430P + T4.2 cc9/1 6″ UNO18 L2500 psi
BP13-30AA010H588B$3.0 kW1440P + T5.8 cc9/1 6″ UNO18 L2500 psi
BP13-37AA010H805H$3.7 kW1440P + T8.0 cc9/1 6″ UNO30 L2500 psi
BP13-11AA131CH213B$1.1 kW1410D/A2.1 cc9/1 6″ UNO10 L2500 psi
BP13-15AA131CH213B$1.5 kW1420D/A2.1 cc9/1 6″ UNO10 L2500 psi
BP13-22AA131CH428B$2.2 kW1430D/A4.2 cc9/1 6″ UNO18 L2500 psi
BP13-30AA131CH588B$3.0 kW1440D/A5.8 cc9/1 6″ UNO18 L2500 psi
BP13-37AA131CH805H$3.7 kW1440D/A8.0 cc9/1 6″ UNO30 L2500 psi



BP13 Series Power Unit - 415v AC, 1.1kW to 4.0kW

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerRPMFunctionPumpPortsTank UsableRelief Set
BP13-11AC010H213B$1.1 kW1410P + T2.1 cc9/16″ UNO10L2500 psi
BP13-15AC010H213B$1.5 kW1420P + T2.1 cc9/16″ UNO10L2500 psi
BP13-22AC010H428B$2.2 kW1430P + T4.2 cc9/16″ UNO18L2500 psi
BP13-30AC010H588B$3.0 kW1440P + T5.8 cc9/16″ UNO18L2500 psi
BP13-40AC010H805H$4.0 kW1440P + T8.0 cc9/1 6″ UNO30L2500 psi
BP13-11AC131CH213B$1.1 kW1410D/A2.1 cc9/1 6″ UNO10L2500 psi
BP13-15AC131CH213B$1.5 kW1420D/A2.1 cc9/1 6″ UNO10L2500 psi
BP13-22AC131CH428B$2.2 kW1430D/A4.2 cc9/16″ UNO18L2500 psi
BP13-30AC131CH584H$3.0 kW1440D/A5.8 cc9/16″ UNO18L2500 psi
BP13-40AC131CH805H$4.0 kW1440D/A8.0 cc9/1 6″ UNO30L2500 psi

Size Chart

Motor Power Dimension (mm)
A (240v)   A (415v) B C
1.1 kW 285 260 68 43
1.5 kW 315 290 68 43
2.2 kW 340 320 90 43
3.0 kW 360 320 90 43
3.7 kW 370 370 90 43
4.0 kW n/a 335 90 43

POWER UNIT NOMENCLATURE

Part # Motor/Voltage Valve Valve Type Unload Valve Suction Pump CC Tank Special
16DA 131 Z U H 21 2A V
MOTOR
03DA350W/12v DC 1700 rpm
03DB350W/24v DC 1800 rpm
08DA800W/12v DC 3200 rpm
08DB800W/24v DC 3200 rpm
16DA1.6kW/12v DC 2600 rpm
16DB2.2kW/24v DC 2700 rpm
25DA2.5kW/12v DC 2400 rpm
25DB2.8kW/24v DC 3400 rpm
30DA3.0kW/12v DC 1850 rpm
40DB4.0kW/24v DC 2700 rpm
15AA1.1kW/240v AC 2800 rpm
30AA2.2kW/240v AC 2800 rpm
15AC1.1kW/415v AC 2800 rpm
30AC2.2kW/415v AC 2800 rpm
40AC3.0kW/415v AC 2800 rpm
50AC4.0kW/415v AC 2800 rpm
60PE6.0 HP Petrol Electric start 3000 rpm
60DE6.7 HP Diesel Electric start 2800 rpm
Technical information – see page 46
VALVE
010P & T
030Single Acting
03MSingle Acting w/ override
1311 x Double Acting (Cetop)
1322 x Double Acting (Cetop)
1322 x Double Acting (Sandwich)
1333 x Double Acting (Sandwich)
1344 x Double Acting (Sandwich)
1355 x Double Acting (Sandwich)
1366 x Double Acting (Sandwich)
VALVE TYPE
Dual Solenoid Single Solenoid Manual Lever
Z ZA ZM Closed Centre
C CA CM Tandem Centre
H HA HM Open Centre
Y YA YM A & B to T
– S SM Crossover S/A
Technical info – see page 154-9, 164-6
UNLOAD VALVE
U Unload Valve
– No Unload
SUCTION
H Horizontal Mount
V Vertical Mount
PUMP
37 0.37 cc
75 0.75cc
8 0.8 cc
11 1.1 cc
16 1.6 cc
21 2.1 cc
27 2.7 cc
32 3.2 cc
37 3.7 cc
42 4.2 cc
48 4.8 cc
58 5.8 cc
70 7.0 cc
80 8.0 cc
TANK
1S MS1AB 1 L useable
2S MS2AB 1.4L useable
4S MS4AB 2.4L useable
OB MT0AB 2.5L
OP RP0AB 2.5L
OA LS0AB 3.0L
6S MS6AB 3.3L
1A LS1AB 3.8L
2A LS2AB 5.7L
2B MT2AB 7.5L
3B MT3AB 10L
4B MT4AB 1 2 L
5B MT5AB 15L
6B MT6AB 19L
8B MT18AB 18L (for petrol/diesel)
1K OTK012 21L (for petrol/diesel)
4H HR4ABC 22L
5H HR5ABC 30L
6H HR6ABC 38L
Technical information – see page 49
SPECIAL
MPRMotor Pump w/ Relief Valve
MPMotor Pump No Relief
SVSandwich Valve
SVHPSandwich Valve Handpump
SVMSandwich Valve Manual Override
COVCETOP Override
VVivoil Pump
Multiple special options separated by /

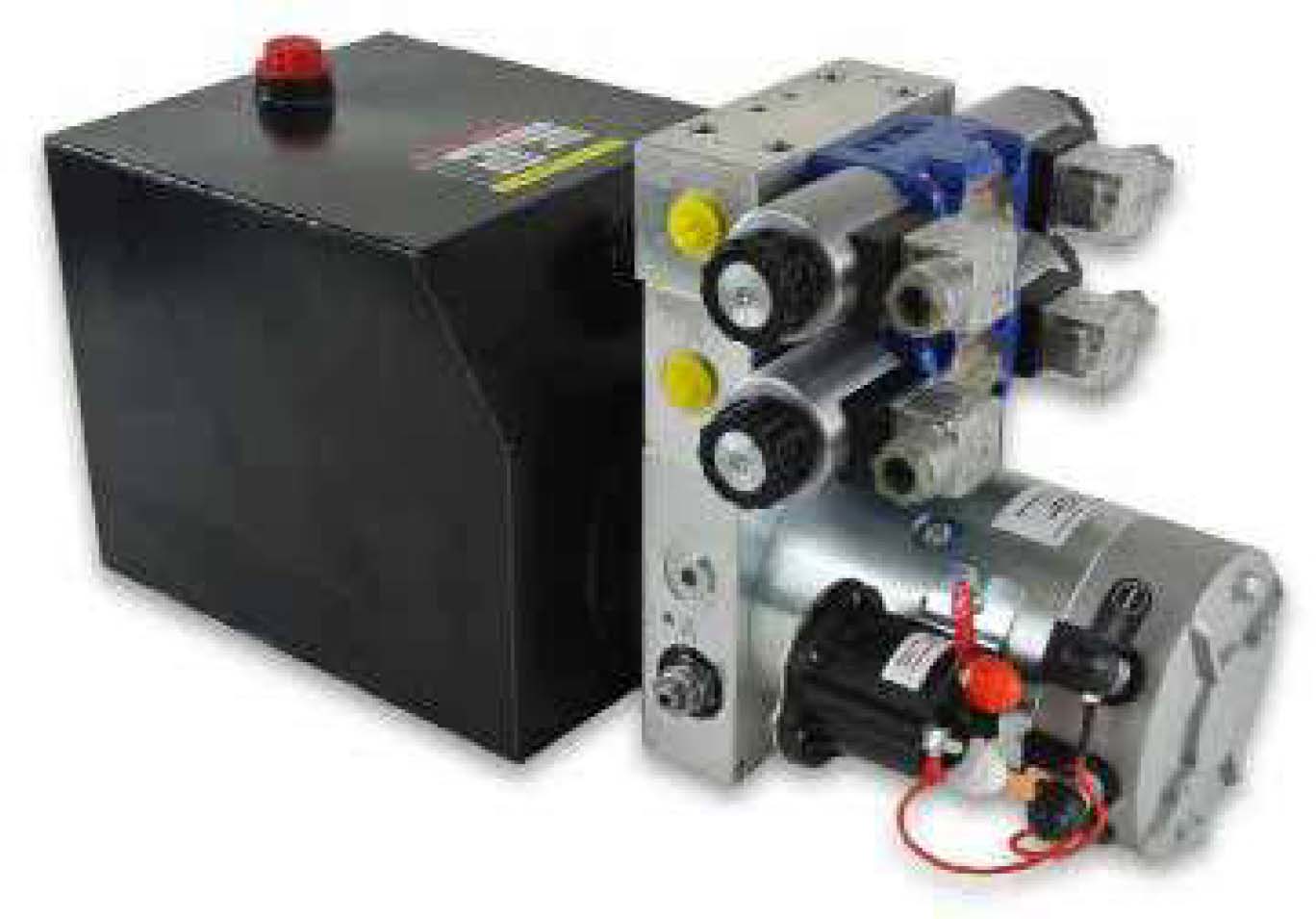

DC POWER UNITS

Micro Power Unit 350 Watt DC - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
03DA010H0381P$350 W12vP + T0.38 cc9/16″ UNO1.4 L2500 psi
03DB010H0381P$350 W24vP + T0.38 cc9/16″ UNO1.4 L2500 psi
03DA030H0381P$350 W12vS/A0.38 cc9/16″ UNO1.4 L2500 psi
03DB030H0381P$350 W24vS/A0.38 cc9/16″ UNO1.4 L2500 psi
03DA131ZH0382S$350 W12vD/A0.38 cc9/16″ UNO1.4 L2500 psi
03DB131ZH0382S$350 W24vD/A0.38 cc9/16″ UNO1.4 L2500 psi

Micro Power Unit 800 Watt DC - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
08DA010H0751P$800 W12vP + T0.75 cc9/16″ UNO1.4 L2500 psi
08DB010H0751P$800 W24vP + T0.75 cc9/16″ UNO1.4 L2500 psi
08DA030H0751P$800 W12vS/A0.75 cc9/16″ UNO1.4 L2500 psi
08DB030H0751P$800 W24vS/A0.75 cc9/16″ UNO1.4 L2500 psi
08DA131ZH0752S$800 W12vD/A0.75 cc9/16″ UNO1.4 L2500 psi
08DB131ZH0752S$800 W24vD/A0.75 cc9/16″ UNO1.4 L2500 psi

Power Unit P & T (DC) - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
16DA010H211A$1.6 kW12vP + T2.1 cc9/16″ UNO3.8 L2500 psi
16DA010H212A$1.6 kW12vP + T2.1 cc9/16″ UNO5.7 L2500 psi
16DA010H212B$1.6 kW12vP + T2.1 cc9/16″ UNO7.6 L2500 psi
16DA010H213B$1.6 kW12vP + T2.1 cc9/16″ UNO10 L2500 psi
16DB010H211A$2.2 kW24vP + T2.1 cc9/16″ UNO3.8 L2500 psi
16DB010H212A$2.2 kW24vP + T2.1 cc9/1 6″ UNO5.7 L2500 psi
16DB010H212B$2.2 kW24vP + T2.1 cc9/16″ UNO7.6 L2500 psi
16DB010H213B$2.2 kW24vP + T2.1 cc9/1 6″ UNO10 L2500 psi

Dimensions (mm)

Tank Size Length Width Height
3.8 L 483 183 200
5.7 L 553 183 200
7.5 L 483 183 200
10L 540 183 200
15L 713 183 200

Single Acting Power Unit (DC) - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
16DA030H211A$1.6 kW12vS/A2.1 cc9/16″ UNO3.8 L2500 psi
16DA030H212A$1.6 kW12vS/A2.1 cc9/16″ UNO5.7 L2500 psi
16DA030H212B$1.6 kW12vS/A2.1 cc9/16″ UNO7.6 L2500 psi
16DA030H213B$1.6 kW12vS/A2.1 cc9/16″ UNO10 L2500 psi
16DB030H211A$2.2 kW24vS/A2.1 cc9/16″ UNO3.8 L2500 psi
16DB030H212A$2.2 kW24vS/A2.1 cc9/16″ UNO5.7 L2500 psi
16DB030H212B$2.2 kW24vS/A2.1 cc9/16″ UNO7.6 L2500 psi
16DB030H213B$2.2 kW24vS/A2.1 cc9/16″ UNO10 L2500 psi

Dimensions (mm)

Tank Size Length Width Height
3.8 L 483 198 200
5.7 L 553 198 200
7.5 L 483 198 200
10 L 540 198 200
15 L 713 198 200

Double Acting Power Unit (DC) - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
16DA131ZH211A$1.6 kW12vD/A2.1 cc9/16″ UNO3.8 L2500 psi
16DA131ZH212A$1.6 kW12vD/A2.1 cc9/16″ UNO5.7 L2500 psi
16DA131ZH212B$1.6 kW12vD/A2.1 cc9/16″ UNO7.6 L2500 psi
16DA131ZH213B$1.6 kW12vD/A2.1 cc9/16″ UNO10 L2500 psi
16DB131ZH211A$2.2 kW24vD/A2.1 cc9/16″ UNO3.8 L2500 psi
16DB131ZH212A$2.2 kW24vD/A2.1 cc9/16″ UNO5.7 L2500 psi
16DB131ZH212B$2.2 kW24vD/A2.1 cc9/16″ UNO7.6 L2500 psi
16DB131ZH213B$2.2 kW24vD/A2.1 cc9/16″ UNO10 L2500 psi



Dimensions (mm)

Tank Size Length Width Height
3.8 L 483 210 220
5.7 L 553 210 220
7.5 L 483 210 220
10 L 540 210 220
15 L 713 210 220

Double Acting x 2 Power Unit (DC) - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
16DA132ZH212B$1.6 kW12v2 x D/A2.1 cc9/16″ UNO7.5 L2500 psi
16DB132ZH212B$2.2 kW24v2 x D/A2.1 cc9/16″ UNO7.5 L2500 psi

Dimensions (mm)

Tank SizeLengthWidthHeight
3.8 L483200239
5.7 L553200239
7.5 L483200239
10 L540200239
15 L713200239

Double Acting x 2 Power Unit (DC) - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
 16DA132ZH211A SV$1.6 kW12v2 x D/A2.1 cc1/4″ BSP3.8 L2500 psi
16DB132ZH211A SV$2.2 kW24v2 x D/A2.1 cc1/4″ BSP3.8 L2500 psi

Double Acting x 3 Power Unit (DC) - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
16DA133ZH213B-SV$1.6 kW12v3 x D/A2.1 cc1/4″ BSP10 L2500 psi
16DB133ZH213B-SV$2.2 kW24v3 x D/A2.1 cc1/4″ BSP10 L2500 psi

Dimensions (mm)

Tank Length Width Height
3.8 L 483 200 239
5.7 L 553 200 239
7.5 L 483 200 239
10 L 540 200 239
15 L 713 200 239

High Power 2.5 kW/2.8 kW Power Unit (DC) - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
25DA010H323B$2.5 kW12vP + T3.2 cc9/16″ UNO10 L2500 psi
25DA030H323B$2.5 kW12vS/A3.2 cc9/16″ UNO10 L2500 psi
25DA131ZH323B$2.5 kW12vD/A3.2 cc9/16″ UNO10 L2500 psi
25DB010H323B$2.8 kW24vP + T3.2 cc9/16″ UNO10 L2500 psi
25DB030H323B$2.8 kW24vS/A3.2 cc9/16″ UNO10 L2500 psi
25DB131ZH323B$2.8 kW24vD/A3.2 cc9/16″ UNO10 L2500 psi

Dimensions (mm)

PartLengthWidthHeight
DA010549200200
DB010583200200
DA030549200200
DB030583200200
DA131549210220
DB131583210220

High Power 3 kW Power Unit (DC) - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief
30DA010H373B$3.0 kW12vP + T3.7 cc9/16″ UNO10 L2500 psi
30DA030H373B$3.0 kW12vS/A3.7 cc9/16″ UNO10 L2500 psi
30DA131ZH373B$3.0 kW12vD/A3.7 cc9/16″ UNO10 L2500 psi

Dimensions (mm)

PartLengthWidthHeight
010622200231
030622200231
131644224210

High Power 4 kW Power Unit (DC) - Maximum Pressure 3000psi

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
40DB010H423B$4.0 kW24vP + T4.2 cc9/16″ UNO10 L2500 psi
40DB030H423B$4.0 kW24vS/A4.2 cc9/16″ UNO10 L2500 psi
40DB131ZH423B$4.0 kW24vD/A4.2 cc9/16″ UNO10 L2500 psi
MPA025$4.0 KW24vMotor Pump4.2 cc3/8″ BSPP––

Dimensions (mm)

PartLengthWidthHeight
010678200232
030678200232
131678210239
MPA025390130184

AC POWER UNITS - 240v

Power Unit 1.1 kW (AC) 240v

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
15AA010H112B$1.1 kW240vP + T1.1 cc9/16″ UNO7.5 L2500 psi
15AA131CH112B$1.1 kW240v (24v DC Coils)D/A1.1 cc9/16″ UNO7.5 L2500 psi

Dimensions (mm)

PartLengthWidthHeight
010590200238
131590210238

Power Unit 2.2 kW (AC) 240v

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
30AA010H213B$2.2 kW240vP + T2.1 cc9/16″ UNO10 L2500 psi
30AA131CH213B$2.2 kW240v (24v DC Coils)D/A2.1 cc9/16″ UNO10 L2500 psi

Dimensions (mm)

PartLengthWidthHeight
010689200256
131689210256

AC POWER UNITS - 415v

Power Unit 1.1 kW (AC) 415v

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
15AC010H112B$1.1 kW415vP + T1.1 cc9/16″ UNO7.5 L2500 psi
15AC131CH112B$1.1 kW415v (24v DC Coils)D/A1.1 cc9/16″ UNO7.5 L2500 psi

Dimensions (mm)

PartLengthWidthHeight
010591200226
131591210245

Power Unit 2.2 kW (AC) 415v

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
30AC010H213B$2.2 kW415vP + T2.1 cc9/16″ UNO10 L2500 psi
30AC131CH213B$2.2 kW415v (24v DC Coils)D/A2.1 cc9/16″ UNO10 L2500 psi

Dimensions (mm)

PartLengthWidthHeight
010689200255
131689210255

Power Unit 3.0 kW (AC) 415v

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
40AC010H273B$3 kW415vP + T2.7 cc9/16″ UNO10 L2500 psi
40AC131CH273B$3 kW415v (24v DC Coils)D/A2.7 cc9/16″ UNO10 L2500 psi

Dimensions (mm)

PartLengthWidthHeight
010703200280
131703216258

Power Unit 4.0 kW (AC) 415v

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltsFunctionPumpPortsTank UsableRelief Set
50AC010H373B$4 kW415vP + T3.7 cc9/16″ UNO10 L2500 psi
50AC131CH373B$4 kW415v (24v DC Coils)D/A3.7 cc9/16″ UNO10 L2500 psi

Dimensions (mm)

PartLengthWidthHeight
010739200264
131739210263

ENGINE POWER UNITS

Engine Power Unit 6HP

Part # List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. Power Fuel Function Pump Tank Usable Relief Set
60PE010H278B $ 6.7 HP Unleaded P + T 2.7 cc 18 L 2500 psi
60PE131CH278B $ 6.7 HP Unleaded D/A 2.7 cc 18 L 2500 psi
60DE010H278B $ 6.7 HP Diesel P + T 2.7 cc 18 L 2500 psi
60DE131CH278B $ 6.7 HP Diesel D/A 2.7 cc 18 L 2500 psi

Power Unit Kits for DIY Engines

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerFunctionPumpTankEngine Mount BCDShaftKey
GEU01-001$6.7 HPP + T2.7cc18 L92mm3/4″3/16″
GEU13-001$6.7 HPD/A2.7cc18 L92mm3/4″3/16″

POWER UNITS PARTS & ACCESSORIES

DC Motors

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltageRated CurrentRated SpeedIPDuty Cycle
S2S3
235A-FS-A$350 W12v40a1700 rpm542 min3%
235B-FS-A$350 W24v25a1800 rpm542 min3%
308AS-2-A$800 W12v105a3200 rpm542 min3%
308BS-2-A$800 W24v50a3200 rpm542 min3%
416A-2$1.6 kW12v190a2600 rpm542 min8%
422B-2$2.2 kW24v120a2700 rpm542 min8%
425A-2$2.5 kW12v280a2400 rpm542 min8%
428B-2$2.8 kW24v150a3400 rpm542 min8%
530A-F$3.0 kW12v450a1850 rpm545 min9%
540B-2-J$4.0 kW24v215a2700 rpm548 min15%



Start Solenoids

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Rated AmpVoltageDuty MaxPower Unit
SR3A2$250a12v6 min1.6, 2.5, 4.0 kW DC
SR3B2$250a24v6 min1.6, 2.5, 4.0 kW DC
SR5A2$500a12v6 min3.0 kW DC I2vc

Solenoids

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

VoltageAmpCore SizeLengthConnector
S2D12-08$12v DC1.5a13.3mm37.5 mm2 wire
S2D24-08$24v DC0.75a13.3mm37.5mm2 wire
D1D12-08$12v DC1.5a13.3mm37.5mm3 pin DIN plug
D1D24-08$24v DC0.75a13.3mm37.5mm3 pin DIN plug
D1A220-08$220v AC0.08a13.3mm37.5 mm3 pin DIN plug

CONTINUOUS DUTY POWER UNITS

AC Motors Standard Series (240v)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltageAmp DrawSpeedFrame
E11S-2-80-B34$1.1 kW220/240v6.7a2800 rpm80
E22S-2-90L-B34$2.2 kW220/240v9.7a2800 rpm90

Cross Refrence To Power Unit Part #

15AAE11S-2-80-B34
30AAE22S-2-90L-B34

AC Motors Standard Series (415v)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerVoltageAmp DrawSpeedFrame
E11T-2-80-B34$1.1 kW380/415v2.49a2800 rpm80
E22T-2-90L-B34$2.2 kW380/415v4.67a2800 rpm90
E30T-2-100L-B34$3.0 kW380/415v6.22a2800 rpm100
E40T-2-112M-B34$4.0 kW380/415v10.5a2800 rpm112

Cross Refrence To Power Unit Part #

15ACE11T-2-80-B34
30ACE22T-2-90L-B34
40ACE30T-2-100L-B34
50ACE40T-2-112M-B34

AC Motors BP13 Series (240v AC) IP55

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

PowerFull LoadRPMFrameShaft
EM1-4-0.25-14-71-B34$0.25 kW1.9 amp13207114 mm
EM1-4-0.37-14-71-B34$0.37 kW2.7 amp13807114 mm
EM1-4-0.55-19-80-B34$0.55 kW3.6 amp14008019 mm
EM1-4-0.75-19-80-B34$0.75 kW4.5 amp14108019 mm
EM1-4-1.1-24-90-B34$1.1 kW6.5 amp14109024 mm
EM1-4-1.5-24-90-B34$1.5 kW8.7 amp14209024 mm
EM1-4-2.2-28-100-B34$2.2 kW12.1 amp143010028 mm
EM1-4-3-28-100-B34$3 kW16.3 amp144010028 mm
EM-4-3.7-28-100-B34$3.7 kW19.8 amp144010028 mm

AC Motors BP13 Series (415v AC) IP55

Part #List Price $PowerFull LoadRPMFrameShaft
EM3-4-0.25-14-71-B34$0.25 kW0.75 amp13807114 mm
EM3-4-0.37-14-71-B34$0.37 kW1,03 amp13807114 mm
EM3-4-0.55-14-71-B34$0.55 kW1.60 amp14008019mm
EM3-4-0.55-19-80-B34$0.55 kW1.63 amp14008019mm
EM3-4-0.75-19-80-B34$0.75 kW1.94 amp14109024 mm
EM3-4-1.1-24-90-B34$1.1 kW2.6 amp14109024 mm
EM3-4-1.5-24-90-B34$1.5 kW3.4 amp14209024 mm
EM3-4-2.2-24-90-B34$2.2 kW5,1 amp14309024 mm
EM3-4-2.2-28-100-B34$2.2 kW4.6 amp143010028 mm
EM3-4-3-28-100-B34$3.0 kW6.3 amp144010028 mm
EM3-4-4-28-112-B34$4.0 kW8.2 amp144010028 mm



POWER UNIT PARTS & ACCESSORIES

Gear Pumps - Premium Tang Drive

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax PressureMin SpeedMax Speed
B1P1643HZZB$0.91240 bar700 rpm4000 rpm
B1P1743HZZB$1.17250 bar700 rpm4000 rpm
B1P1843HZZB$1.56250 bar700 rpm4000 rpm
B1P2043HZZB$2.08250 bar700 rpm4000 rpm
B1P2143HZZB$2.6250 bar700 rpm4000 rpm
B1P2343HZZB$3.12220 bar700 rpm4000 rpm
B1P2543HZZB$3.64220 bar700 rpm4000 rpm
B1P2743HZZB$4.16200 bar700 rpm4000 rpm
B1P3143HZZB$5.85170 bar700 rpm3500 rpm
B1P3443HZZB$7.8110 bar700 rpm3500 rpm
Additional Cost for power unit premium gear pump change, refer to “Download Brochure” button at the top of the page.

Gear Pumps - Standard Tang Drive

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax PressureMin SpeedMax Speed
G110$1.1210 bar600 rpm6000 rpm
G160$1.6210 bar600 rpm6000 rpm
G210$2.1210 bar600 rpm6000 rpm
G270$2.7210 bar600 rpm6000 rpm
G320$3.2190 bar600 rpm5000 rpm
G370$3.7190 bar600 rpm4500 rpm
G420$4.2190 bar600 rpm4000 rpm
G480$4.8170 bar600 rpm3500 rpm
G580$5.8170 bar600 rpm3000 rpm
G800$8110 bar600 rpm2100 rpm



Gear Pumps - Premium Cylindrical, BP13 Series / Petrol Power Units

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCRated PressureMax / Min Speed
7P1644003$0.9240 bar700/6000 rpm
7P1744002$1.2250 bar700/6000 rpm
7P1844003$1.7250 bar700/6000 rpm
7P2044002$2.1250 bar700/6000 rpm
7P2144001$2.7250 bar700/6000 rpm
7P2344002$3.2250 bar700/6000 rpm
7P2544001$3.7250 bar700/6000 rpm
7P2744001$4.2250 bar700/6000 rpm
7P2944001$4.8250 bar700/6000 rpm
7P3144002$5.8250 bar700/5000 rpm
7P3244001$7.0250 bar700/5000 rpm
7P3444003$8.0220 bar700/5000 rpm
7P3644001$9.8181 bar700/4000 rpm

Gear Pumps - Standard Cylindrical, BP 13 Series / Petrol Power Units

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

CCMax PressureMin SpeedMax Speed
G110S-S1$1.1210 bar600 rpm6000 rpm
G210S-S1$2.1210 bar600 rpm6000 rpm
G270S-S1$2.7210 bar600 rpm6000 rpm
G380S-S1$3.8190 bar600 rpm4500 rpm
G420S-S1$4.2190 bar600 rpm4000 rpm
G480S-S1$4.8170 bar600 rpm3500 rpm
G580S-S 1$5.8170 bar600 rpm3000 rpm
G800S-S1$8110 bar600 rpm2100 rpm

POWER UNIT TANK OPTIONS

Power Unit Tank - MS Series - Steel

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Usable LitresLengthCylinder a
MS1AB$1.0 L160mm122mm
MS2AB$1.4 L200mm122mm
MS4AB$2.4 L300mm122mm
MS6AB$3.3 L400mm122mm

Power Unit Tank - LS Series - Steel

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Usable LitresLengthCylinder 0
LS0AB$3.0 L240mm177mm
LS1AB$3.8 L280mm177mm
LS2AB$5.7 L350mm177mm

Power Unit Tank - MT Series - Steel

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Usable LitresLengthWidthHeight
MT0AB$2.5 L160mm140mm220mm
MT2AB$7.5 L280mm200mm200mm
MT3AB$10 L335mm200mm200mm
MT4AB$12 L395mm200mm200mm
MT5AB$15 L510mm200mm200mm
MT6AB$19 L625mm200mm200mm
MT18AB$18 L300mm280mm300mm



Power Unit Tank - HR Series - Steel

Part #List Price $Usable LitresLengthWidthHeight
HR4ABC$22 L380mm250mm300mm
HR5ABC$30 L500mm250mm300mm
HR6ABC$38 L600mm250mm300mm

Power Unit Tank - RP Series - Nylon

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Usable LitresLengthWidthHeight
RP0AB$2.3 L198mm173mm173mm
RP2AB$6L332mm173mm173mm

Power Unit Tank Accessories

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
PUMT$Suits all power units with 130mm centre manifold
TKBR$Tank breather 3/4″ NPT
TKBP$Tank plug 3/4″ NPT
FLST120$Weld flange for power unit mount
DMC01$DC power unit dust cover

Product Enquiry

Eg. 5x Part Number
Please enter your physical address for your us to quote on freight delivery.
=

Lot 25, Mannanarie Road, JAMESTOWN SA
PO Box 178 , JAMESTOWN South Australia 5491

Call Charles 0418 641 566

© 2024 Catford Engineering. All Rights Reserved.
Website by Tracey Dewell Designs
Login to your account
