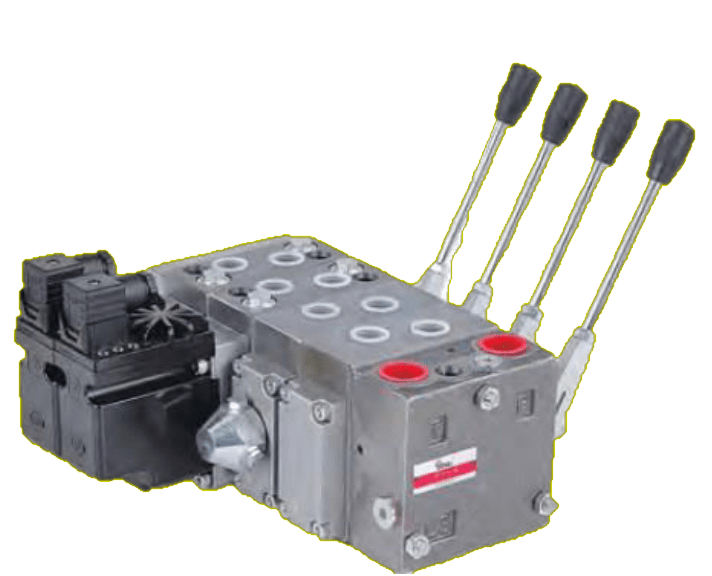

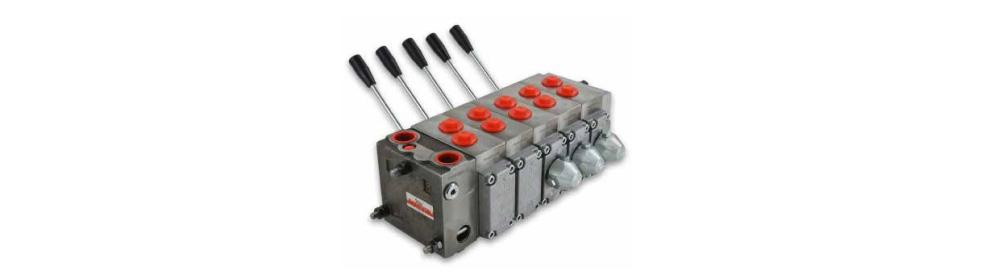

At Catford Engineering we offer a wide range of PV4 Sectional valves. Browse our sectional valve specifications and pricing below.
If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.
ISO 3834-2 (Fusion Welding Process)
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Max Flow | Pump Type | Pilot Oil | Actuation | Unloader Valve Port | Shock Valve |
|---|---|---|---|---|---|---|---|
| PV4P0101-G6 | $ | 140 lpm | Fixed | No | Mechanical | No | No |
| PV4P0201-G6 | $ | 140 lpm | Variable | No | Mechanical | No | No |
| PV4P0102-G6 | $ | 140 lpm | Fixed | Yes | Electrical (EPVM/EPVO coil) | No | No |
| PV4P0102H-G6 | $ | 140 lpm | Fixed | Yes | Hyd pilot/electrical (EPVE coil) | No | No |
| PV4P0202-G6 | $ | 140 lpm | Variable | Yes | Electrical (EPVM/EPVO coil) | No | No |
| PV4P0202H-G6 | $ | 140 lpm | Variable | Yes | Hyd pilot/electrical (EPVE coil) | No | No |
| PV4P0103-G6 | $ | 140 lpm | Fixed | No | Mechanical | Yes | No |
| PV4P0203-G6 | $ | 140 lpm | Variable | No | Mechanical | Yes | No |
| PV4P0104-G6 | $ | 140 lpm | Fixed | Yes | Electrical (EPVM/EPVO coil) | Yes | No |
| PV4P0104H-G6 | $ | 140 lpm | Fixed | Yes | Hyd pilot/electrical (EPVE coil) | Yes | No |
| PV4P0204-G6 | $ | 140 lpm | Variable | Yes | Electrical (EPVM/EPVO coil) | Yes | No |
| PV4P0204H-G6 | $ | 140 lpm | Variable | Yes | Hyd pilot/electrical (EPVE coil) | Yes | No |
| PV4P0105-G6 | $ | 140 lpm | Fixed | Yes | Electrical (EPVM/EPVO coil) | No | No |
| PV4P0205-G6 | $ | 140 lpm | Variable | Yes | Electrical (EPVM/EPVO coil) | No | No |
| PV4P0106H-G6 | $ | 140 lpm | Fixed | Yes | Hyd pilot/electrical (EPVE coil) | No | No |
| PV4P0206H-G6 | $ | 140 lpm | Variable | Yes | Hyd pilot/electrical (EPVE coil) | No | No |
| PV4P0301-G8 | $ | 150 lpm | Variable | Yes | Electrical (EPVM/EPVO coil) | No | No |
| PV4P0302-G8 | $ | 150 lpm | Variable | Yes | Electrical (EPVM/EPVO coil) | No | Yes |
| PV4P0303-G8 | $ | 230 lpm (mid inlet) | Variable | Yes | Electrical (EPVM/EPVO coil) | No | No |
| PV4P0304-G8 | $ | 230 lpm (mid inlet) | Variable | Yes | Electrical (EPVM/EPVO coil) | No | Yes |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| PV4-PCG | $ | External pilot oil supply adaptor with check valve – for fixed displacement pumps |
| PV4-POG | $ | External pilot oil supply adaptor – for fixed or variable displacement pumps |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Type | Manual Override | Voltage |
|---|---|---|---|---|
| PV4-ELNXX (12/24) | $ | Normally open | No | 12/24v DC |
| PV4-ELFXX (12/24) | $ | Normally closed | No | 12/24v DC |
| PV4-ELNMXX (12/24) | $ | Normally open | Yes | 12/24v DC |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| PV4-LM | $ | Spring centering lever with stroke adjustment on A+B |
| 2BMPV400661 | $ | Replacement handle |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | A+B Shock and Suction Valve Ports | Load Drop Check Valve | Load Sense A+B Shuttle Valve | Non-damped Pressure Compensation | Damped Pressure Compensation | A+B Load Sense Relief Valves |
|---|---|---|---|---|---|---|---|
| PV4V01-G4 | $ | ||||||
| PV4V01U-G4 | $ | YES | |||||
| PV4V02-G4 | $ | YES | |||||
| PV4V02U-G4 | $ | YES | YES | ||||
| PV4V03U-G4 | $ | YES | YES | YES | |||
| PV4V04-G4 | $ | YES | YES | ||||
| PV4V04U-G4 | $ | YES | YES | YES | |||
| PV4V05-G4 | $ | YES | YES | ||||
| PV4V05U-G4 | $ | YES | YES | YES | |||
| PV4V06-G4 | $ | YES | YES | YES | |||
| PV4V06U-G4 | $ | YES | YES | YES | YES | ||
| PV4V07-G4 | $ | YES | YES | YES | |||
| PV4V07U-G4 | $ | YES | YES | YES | YES |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | X | XXX | XXXX | |||
|---|---|---|---|---|---|---|---|
| YLWPV420-X-XXX-XXXX | $ | 1 | Cylinder spool | 005 | 5 lpm spool | AB | Use with A+B relief module |
| 2 | Motor spool | 010 | 10 lpm spool | HA | Use with hydraulic actuation | ||
| 3 | Single-acting on A | 025 | 25 lpm spool | ABHA | Use with A+B relief module & hydraulic actuation | ||
| 4 | Single-acting on B | 040 | 40 lpm spool | FD | Use with friction detent | ||
| 065 | 65 lpm spool | ABFD | Use with A+B relief module & friction detent | ||||
| 100 | 100 lpm spool | ||||||
| 130 | 130 lpm spool |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| PV4-CO | $ | Standard cover for manual operation |
| PV4-FD | $ | Friction detent |
| PV4-HAG2 | $ | Hydraulic actuation |
| EPVO-H0101 | $ | Electrical on-off 11-30v |
| EPVE-12D | $ | Use with PWM voltage control signal 12v DC |
| EPVE-24D | $ | Use with PWM voltage control signal 24v DC |
| EPVM-H0111 | $ | Proportional coil standard 12v DC |
| EPVM-H0121 | $ | Proportional coil standard 24v DC |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description | Axis | Flow | Inlet Pressure Range | A+B Outlet Pressure Range |
|---|---|---|---|---|---|---|
| JHP-1/1S-G2/8-A01B | $ | Spring centre | Single | 5-20 lpm | 30-100 bar | 5-19 bar |
| JHP-1/1S-G2/9-1-A01B | $ | Spring centre friction detent in position 1+2 | Single | 5-20 lpm | 30-100 bar | 5-19 bar |
| JHP-1/1S-G2/FD-A01B | $ | Friction detent | Single | 5-20 lpm | 30-100 bar | 5-19 bar |
| JHP-1/1S-G2/LES-A01B | $ | Safety lever detent in neutral | Single | 5-20 lpm | 30-100 bar | 5-19 bar |
| JHP-2/01-G2/01-LCB-B02B | $ | Spring centre | Dual | 5-20 lpm | 30-100 bar | 6-25 bar |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Setting Pressure (bar) | Setting Pressure (psi) |
|---|---|---|---|
| PV4-U32 | $ | 32 | 464 |
| PV4-U50 | $ | 50 | 725 |
| PV4-U63 | $ | 63 | 914 |
| PV4-U80 | $ | 80 | 1160 |
| PV4-U100 | $ | 100 | 1450 |
| PV4-U125 | $ | 125 | 1813 |
| PV4-U140 | $ | 140 | 2030 |
| PV4-U150 | $ | 150 | 2175 |
| PV4-U160 | $ | 160 | 2320 |
| PV4-U175 | $ | 175 | 2538 |
| PV4-U190 | $ | 190 | 2755 |
| PV4-U210 | $ | 210 | 3045 |
| PV4-U230 | $ | 230 | 3335 |
| PV4-U240 | $ | 240 | 3480 |
| PV4-U265 | $ | 265 | 2843 |
| PV4-U280 | $ | 280 | 4061 |
| PV4-U300 | $ | 300 | 4351 |
| PV4-U320 | $ | 320 | 4641 |
| PV4-U350 | $ | 350 | 5075 |
| PV4-C | $ | Suction only | |
| PV4-DST | $ | Cavity plug | |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| PVH-1 | $ | 11-30v DC voltage control 25-75% |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description | Material |
|---|---|---|---|
| PV4C0101 | $ | End plate, 300 bar | Aluminium |
| PV4C0102 | $ | End plate, 250 bar, LS port | Aluminium |
| PV4C0201 | $ | End plate, 350 bar | Cast iron |
| PV4C0202 | $ | End plate, 350 bar, LS port | Cast iron |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| PV4-SK-01 | $ | Seal Kit PV4 – Basic Section V01(U) |
| PV4-SK-02 | $ | Seal Kit PV4 – Basic Section V02(U) thru V07(U) |
| PV4-SK-03 | $ | Seal Kit PV4 – End Plate 101/102 |
| PV4-SK-04 | $ | Seal Kit PV4 – End Plate 201/202 |
| PV4-SK-05 | $ | Seal Kit PV4 – EPVM/EPVO |
| PV4-SK-06 | $ | Seal Kit PV4 – Friction Detent End Plate FD |
| PV4-SK-07 | $ | Seal Kit PV4 – Lever Kit LM 2BMPV400542 |
| PV4-SK-08 | $ | Seal Kit PV4 – Inlet 101/103/201/203 |
| PV4-SK-09 | $ | Seal Kit PV4 – Inlet 102/104/106/202/204/206 |
| PV4-SK-10 | $ | Seal Kit PV4 – Inlet 105/205 |
| PV4-SK-11 | $ | Seal Kit PV4 – End Cap CO 2BMPV400543 |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. |
|---|---|---|---|---|---|---|---|---|---|
| PV4M-001 | $ | PV4M-003 | $ | PV4M-005 | $ | PV4M-007 | $ | PV4M-009 | $ |
| PV4M-002 | $ | PV4M-004 | $ | PV4M-006 | $ | PV4M-008 | $ | PV4M-010 | $ |
