At Catford Engineering we offer a wide range of hydraulic products. Browse our hydraulic control valves specifications and pricing below.

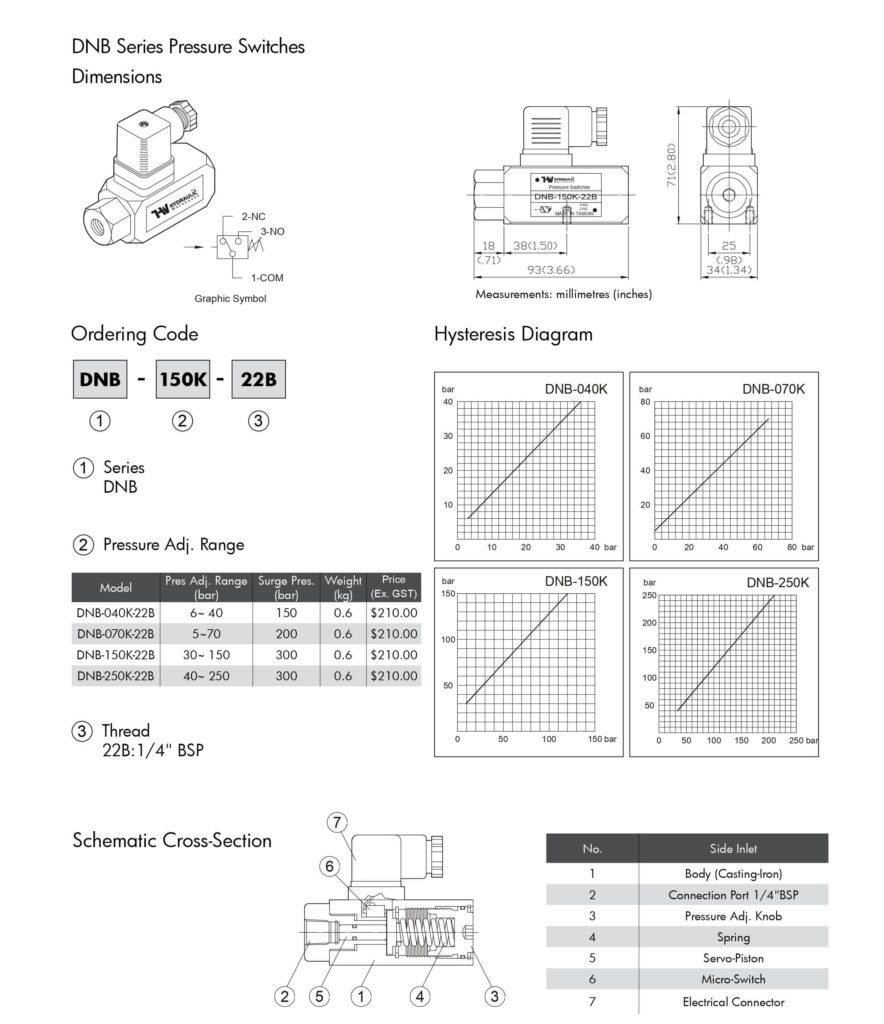

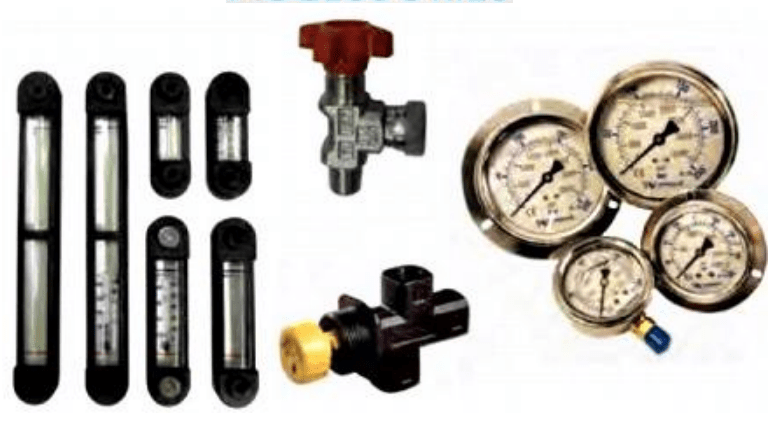

**Level Gauges**Sight Glasses**Filler Breathers**Gauge Isolation Valves**Pressure Gauges**Gauge Adaptors**DNB Series Pressure Switches
Due to fluctuations in the Australian dollar and the economic climate, please be advised that all prices are subject to change. Please contact us to confirm pricing.

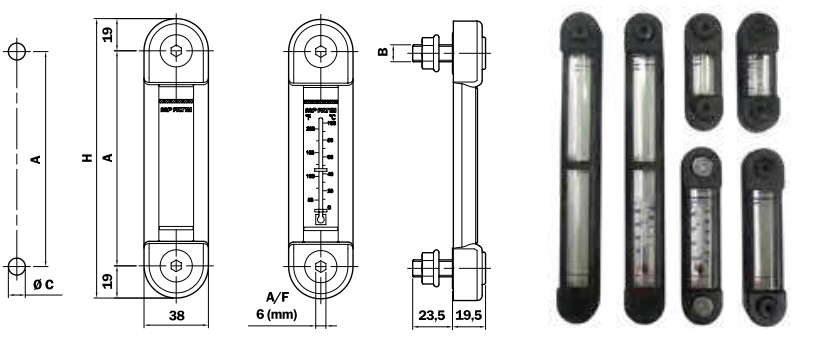

| Part Number | Description | Dimensions | Price (Ex GST) | |||
|---|---|---|---|---|---|---|
| A (mm) | B | C (mm) | H (mm) | |||
| LG3 | 76mm bolt centres | 76 | M10 | 10.5 | 114 | $36.00 |
| LG5 | 127mm bolt centres | 127 | M12 | 125 | 165 | $41.00 |
| LG 10 | 254mm bolt centres | 254 | M12 | 12.5 | 292 | $67.00 |
| Part Number | Description | Dimensions | Price (Ex GST) | |||
|---|---|---|---|---|---|---|
| A (mm) | B | C (mm) | H (mm) | |||
| LG3T | 76mm bolt centres | 76 | M10 | 10.5 | 114 | $32.00 |
| LG5T | 127mm bolt centres | 127 | M12 | 12.5 | 165 | $44.00 |
| LG1OT | 254mm bolt centres | 254 | M12 | 12.5 | 292 | $75.00 |

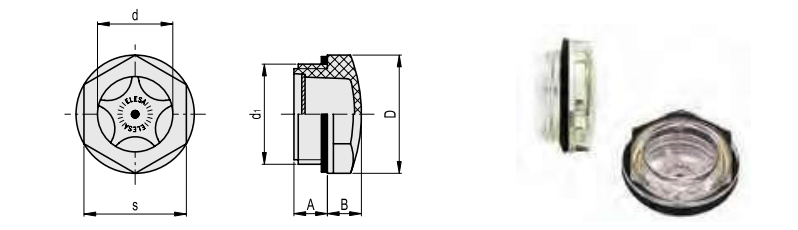

| Part Number | dl (Thread) | A (mm) | B (mm) | D (mm) | d (mm) | s (mm) | Tightening torque (Nm) | Price (Ex GST) |
|---|---|---|---|---|---|---|---|---|
| SGO4 | GI/4″ | 10 | 6 | 18 | 9 | 15 | 2.3 | $5.00 |
| SGO6 | G3/8″ | 7.5 | 7 | 22 | 11 | 19 | 3-5 | $6.00 |
| SGO8 | GI/2″ | 10.5 | 8 | 26 | 14 | 22 | 4.6 | $6.00 |
| SG12 | G3/4″ | 10.5 | 9 | 31.5 | 20 | 27 | 6-8 | $7.00 |
| SG16 | Gl” | 11 | 10 | 40 | 25 | 34 | 8-10 | $8.00 |
| SG20 | 31-1/4′ | 11.5 | 13 | 47.5 | 30 | 40.5 | 8-10 | $12.00 |

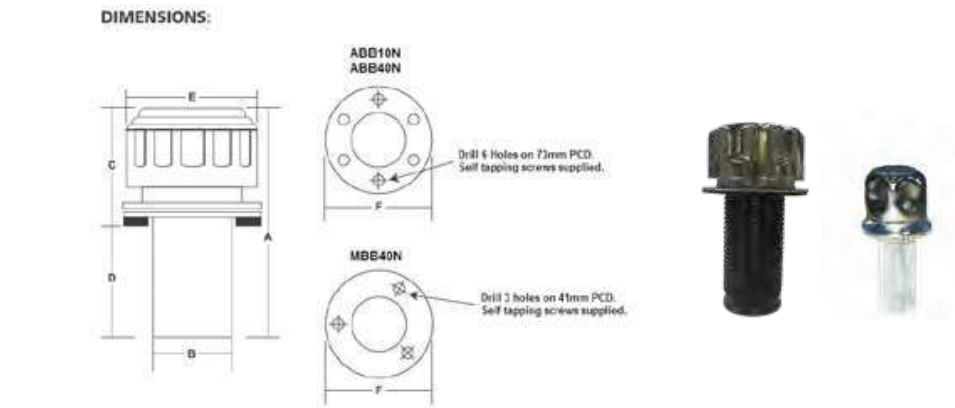

| Part Number | Micron Rating | Airflow (m3/min) | PCD | Dimensions | Price (Ex. GST) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | |||||
| ABB1ON | 10 | 0.42 | 6 holes on 73mm | 150 | 50 | 55 | 95 | 80 | 83 | $31.00 |
| MBB1ON | 10 | 0.25 | 3 holes on 41 mm | 150 | 50 | 55 | 95 | 80 | 83 | $25.00 |
| MBB4ON | 40 | 0.25 | 3 holes on 41mm | 110 | 28 | 45 | 65 | 47 | 52 | $25.00 |

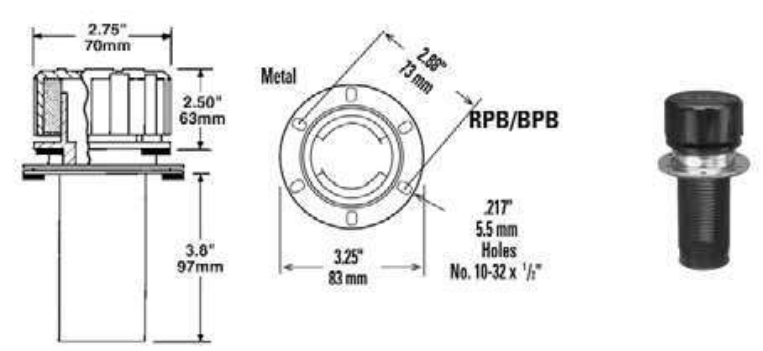

| Part Number | Micron Rating | Airflow (m3/min) | PCD | Price (Ex. GST) |
|---|---|---|---|---|
| BPB1ONA | 10 | 0.5 | 6 holes on 73mm PCD | $51.00 |

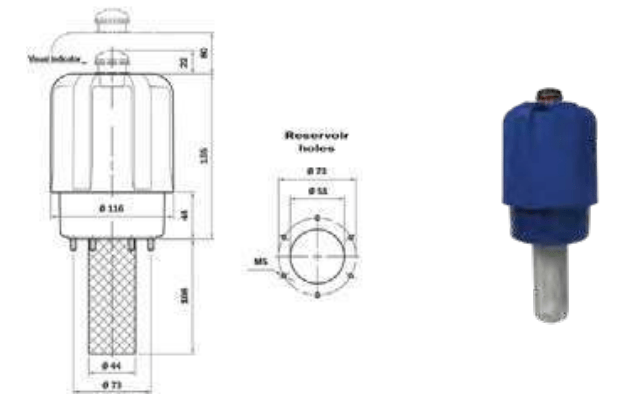

| Part Number | Micron Rating | Airflow (m3/min) | PCD | Price (Ex. GST) |
|---|---|---|---|---|
| TAP 1152FAO3A1B | 3 | 2.15 | 6 holes on 73mm PCD | $147.00 |
| Al 152A03 | 3 | 3 | $37.00 |

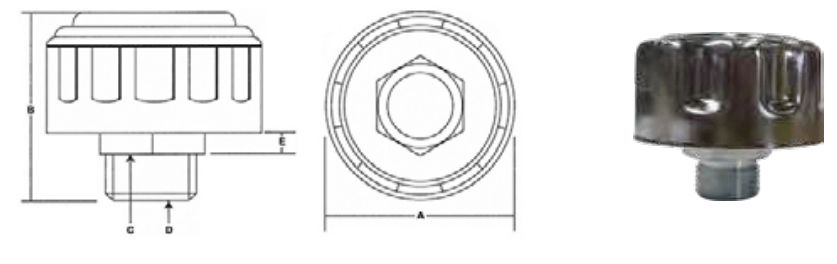

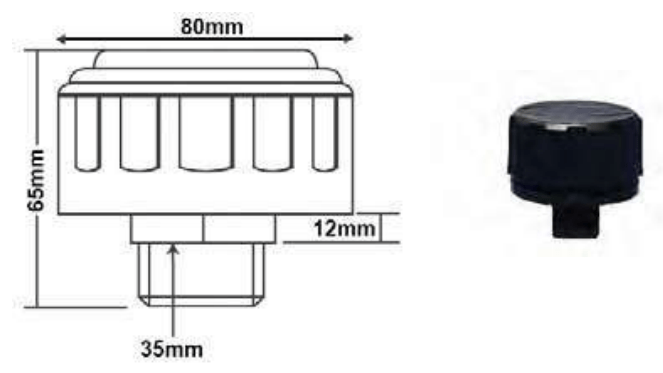

| Part Number | Micron Rating | Airflow (m3/min) | Cap Diameter (mm) | Dimensions | Price (Ex. GST) | ||||
|---|---|---|---|---|---|---|---|---|---|
| A (mm) | B (mm) | C (mm) | D (Thread) | E (mm) | |||||
| ABS 10B | 10 | 0.42 | 75 | 75 | 46 | 35 | G3/4” | 12 | $24.00 |
| MBS40 B | 40 | 0.26 | 46 | 47 | 52 | 19 | G1/4″ | 5 | $18.00 |

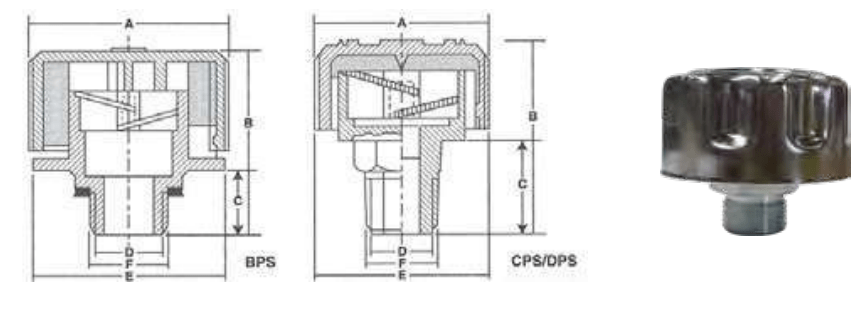

| Part Number | Micron Rating | Airflow (m3/min) | Cap Diameter (mm) | Dimensions | Price (Ex. GST) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A (mm) | B (mm) | C (mm) | D (Thread) | E (mm) | F (mm) | |||||
| BPS40B 12A | 40 | 0.95 | 70 | 70 | 63 | 21 | 16 | 68 | G3/4″ | $23.00 |
| CPS40B 12A | 40 | 0.4 | 57 | 57 | 48 | 13 | 16 | 39 | G3/4″ | $16.00 |
| DPS40B04A | 40 | 0.12 | 42 | 42 | 37 | 18 | 8 | 30 | G1/4″ | $11.00 |
| DPS40B06A | 40 | 0.2 | 42 | 42 | 37 | 18 | 10 | 30 | G3/8″ | $13.00 |

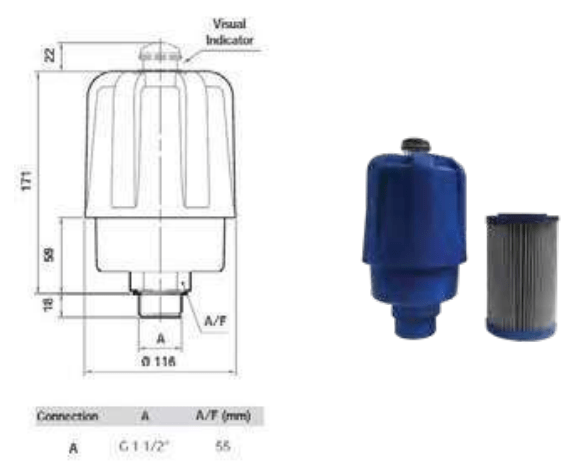

| Part Number | Micron Rating | Airflow (m3/min) | Thread | Cap Diameter (mm) | Price (Ex. GST) |
|---|---|---|---|---|---|
| SAP 1152CAO3A1B | 3 | 3 | G1-1/2″ | 116 | S147.00 |
| Al 152A03 | 3 | 3 | $37.00 |
| Part Number | Micron rating | Airflow (m3/min) | PCD | Relief Valve Setting (psi) | Price (Ex. GST) |
|---|---|---|---|---|---|
| PBB-10-10N | 10 | 0.42 | 6 holes on 73mm PCD | 10 | $67.00 |
| PBB10-5N | 10 | 0.42 | 6 holes on 73mm PCD | 5 | $67.00 |
| Part Number | Micron rating | Airflow (m3/min) | Thread | Relief Valve Setting (psi) | Price (Ex. GST) |
|---|---|---|---|---|---|
| PBS10B10 | 10 | 0.7 | G3/4″ | 10 | $65.00 |
| Part Number | Micron Rating | Airflow (m3/min) | Thread | Relief Valve Setting (psi) | Price (Ex. GST) |
|---|---|---|---|---|---|
| RPS10B5 | 10 | 0.7 | G3/4’1 | 5 | $67.00 |

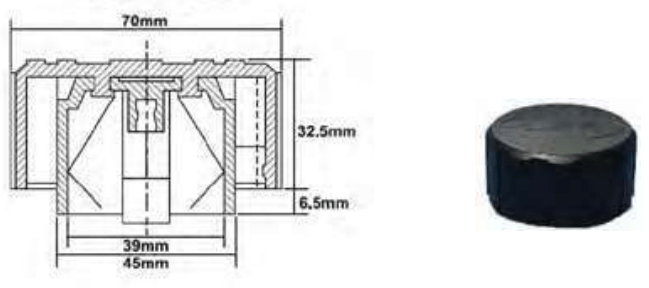

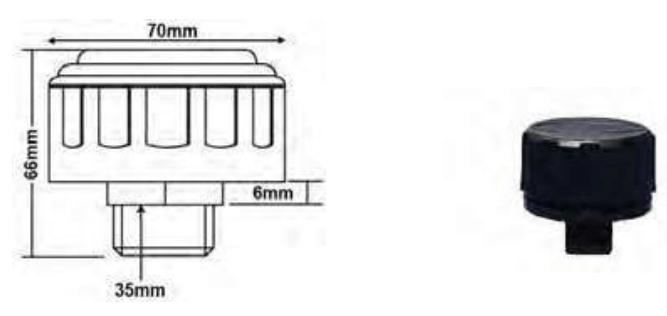

| Part Number | Micron Rating | Max. Temperature | Overall Diameter | Suits Tube Diameter | Price (Ex. GST) |
|---|---|---|---|---|---|
| AB040 | 40 | 120°C | 70mm | 1-1/2″ | $20.00 |

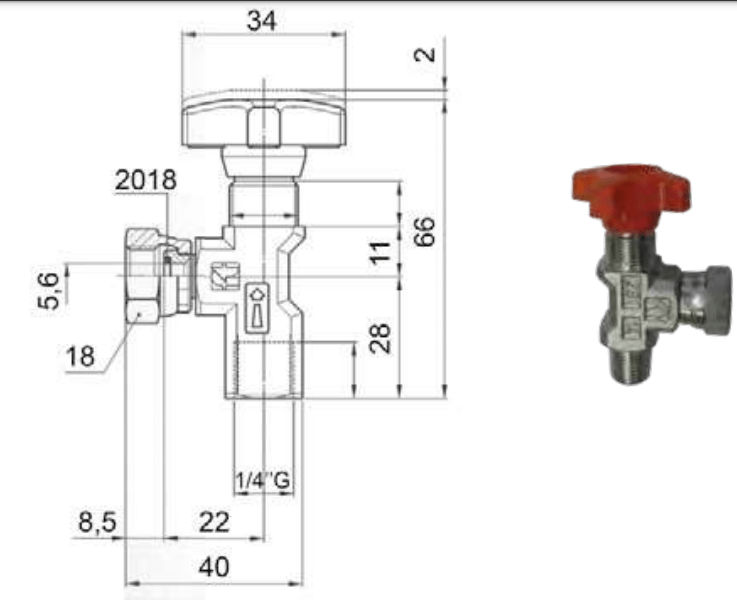

| Schematic | Part Number | Thread | Max Pressure (bar) | Price (Ex. GST) |
|---|---|---|---|---|
 |
FT291-14 | G1/4″ | 400 | $35.00 |

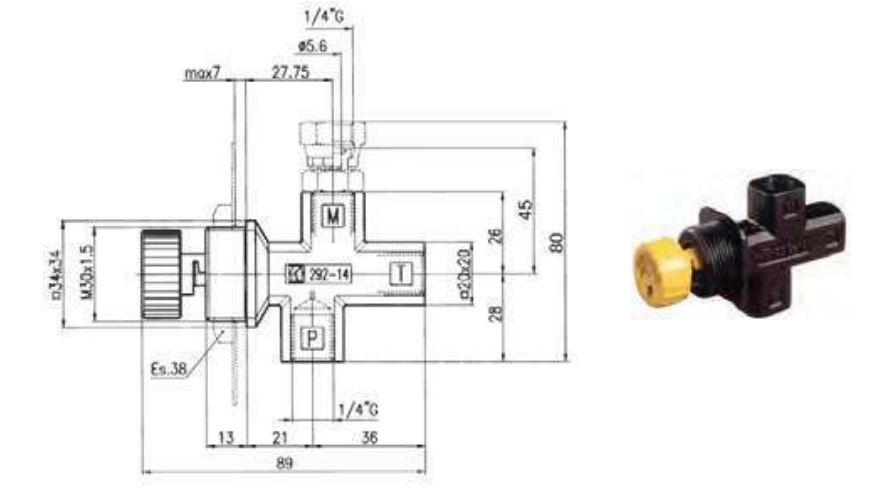

| Schematic | Part Number | Thread | Max Pressure (bar) | Price (Ex. GST) |
|---|---|---|---|---|
 |
FT292-14 | G1/4″ | 400 | $105.00 |

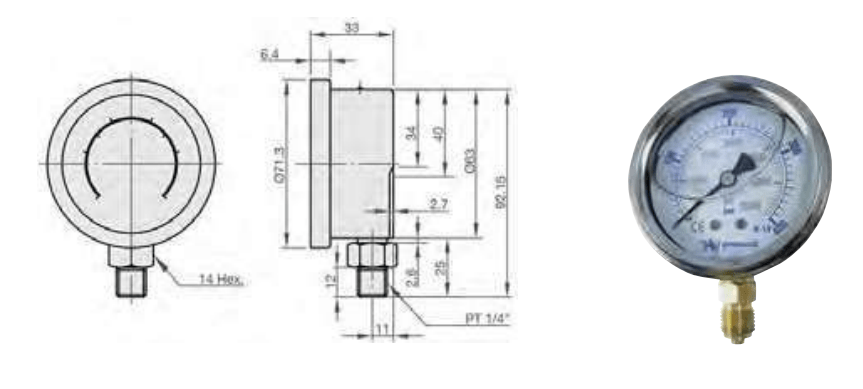

| Part Number | Description | Thread | Face Dia. (mm) | Pressure Range (bar) | Price (Ex GST) |
|---|---|---|---|---|---|
| PG-13-63.60 | Gauge BTM 63mm 0-60bar | 1/4″ BSP | 63 | 0-60 | $38.00 |
| PG-B-63-160 | Gauge BTM 63mm 0-160bar | 1/4″ BSP | 63 | 0 – 160 | $38.00 |
| PG-B-63-250 | Gauge BIM 63mm 0-250bar | 1/4″ BSP | 63 | 0 – 250 | $38.00 |
| PG-B-63-400 | Gauge BTM 63mm 0-400bar | 1/4″ BSP | 63 | 0 – 400 | $38.00 |

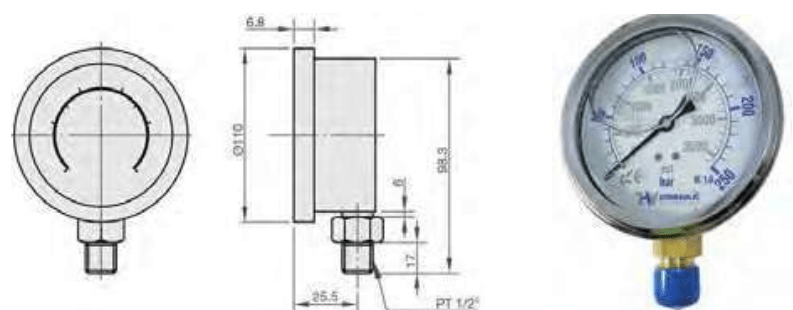

| Part Number | Description | Thread | Face Dia. (mm) | Pressure Range (bar) | Price (Ex GST) |
|---|---|---|---|---|---|
| PG-B-100-60 | Gauge BTM 100mm 0-60bar | 1/2″ BSP | 100 | 0-60 | $118.00 |
| PG-B-100-160 | Gauge BIM 10Ornm 0-160bar | 1/2″ BSP | 100 | 0-160 | $118.00 |
| PG-B-100-250 | Gauge BTM 100mm 0-250bar | 1/2″ BSP | 100 | 0 – 250 | $118.00 |
| PG-B-100-400 | Gauge BTM 100mm 0-400bar | 1/2″ BSP | 100 | 0 – 400 | $118.00 |

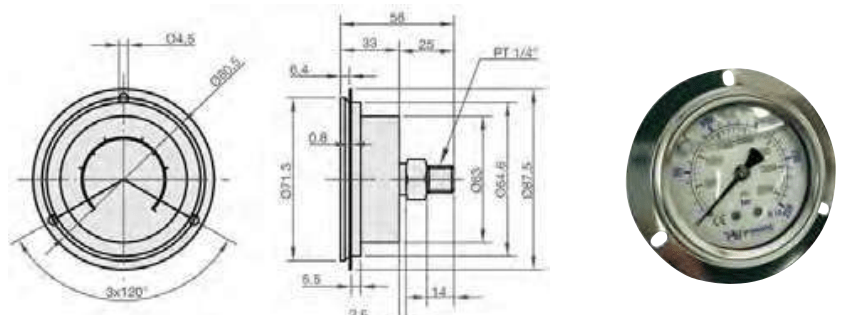

| Part Number | Descr ption | Thread | Face Dia. (mm) | Pressure Range (bar) | Price (Ex. GST) |
|---|---|---|---|---|---|
| PG-R-63-60 | Gauge Rear 63mm 0-60bar | 1/4″ BSP | 63 | 0-60 | $52.00 |
| PG-R-63-160 | Gauge Rear 63mm 0-160bar | 1/4″ BSP | 63 | 0 – 160 | $52.00 |
| PG-R-63-250 | Gauge Rear 63mm 0-250bar | 1/4″ BSP | 63 | 0 – 250 | $52.00 |
| PG-R-63-400 | Gauge Rear 63mm 0-400bar | 1/4″ BSP | 63 | 0 – 400 | $52.00 |

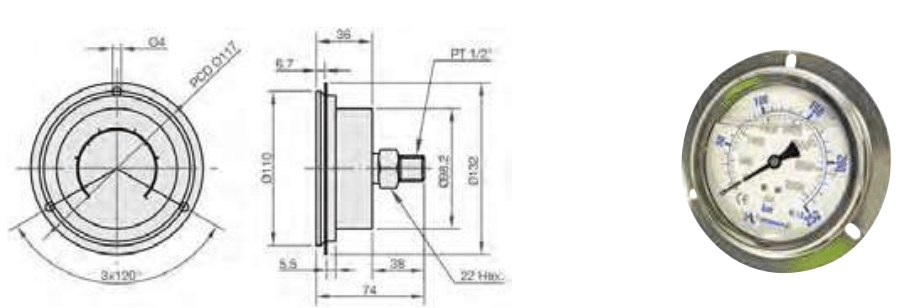

| Part Number | Descr ption | Thread | Face Dia. (mm) | Pressure Range (bar) | Price (Ex. GST) |
|---|---|---|---|---|---|
| PG-R-100-60 | Gauge Rear 100mm 0-60bar | 1/2” BSP | 100 | 0-60 | $125.00 |
| PG-R-100-160 | Gauge Rear 100mm 0-160bar | 1/2″ BSP | 100 | 0 – 160 | $125.00 |
| PG-R-100-250 | Gauge Rear 100mm 0-250bar | 1/2″ BSP | 100 | 0 – 250 | $125.00 |
| PG-R-100-400 | Gauge Rear 100mm 0-400bar | 1/2″ BSP | 100 | 0 – 400 | $125.00 |

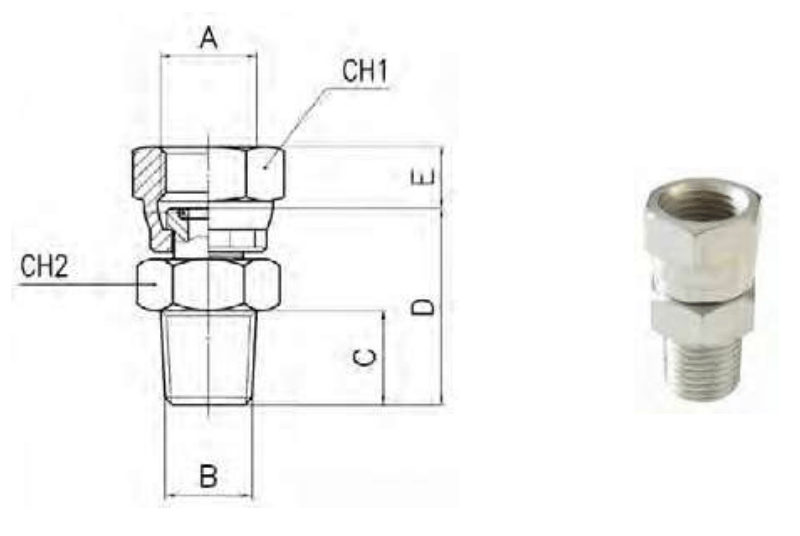

| Part Number | Description | Dimensions | Price (Ex. GST) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C (mm) | D (mm) | E (mm) | CH1 (mm) | CH2 (mm) | |||
| FT299-44 | Male x Female Gauge Adaptor | 1/4″ BSP | 1/4″ BSP | 13 | 27 | 7.5 | 18 | 17 | $12.00 |
| FT299-42 | Male x Female Gauge Adaptor | 1/4″ BSP | 1/2″ BSP | 16 | 31 | 9.5 | 18 | 22 | $15.00 |
| FT299-24 | Male x Female Gauge Adaptor | 1/2″ BSP | 1/4″ BSP | 13 | 31 | 9.5 | 27 | 22 | $23.00 |
| FT299-22 | Male x Female Gauge Adaptor | 1/2″ BSP | 1/2″ BSP | 16 | 34 | 11 | 27 | 22 | $30.00 |
