At Catford Engineering we offer a wide range of hydraulic products. Browse our hydraulic control valves specifications and pricing below.

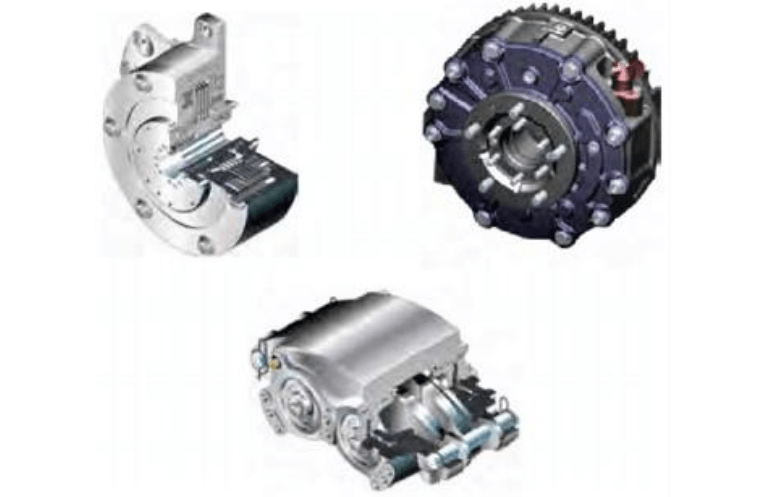

**Wet Brakes**Modification**Instructions**Springs**Gaskets
Due to fluctuations in the Australian dollar and the economic climate, please be advised that all prices are subject to change. Please contact us to confirm pricing.
| 75125 | 75110* | 75230 | 75130* | 75260* | 75115 | |
|---|---|---|---|---|---|---|
| Price (Ex. GST) | $1,997.00 | $1,997.00 | 1,821.00 | $1,855.00 | 1,872.00 | $2,097.00 |
| Weight (kg) | 12 | 12 | 11 | 11 | 11 | 12 |
| Rated Torque (lb-in/N-m) | 3800 (429) | 2600 (294) | 2600 (294) | 3200 (362) | 3800 (429) | 3200 (362) |
| Full Release Pressure (psi/bar) | 240 (17) | 180 (12) | 180 (12) | 220 (15) | 240 (17) | 220 (15) |
| Input Spline (Internal/Female) | SAE 6B Spline | 13T 16/32 Spline | SAE 6B Spline | |||
| Output Spline (External/Male) | 13T 16/32 Spline | 13T 16/32 Spline | SAE 6B Spline | |||

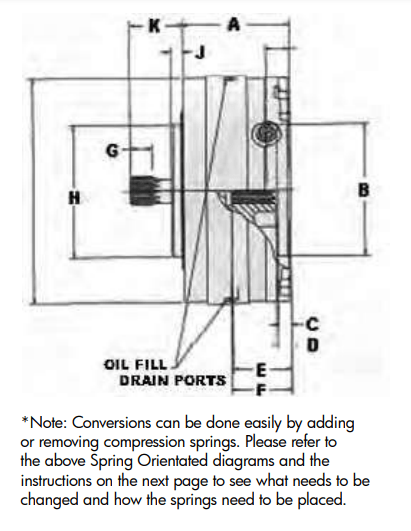

| A – Mounting Length | 3.820 (97.03) | 3.270 (83.06) | 3.94 (100.0) | |||
| B – Input Pilot Dia. | 3.253 (82.63) SAE A | 4.002 (101.65) SAE B | 3.253 (82.63) SAE A | |||
| C – Input Pilot Length | 0.270 (6.86) | 0.400 (10.16) | 0.270 (6.86) | |||
| D – Input Shaft clearance | 0.920 (23.37) | 0.440 (11.18) | 0.88 (22.4) | |||
| E – Max Input Shaft Length | 2.170 (55.12) | 1.800 (45.72) | 2.07 (52.6) | |||
| F – Fill/Drain plug locations | 2.380 (60.45) | 1.830 (46.48) | 2.37 (60.3) | |||
| G – Min Full spline length | 0.650 (16.51) | 0.650 (16.51) | 0.650 (16.51) | |||
| H- Output Pilot Dia | 3.999 (101.58) SAE B | 3.999 (101.57) SAE B | 3.249 (82.52) SAE A | |||
| J – Output Pilot Length | 0.370 (9.40) | 0.370 (9.40) | 0.25 (6.4) | |||
| K – Output Shaft Length | 1.620 (41.15) | 1.620 (41.15) | 1.70 (43.2) | |||
| Oil Fill Volume – Horizontal | 160 ml | 160 ml | 160 ml | |||
| Oil Fill Volume – Vertical | 320 ml | 320 ml | 320 ml | |||
| Spring Part Number | 28962 | 28962 | 28962 | |||
| Qty | 11 | 8 | 8 | 10 | 11 | 10 |
| Spring Part Number | 28963 | 28963 | 28963 | |||
| Qty | 11 | 8 | 8 | 10 | 11 | 10 |
| 75628 | 75629 | 75627- | 75626* | |
|---|---|---|---|---|
| Price (Ex. GST) | $3,160.00 | $2,998.00 | $2,998.00 | $ 2,998.00 |
| Weight (kg) | 18 | 18 | 18 | 18 |
| Rated Torque (lb-in/N-m) | 9000 (1017) | 7200 (814) | 5400 (610) | 4000 (452) |
| Full Release Pressure (psi/bar) | 230 (16) | 190 (13) | 150 (10) | 120 (8) |
| Input Spline (Internal/Female) | 14T 12/24 Spline | |||
| Output Spline (External/Male) | 14T 12/24 Spline | |||
| A – Mounting Length | 4.329 (110.46) | |||
| B – Input Pilot Dia. | 5.002 (127.05) SAE C | |||
| C – Input Pilot Length | 0.5150 (13.08) | |||
| D – Input Shaft clearance | 0.780 (19.81) | |||
| E – Max Input Shaft Length | 2.280 (57.91) | |||
| F – Fill/Drain plug locations | 2.559 (65.00) | |||
| G – Min Full spline length | 1.500 (38.10) | |||
| H- Output Pilot Dia | 4.999 (126.97) SAE C | |||
| J – Output Pilot Length | 0.490 (12.45) | |||
| K – Output Shaft Length | 2.160 (54.86) | |||
| Oil Fill Volume – Horizontal | 150 ml | |||
| Oil Fill Volume – Vertical | 300 ml | |||
| Spring Part Number | 36359 | |||
| Qty | 16 | 13 | 10 | 8 |
| Part Number | How to Build |
|---|---|
| *75110 | Order 1 x 75125 then remove 3 x 28962 and 3 x 28963 |
| *75130 | Order 1 x 75230, 2 x 28962 and 2 x 28963 |
| *75260 | Order 1 x 75230, 3 x 28962 and 3 x 28963 |
| *75627 | Order 1 x 75629 then remove 3 x 36359 or Order 1 x 75628 then remove 6 x 36359 |
| *75626 | Order 1 x 75629 then remove 5 x 36359 or Order 1 x 75628 then remove 8 x 36359 |
| Part Number | Length (mm) | OD (mm) | Price (Ex. GST) |
|---|---|---|---|
| 28962 | 26 | 17 | $9.00 |
| 28963 | 26 | 25 | $10.00 |
| 36359 | 42 | 19 | $14.00 |
| Part Number | Size | Price (Ex. GST) |
|---|---|---|
| 28863 | SAE A | $46.00 |
| 28426 | SAE B | $15.00 |
| 28427 | SAE C | $16.00 |
