At Catford Engineering we offer a wide range of hydraulic products. Browse our hydraulic gear pumps specifications and pricing below.
Due to fluctuations in the Australian dollar and the economic climate, please be advised that all prices are subject to change. Please contact us to confirm pricing.
**420 Series Piston Pumps **PV Series Piston Pumps**V10 Vane Pumps**V20 Vane Pumps**VQ Vane Pumps**Foot Brackets
| Part Number | Displacement(cc/rev) | Mount | Shaft Type | Rotation | Min Speed (rpm) | Max Speed (rpm) | Control Type | Port Position | Rear Mount & Output shaft | Special Control Features | Price (Ex. GST) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 421AK00561B | 41 | 2 Bolt B | 16/32 13 T | Left (CCW) | 600 | 3600 | Pressure Flow Comp LS port | Rear | No auxiliary mounting | $2,926.00 | |
| 421AK00562B | 41 | 2 Bolt B | 7/8″ Keyed | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Rear | No auxiliary mounting | $2,926.00 | |
| 421AK00563B | 41 | 2 Bolt B | 16/32 13 T | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | No auxiliary mounting | $2,926.00 | |
| 421AK00552B | 62 | 2 Bolt B | 7/8″ Keyed | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | No auxiliary mounting | $3,795.00 | |
| 421AK00553B | 62 | 2 Bolt B | 16/32 13 T | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | No auxiliary mounting | $3,795.00 | |
| 421AK00142B | 62 | 2 Bolt B | 1″ Keyed | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | Dual SAE A 2 Bolt, 9T 16/32 | $4,113.00 | |
| 421AK00171B | 62 | 2 Bolt B | 1″ Keyed | Left (CCW) | 600 | 3600 | Pressure Flow Comp LS port | Side | SAE B 2 Bolt, 13T 16/32 | $4,113.00 | |
| 421AK00481B | 62 | 2/4 Bolt C | 1.25″ Keyed | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | No auxiliary mounting | $4,255.00 | |
| 421AK00483B | 62 | 2/4 Bolt C | 1.25″ Keyed | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | No auxiliary mounting | Blood Down Orifice | $4,255.00 |
| 421AK00487B | 62 | 2/4 Bolt C | 12/2414T | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | No auxiliary mounting | $4,255.00 | |
| 421AK00501B | 62 | 2/4 Bolt C | 12/24 14T | Left (CCW) | 600 | 3600 | Pressure Flow Comp LS port | Side | SAE B 2 Bolt, 9T 16/32 | $4,568.00 | |
| 421AK00529B | 62 | 2/4 Bolt C | 1.25″ Keyed | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | SAE B 2 Bolt, 13T 16/32 | $4,568.00 | |
| 421AK00531B | 62 | 2/4 Bolt C | 1.25″ Keyed | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | SAE B 2 Bolt, 13T 16/32 | Blood Down Orifice | $4,568.00 |
| 421AK00492C | 80 | 2/4 Bolt C | 1.25″ Keyed | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | No auxiliary mounting | $4,811.00 | |
| 421AK00494B | 80 | 2/4 Bolt C | 12/2414T | Right (CW) | 600 | 3600 | Pressure Flow Comp LS port | Side | No auxiliary mounting | $4,811.00 |
| Part Number | Description | |
|---|---|---|
| 9900633-000 | Seal Kit Standard | $140.00 |
| 9900634-000 | Seal Kit Viton | $84.00 |
| 4998834-001 | Shaft Seal Viton SAE-C | $48.00 |
| 9900194-008 | Bearing Shim Kit | $62.00 |

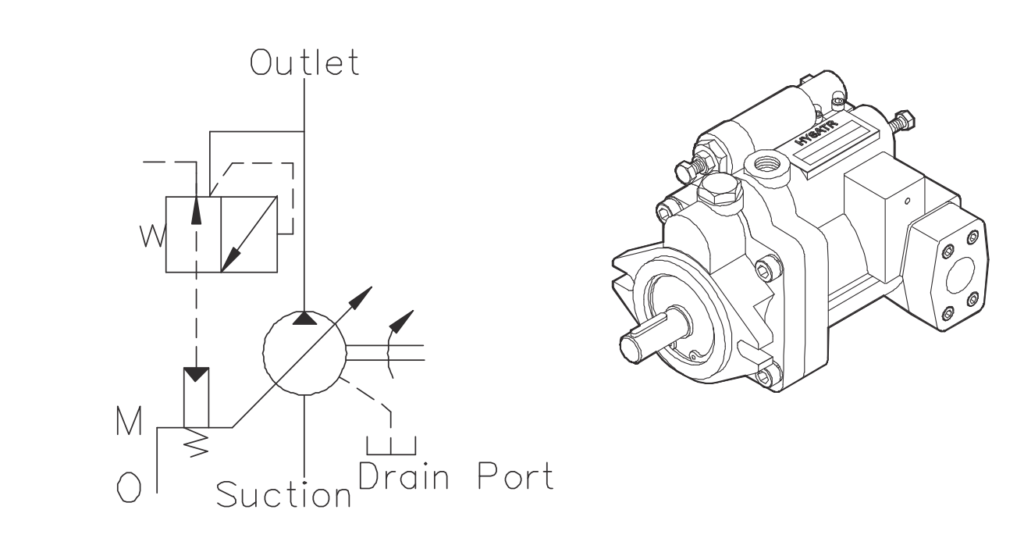

| PV | 36 | A | 3 | R | S | F | 2090 |
|---|---|---|---|---|---|---|---|
| Series No. | Displacement cc/rev (in3 /rev) | Control Types | Pressure compensating range | Rotation | Port Position | Mounting | Design No. Shaft Option Flange Option |
| pv: | 8:8 cc/rev, | A: Pressure Compensating (Manual) | 0:10-35 bar (143-500 psi) | R: Clockwise (CW) | S: Side Port | F: Flange Mounge | Design No. |
| Variable | 16: 16cc/rev, | 1:20-70 bar (286-1000 psi) | L: Counter Clockwise (CCW) | Viewed from Shaft End | |||
| Volume | 22: 22cc/rev, | B: Pressure Compensating Type Pilot (Remote Control) | 2: 30-140 bar (429:2000 psi) | Viewed from Shaft End | |||
| Piston | 36: 36cc/rev, | 3: 30-210 bar (429-3000 psi) | |||||
| Pump | 46: 46cc/rev, | HL: Load Sensing Compensator | 2090: PF(G) Flange Kits, Straight Key | ||||
| Part Number | Displacement cc/rev (in3/rev) | Mount | Shaft Type | Drive Speed (rpm) | Weight (kg) | Price (Ex. GST) | |
|---|---|---|---|---|---|---|---|
| min | max | ||||||
| PV-8-A-3RSF-2090 | 8 | SAE-A 2 bolt | 3/4″ Straight Keyed | 500 | 2000 | 7.5 | 1202 |
| PV-8-8-3RSF-2090 | 8 | SAE-A 2 bolt | 3/4″ Straight Keyed | 500 | 2000 | 7.5 | 1382 |
| PV-8-HL-3RSF-2090 | 8 | SAE-A 2 bolt | 3/4″ Straight Keyed | 500 | 2000 | 7.5 | 1583 |
| PV-16-A-3RS F-2090 | 16 | SAE-A 2 bolt | 3/4″ Straight Keyed | 500 | 2000 | 10.5 | 1380 |
| PV 16 B 3RSF 2090 | 16 | SAE-A 2 bolt | 3/4″ Straight Keyed | 500 | 2000 | 10.5 | 1489 |
| PV-16-H L-3RS F-2090 | 16 | SAE-A 2 bolt | 3/4″ Straight Keyed | 500 | 2000 | 10.5 | 1684 |
| PV-22-A-3 RS F-2090 | 22 | SAE-A 2 bolt | 3/4″ Straight Keyed | 500 | 2000 | 10.5 | 1512 |
| PV-22-B-3RSF-2090 | 22 | SAE-A 2 bolt | 3/4″ Straight Keyed | 500 | 2000 | 10.5 | 1618 |
| PV-22-HL-3RSF-2090 | 22 | SAE-A 2 bolt | 3/4″ Straight Keyed | 500 | 2000 | 10.5 | 1816 |
| PV-36-A-3RSF-2090 | 36 | SAE-B 2 bolt | 7/8″ Straight Keyed | 500 | 2000 | 23 | 2363 |
| PV-36-B-3RSF-2090 | 36 | SAE-B 2 bolt | 7/8″ Straight Keyed | 500 | 2000 | 23 | 2470 |
| PV-36-HL-3RSF-2090 | 36 | SAE-B 2 bolt | 7/8″ Straight Keyed | 500 | 2000 | 23 | 2671 |
| PV-46-A-3RSF-2090 | 46 | SAE-B 2 bolt | 7/8″ Straight Keyed | 500 | 2000 | 23 | 2622 |
| PV-46-B-3RSF-2090 | 46 | SAE-B 2 bolt | 7/8″ Straight Keyed | 500 | 2000 | 23 | 2744 |
| PV-46-HL-3RSF-2090 | 46 | SAE-B 2 bolt | 7/8″ Straight Keyed | 500 | 2000 | 23 | 3512 |

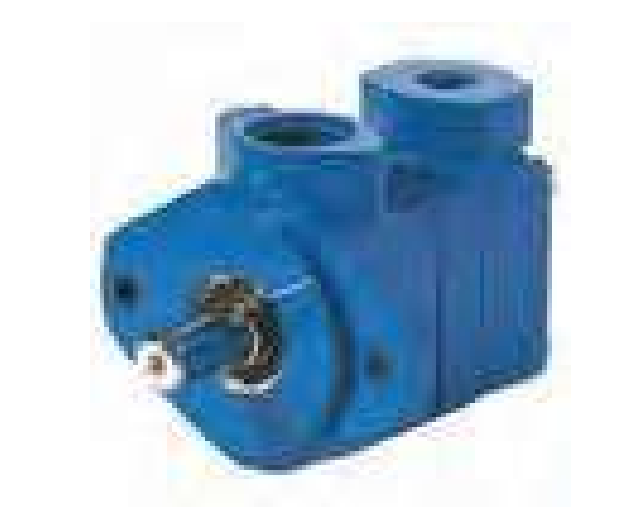

| Mode | Part Number | Displacement cc/rev (Cu.in/rev) | Shaft Type | Maximum speed (rpm) | Maximum Pressure bar (psi) | Mounting | Weight (kg) | Price (Ex.GST) |
|---|---|---|---|---|---|---|---|---|
| V10-1S1S-IC-20 | 386496-3 | 3.3 (0.2) | 3/4 “Straight keyed | 4800 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| V10-1S2S-1C-20 | 382063-3 | 6.5 (0.4) | 3/4 “Straight keyed | 4500 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| V10-1535-11C-20L | 382069-7 | 9.8 (0.6) | Splined SAE-A 9T | 4000 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| V10-1S3S-I C-20 | 382067-3 | 13.1 (0.8) | 3/4 “Straight keyed | 4000 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| VI 0-1S3S-38C-20 | 502495-3 | 13.1 (0.8) | Splined 11T | 4000 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| V10-1S4S-1C-20 | 382071-3 | 13.1 (0.8) | 3/4 “Straight keyed | 3400 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| V10-1S5S-I C-20 | 382074-3 | 16.4 (1.0) | 3/4 “Straight keyed | 3200 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| V10-1S6S-1C-20 | 387500-3 | 19.5 (1.19) | 3/4 “Straight keyed | 3000 | 155 (2220) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| V10-1S7S-I C-20 | 382095-3 | 22.8 (1.39) | 3/4 “Straight keyed | 2800 | 140 (2000) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| V10-1S7S-1 1 C-20 | 358857-3 | 22.8 (1.39) | Splined SAE-A 9T | 2800 | 140 (2000) | SAE-A 2 Bolt | 3.6 | $1,192.00 |
| V10E-1S2T-1C-2G-20 | 426650-3 | 6.5 (0.4) | 3/4 “Straight keyed | 4500 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| V10E-1S3T-1C-2G-20 | 502814-3 | 9.8 (0.6) | 3/4 “Straight keyed | 4000 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| V10E-1S4T-1C-2G-20 | 430562-3 | 13.1 (0.8) | 3/4 “Straight keyed | 3400 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| V10E-1 S5T-I C-2F-20 | 02-142719-3 | 16.4 (1.0) | 3/4 “Straight keyed | 3200 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| VI OF-1S5T-1C-4K-20 | 882965-3 | 16.4 (1.0) | 3/4 “Straight keyed | 3200 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| V10E-1S5T-3C-4H-20 | 875848-3 | 16.4 (1.0) | 3/4 “Straight keyed | 3200 | 175 (2500) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| V10E-1S6T-1C-3D-12 | 02-143610-3 | 19.5 (1.19) | 3/4 “Straight keyed | 3000 | 155 (2220) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| V10E-1S6T-38C-6E-20 | 875849-3 | 19.5 (1.19) | Splined 11T | 3000 | 155 (2220) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| VI OF-1S7T-38C-5F-20 | 02-314884-3 | 22.8 (1.39) | Splined 11T | 2800 | 140 (2000) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| V10E-1 S7T-38C-6G-20 | 452335-3 | 22.8 (1.39) | Splined 11T | 2800 | 140 (2000) | SAE-A 2 Bolt | 3.6 | $1,546.00 |
| Models | Size | Part Number | Price (Ex. GST) |
|---|---|---|---|
| V10 V1OF VlOP | -1 | 923471 | $805.00 |
| -2 | 02-341775 | $805.00 | |
| -3 | 923496 | $805.00 | |
| -4 | 923469 | $805.00 | |
| -5 | 923468 | $805.00 | |
| -6 | 923497 | $805.00 | |
| -7 | 923498 | $805.00 |
| Seal Kit Type | Part Number | Shaft Type | Price (Ex. GST) |
|---|---|---|---|
| V10-****-1 | 374338 | Straight | $313.00 |
| V10-****-3 | 374340 | Threaded | $321.00 |
| V10-****-11 | 374339 | Splined 9T | $321.00 |
| V10-****-12 | 375480 | Splined 13T | $362.00 |
| V10-****-38 | 387481 | Splined 11T | $321.00 |
| Seal Kits Type | Part Number | Price (Ex. GST) | |
|---|---|---|---|
| Standard V10 | 923548 | $67.00 | |
| F3 Equivalent | 919772 | $222.00 | |

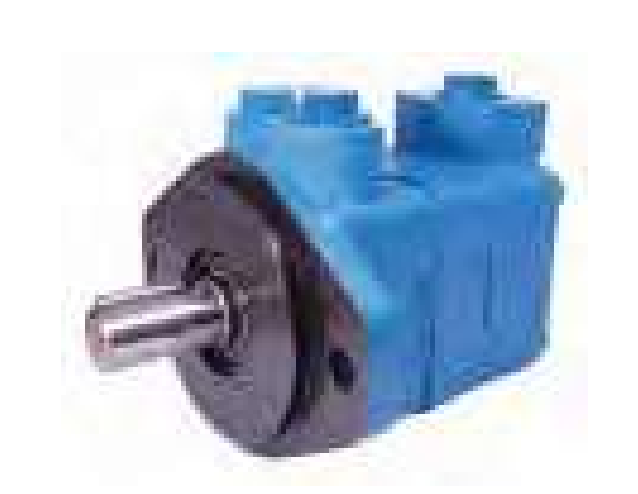

| Model Code | Part Number | Displacement cc/rev (Cu.in/rev) | Shaft Type | Maximum Speed (rpm) | Maximum Pressure bar (psi) | Mounting | Weight (kg) | Price (Ex. GST) |
|---|---|---|---|---|---|---|---|---|
| V20-156S-1C-11 | 372585-3 | 19.5 (1.19) | 3/4″ Straight Keyed | 3400 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,557.00 |
| V20-1S8S-1C-11 | 372564-3 | 26.5 (1.62) | 3/4″ Straight Keyed | 2800 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,557.00 |
| V20-159S-1C-11 | 372586-3 | 29.6 (1.81) | 3/4″ Straight Keyed | 2800 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,557.00 |
| V20-1S9S-62C-11 | 02-102257-3 | 29.6 (1.81) | Splined SAE-A 9T | 2800 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,557.00 |
| V20-1S11S-1C-11 | 358358-3 | 36.4 (2.22) | 3/4″ Straight Keyed | 2500 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,557.00 |
| V20-1S13S-1C-11 | 372561-3 | 42.4 (2.59) | 3/4″ Straight Keyed | 2400 | 155 (2200) | SAE-A 2 Bolt | 5 | $1,557.00 |
| V20E-4P9P-1C-6G-22 | 02-142345-3 | 29.6 (1.81) | 3/4″ Straight Keyed | 2800 | 175 (2500) | SAE-A 2 Bolt | 5 | $2,135.00 |
| V20E-1S8S-38B-5J-22L | 02-318882-6 | 26.6 (1.62) | Splined 11 Tooth | 2800 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,980.00 |
| V20E-1P9P-38C-63-22 | 02-142126-3 | 29.6 (1.81) | Splined 11 Tooth | 2800 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,980.00 |
| V20E-1595-38B-6K-22 | 02-306047-2 | 29.6 (1.81) | Splined 11 Tooth | 2800 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,980.00 |
| V20E-1S9S-38D-5K-22 | 02-466667-4 | 29.6 (1.81) | Splined 11 Tooth | 2800 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,980.00 |
| V20E-1P11P-38C-6F-22 | 02-141803-3 | 36.4 (2.22) | Splined 11 Tooth | 2500 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,980.00 |
| V20E-1S11S-38C-51-22 | 02-318881-3 | 36.4 (2.22) | Splined 11 Tooth | 2500 | 175 (2500) | SAE-A 2 Bolt | 5 | $1,980.00 |
| V20E-1913P-3C-10E-22 | 02-141835-3 | 42.4 (2.59) | Tapered | 2400 | 155 (2200) | SAE-A 2 Bolt | 5 | $1,980.00 |
| Models | Size | Part Number | Price (Ex. GST) |
|---|---|---|---|
| V20 V2OF V2OP | -6 | 02-137560 | $1,051.00 |
| -7 | 02-137561 | $1,051.00 | |
| -8 | 02-137562 | $1,051.00 | |
| -9 | 02-137563 | $1,051.00 | |
| -11 | 02-137565 | $1,051.00 | |
| -12 | 02-137566 | $1,051.00 | |
| -13 | 02-137567 | $1,051.00 |
| Seal Kit type | Design code | Part Number | Price (Ex. GST) |
|---|---|---|---|
| Standard V20 | -11 | 922733 | $68.00 |
| F3-V20 | -11 | 919805 | $222.00 |
| V2OF | -22 | 02-137557 | $219.00 |
| V2OP | -12 | 922733 | $68.00 |
| F3-V2OP | -12 | 919805 | $222.00 |
| Seal Kit type | Part Number | Shaft Type | Price (Ex. GST) |
|---|---|---|---|
| V20*-****-1 | 280372 | Straight | $619.00 |
| V20*-****-3 | 280504 | Threaded | $631.00 |
| V20*-****-6 | 297330 | Splined | $745.00 |
| V20*-****-11 | 280515 | Splined 11T | $631.00 |
| V20*-****-15 | 294922 | Splined 13T | $450.00 |
| V20*-* ***-38 | 328096 | Splined 11T – 3/4 | $631.00 |
| V20*-****-62 | 582610 | Splined 9T | $808.00 |

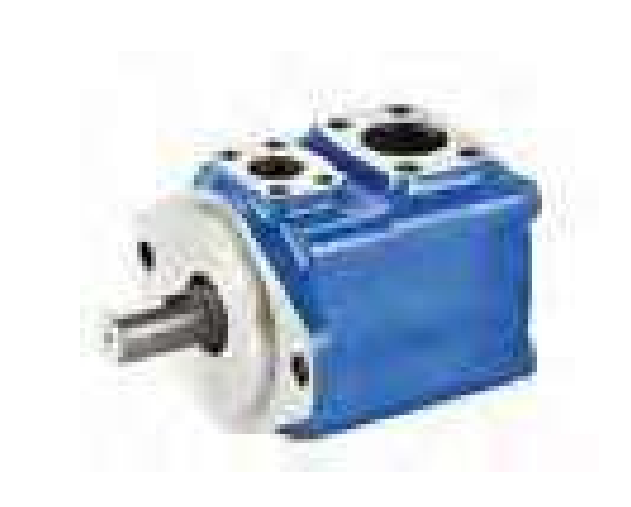

| Part Number | Displacement cc/rev (Cu.in/rev) | Shaft Type | Maximum Speed (rpm) | Maximum Pressure bar (psi) | Mounting | Weight (kg) | Price (Ex. GST) |
|---|---|---|---|---|---|---|---|
| 981306-3 | 18.0 (1.10) | 7/8″ Keyed | 2700 | 210 (3000) | SAE-B 2 Bolt | 11.8 | $1,860.00 |
| 497140-3 | 27.4 (1.67) | 7/8″ Keyed | 2700 | 210 (3000) | SAE-B 2 Bolt | 11.8 | $1,860.00 |
| 981309-3 | 36.4 (2.22) | 7/8″ Keyed | 2700 | 210 (3000) | SAE-B 2 Bolt | 11.8 | $1,860.00 |
| 497141-3 | 39.5 (2.41) | 7/8″ Keyed | 2700 | 160 (2300) | SAE-B 2 Bolt | 11.8 | $1,860.00 |
| 876384-3 | 45.9 (2.80) | Splined SAE-B 13 T | 2700 | 140 (2000) | SAE-B 2 Bolt | 11.8 | $1,860.00 |
| 981310-3 | 45.9 (2.80) | 7/8″ Keyed | 2700 | 140 (2000) | SAE-B 2 Bolt | 11.8 | $1,860.00 |
| 417994-3 | 40.2 (2.45) | 7/8″ Keyed | 2700 | 210 (3000) | SAE-B 2 Bolt | 14.5 | $2,025.00 |
| 417993-3 | 45.4 (2.77) | 7/8″ Keyed | 2700 | 210 (3000) | SAE-B 2 Bolt | 14.5 | $2,025.00 |
| 421475-3 | 55.2 (3.77) | Splined SAE-B 13 T | 2500 | 210 (3000) | SAE-B 2 Bolt | 14.5 | $2,025.00 |
| 417992-3 | 55.2 (3.77) | 7/8″ Keyed | 2500 | 210 (3000) | SAE-B 2 Bolt | 14.5 | $2,025.00 |
| 421477-3 | 67.5 (4.12) | Splined SAE-B 13 T | 2500 | 210 (3000) | SAE-B 2 Bolt | 14.5 | $2,025.00 |
| 416457-3 | 67.5 (4.12) | 1-1/4″ Keyed | 2500 | 210 (3000) | SAE-C 2 Bolt | 22.7 | $2,025.00 |
| 421527-3 | 81.6 (4.98) | 1-1/4″ Keyed | 2500 | 210 (3000) | SAE-C 2 Bolt | 22.7 | $2,515.00 |
| 421555-3 | 97.7 (5.96) | 1-1/4″ Keyed | 2500 | 210 (3000) | SAE-C 2 Bolt | 22.7 | $2,515.00 |
| 421528-3 | 112.8 (6.88) | 1-1/4″ Keyed | 2400 | 210 (3000) | SAE-C 2 Bolt | 22.7 | $2,515.00 |
| 421529-3 | 121.6 (7.42) | 1-1/4″ Keyed | 2400 | 210 (3000) | SAE-C 2 Bolt | 22.7 | $2,515.00 |
| 432647-3 | 138.7 (8.46) | 1-1/4″ Keyed | 2200 | 175 (2500) | SAE-C 2 Bolt | 34.1 | $4,230.00 |
| 421966-3 | 162.3 (9.90) | 1-1/4″ Keyed | 2200 | 175 (2500) | SAE-C 2 Bolt | 34.1 | $ 4, 230.00 |
| 421967-3 | 193.4 (11.80) | 1-1/4″ Keyed | 2200 | 175 (2500) | SAE-C 2 Bolt | 34.1 | $4,230.00 |
| Models | Size | Part Number | Price (Ex. GST) |
|---|---|---|---|
| 20VQ | -5 | 497115 | $1,015.00 |
| -8 | 497118 | $1,015.00 | |
| -11 | 497120 | $1,015.00 | |
| -12 | 497121 | $1,015.00 | |
| 14 | 497122 | $1,015.00 |
| Models | Size | Part Number | Price (Ex. GST) |
|---|---|---|---|
| 35VQ | -25 | 413421 | $1,725.00 |
| -30 | 413422 | $1,725.00 | |
| 35 | 413415 | $1,725.00 | |
| -38 | 413419 | $1,725.00 |
| Models | Size | Part Number | Price (Ex. GST) |
|---|---|---|---|
| 25V0 | -12 | 416439 | $1,210.00 |
| -14 | 416440 | $1,210.00 | |
| -17 | 416441 | $1,210.00 | |
| -19 | 421232 | $1,210.00 | |
| -21 | 416442 | $1,210.00 |
| Models | Size | Part Number | Price (Ex. GST) |
|---|---|---|---|
| 20V0 | -42 | 416435 | $2,599.00 |
| -50 | 416436 | $2,599.00 | |
| -60 | 416437 | $2,599.00 |
| Seal Kit | Single Shaft Seal Kit | List Price | Double Shaft Seal Kit | Price (Ex. GST) |
|---|---|---|---|---|
| 20V0 | 497123 | $104.00 | ||
| 25VQ,26VQ,30VQ,31VQ | 920021 | $121.00 | 920022 | $171.00 |
| F3-25VQ,26VQ,30VQ,31VQ | 920023 | $223.00 | 920024 | $151.00 |
| 35VQ,36VQ | 920015 | $295.00 | 920016 | $347.00 |
| F3-35VQ,36VQ | 900029 | $562.00 | 920030 | $775.00 |
| 45V0 | 920025 | $338.00 | – | – |
| F3-45V0 | 920027 | $641.00 | 920028 | $642.00 |
| Part Number | List Price | Model | Spigot Dia. mm (in) | SAE Standard |
|---|---|---|---|---|
| 422582 | $207.00 | FB-A-10 | 82.6 (3.5) | SAE-A 2 Bolt Mount |
| 422583 | $326.00 | FB-B-10 | 101.4 (4.0) | SAE-B 2 Bolt Mount |
| 422584 | $460.00 | FB-C-10 | 127.0 (5.0) | SAE-C 2 Bolt Mount |

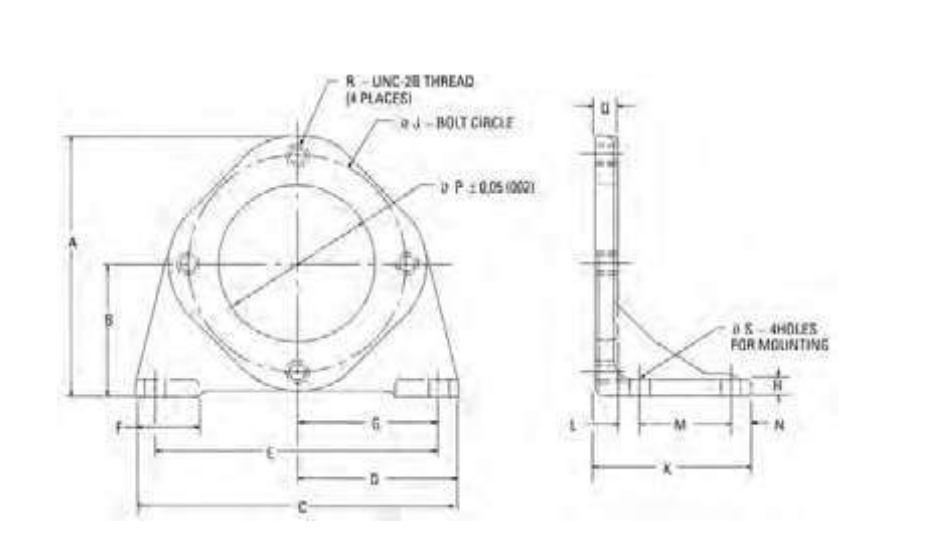

| Model | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FB-A-10 | 134.9 (5.31) | 69,9 (2.75) | 152,4 (6.00) | 76,2 (3.00) | 127,0 (5.00) | 36,6 (1.44) | 63,5 (2.50) | 12,7 (.50) | 106,4 (4.19) | 96,0 (3.78) | 15,0 (.59) | 50,8 (2.00) | 12,7 (.50) | 82,6 (3.25) | 17,5 (.69) | .38-16 | 11.2 (.44) |
| FB-B-10 | 180,8 (7.12) | 92,2 (3.63) | 171,5 (6.75) | 85,8 (3.38) | 146,0 (5.75) | 36,6 (1.44) | 73,2 (2.88) | 12,7 (.50) | 146,0 (5.75) | 95,8 (3.77) | 15,0 (.59) | 50,8 (2.00) | 12,7 (.50) | 101,6 (4.00) | 17,3 (.68) | .50-13 | 17,3 (.68) |
| FB-C-10 | 215,9 (8.50) | 109,5 (4.31) | 265,2 (10.44) | 132,6 (5.22) | 235,0 (9.25) | 50,6 (2.00) | 117,6 (4.63) | 15.7 (.62) | 181,1 (7.13) | 131,6 (5.18) | 19,1 (.75) | 72,2 (3.00) | 17,3 (.68) | 127,0 (5.00) | 19,1 (.75) | .62-11 | 17,3 (.68) |
