Hydraulic Sectional Valves

At Catford Engineering we offer a wide range of hydraulic sectional valves. Browse our specifications and pricing below.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491

ISO 3834-2 (Fusion Welding Process)

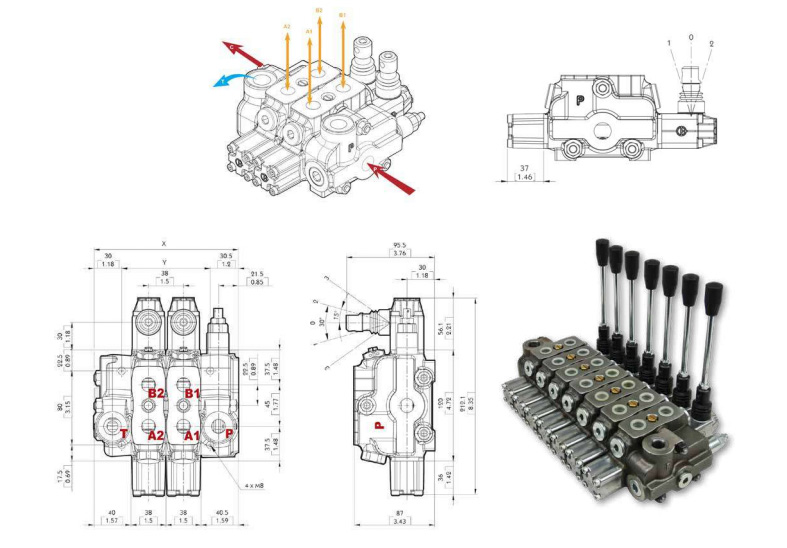

SN3 Sectional Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Qty	Spool	Max Flow (lpm)	Max Pressure (bar)		Ports (BSPP)		Dimensions (mm)
Part #		Qty	Spool	Max Flow (lpm)	P	T	T-C	P-A-B	X	Y
SN3/1S3/18L/P3T/G3-4-M3	$	1	Cylinder	50	315	25	1/2″	3/8″	118.5	58
SN3/2S3/18L/P3T/G3-4-M3	$	2	Cylinder	50	315	25	1/2″	3/8″	156.5	96
SN3/3S3/18L/P3T/G3-4-M3	$	3	Cylinder	50	315	25	1/2″	3/8″	194.5	134
SN3/4S3/18L/P3T/G3-4-M3	$	4	Cylinder	50	315	25	1/2″	3/8″	232.5	172
SN3/5S3/18L/P3T/G3-4-M3	$	5	Cylinder	50	315	25	1/2″	3/8″	270.5	210
SN3/6S3/18L/P3T/G3-4-M3	$	6	Cylinder	50	315	25	1/2″	3/8″	308.5	248
SN3/7S3/18L/P3T/G3-4-M3	$	7	Cylinder	50	315	25	1/2″	3/8″	346.5	286
SN3/8S3/18L/P3T/G3-4-M3	$	8	Cylinder	50	315	25	1/2″	3/8″	384.5	324
SN3/9S3/18L/P3T/G3-4-M3	$	9	Cylinder	50	315	25	1/2″	3/8″	422.5	362
SN3/10S3/18L/P3T/G3-4-M3	$	10	Cylinder	50	315	25	1/2″	3/8″	460.5	400
SN3/11S3/18L/P3T/G3-4-M3	$	11	Cylinder	50	315	25	1/2″	3/8″	498.5	438
SN3/12S3/18L/P3T/G3-4-M3	$	12	Cylinder	50	315	25	1/2″	3/8″	536.5	476

SN3 Seal Kits & Replacement Handles

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Description
FPSN-3-SK	$	Inlet relief seal
EWSN-3-SK	$	Working section seal kit
FTSN-3-SK	$	Outlet section seal kit
YLWSN33080-SK	$	SN3 pneumatic actuator seal kit
YLWSN08160	$	SN3 handle

SN3 - ORDERING A COMPLETE ASSEMBLED VALVE

SN-3 / 2S - 3 / 18LPG2 / 26-1L / G-3-4 - M3

Body Kits

Code	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Code	Description	List Price
1S	1 section	$	1S	7 sections	$
2S	2 sections	$	2S	8 sections	$
3S	3 sections	$	3S	9 sections	$
4S	4 sections	$	4S	10 sections	$
5S	5 sections	$	5S	11 sections	$
6S	6 sections	$	6S	12 sections	$

Inlet Pressure Relief Valve

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
3	YLPSN33003	Range 63 to 200 bar STANDARD	$
4	YLPSN33004	Range 160 to 315 bar	$
SV	YLPSN34000	Relief valve blanking plug	$
XYG	YLPSN33000	Pilot operated pressure relief valve, range 25 to 315 bar	$

Spool Options

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
1	YLWSN32001	Double acting, 3 positions, A+B closed in neutral position STANDARD	$
1S		Double acting, 3 positions, A+B closed in neutral position, for series circuit	—
2S		Double acting, 3 positions, A+B open to tank in neutral position, for series circuit	—
2	YLWSN32002	Double acting, 3 positions, A+B open to tank in neutral position STANDARD	$
3	YLWSN32003	Single acting on A closed in neutral position, 3 positions, B plugged	$
4	YLWSN32004	Single acting on B closed in neutral position, 3 positions, A plugged	$

B-Side Spool Positioner

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
6-1	YLWSN33061	Detent in position 1-0-2, without spring centered	$
6-2	YLWSN33062	2 positions, detent in position 0-2, without spring centered	$
8	YLWSN33008	Spring return to neutral position STANDARD	$
9-1	YLWSN33091	Detent in position 1, 2 with spring centered	$
9-2	YLWSN33092	Detent in position 2 with spring centered	$
9-3	YLWSN33093	Detent in position 1 with spring centered	$
8EP3A	YLWSN34300-12V	ON/OFF electro-pneumatic actuator 12v DC	$
8EP3B	YLWSN34300-24V	ON/OFF electro-pneumatic actuator 24v DC	$
8P	YLWSN33080	ON/OFF pneumatic actuator	$
8MG3	YLWSN34803	Microswitch kit operated in position 1 & 2 (normally open)	$
8IM	YLWSN330810	Hydraulic pilot kit – SN3 – pilot pressure max 50 bar	$

Port Relief (optional)

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
PG2	YLWSN35002	Anti-shock valve, range 63 to 125 bar	$
PG3	YLWSN35003	Anti-shock valve, range 100 to 250 bar	$
PG4	YLWSN35004	Anti-shock valve, range 200 to 315 bar	$
UG2	YLWSN35012	Anti-shock valve and anti-cavitation valve, range 63 to 125 bar	$
UG3	YLWSN35013	Anti-shock valve and anti-cavitation valve, range 100 to 250 bar	$
UG4	YLWSN35014	Anti-shock valve and anti-cavitation valve, range 200 to 315 bar	$

A-Side Option

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
L	YLWSN34000	Standard lever STANDARD	$
LCB	YLWSN34002	Joystick lever for 2 section operation	$

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

YLWSN34000

Standard lever STANDARD

LCB

YLWSN34002

Joystick lever for 2 section operation

Outlet Cover

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

–

Open centre STANDARD

–

Closed centre (power beyond conversion plug)

–

SN4 (80 LPM)

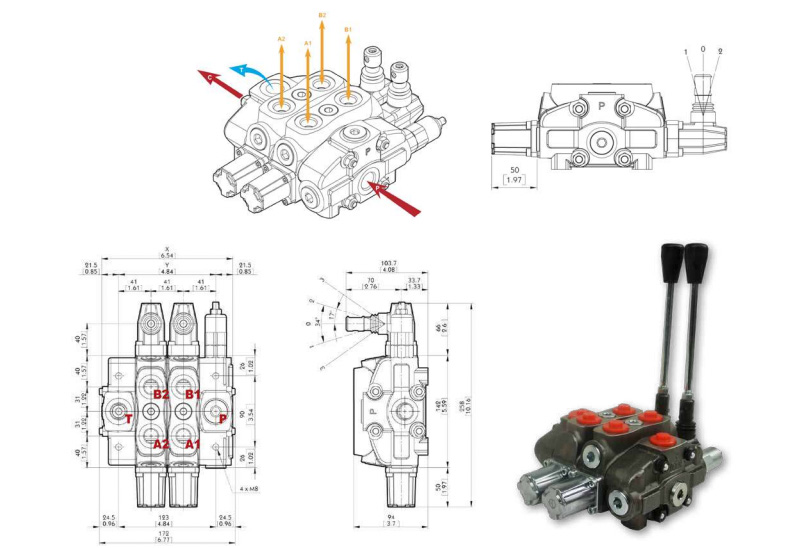

SN4 Sectional Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Qty	Spool	Max Flow (lpm)	Max Pressure (bar)		Ports (BSPP)		Dimensions (mm)
Part #		Qty	Spool	Max Flow (lpm)	P	T	T-C	P-A-B	X	Y
SN4/1S3/18L/P3T/G4-6-M3	$	1	Cylinder	80	315	25	3/4″	1/2″	128	82
SN4/2S3/18L/P3T/G4-6-M3	$	2	Cylinder	80	315	25	3/4″	1/2″	169	123
SN4/3S3/18L/P3T/G4-6-M3	$	3	Cylinder	80	315	25	3/4″	1/2″	210	164
SN4/4S3/18L/P3T/G4-6-M3	$	4	Cylinder	80	315	25	3/4″	1/2″	251	205
SN4/5S3/18L/P3T/G4-6-M3	$	5	Cylinder	80	315	25	3/4″	1/2″	292	246
SN4/6S3/18L/P3T/G4-6-M3	$	6	Cylinder	80	315	25	3/4″	1/2″	333	267
SN4/7S3/18L/P3T/G4-6-M3	$	7	Cylinder	80	315	25	3/4″	1/2″	374	328
SN4/8S3/18L/P3T/G4-6-M3	$	8	Cylinder	80	315	25	3/4″	1/2″	415	369
SN4/9S3/18L/P3T/G4-6-M3	$	9	Cylinder	80	315	25	3/4″	1/2″	456	410
SN4/10S3/18L/P3T/G4-6-M3	$	10	Cylinder	80	315	25	3/4″	1/2″	497	451
SN4/11S3/18L/P3T/G4-6-M3	$	11	Cylinder	80	315	25	3/4″	1/2″	538	492
SN4/12S3/18L/P3T/G4-6-M3	$	12	Cylinder	80	315	25	3/4″	1/2″	579	533

SN4 Seal Kits & Replacement Handles

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Description
FPSN-4-SK	$	Inlet relief seal
EWSN-4-SK	$	Working section seal kit
FTSN-4-SK	$	Outlet section seal kit
YLWSN43080-SK	$	SN4 pneumatic actuator seal kit
YLWSN10200	$	SN4 handle

SN4 - ORDERING A COMPLETE ASSEMBLED VALVE

SN-4 / 2S - 3 / 18LPG2 / 26-1L / G-4-6 - M3

Body Kits

Code	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Code	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
1S	1 section	$	1S	7 sections	$
2S	2 sections	$	2S	8 sections	$
3S	3 sections	$	3S	9 sections	$
4S	4 sections	$	4S	10 sections	$
5S	5 sections	$	5S	11 sections	$
6S	6 sections	$	6S	12 sections	$

Inlet Pressure Relief Valve

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
3	YLPSN43003	Range 125 to 250 bar STANDARD	$
4	YLPSN43004	Range 200 to 315 bar	$
SV	YLPSN44000	Relief valve blanking plug	$
XSG	YLX21000	Pilot operated pressure relief valve, range 25 to 315 bar	$

Spool Options

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
1	YLWSN42001	Double acting, 3 positions, A+B closed in neutral position STANDARD	$
2	YLWSN42002	Double acting, 3 positions, A+B open to tank in neutral position STANDARD	$
3	YLWSN42003	Single acting on A closed in neutral position, 3 positions, B plugged	$
1KOL	EWSN-4/1KOL/G-4	SN4 pressure kickout working section	$

B-Side Spool Positioner

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
6-1	YLWSN43061	Detent in position 1-0-2, without spring centered	$
8	YLWSN43008	Spring return to neutral position STANDARD	$
9-1	YLWSN43091	Detent in position 1, 2 with spring centered	$
9-2	YLWSN43092	Detent in position 2 with spring centered	$
9-3	YLWSN43093	Detent in position 1 with spring centered	$
8EP3A	YLWSN44300-12V	ON/OFF electro-pneumatic actuator 12v DC	$
8EP3B	YLWSN44300-24V	ON/OFF electro-pneumatic actuator 24v DC	$
8P	YLWSN43080	ON/OFF pneumatic actuator	$
8MG3	YLWSN43803	Microswitch kit operated in position 1 & 2 (normally open)	$
8IM	YLWSN430810	Hydraulic pilot with single spring, exclusive for standard spool (type 1+2)	$
8D2	YLWSN43082	Spring return to neutral position, pin with M8 thread for dual control	$

Port Relief (optional)

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
PG2	YLWSN45002	Anti-shock valve, range 63 to 125 bar	$
PG3	YLWSN45003	Anti-shock valve, range 100 to 250 bar	$
PG4	YLWSN45004	Anti-shock valve, range 200 to 315 bar	$
UG2	YLWSN45012	Anti-shock valve and anti-cavitation valve, range 63 to 125 bar	$
UG3	YLWSN45013	Anti-shock valve and anti-cavitation valve, range 100 to 250 bar	$
UG4	YLWSN45014	Anti-shock valve and anti-cavitation valve, range 200 to 315 bar	$
C	YLWSN45100	Anti-cavitation valve	$

A-Side Option

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
L	YLWSN44000	Standard lever STANDARD	$
LCB	YLWSN44002	Joystick lever for 2 section operation	$

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

YLWSN44000

Standard lever STANDARD

LCB

YLWSN44002

Joystick lever for 2 section operation

Outlet Cover

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

–

Open centre STANDARD

–

Closed centre (power beyond conversion plug)

–

SN6 (140 LPM)

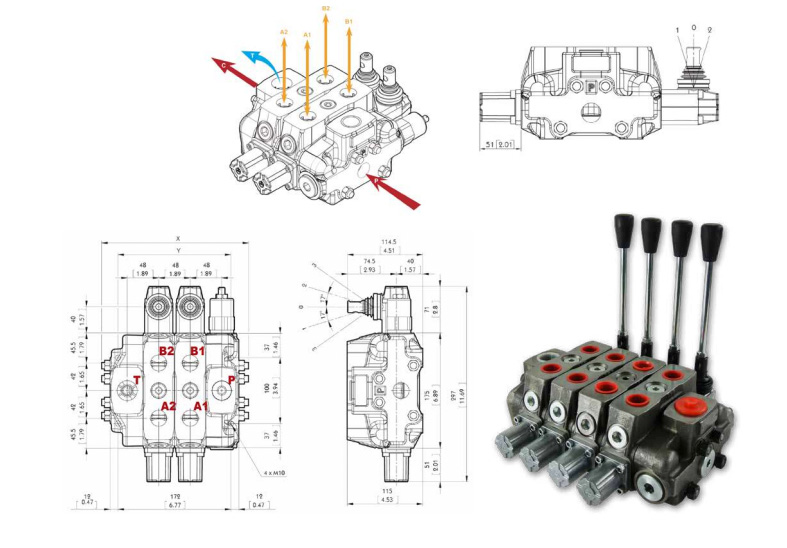

SN6 Sectional Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Qty	Spool	Max Flow (lpm)	Max Pressure (bar)		Ports (BSPP)		Dimension (mm)
Part #		Qty	Spool	Max Flow (lpm)	P	T	T	P-A-B-C	X	Y
SN6/1S3/18L/P3T/G6-1-M3	$	1	Cylinder	140	315	25	1″	3/4″	176	124
SN6/2S3/18L/P3T/G6-1-M3	$	2	Cylinder	140	315	25	1″	3/4″	224	172
SN6/3S3/18L/P3T/G6-1-M3	$	3	Cylinder	140	315	25	1″	3/4″	272	220
SN6/4S3/18L/P3T/G6-1-M3	$	4	Cylinder	140	315	25	1″	3/4″	320	268
SN6/5S3/18L/P3T/G6-1-M3	$	5	Cylinder	140	315	25	1″	3/4″	368	316
SN6/6S3/18L/P3T/G6-1-M3	$	6	Cylinder	140	315	25	1″	3/4″	416	364
SN6/7S3/18L/P3T/G6-1-M3	$	7	Cylinder	140	315	25	1″	3/4″	464	412
SN6/8S3/18L/P3T/G6-1-M3	$	8	Cylinder	140	315	25	1″	3/4″	512	460
SN6/9S3/18L/P3T/G6-1-M3	$	9	Cylinder	140	315	25	1″	3/4″	560	508
SN6/10S3/18L/P3T/G6-1-M3	$	10	Cylinder	140	315	25	1″	3/4″	608	556
SN6/11S3/18L/P3T/G6-1-M3	$	11	Cylinder	140	315	25	1″	3/4″	656	604
SN6/12S3/18L/P3T/G6-1-M3	$	12	Cylinder	140	315	25	1″	3/4″	704	652

SN6 Seal Kits & Replacement Handles

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Description
FPSN-6-SK	$	Inlet relief seal
EWSN-6-SK	$	Working section seal kit
FTSN-6-SK	$	Outlet section seal kit
YLWSN63080-SK	$	SN6 pneumatic actuator kit
YLWSN10200	$	SN6 handle

SN6 - ORDERING A COMPLETE ASSEMBLED VALVE

SN-6 / 2S - 3 / 18LPG2 / 26-1L / G-6-1 - M3

Body Kits

Code	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Code	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
1S	1 section	$	1S	7 sections	$
2S	2 sections	$	2S	8 sections	$
3S	3 sections	$	3S	9 sections	$
4S	4 sections	$	4S	10 sections	$
5S	5 sections	$	5S	11 sections	$
6S	6 sections	$	6S	12 sections	$

Inlet Pressure Relief Valve

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
3	YLPSN63003	Range 125 to 250 bar STANDARD	$
SV	YLPSN64000	Relief valve blanking plug	$
XFG	YLPSN63000	Pilot operated pressure relief valve, range 25 to 315 bar	$

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

YLPSN63003

Range 125 to 250 bar STANDARD

YLPSN64000

Relief valve blanking plug

XFG

YLPSN63000

Pilot operated pressure relief valve, range 25 to 315 bar

Spool Options

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
1	YLWSN62001	Double acting, 3 positions, A+B closed in neutral position STANDARD	$
2	YLWSN62002	Double acting, 3 positions, A+B open to tank in neutral position STANDARD	$
3	YLWSN62003	Single acting on A closed in neutral position, 3 positions, B plugged	$

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

YLWSN62001

Double acting, 3 positions, A+B closed in neutral position STANDARD

YLWSN62002

Double acting, 3 positions, A+B open to tank in neutral position STANDARD

YLWSN62003

Single acting on A closed in neutral position, 3 positions, B plugged

B-Side Spool Positioner

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
6-1	YLWSN63061	Detent in position 1-0-2, without spring centered	$
8	YLWSN63008	Spring return to neutral position STANDARD	$
9-1	YLWSN63091	Detent in position 1, 2 with spring centered	$
9-2	YLWSN63092	Detent in position 2 with spring centered	$
9-3	YLWSN63093	Detent in position 1 with spring centered	$
8EP3A	YLWSN64300-12V	ON/OFF electro-pneumatic actuator 12v DC	$
8EP3B	YLWSN64300-24V	ON/OFF electro-pneumatic actuator 24v DC	$
8P	YLWSN63080	ON/OFF pneumatic actuator	$
8MG3	YLWSN63803	Microswitch kit operated in position 1 & 2 (normally open)	$
8IM	YLWSN630810	Hydraulic pilot kit, pilot pressure maximum 50 bar	$

Port Relief (optional)

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
PG2	YLWSN65002	Anti-shock valve, range 63 to 125 bar	$
PG3	YLWSN65003	Anti-shock valve, range 100 to 250 bar	$
PG4	YLWSN65004	Anti-shock valve, range 200 to 315 bar	$
UG2	YLWSN65012	Anti-shock valve and anti-cavitation valve, range 63 to 125 bar	$
UG3	YLWSN65013	Anti-shock valve and anti-cavitation valve, range 100 to 250 bar	$
UG4	YLWSN65014	Anti-shock valve and anti-cavitation valve, range 200 to 315 bar	$
C	YLWSN65100	Anti-cavitation valve	$

A-Side Option

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
L	YLWSN64000	Standard lever STANDARD	$
LCB	YLWSN64002	Joystick lever for 2 section operation	$

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

YLWSN64000

Standard lever STANDARD

LCB

YLWSN64002

Joystick lever for 2 section operation

Outlet Cover

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

–

Open centre STANDARD

–

Closed centre (power beyond conversion plug)

–

SN8 (220 LPM)

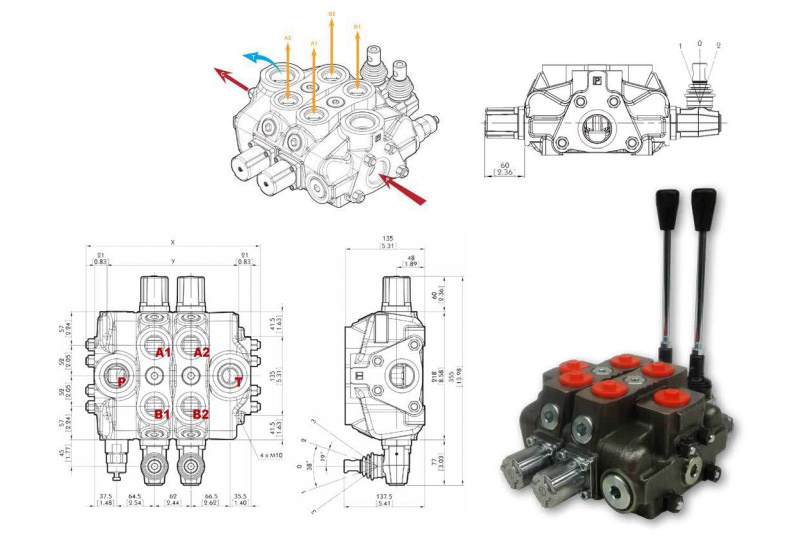

SN8 Sectional Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Qty	Spool	Max Flow (lpm)	Max Pressure (bar)		Ports (BSPP)		Dimension (mm)
Part #		Qty	Spool	Max Flow (lpm)	P	T	T	P-A-B-C	X	Y
SN8/1S3/18L/P3T/G8-8-10-M3	$	1	Cylinder	220	315	25	1.1/4”	1”	235	162
SN8/2S3/18L/P3T/G8-8-10-M3	$	2	Cylinder	220	315	25	1.1/4”	1”	297	224
SN8/3S3/18L/P3T/G8-8-10-M3	$	3	Cylinder	220	315	25	1.1/4”	1”	359	286
SN8/4S3/18L/P3T/G8-8-10-M3	$	4	Cylinder	220	315	25	1.1/4”	1”	421	348
SN8/5S3/18L/P3T/G8-8-10-M3	$	5	Cylinder	220	315	25	1.1/4”	1”	483	410
SN8/6S3/18L/P3T/G8-8-10-M3	$	6	Cylinder	220	315	25	1.1/4”	1”	545	472
SN8/7S3/18L/P3T/G8-8-10-M3	$	7	Cylinder	220	315	25	1.1/4”	1”	607	534
SN8/8S3/18L/P3T/G8-8-10-M3	$	8	Cylinder	220	315	25	1.1/4”	1”	669	596
SN8/9S3/18L/P3T/G8-8-10-M3	$	9	Cylinder	220	315	25	1.1/4”	1”	731	658
SN8/10S3/18L/P3T/G8-8-10-M3	$	10	Cylinder	220	315	25	1.1/4”	1”	793	720
SN8/11S3/18L/P3T/G8-8-10-M3	$	11	Cylinder	220	315	25	1.1/4”	1”	855	782
SN8/12S3/18L/P3T/G8-8-10-M3	$	12	Cylinder	220	315	25	1.1/4”	1”	917	844

SN8 Seal Kits & Replacement Handles

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Description
FPSN-8-SK	$	Inlet relief seal
EWSN-8-SK	$	Working section seal kit
FTSN-8-SK	$	Outlet section seal kit
YLWSN83080-SK	$	SN8 pneumatic actuator seal kit
YLWSN12200	$	SN8 handle

SN8 - ORDERING A COMPLETE ASSEMBLED VALVE

SN-8 / 2S - 3 / 18LPG2 / 26-1L / G-8-8-10 - M3

Body Kits

Code	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Code	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
1S	1 section	$	1S	7 sections	$
2S	2 sections	$	2S	8 sections	$
3S	3 sections	$	3S	9 sections	$
4S	4 sections	$	4S	10 sections	$
5S	5 sections	$	5S	11 sections	$
6S	6 sections	$	6S	12 sections	$

Inlet Pressure Relief Valve

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
XHG	YLPSN83000	Pilot operated pressure relief valve, range 25 to 315 bar STANDARD	$
SV	YLPSN64000	Relief valve blanking plug	$

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

XHG

YLPSN83000

Pilot operated pressure relief valve, range 25 to 315 bar STANDARD

YLPSN64000

Relief valve blanking plug

Spool Options

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
1	YLWSN82001	Double acting, 3 positions, A+B closed in neutral position STANDARD	$
2	YLWSN82002	Double acting, 3 positions, A+B open to tank in neutral position STANDARD	$
3	YLWSN82003	Single acting on A closed in neutral position, 3 positions, B plugged	$
4	YLWSN82004	Single acting on B closed in neutral position, 3 positions, A plugged	$

B-Side Spool Positioner

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
6-1	YLWSN83061	Detent in position 1-0-2, without spring centered	$
6-3	YLWSN83063	2 positions, detent in position 1-0, without spring centered	$
8	YLWSN83008	Spring return to neutral position STANDARD	$
9-1	YLWSN83091	Detent in position 1, 2 with spring centered	$
9-2	YLWSN83092	Detent in position 2 with spring centered	$
8P	YLWSN83080	ON/OFF pneumatic actuator	$
8EP3A	YLWSN84300-12V	ON/OFF electro-pneumatic actuator 12v DC	$
8EP3B	YLWSN84300-24V	ON/OFF electro-pneumatic actuator 24v DC	$
8IM	YLWSN830810	Hydraulic pilot kit, 181mm, cylinder spool	$
8IM	YLWSN830811	Hydraulic pilot kit, 281mm, motor spool	$

Port Relief (optional)

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
XU2	YLWSN85012	Anti-shock valve and anti-cavitation valve, range 63 to 125 bar	$
XU3	YLWSN85013	Anti-shock valve and anti-cavitation valve, range 100 to 250 bar	$
XU4	YLWSN85014	Anti-shock valve and anti-cavitation valve, range 200 to 315 bar	$

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

XU2

YLWSN85012

Anti-shock valve and anti-cavitation valve, range 63 to 125 bar

XU3

YLWSN85013

Anti-shock valve and anti-cavitation valve, range 100 to 250 bar

XU4

YLWSN85014

Anti-shock valve and anti-cavitation valve, range 200 to 315 bar

A-Side Option

Code	Part #	Description	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
L	YLWSN84000	Standard lever STANDARD	$

Code

Part #

Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

YLWSN84000

Standard lever STANDARD

Outlet Cover

Code	Part #	Description	List Price
M3	–	Open centre STANDARD	–
M8	–	Closed centre (power beyond conversion plug)	–

REMOTE CONTROL ACCESSORIES

Cable Control

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Description
RCC-3/1S/HL	$	Remote lever for cable control SN3
RCC-5/1S/HL	$	Remote lever for cable control SN4,6,8
FCR-2	$	Joystick for cable control, dual axis
YLWSN45003	$	Cable connector, spool to joystick cable SN3
YLWSN44003	$	Cable connector, spool to joystick cable SN4
YLWSN64003	$	Cable connector, spool to joystick cable SN6
YLWSN84003	$	Cable connector, spool to joystick cable SN8
YLMBCABLE1M	$	Cable 1 Metre
YLMBCABLE1.5M	$	Cable 1.5 Metre
YLMBCABLE2M	$	Cable 2 Metre
YLMBCABLE2.5M	$	Cable 2.5 Metre
YLMBCABLE3M	$	Cable 3 Metre

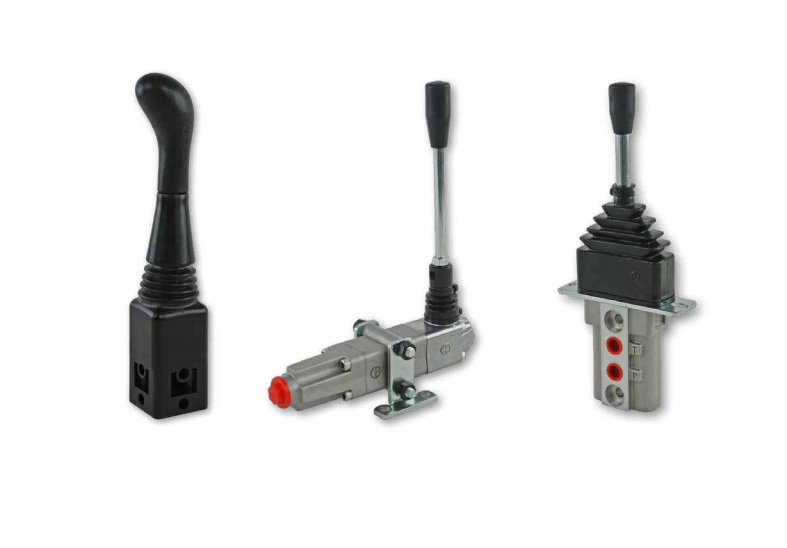

Hydraulic Pilot Controllers

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Description	Axis	Flow	Inlet Pressure Range	A+B Outlet Pressure Range
JHP-1/1S-G2/8-A01B	$	Spring centre	Single	5-20 lpm	30-100 bar	5-19 bar
JHP-1/1S-G2/9-1-A01B	$	Spring centre friction detent in position 1+2	Single	5-20 lpm	30-100 bar	5-19 bar
JHP-1/1S-G2/FD-A01B	$	Friction detent	Single	5-20 lpm	30-100 bar	5-19 bar
JHP-1/1S-G2/LES-A01B	$	Safety lever detent in neutral	Single	5-20 lpm	30-100 bar	5-19 bar
JHP-2/01-G2/01-LCB-B02B	$	Spring centre	Dual	5-20 lpm	30-100 bar	6-25 bar

Call Charles 0418 641 566 Email: sales@catford.com.au Jamestown South Australia 5491

Hydraulic Sectional Valves

Call: 0418 641 566

Email: sales@catford.com.au

Hydraulic Sectional Valves

SN3 Sectional Valve

SN3 Seal Kits & Replacement Handles

SN3 - ORDERING A COMPLETE ASSEMBLED VALVE

SN-3 / 2S - 3 / 18LPG2 / 26-1L / G-3-4 - M3

Body Kits

Inlet Pressure Relief Valve

Spool Options

B-Side Spool Positioner

Port Relief (optional)

A-Side Option

Outlet Cover

SN4 (80 LPM)

SN4 Sectional Valve

SN4 Seal Kits & Replacement Handles

SN4 - ORDERING A COMPLETE ASSEMBLED VALVE

SN-4 / 2S - 3 / 18LPG2 / 26-1L / G-4-6 - M3

Body Kits

Inlet Pressure Relief Valve

Spool Options

B-Side Spool Positioner

Port Relief (optional)

A-Side Option

Outlet Cover

SN6 (140 LPM)

SN6 Sectional Valve

SN6 Seal Kits & Replacement Handles

SN6 - ORDERING A COMPLETE ASSEMBLED VALVE

SN-6 / 2S - 3 / 18LPG2 / 26-1L / G-6-1 - M3

Body Kits

Inlet Pressure Relief Valve

Spool Options

B-Side Spool Positioner

Port Relief (optional)

A-Side Option

Outlet Cover

SN8 (220 LPM)

SN8 Sectional Valve

SN8 Seal Kits & Replacement Handles

SN8 - ORDERING A COMPLETE ASSEMBLED VALVE

SN-8 / 2S - 3 / 18LPG2 / 26-1L / G-8-8-10 - M3

Body Kits

Inlet Pressure Relief Valve

Spool Options

B-Side Spool Positioner

Port Relief (optional)

A-Side Option

Outlet Cover

REMOTE CONTROL ACCESSORIES

Cable Control

Hydraulic Pilot Controllers

Product Enquiry

Call Charles 0418 641 566

© 2024 Catford Engineering. All Rights Reserved.

Website by Tracey Dewell Designs

Call Charles 0418 641 566
Email: sales@catford.com.au Jamestown South Australia 5491
