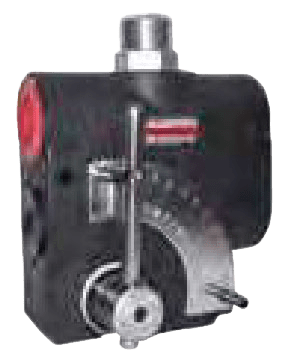

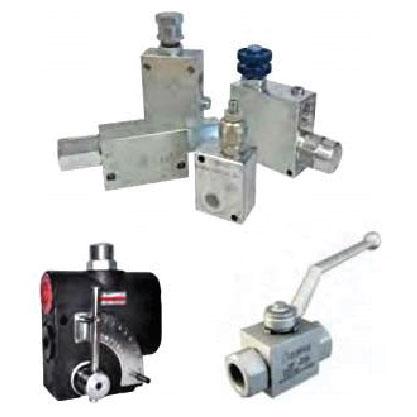

Pressure Compensated Flow Control Valves

Part Number Max Pressure(bar) Rated Flow(Ipm) Porting Options Price(Ex. GST)
FCV-40-3/8 210 40 3/8″ BSP $209.00
FCV-40-3/8-RV 210 40 3/8″ BSP Relief Valve $209.00
FCV-60-1/2 210 60 1/2″ BSP $209.00
FCV-60-1/2-RV 210 60 1/2″ BSP Relief Valve $209.00
FCV-1 14-3/4 210 114 3/4″ BSP $209.00
FCV-114-3/4-RV 210 114 3/4″ BSP Relief Valve $209.00

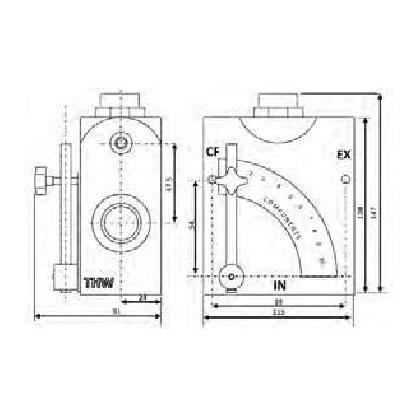

  • The THW Flow Control Valve is a full-range pressure compensating variable flow control
  • Designed so that the orifice area varies as the lever is rotated
  • The outlet flow is smooth and constant regardless of the pressure on the control flow or excess flow ports
  • An adjustable ball spring relief allows for pressure compensated flow up to the pressure setting on the relief
  • Relief valves are pre-set at 1500 psi (100 bar) and field adjustable from 750 to 3000 psi (50 – 207 bar)

Inline Needle Valves

FT1251 Silver Series

Single Acting with Reverse Free Flow

Part Number Port Size C (mm) CH (mm) D (mm) OF (mm) Max Pressure (bar) Price (Ex. GST)
FT1251/5-14 G1/4 56 18 57 22 210 $116.00
FT1251/5-38 G3/8 64.5 22 69 27 210 $137.00
FT1251/5-12 G1/2 87 27 82 33 210 $180.00
FT1251/5-34 G3/4 115 34 100 38 210 $260.00

Double Acting

Part Number Port Size C (mm) CH (mm) D (mm) OF (mm) Max Pressure (bar) Price (Ex. GST)
FT1251/2-14 G1/4 46 18 57 22 210 $84.00
FT1251/2-38 G3/8 55 22 69 27 210 $105.00
FT1251/2-12 G1/2 70 27 82 33 210 $155.00

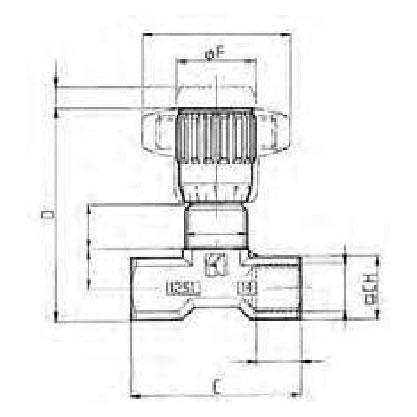

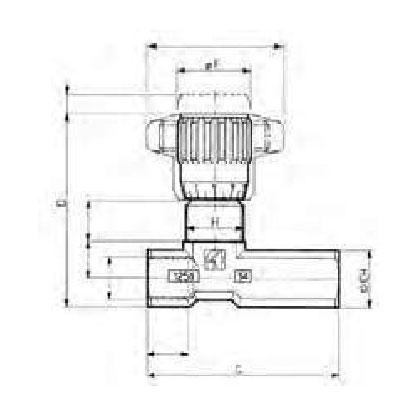

Inline Needle Valves

FT257 Gold Series

Single Acting with Reverse Free Flow

Part Number Port Size C (mm) CH (mm) D (mm) OF (mm) Max Pressure (bar) Price (Ex. GST)
FT257/5-14 01/4 66 20 71 27 400 $120.00
FT257/5-38 G3/8 79 25 84 33 400 $125.00
FT257/5-12 01/2 94.5 30 97 38 400 $160.00
FT257/5-34 G3/4 115 40 120.5 47 400 $205.00

Double Acting

Part Number Port Size C (mm) CH (mm) D (mm) OF (mm) Max Pressure (bar) Price (Ex. GST)
FT257/2-18 G1/8 38 16 59 22 400 $121.00
FT257/2-14 01/4 49 20 71 27 400 $90.00
FT257/2-38 G3/8 59 25 84 33 400 $120.00
FT257/2-12 G1/2 68 30 97 38 400 $150.00
FT257/2-34 G3/4 86 40 120.5 47 400 $250.00
FT257/2-100 G1 105 50 151.5 58 320 $350.00

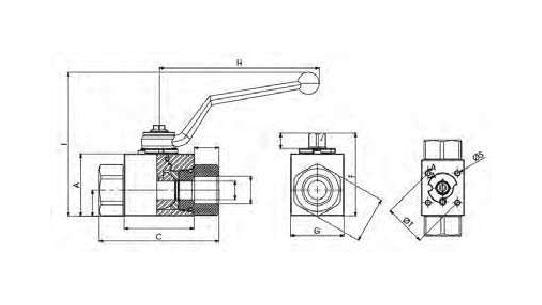

2 Way Ball Valves

Standard

Part Number Port Size Bore Size(mm) A (mm) C (mm) F (mm) G (mm) H (mm) I (mm) Max Pressure (bar) Price (Ex. GST)
HBV04B G1/4 6 35 71 49 30 110 91.5 500 $40.00
HBV06B G3/8 10 40 73 54.25 35 110 96.5 500 $43.00
HBV08B GI /2 13 43 83 57 37 110 99.5 500 $48.00
HBV12B G3/4 20 57 95 73.5 49 180 106.5 400 $86.00
HBVI 6B 01 25 65 112 83.5 55 180 116.5 350 $107.00
HBV20B G1-1/4 30 65 120 83.5 55 180 116.5 350 $210.00
HBV24B G1-1/2 38 65 124 83.5 55 180 116.5 350 $264.00

Panel Mount

Part Number Port Size A (mm) C (mm) F (mm) G (mm) H (mm) I (mm) OS (mm) OT (mm) Max Pressure (bar) Price (Ex. GST)
PHBV04B 01/4 35 71 49 30 110 91.5 M4 35 500 $73.00
PHBV06B G3/8 40 73 54.25 35 110 96.5 M5 36 500 $75.00
PHBV08B G1/2 43 83 57 37 110 99.5 M5 36 500 $79.00
PHBVI 6B GI 65 112 83.5 55 180 116.5 M6 50 350 $146.00

Ball Valve Locking Kits

Part Number Port Size Price (Ex. GST)
LK6-F GI/4, G3/8, G1/2 $39.00
LK2O-F 03/4, GI $56.00

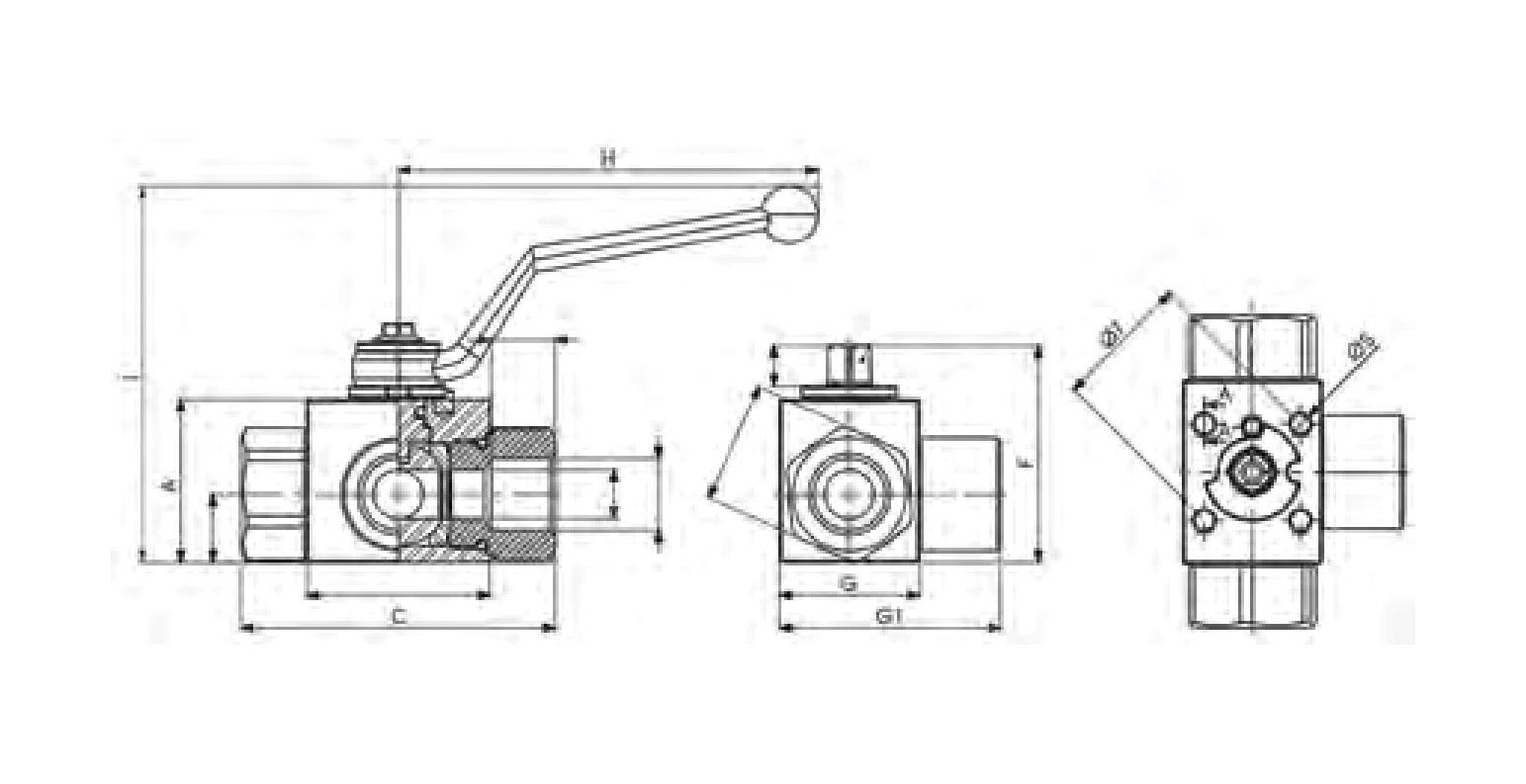

3 Way Ball Valves (L Type)

Standard

Part Number Port Size Bore Size(mm) A (mm) C (mm) F (mm) G1 (mm) H (mm) I (mm) Max Pressure (bar) Price (Ex. GST)
3 H BV04B 31/4 35 71 49 30 48.5 110 91.5 400 $113.00
3HBV06B G3/8 40 73 54.25 35 54.5 110 96.5 400 $90.00
3HBV08B G1/2 43 83 57 37 58.5 110 99.5 350 $97.00
3HBV12B G3/4 57 95 73.5 49 75 180 106.5 350 $161.00
3HBV16B 31 65 112 83.5 55 89 180 116.5 350 $182.00
3H BV24B G1-1/2 65 124 83.5 55 89 180 116.5 350 $850.00

Panel Mount

Part Number Port Size A (mm) C (mm) F (mm) G (mm) G1 (mm) H (mm) I (mm) OS 0T (mm) Max Pressure (bar) Price (Ex. GST)
3PHBV04B G1/4 35 71 49 30 48.5 110 91.5 M4 35 500 $111
3PHBV06B G3/8 40 73 54.25 35 54.5 110 96.5 M5 36 500 $115.00
3PHBV08B G1/2 43 83 57 37 58.5 110 99.5 M5 36 500 $120.00
3PHBV16B G1 65 112 83.5 55 89 180 116.5 I M6 50 350 $218.00

Ball Valve Locking Kits

Part Number Port Size Price (Ex. GST)
LK 6-F G1/4, G3/8, G1/2 $39.00
LK20-F 33/4, 31 $56.00

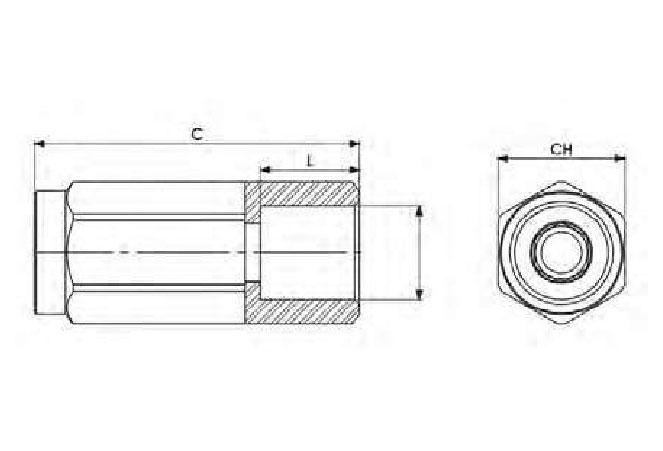

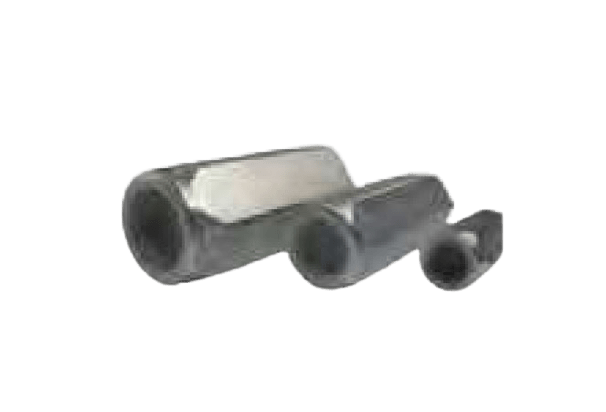

Inline Check Valves

5 psi Cracking Pressure

Part Number Port Size Max Pressure (bar) C (mm) L (mm) CH (mm) Max Rated Flow (lpm) Price (Ex. GST)
CV2A05 01/4 500 62 15.52 19 20 $25.00
CV3A05 G3/8 500 68 15.5 24 35 $31.00
CV4A05 G1/2 500 77 17 30 55 $41.00
CV6A05 G3/4 400 88 21 36 95 $55.00
CV8A05 01 350 105 24 41 150 $80.00
CV10A05 01-1/4 350 135 24 55 265 $150.00
CV12A05 G1-1/2 350 145 24 60 380 $320.00

65 psi Cracking Pressure

Part Number Port Size Max Pressure (bar) C (mm) L (mm) CH (mm) Max Rated Flow (lpm) Price (Ex. GST)
CV2A65 G1/4 500 62 15.52 19 20 $36.00
CV3A65 G3/8 500 68 15.5 24 35 $33.00
CV4A65 G1/2 500 77 17 30 55 $43.00
CV6A65 G3/4 400 88 21 36 95 $65.00
CV8A65 G1 350 105 24 41 150 $84.00
CV10A65 G1-1/4 350 135 24 55 265 $211.00

Relief Valves

Line Mounted, Pilot Operated, Sliding Spool Relief Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPM-P-150-CB-P-3/4-20 150 15-250 G3/4 $278.00

Line Mounted, Direct Acting, Guided Poppet Relief Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPM-D-40-CB-P-3/8-35 40 80-350 63/8 $109.00
FPM-D-40-CB-P-1/2-05 40 5-50 G1/2 $109.00
FPM-D-40-CB-P- 1/2-20 40 50-220 G1/2 $109.00
FPM-D-70-CB-P-1/2-20 80 80-280 G1/2 $167.00
FPM-D-70-CB-P-3/4-20 80 80-280 G3/4 $167.00
FPM-D-40-CB-P-3/8-05 40 5-50 G3/8 $109.00
FPM-D-40-CB-P-3/8-20 40 50-220 63/8 $109.00
FPM D 70 CB P 1/2 05 70 5-50 G1/2 $167.00

Line Mounted, Dual Cross, Direct Acting, Relief Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPM-D-40-1L-3/8-20 40 50-220 63/8 $199.00
FPM-D-70-11.-1/2-20 80 80-280 G1/2 $300.00

Unloading Valves

Line Mounted, Pilot Operated Unloading Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPMS-P-1/2-20 150 50-220 G1/2 $355.00
FPMS-P-3/4-20 150 50-220 G3/4 $369.00

Sequence Valves

Line Mounted, Direct Acting Sequence Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPSQ-D-30-CB-P-3/8-10 40 30-100 G3/8 $158.00
FPSQ D 30 CB P 3/8 20 40 50-220 G3/8 $158.00

Line Mounted, Fully Balanced, Direct Acting Sequence Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPSQB-D-30-CB-1/2-10 40 30-100 61/2 $239.00
FPSQB-D-30-CB-1/2-20 40 50-220 G1/2 $239.00

Check Valves

Single Acting Check Valve, Insert Type

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPRI-1/4 15 350 01/4 $40.00
FPRI-3/4 80 300 G3/4 $62.00

Line Mounted, Single Pilot Operated Check Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPSL-1/2-5-G 45 210 G1/2 $142.00
FPD-L-1/2-5-G 45 250 G1/2 $192.00

Line Mounted Shuttle Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPT-1/4 25 350 G1/4 $58.00
FPT-3/8 50 350 G3/8 $62.00
FPT-1/2 80 350 G1/2 $94.00

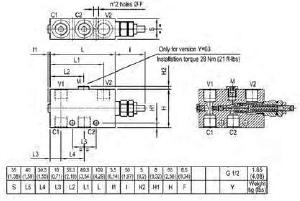

Line Mounted, Double Pilot Operated Check Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
(I .m) Ran •e (bar) (Ex. GST)
FPD-L-3/8 25 250 G3/8 $159.00
FPD-L-1/2 45 250 G1/2 $179.00
FPD-L-1/2-5 45 250 G1/2 $179.00

Line Mounted, Double Pilot Operated Check Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPD-1 /2-5 45 300 G1/2 $134.00
FPD-1/4 12 350 G1/4 $109.00
FPD-1/4-5 12 350 31/4 $109.00

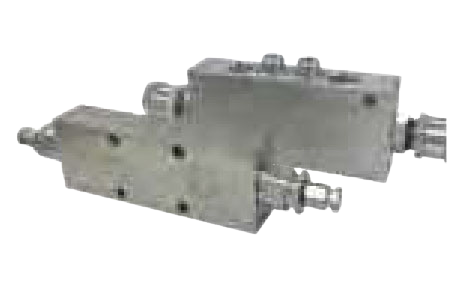

Over Centre Valves

Over Centre Valve, Cartridge Version

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Cavity Sizes Price (Ex. GST)
FPO-50-C-35 50 80-350 33123 $180.00

Line Mounted, Single Over Centre Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPO-50-S-3/8-L-20 30 60-210 G3/8 / G1/4 $180.00
FPO-50-S-3/8-L-35 30 80-350 G3/8 / G1/4 $180.00
FP0-50-S-1/2-L-20 50 60-210 G1/2 / G1/4 $187.00

Line Mounted, Partially Balanced Single Over Centre Valve, External Pilot

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPO-50-S-1 /2-L-35 50 80-350 G1/2 /G1/4 $187.00

Line Mounted, Partially Balanced Single Over Centre Valve, Internal Pilot

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FP0B-50-S-1/2-LP-35 50 80-350 G3/8 $305.00

Line Mounted, Single Over Centre Valve, Internal Pilot - E Series

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FP0E-70-S-1/2-LPA-35 70 120-350 G1/2 $179.00

Line Mounted, Partially Balanced Over Centre Valve - E Series

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPOEB-70-S-1/2-LPA-35 70 120-350 G1/2 $209.00

Over Centre Valves (continued)

Inline Mounted, Dual Over Centre Valve - E Series

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FP0E-40-D-3/8-LA-20-B 40 60-210 G3/8 $269.00
FPOE-40-D-3/8-LA-20 40 60-210 G3/8 $269.00
FPOE-40-D-3/8-LA-35 40 120-350 G3/8 $269.00
FP0E-70-D-1/2-LA-20-13 70 60-210 01/2 $299.00
FP0E-70-D-1/2-LA-35-13 70 120-350 G1/2 $299.00

Line Mounted, Partially Balanced Dual Over Centre Valve - E Series

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPOEB 70 D 1/2 LA 35 70 120-350 G1/2 $347.00
FPOEB-70-D-1/2-LA-35-13 70 120-350 G1/2 $347.00

Line Mounted, Dual Over Centre Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPO-50-D-3/8-L-20 30 60.210 G3/8 $362.00

Line Mounted, Dual Over Centre Valve with Brake Release Port

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FP0-50-D-1/2-LU-20 50 60-210 G1 /2 $405.00

Manifold Mounted, Dual Over Centre Valve

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPO-50-D-3/8-2F-20 30 60-210 G3/8 $405.00

Line Mounted, Dual Over Centre Valve with Manual Override

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FP-11I-0008 40 250 G3/8 $455.00

Flow Control Valves

Single Acting Line Mounted, Barrel Type Flow Restrictor

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
FPMU-3/8 30 350 G3/8 $80.00

Double Acting Needle Valve, Cartridge Version

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
FPBC-S08-P 40 350 23081 $80.00

Hose Burst Insert

Schematic Part Number Rated Flow (Ipm) Adjusted Range (bar) Port Sizes Price (Ex. GST)
FPP-3/8 16-50 350 G3/8 $35.00
FPP-1/2 25-80 350 G1/2 $39.00

Housing for Hose Burst Insert

Part Number Max Pressure (bar) Port Sizes Price (Ex. GST)
FPP-3/8-FF 350 G3/8 $35.00
FPP-1/2-FF 350 G1/2 $43.00

Line Mounted, Flow Divider/ Combiner

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
FPFD-S 10-CB-1/2-3/8-M 20.40 250 G1/2 / G3/8 $360.00
FPFD-S12-CB-3/4-1/2-A 50-75 250 G3/4 / G1/2 $550.00
FPFD-S12-CB-3/4-1/2-B 75-100 250 G3/4 / G1/2 $550.00
FPFD-S16-CB-1-3/4-E 115-150 250 01 / G3/4 $550.00

Line Mounted, 2 Way Pressure Compensated Flow Regulator

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
FPRBC-3/8-G 30 250 G3/8 $271.00
FPRBC-1/2-G 50 250 G1/2 $300.00
FPRBC-3/4-G 90 250 G3/4 $390.00

Inline, 3 Way Pressure Compensated Flow Regulator

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
FPVP-1/2-G 50 250 01/2 $390.00
FPVP-3/4-G 90 250 G3/4 $585.00

Flow Control Valves (continued)

Line Mounted, 3 Way Pressure Compensated Flow Regulator

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
FPRF-3/8-G 30 250 G3/8 $325.00
FPRF-1/2-G 50 250 GI/2 $325.00
FPRF-1/2-H 50 250 G1/2 $430.00
FPRF-3/4-G 90 250 G3/4 $430.00
FPRF-1-G 150 250 GI $525.00

Flow, Check and Metering Valve for Boom Lifts

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
FPEXC-150-S-3/4-L-DX-05-50 150 420 G3/4 / G1/4 $652.00

Flow, Check and Metering Valve for Boom Lifts

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
FPEXC-250-S-3/4-1 F-SAE-6000-05-50 250 420 3/4″ Code62 / G1/4 $ 1,069.00
FPEXC-400-S-1-1F-SAE-6000-05-50 400 420 1″ Code 62/ G1/4 $1,417.00
FPEXC-500S-1-1/4-1F-SAE-6000-05-50 500 420 1-1/4″ Code 62 / GI/4 $1,614.00

Solenoid Valves

2 Way, Double Lock Normally Closed Poppet Valve

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Cavity Price (Ex. GST)
FP-22-PD-G3/4-02 2-70 350 21261 $280.00
FP-22-PD-G1-02 4-150 350 21331 $345.00
FP-22-PD-S08-02 2-70 350 23081 $225.00

2 Way, Normally Closed Poppet Valve

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Cavity Price (Ex. GST)
FP-22-CP-G3/4-06 2-70 350 21261 $195.00
FP-22-CP-G1-06 4-150 350 21331 $255.00

2 Way, Normally Open Poppet Valve

Schematic Part Number Rated Flow (Ipm) Max Pressure (bar) Cavity Price (Ex. GST)
FP-22-CP-S08-16 2-70 350 23081 $144.00
FP-22-CP-S08-16-P 4-150 350 23081 $230.00

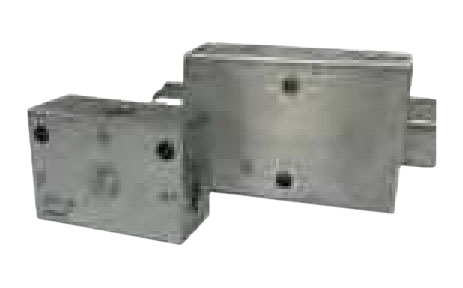

Housings for Solenoid Valves

Part Number Material Cavity Port Sizes Price (Ex. GST)
23081-G14-Al Aluminium 23081 01/4 $64.00
23081-G38-A1 Aluminium 23081 G3/8 $82.00
21331-G34-A 1 Aluminium 21331 G3/4 $200.00
21331-G1-Al Aluminium 21331 GI $204.00
21261-G12-Al Aluminium 21261 G1/2 $92.00
21261-G34-Al Aluminium 21261 G3/4 $100.00

Coils for Solenoid Valves

Part Number Connections Voltage Power(w) Price (Ex. GST)
C-13-A-18-H-A DIN 43650 12 DC 18 $35.00
C-13-B-18-H-A DIN 43650 24 DC 18 $35.00

Excavator Valves

Load Holding - Check and Metering Valve Flangeable

Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
08.47.84.03.72.40 250 420 3/4″ SAE 6000 / 01/4″ $1,268.00
Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
08.47.85.03.73.40 400 420 1″ SAE 6000 / G1/4″ $1,588.00

Overcentre Valves

Single Counterbalance, Relief Compensated

Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
08.45.17.03.03.35 60 100-350 G1/2″ / G1/4″ $305.00

Flangeable Pilot Controlled Overcentre

Part Number Rated Flow (Ipm) Max Pressure (bar) Port Sizes Price (Ex. GST)
08.45.65.03.53.35 250 100-350 3/4″ SAE 3000 / G1/2″ $1,046.00

Product Enquiry

Eg. 5x Part Number
Please enter your physical address for your us to quote on freight delivery.
=

Login to your account
