MP FILTRI FILTRATION

At Catford Engineering we offer a wide range of hydraulic products. Browse our hydraulic control valves specifications and pricing below.

**Breathers**Suction Filters**Spin-On filters**Tank Mounted Filters**In-line Return Filters**Pressure Filters**CETOP Mount Filters**Indicators**Will Fit Elements

Due to fluctuations in the Australian dollar and the economic climate, please be advised that all prices are subject to change. Please contact us to confirm pricing.

Buy Online
Pricing
Enquire
Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491
Download Brochure

Breathers (SCS-050/100 Series)

Standpipe Technical Specifications

Part Number Flow rate (Ipm) Port Size  Price(Ex. GST)
SCS050FG1 550 01 = 3/4 BSP $98.00
SCS050FG2 550 G2 = 1″ UNF $95.00
SCS100FG2 1415 G2 = 1-1/2″ UNF $150.00

Spin-On Can Technical Specifications

Part Number Flow Rate (Ipm) Element Type Suits Filter Housings Ex. GS
CG050A03A 515 3u ABS Microfibre SCS050FG2 $114.00
CGO5OPIOA 550 10u Nom Paper SCS050FG2 $32.00
CS050A03A 515 3u ABS Microfibre SCS050FG1 $118.00
CS050A10A 530 10u ABS Microfibre SCS050FG1 $71.00
CS050P10A 550 10u Nom Paper SCS050FG1 $39.00
CG100A03A 1300 3u ABS Microfibre SCS100FG2 $175.00
CG100P10A 1415 10u Nom Paper SCS 1 00FG2 $60.00

Features

  • Removes airborne and environmental contamination.
  • Cost effective breather systems.
  • Flange mounted standpipe utilises replaceable Spin-On Cans for quick and easy replacement.

Applications

  • All hydraulic systems in contaminated areas.

Performance

Flow Rating Up to 1415 lpm
Temperature Range – 25 C to + 110 C
Filtration 3 or 10 micron
Construction Stee
Fluid Compatibility Mineral & synthetic oils, water based emulsions

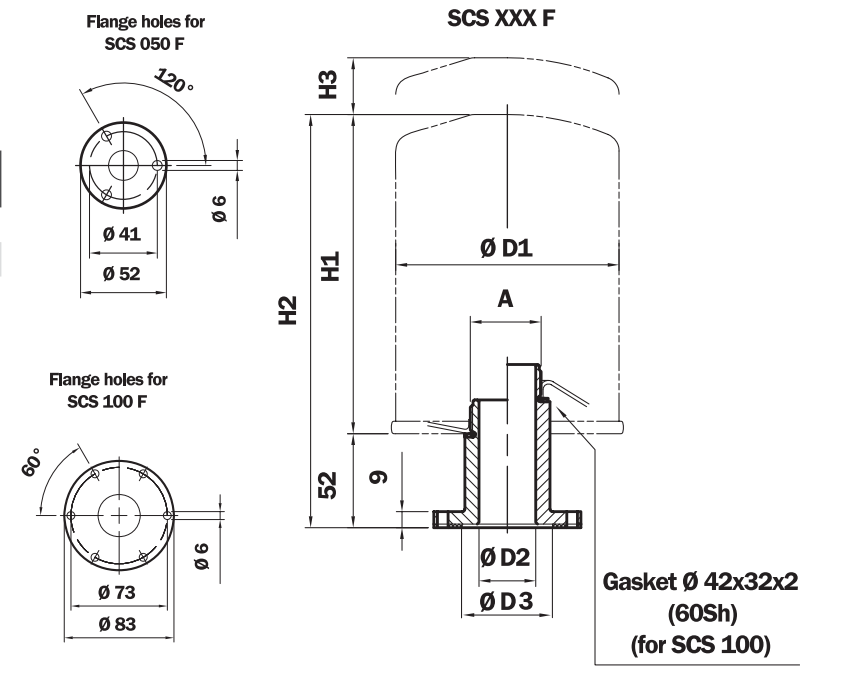

Dimensions

Dimensions SCS - CS - CG

Type D1 (mm) H1 (mm) H2 (mm) Weight (kg)
CS/CG050 96 143 195 0.7
CG100 129 180 232 1.3

Dimensions SCS Riser

Type A(mm) D2(mm) D3(mm)  Weight(kg)
SCS050 . G1 G 3/4″ 18 32 0.20
SCS050…G2 1″ 12 UN 18 32 0.27
SCS100 ..G1 1-1/2″/16 UN 18 32 0.65

Breathers (SAP-115 Series )

Filter Technical Specifications

Part Number Flow Rate (Ipm) Thread Seals Options Indicator Ex. GST)
SAP1 152CAO3A1B 3000 G 1-1/2″ A = Buna 1 = Anti slosh feature 1B = Visual indicator $147.00

Element Technical Specifications

Part Number Micron Element Media Price Ex. GST)
Al 152A03 3 A = Inorganic Microfibre $37.00

Features

  • Removes airborne and environmental contamination.
  • Replaceable 3 micron absolute rated element.
  • Anti-slosh feature stops oil from being forced out of the breather in high flow systems or in the event of surges of oil back to the reservoir.
  • Built in pop-up style clogging indicator provides visual indication of when to change element.

Applications

  • High flow hydraulic systems in heavily contaminated areas.

Performance

Flow Rating3000 lpm
Temperature Range– 25 C to + 110 C
Filtration3 micron
ConstructionNylon
Fluid CompatibilityMineral & synthetic oils, water based emulsions
IndicatorsBuilt in Indicator Set pressure = 0.062 bar

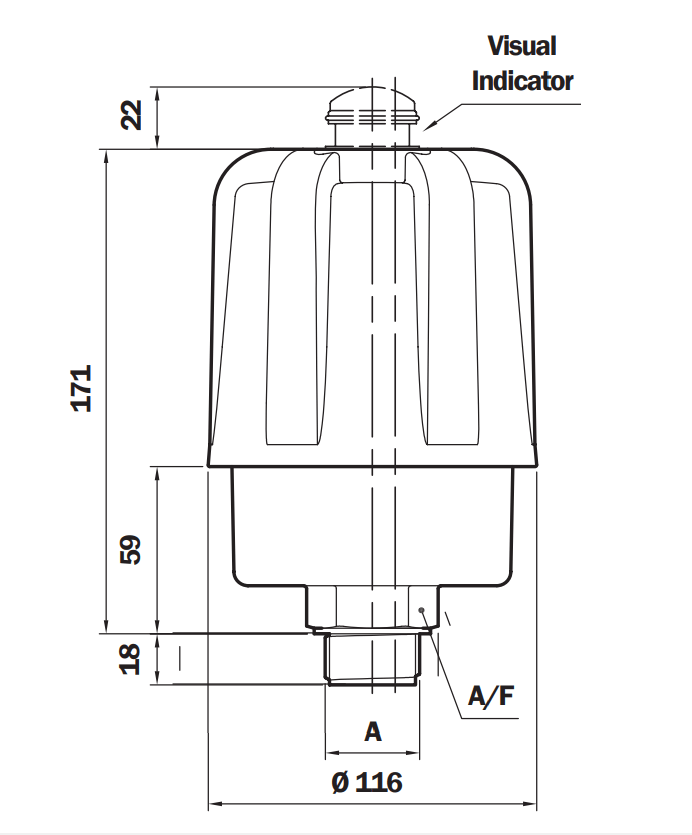

Dimensions

A A/F (mm)
G 1-1/2″ 55

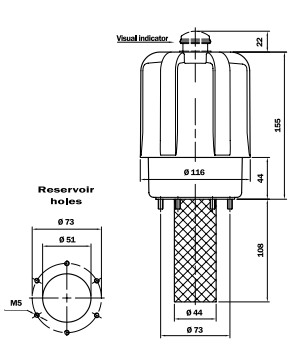

Breathers (TAP-115 Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) PCD Seals Options Indicator Price Ex. (GST)
TAP1152FA03A1B 2150 6 Holes on 73mm PCD A = Buna 1 = Anti slosh feature B = Visual indicator $147.00

Element Technical Specifications

Part Number Micron Element Media Price (Ex. GST)
Al 152A03 3 A = Inorganic Microfibre $37.00

Features

  • Removes airborne and environmental contamination.
  • Replaceable 3 micron absolute rated element.
  • Anti-slosh feature stops oil from being forced out of the breather in high flow systems or in the event of surges of oil back to the reservoir.
  • Built in pop-up style clogging indicator provides visual indication of when to change element.

Applications

  • High flow hydraulic systems in heavily contaminated areas.

Performance

Flow Rating2150 lpm
Temperature Range– 25 C to + 110 C
Filtration3 micron
ConstructionNylon
Fluid CompatibilityMineral & synthetic oils, water based emulsions
IndicatorsBuilt in Indicator Set pressure = 0.062 bar

Dimensions

A A/F (mm)
G 1-1/2″ 55

Suction Filters (STR Series)

Filter Technical Specifications

Part Number Port Size Micron Rating Flow Rate (Ipm) Weight (kg) Ex. GST
STR0502SG1M90 3/8″ BSP 90 24 0.16 $27.00
STR0701SG1M90 1/2″ BSP 90 32 0.22 $36.00
STR0702SG1 M90 3/4″ BSP 90 75 0.22 $36.00
STR0704SG1M90 1″ BSP 90 150 0.3 $39.00
STR1001SG1M90 1-1/4″ BSP 90 180 0.47 $56.00
STR1003SG1M90 1-1/2″ BSP 90 250 0.68 $75.00
SIR] 004SG1M90 2″ BSP 90 490 0.68 $75.00
STR1005SG1M90 1-1/2″ BSP 90 250 0.47 $56.00
STR1401SG1M90 1-1/2″ BSP 90 250 0.84 $83.00
STR1402SG1M90 2″ BSP 90 490 0.84 $86.00
STR1403SG1M90 2″ BSP 90 490 1.25 $123.00
STR1404SG1M90 2-1/2″ BSP 90 860 1.25 $123.00
STR1405SG1M90 3″ BSP 90 900 1.25 $123.00
STR1406SG1M90 3″ BSP 90 900 1.3 $146.00

Features

  • Cleanable wire mesh.
  • Economically priced industry standard suction strainer.

Applications

  • Used in the suction line and submerged in the reservoir.
  • Suitable for applications where it is necessary to protect pumps.

Performance

Flow RatingUp to 900 lpm
Bypass Pressure30 kpa +/- 10%
Temperature Range– 25 C to + 110 C
Filtration90 micron
ConstructionNylon Caps
Filter MediaWire Mesh

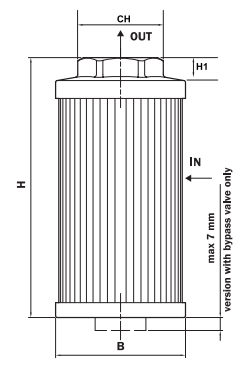

Dimensions

Part Number B (mm) H (mm) H1 (mm) CH (mm)
STR0502SG1M90 52 79 10 30
STR0701SG1M90 70 95 10 41
STR0702SG1 M90 70 95 10 41
STR0704SG1M90 70 141 10 41
STR1001SG1M90 99 137 15 69
STR1003SG1M90 99 227 15 69
STR1004SG1M90 99 227 15 69
STR1005SG1M90 99 137 15 69
STR1401SG1M90 136 160 20 101
STR1402SG1M90 136 160 20 101
STR1403SG1M90 130 262 20 101
STR1404SG1M90 130 272 20 101
STR1405SG1M250 130 272 20 101
STR1405SG1M90 130 272 20 101
STR1406SG1M90 130 330 20 101

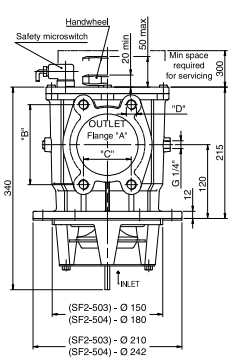

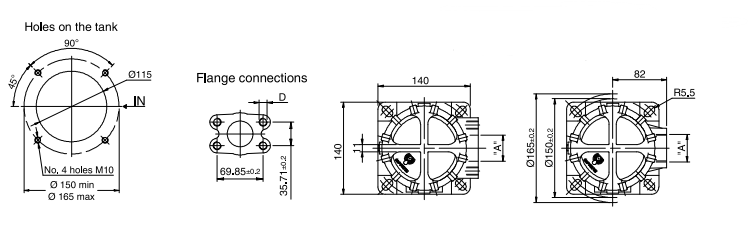

Suction Filters (SF2-500 Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) Filter Media Port Size Options Indicator Price (Ex. GST)
SF2503AF1KT1 400 – 480 A = Buna Fl = 3″ SAE Flange K = With microswitch and with steel hand wheel Ti =Plug $1,236.00
SF2504AF1KT1 550 – 650 A = Buna 11 =4 ” SAE Flange K = With microswitch andwith steel hand wheel Ti =Plug $1,300.00

Element Technical Specifications

Part Number Flow Rate (Ipm) Micron Element Medic Suits Filter Price (Ex. GST)
SF503M90 480 90 M = Wire Mesh SF2-503 $165.00
SF504M90 650 90 M = Wire Mesh SF2-504 $196.00
SF505M90 250 90 M = Wire Mesh SF2-505 $107.00
SF510M90 280 90 M = Wire Mesh SF2-500, 501 & 510 $129.00
S F540M90 800 90 M = Wire Mesh SF2-540 $382.00
Note: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.08 bar.

Features

  • Semi-submerged positive head suction filter.
  • Steel hand wheel operates closing valve preventing oil loss from reservoir during maintenance.
  • The anti-start safety switch prevents accidental start up if closing valve is closed.
  • Accepts either visual or electrical clogging indicators.

Applications

  • Suitable for industrial applications. ie. Die casting and plastic injection machinery and hydrostatic systems.

Performance

Flow Rating Up to 850 lpm
Temperature Range – 25 C to + 110 C
Filtration 90 micron
Construction Aluminium
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators  V, V0 & E1

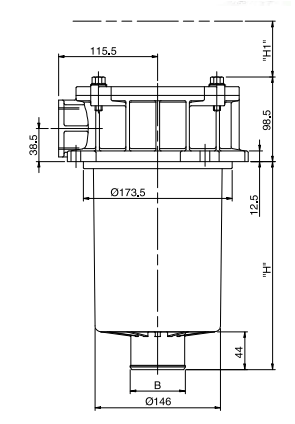

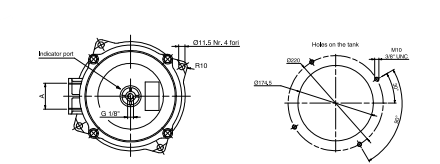

Dimensions

Flange Connections

TypePort SizeD (mm)
SF2250AF1QT1-1/2 SAE – 3000 PSI/MM12

Thread Connections

Type Port Size
SF2250AG1 QT G 1-1/2″

Suction Filters (SF2-250 Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) Seals Port Size Options Indicator Ex. GST
SF2250AF 1 QT 160 A = Buna        Fl =1-1/2″ SAE Flange Q = W/O bypass, with magnet T = Plug $395.00
SF2250AG1QT 160 A = Buna G1= 1-1/2″ BSP Q = W/O bypass, with magnet T = Plug $390.00

Element Technical Specifications

Part Number Micron Element Media Seals Price (Ex. GST)
SF250M9ON 90 M = Wire Mesh N = Buna $122.00
Note: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.08 bar.


Features

  • Semi-submerged positive head suction filter.
  • New design allows the filter element to be replaced without having to drain the oil from the reservoir.
  • Unscrewing the filter cover operates a closing valve within the filter to prevent oil loss.
  • Integral magnet column helps prevent metal particles from entering the pump.
  • Accepts either visual or electrical clogging indicators.

Applications

  • Suitable for mobile and industrial machinery.
  • Any hydraulic system where pump protection is required i.e. Hydrostatic circuits.

Performance

Flow Rating Up to 160 lpm
Bypass Pressure 30 kpa +/- 10%
Temperature Range – 25 C to + 110 C
Filtration 90 micron
Construction Aluminium
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators V, V0 & E1

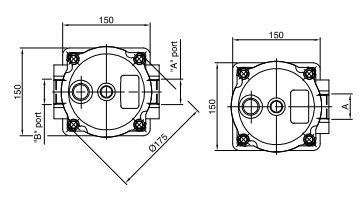

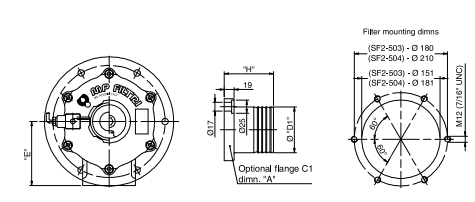

Dimensions

Flange Connections

Type “A” connection B (mm) C (mm) D (mm) D1 (mm)    E (mm) H (mm)
SF2503AF1KT1 3″ SAE – 3000 PSI/M 106.38 61.93 M16 89 110 95
SF2504AF1KT1 4″ SAE – 3000 PSI/M 130.18 77.77 M 16 114 120 100

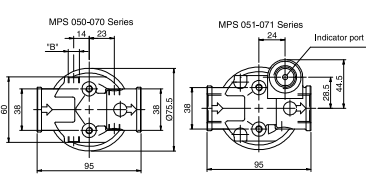

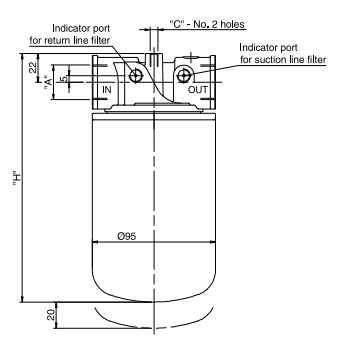

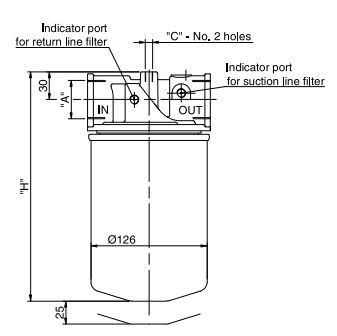

Spin-On Filters (MPS Series)

Filter Technical Specifications

Part Number Flow Rate (l•m) Bypass (bar) Options Port Size Post Size Indicator Price (Ex. GST)
MPSO5ORG 1T 40 – 65 1.75 W / Bypass & 4 indicator ports 3/4″ BSP 3/4″ BSP T = Plug $56.00
MPSO5ORG 1T 40 – 65 1.75 W / Bypass & indicator port on RETURN 3/4″ BSP 3/4″ BSP $56.00
MPS050RU 1T 40 – 65 1.75 W / Bypass & indicator port on RETURN 3/4″ BSP 1″ UNF $54.00
MPS050SG 1T 9-24 0.3 W / Bypass & indicator port on SUCTION 3/4″ BSP 3/4″ BSP $55.00
MPS050SU 1T 9-24 0.3 W / Bypass & indicator port on SUCTION 3/4″ BSP 1″ UNF $55.00
MPS071RG1T 45-68 1.75 W / Bypass & indicator port on RETURN 3/4″ BSP 3/4″ BSP $54.00
MPS100RG1T 75-160 1.75 W / Bypass & 4 indicator ports 1-1/4″ BSP 1-1/4″ BSP & 1-1/2″ UNF Dual Post $89.00
MPS100RG1T 75-160 1.75 W / Bypass & indicator port on RETURN 1-1/4″ BSP $89.00
MPS100SG1T 16-65 0.3 W / Bypass & indicator port on SUCTION 1-1/4″ BSP $89.00
MPS101RG1T 75-160 1.75 W / Bypass & indicator port on RETURN 1-1/4″ BSP $100.00
MPS151RG1T 85-160 1.75 W / Bypass & indicator port on RETURN 1-1/4″ BSP $95.00
MPS20OUG1T 130-290 1.75 Without Bypass & 4 indicator ports 1-1/2″ BSP $181.00
MPS20ORG1T 130-290 1.75 W / Bypass & indicator port on RETURN 1-1/2″ BSP $199.00
MPS200SG1T 30-120 0.3 W / Bypass & indicator port on SUCTION 1-1/2″ BSP $201.00
MPS30ORG1T 130-290 1.75 W / Bypass & indicator port on RETURN 1-1/2″ BSP $388.00
MPS300SG1T 30-120 0.3 W / Bypass & indicator port on SUCTION 1-1/2″ BSP $376.00
Note: Where possible, THW will supply filters using current part numbers until stocks have been depleted. THW will then supply filters utilising new part numbers on all subsequent orders received.

Element Technical Specifications

Part Number Flow Rate – Return(Ipm) Flow Rate – Suction(Ipm) Element type Suits Filter housings Price (Ex. GST)
CG050A03A 40 9 3u ABS Microfibre MPS050RU 1T MPS050SU 1T $114.00
CG050P10A 55 16 10u Nom Paper MPS050RU 1T MPS050SU1T $32.00
CG050P25A 65 18 25u Nom Paper MPS050RU 1T MPS050SU 1T $32.00
CGO7OPIOA 58 18 10u Nom Paper MPS071RG1T $42.00
CG070P25A 68 20 25u Nom Paper MPS071RG1T $42.00
CG100A03A 75 16 3u ABS Microfibre MPS 100, 150, 200 & 300 $175.00
CG100P10A 130 35 10u Nom Paper MPS 100, 150, 200 & 300 $60.00
CG100P25A 160 50 25u Nom Paper MPS 100, 150, 200 & 300 $60.00
CG150M90A N/A 68 90u NOM wire Mesh MPS 100, 150, 200 & 300 $186.00
CG150P10A 150 40 10u Nom Paper MPS 100, 150, 200 & 300 $84.00
CG150P25A 195 45 25u Nom Paper MPS 100, 150, 200 & 300 $87.00

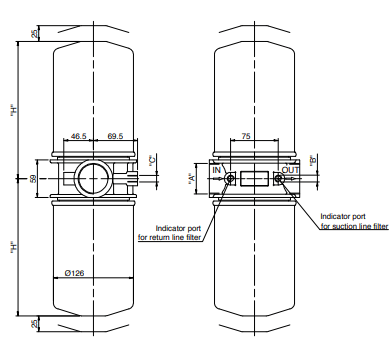

Features

  • In-line mounted Spin-On filter system designed for both return and suction applications.

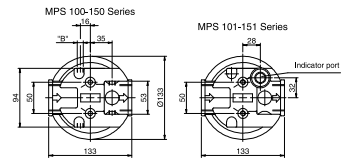

  • The MPS-100, 150, 200 & 300 series have a dual threaded post allowing these filters to accept both European “CS” and American “CG” standard Spin-On Cans.
  • MP Filtri Spin-On Cans are interchangeable with most other manufacturers Spin-On housings.
  • Spin-On Cans are available in a number of sizes and micron ratings including the “CW” type water removal cans.
  • Aluminium body, Nylon bypass, and brass indicators.

Applications

  • Designed for contamination control in hydraulic and lubrication circuits.
  • Suitable for mobile, agricultural, industrial and machine tool systems.

Performance

Flow RatingUp to 300 lpm
Max. Working Pressure12 bar
Temperature Range– 25 C to + 110 C
Filtration3, 10, 25, 60 and 90 micron
ConstructionAluminium
Fluid CompatibilityMineral & synthetic oils, water based emulsions
IndicatorsVS, VR, EC, ER, 1V, V6, 1E, Z1
Bypass Pressure1.75 bar +/- 10% Return
0.3 bar +/- 10% Suction

Spin-On Filters (MPS Series (continued))

Element Technical Specifications (continued)

Part Number Flow Rate – Return (Ipm) Flow Rate -Suction (Ipm) Element type Suits Filter housings  Price (Ex. GST)
CS050A03A 40 9 3u ABS Microfibre MPSO5ORGIT MPS050CG IT MPS050SG IT $118.00
CS050A10A 48 14 10u ABS Microfibre MPSO5ORGIT MPS050CG 1T MPS050SG 1T $71.00
CS050P10A 55 16 10u Nom Paper MPSO5ORGIT MPS050CG IT MPS050SG IT $39.00
CS050P25A 65 18 25u Nom Paper MPSO5ORGIT MPS050CG1T MPS050SG 1T $39.00
CS100A10A 110 25 10u ABS Microfibre MPS 100, 150, 200 & 300 $124.00
CS 100M90A N/A 65 90u NOM wire Mesh MPS 100, 150, 200 & 300 $123.00
CS100P10A 130 35 10u Nom Paper MPS 100, 150, 200 & 300 $62.00
CSIOOP25A 160 50 25u Nom Paper MPS 100, 150, 200 & 300 $62.00
CS150M60A N/A 68 60u NOM wire Mesh MPS 100, 150, 200 & 300 $223.00
CS150M90A N/A 68 90u NOM wire Mesh MPS 100, 150, 200 & 300 $180.00
CS150P10A 150 40 10u Nom Paper MPS 100, 150, 200 & 300 $89.00
CW050P 10A 55 N/A 10u Nom Paper MPS050RUlT $114.00
CW150P10A 150 N/A 10u Nom Paper MPS 100, 150, 200 & 300 $233.00

Dimensions - MPS 050 / 070

Filter Lengths

Type     H (mm)
MPS 050 / 051 193
MPS 070 / 071 257

Thread Connections

For CS type For CG type Port Size B” C”
G1 U1 G 3/4″ G 1/8″ M6

Spin-On Filters (MPS Series (continued))

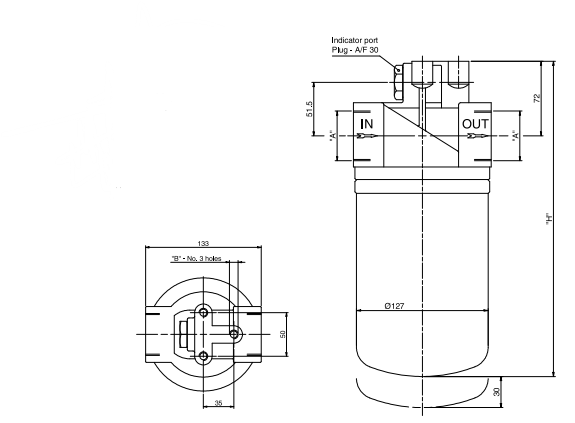

Dimensions - MPS 100-150

Filter Lengths

Type H (mm)
MPS 100 251
MPS 150 / 151 296


Thread Connections

For CS type“A” Connection (inches)“B”“C”
G1G 1-1/4′G 1/8″M8

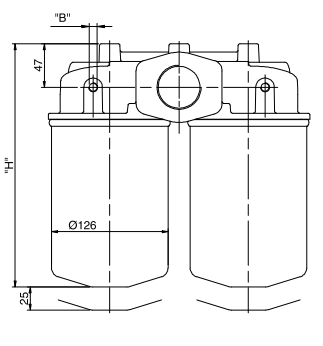

Dimensions - MPS 200

Filter Lengths

Type H (mm)
MPS 200 216


Thread Connections

For CS type“A” Connection‘B”“C”
GIG 1-1/2″G 1/8″M10

Spin-On Filters (MPS Series (continued))

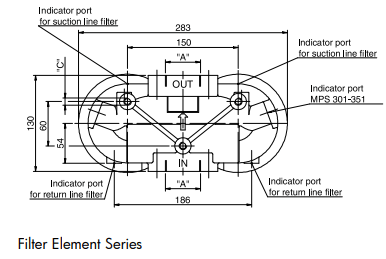

Dimensions - MPS 300

Filter Lengths

TypeH (mm)
MPS 300265

Thread Connections

For CS type“A” Connection“B”“C”
G1G 1-1/2″G 1/8″M10

Thread Connections

Type A
CS 050-070 3/4″ BSP
CS 100-150 1-1/4″ BSP

Thread Connections

Type A
CG 050-070 1″-12 UN
CG 100-150 1-1/2″ – 16 UN

Thread Connections

Type A
CW 050 1″-12 UN
CS 150 1-1/2″ – 16 UN


High Pressure Spin-On Filters (MSH Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) Bypass (bar) Seals Pori Size Post Size Indicator Price (Ex. GST)
MSH050BAG1T2 44 – 120 2.5 A = Buna G1 = 1″ BSP 3/4″ BSP T = Plug (std) $237.00
MSH100BAG1T2 110 – 250 2.5 A = Buna GI= 1-‘/2″ BSP 3/4″ BSP T = Plug (std) $303.00

Element Technical Specifications

Part Number Flow Rate (Ipm) Element Type Suits Filter Housing Price (Ex. GST)
CH050A10A 70 10u ABS Microfibre MSH050BAG1T2 $186.00
CH050A25A 100 25u ABS Microfibre MSH050BAG1T2 $180.00
CH100A10A 158 10u ABS Microfibre MSH100BAG1T2 $350.00
CH150A10A 175 10u ABS Microfibre MSH100BAG1T2 $433.00
CH150P10A 218 10u Nom Paper MSH100BAG1T2 $335.00
Note: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.6 bar.

Features

  • Compact design and quality construction.
  • The high efficiency “CH” canisters are of seamless construction with a Beta rating of 200.
  • Unique sealing system ensures the filter will withstand medium pressures up to 50 bar.
  • Aluminium body, nylon bypass valve and brass indicators.

Applications

  • Ideal for use in servo-assisted hydrostatic transmissions where the servo line requires high performance filtration at medium working pressures.
  • Suitable for mobile, industrial and agricultural equipment.
  • Ideal for use on supercharging or auxiliary low pressure lines.

Performance

Flow Rating Up to 250 Ipm
Max. Working Pressure 35 bar
Temperature Range – 25 C to + 110 C
Filtration 10 and 25 micron
Construction Aluminium
Fluid Compatibility Mineral & synthetic oils,water based emulsions
Indicators Differential
Bypass Pressure 2.5 bar +/-10%

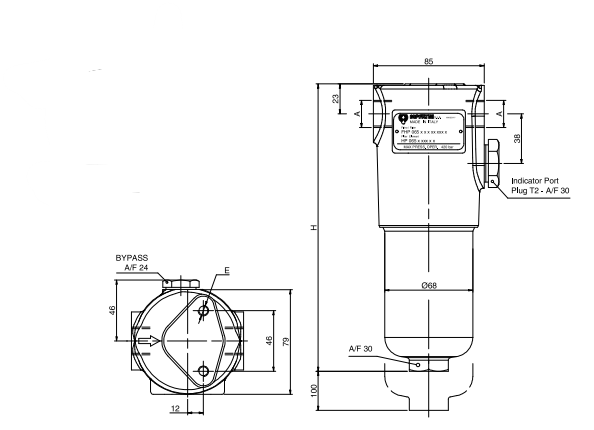

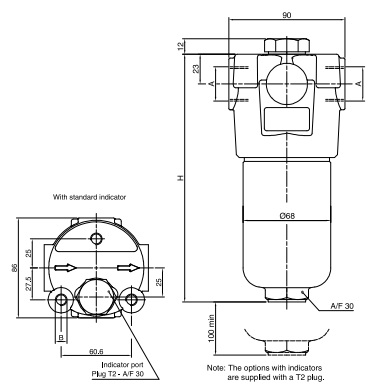

Dimensions - MSH 050

Filter Lengths

TypeH (mm)
MSH 050236

Thread Connections

Type “A” Connection “B”
G1 G 1″ M8

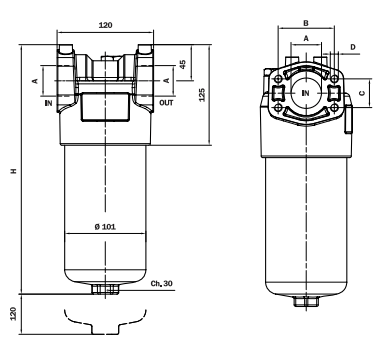

Dimensions - MSH 100

Filter Lengths

TypeH (mm)
MSH-100306

Thread Connections

Type“A” Connection“B”
G1G 1-1/2″M10

Tank Mounted Filters (MPF Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) Mount Type Seals Port size Options Indicator Price (Ex. GST)
MPF0301AG1BT 10-33 2 bolt A = BUNA G1 = 1/2″ BSP B = Bypass 1.75 bar T = Plug $53.00
MPF1001AG1BT 28-75 2 bolt A = BUNA Cl = 1/2″ BSP B = Bypass 1.75 bar T = Plug $65.00
MPF1001AG2BT 28-75 2 bolt A = BUNA G2 = 3/4″ BSP B = Bypass 1.75 bar T = Plug $63.00
MPF1001AG3BT 35-190 2 bolt A = BUNA G3 = 1″ BSP B = Bypass 1.75 bar T = Plug $65.00
MPF1002AGIBT 35-190 2 bolt A = BUNA G1= 1/2″ BSP B = Bypass 1.75 bar T = Plug $66.00
MPF1002AG2BT 35-190 2 bolt A = BUNA G2 = 3/4″ BSP B = Bypass 1.75 bar T = Plug $66.00
MPF1002AG3BT 35-190 2 bolt A = BUNA G3 = 1″ BSP B = Bypass 1.75 bar T = Plug $66.00
MPF1003AG3BT 100-340 2 bolt A = BUNA G3 = 1″ BSP B = Bypass 1.75 bar T = Plug $72.00
MPF1042AG2BT 35-190 4 bolt A = BUNA G2 = 3/4″ BSP B = Bypass 1.75 bar T = Plug $72.00
MPF1042AG3BT 45-220 4 bolt A = BUNA G3 = 1″ BSP B = Bypass 1.75 bar T = Plug $74.00
MPFI811AGIBT 100-340 3 bolt A = BUNA GI= 1-1/4″ BSP B = Bypass 1.75 bar T = Plug $133.00
MPF1841AG1BT 170-450 4 bolt A = BUNA G1 = 1-1/4″ BSP B = Bypass 1.75 bar T = Plug $144.00
MPF4002AG2BT 220-500 4 bolt A = BUNA G2 = 1-1/2″ BSP B = Bypass 1.75 bar T = Plug $198.00
MPF4003AG3BT 250 – 800 4 bolt A = BUNA G3 = 2″ BSP B = Bypass 1.75 bar T = Plug $229.00

Features

  • Tank mounted semi-immersed return filter.
  • Available in 2, 3 and 4 bolt fixing design.
  • High flow rate bypass valve as standard.
  • High filtration efficiency.
  • Accepts a number of visual and electrical switch type indicators.

Applications

  • Specifically designed for mobile applications, agricultural machinery and power units.
  • Industrial applications, including die casting, plastic injection machinery and hydrostatic systems.

Performance

Flow Rating Up to 500 Ipm
Max. Working Pressure 8 bar
Temperature Range – 25 C to + 110C
Filtration 10, and 25 micron
Construction Aluminium head, nylon bowl
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators V-I, VR, ER, EC
Bypass Pressure 1.75 bar +/- 10%

Element Technical Specifications

Part Number Flow Rate (Ipm) Element Type Suits Filter Housing Collapse Rating (bar) Seals Beta Ratio Price (Ex. GST)
MF0301A25HB 35 25u ABS Microfibre MPF0301 10 BUNA Px> 200 $49.00
MF0301P1ONB 33 10u Nom Paper MPF0301 3 BUNA NOMINAL $27.00
MF0301P25NB 44 25u Nom Paper MPF0301 3 BUNA NOMINAL $32.00
MF1001A1OHB 35 10u ABS Microfibre MPF1001 10 BUNA Px O > 200 $73.00
MF1001P1ONB 55 10u Nom Paper MPF1001 3 BUNA NOMINAL $33.00
MF1001P25NB 95 25u Nom Paper MPF1001 3 BUNA NOMINAL $33.00
MF1002A1OHB 50 10u ABS Microfibre MPF1002 MPF1042 10 BUNA Px ©> 200 $93.00
MF1002A25HB 140 25u ABS Microfibre MPF1002 MPF1042 10 BUNA Px ©> 200 $77.00
MF1002P1ONB 100 10u Nom Paper MPF1002 MPF1042 3 BUNA NOMINAL $36.00
MF1002P25NB 190 25u Nom Paper MPF1002 MPF1042 3 BUNA NOMINAL $36.00
MF1003A1OHB 75 10u ABS Microfibre MPF1003 10 BUNA Px ©> 200 $174.00
MF1003P1ONB 125 10u Nom Paper MPF1003 3 BUNA NOMINAL $50.00
MF1003P25NB 220 25u Nom Paper MPF1003 3 BUNA NOMINAL $48.00
MF1801A1OHB 150 10u ABS Microfibre MPF1811  MPF1841 10 BUNA Px ©> 200 $233.00
MF1801P1ONB 190 10u Nom Paper MPF1811  MPF1841 3 BUNA NOMINAL $51.00
MF1801P25NB 340 25u Nom Paper MPF1811  MPF1841 3 BUNA NOMINAL $51.00
MF4002A1OHB 260 10u ABS Microfibre MPF4002 10 BUNA px ©> 200 $308.00
MF4002A25HB 450 25u ABS Microfibre MPF4002 10 BUNA Px ©> 200 $251.00
MF4002P1ONB 320 10u Nom Paper MPF4002 3 BUNA NOMINAL $73.00
MF4003P1ONB 420 10u Nom Paper MPF4003 3 BUNA NOMINAL $85.00
Note: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.4 bar.

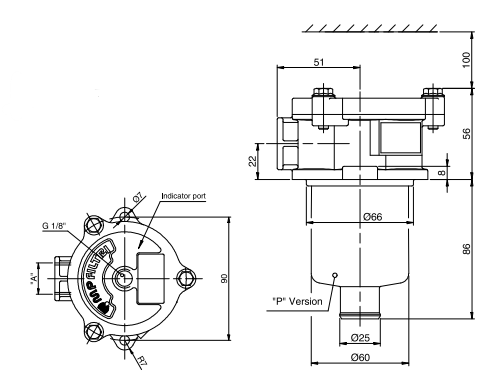

Dimensions - MPF 030

Thread Connections

Type“A” Connection
G 1G 1/2″

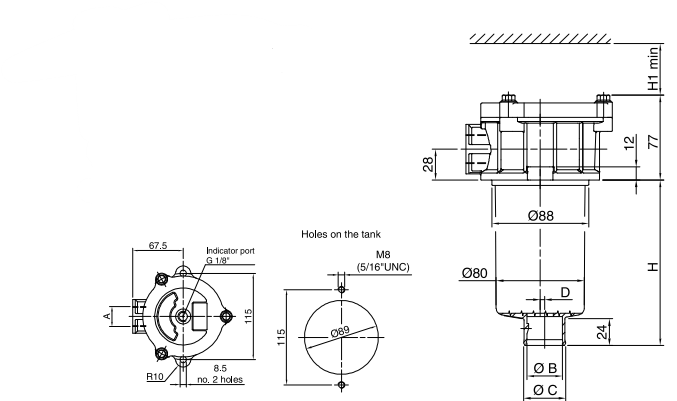

Dimensions - MPF 100

Filter Lengths

Type H (mm) H1 (mm)  OB (mm)  OC (mm) D (mm)
MPF1001 103 120 32 38 4
MPF1002 150 170 32 38 4
MPF1003 228 250 40 46.5 2.5

Thread Connections

Type “A” Connection
G1 G 1/2″
G2 G 3/4″
G3 G 1″

Dimensions - MPF 104

Filter Lengths

Type H (mm) H1 (mm) OB (mm) 0C (mm) D (mm)
MPF1042 150 170 32 38 4

Thread Connections

Type “A” Connection F
G1 G 1/2″ G 1/8″
G2 G 3/4″ G 1/8″
G3 G 1″ G 1/8″

Dimensions - MPF 180

Filter Lengths

Type H1 max (mm) H max (mm)
MPF1841 250 231

Thread Connections

Type “A” Connection Indicator port
G1 G 1-1/4″ G 1/8″


Dimensions - MPF 184

Filter Lengths

TypeH1 max (mm)H max (mm)
MPF1841250231

Thread Connections

Type “A” Connection Indicator port
G1 G 1-1/4″ G 1/8″

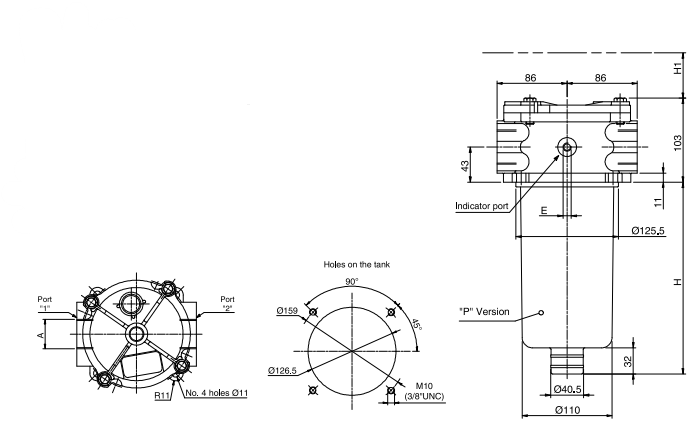

Dimensions - MPF 400

Filter Lengths

Type H max (mm) H1 max (mm) 0 “B” (mm)
MPF4002 238 250 64
MPF4003 238 310 64

Thread Connections

Type“A” Connection
G1G 1-1/4″
G2G/2″
G3G 2″

Tank Mounted Filters (MPH Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) Filter Length Bypass Diffuser Breather Seals Port Size Indicator Price (Ex. GST)
MPH2504BDSAG1T 350 – 500 4 B = 0.8 bar D = W/ Diffuser S = W/O Breather A = Buna GI = 1-1/2″ BSP T = with plug (std) $519.00

Element Technical Specifications

Part Number Flow Rate (Ipm) Element Media Suits Filter Housing Seals Beta Ratio Price (Ex. GST)
MR2504A10A 440 10u ABS Microfibre MPH2504 A = Buna Px ©> 200 $266.00
MR2504P10A 500 10u NOM Paper MPH2504 A = Buna NOMINAL $129.00
Note: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.4 bar.

Features

  • Tank mounted semi-immersed return filters.
  • Filtration flow is from inside to outside of the filter element which ensures that the contaminant is collected inside the element itself.
  • A combination of magnetic pre-filtration and high filtration efficiency.

Applications

  • Specifically designed for heavy duty mobile machinery and process plant applications.

Performance

Flow Rating Up to 500 Ipm
Max. Working Pressure 10 bar
Temperature Range – 25 C to + 1 1 0 c
Filtration 10 micron
Construction Aluminium head and cover
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators VT, VR, V1, EQ, EB, ER, EC
Bypass Pressure 0.8 bar +/- 10%

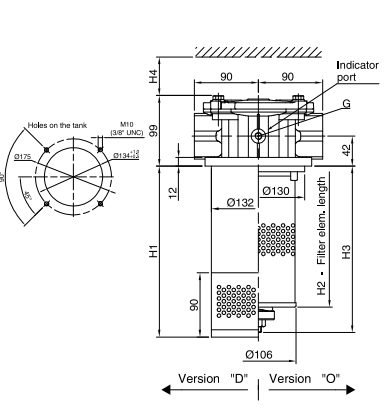

Dimensions - MPH 250

Filter Lengths

Type H1 (mm) H2 (mm) H3 (mm) H4 (mm)
MPH2504 508 465 505 580

Thread Connections

Type “A” Connection “B” Connection G
G1 G 1-1/2″ Not available G 1/8″

In-Line Return Filters (LMP-210 Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) Filter Length Options Seals Port Size Indicator Price (Ex. GST)
IMP2101BAG1T2 98 – 250 1 B = Bypass 3.5 bar A = Buna G1 = 1″ BSP T2 = Plug (std) $382.00
LMP2102BAG2T2 140 – 255 2 B = Bypass 3.5 bar A = Buna G2 = 1-1/4″ BSP T2 = Plug (std) $399.00
LMP2 103BAG3T2 190 – 268 3 B = Bypass 3.5 bar A = Buna G3 = 11/2″ BSP T2 = Plug (std) $490.00

Element Technical Specifications

Part Number Flow Rate (Ipm) Element type Suits Filter Seals Collapse Rating Beta Ratio Price (Ex. GST)
CU2101A03AN 98 3u ABS Microfibre LMP2101 A = Buna N = 20 bar βx ©> 1000 $173.00
CU2101A10AN 175 10u ABS Microfibre LMP2101 A = Buna N = 20 bar βx ©> 1000 $152.00
CU2101P1OAN 245 10u NOM Paper LMP2101 A = Buna N = 20 bar NOMINAL $111.00
CU2101P25AN 250 25u NOM Paper LMP2101 A = Buna N = 20 bar NOMINAL $107.00
CU2102A03AN 140 3u ABS Microfibre LMP2102 A = Buna N = 20 bar βx ©> 1000 $225.00
CU2102A 10AN 205 10u ABS Microfibre LMP2102 A = Buna N = 20 bar βx ©> 1000 $225.00
CU2102M25 270 25u NOM Wire Mesh LMP2102 A = Buna N = 20 bar NOMINAL $352.00
CU2102P1OAN 250 10u NOM Paper LMP2102 A = Buna N = 20 bar NOMINAL $129.00
CU2102P25AN 255 25u NOM Paper LMP2102 A = Buna N = 20 bar NOMINAL $129.00
CU2103A03AN 190 3u ABS Microfibre LMP2103 A = Buna N = 20 bar βx ©> 1000 $361.00
CU2103A10AN 235 10u ABS Microfibre LMP2103 A = Buna N = 20 bar βx©>1000 $336.00
CU2103P1OAN 260 10u NOM Paper LMP2103 A = Buna N = 20 bar NOMINAL $217.00
CU2103P25AN 268 25u NOM Paper LMP2103 A = Buna N = 20 bar NOMINAL $210.00

Features

  • Designed for return lines and are installed in-line.
  • Inorganic microfibre elements provide efficient filtration and dirt holding capacity with a Beta ratio of 1000.
  • High flow rate bypass valve as standard.
  • Elements available in resin impregnated paper, microfibre and wire mesh from 3 to 25 micron.

Applications

• Specifically designed for mobile applications, agricultural machinery and light industrial applications.
• Systems with high return line pressures that require excellent component protection.
• As a more efficient alternative to high pressure spin-on filters.

Performance

Flow Rating Up to 270 Ipm
Max. Working Pressure 60 bar
Temperature Range – 25 C to + 110 C
Filtration 3,10, 25 micron
Construction Aluminium
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators Differential
Bypass Pressure 3.5 bar +/- 10%

Dimensions

Filter Lengths

Type H (mm)
LMP2101 360
LMP2102 492
LMP2103 630

Thread Connections

Type “A” Connection E Depth 12mm
G1 G 1″ M8
G2 G 1-1/4″ M8
G3 G 1-1/2″ M8

In-Line Return Filters (LMP 430 Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) Filter Length Options Seals Port Size Indicator Price (Ex. GST)
LMP4305BAG1T2 405-550 5 B = Bypass 3.5 bar A = Buna G1 = 1-1/2″ BSP T2 = Plug (std) $1,995.00
LMP4306BAF1T2 450 – 610 6 B = Bypass 3.5 bar A = Buna Fl = 2″ SAE Flange T? = Plug (std) $2,220.00

Element Technical Specifications

Part Number Flow Rate (Ipm) Element Type Suits Filter Collapse Rating Beta Ratio Price (Ex. GST)
CU4005A10AN 550 10u ABS Microfibre LMP4305 N = 20 bar βx CD > 1000 $741.00
CU4006A10AN 610 10u ABS Microfibre LMP4306 N = 20 bar βx CD > 1000 $943.00
Note: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.6 bar.

Features

  • Designed for return lines and are installed in-line.
  • Utilises the differential type indicators available.
  • Two bowl sizes to suit most applications.
  • Maintenance from bowl allows for quick and easy replacement of elements with minimal oil loss.

Applications

  • Lubrication systems, production
    machinery and other industrial
    applications where superior filtration
    is required for maximum equipment
    efficiency.

Performance

Flow Rating Up to 610 Ipm
 Max. Working Pressure 50 bar
Temperature Range – 25 C to + 11 0 C
Filtration 10 micron
Construction Aluminium
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators Differential
Bypass Pressure 3.5 bar +/- 10%

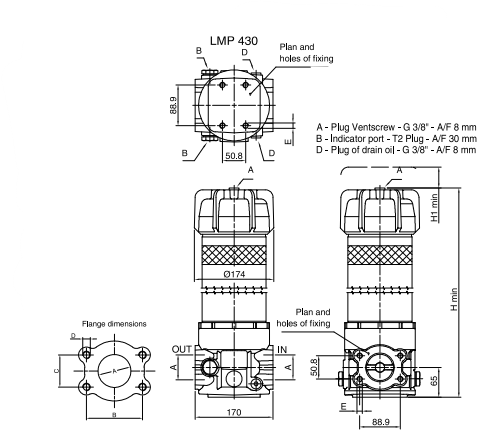

Dimensions

Filter Lengths

Type H min (mm) H1 min (mm)
LMP4305 828 660
LMP4306 1158 990

Thread Connections

Type “A” Connection E Depth 20mm
G1 G 1-1/2″ M12

Flange Connections

Type “A” Connection B (mm) C (mm) D (mm) E Depth 20mm
Fl 2″ SAE ” – 3000 PSI/M 77.77 42.88 M12 M12

In-Line Return Filters (LMP 950 Series)

Filter Technical Specifications

Part NumberFlow Rate (Ipm)Filter LengthOptionsSealsPort SizeIndicatorPrice (Ex. GST)
LMP9502BAF1T2550 – 8002B = Bypass 3.5 barA = BunaF1= 3″ SAE FlangeT2 = Plug (std)$4,400.00
LMP9503BAF3T21000 – 14003B = Bypass 3.5 barA = BunaF3 = 4″ SAE FlangeT2 = Plug (std)$4,650.00

Element Technical Specifications

Part Number Flow Rate (Ipm) Element Type Suits Filter Collapse Rating (bar) Beta Ratio Price (Ex, GST)
CU9502A10AN 800 10u ABS Microfibre LMP9502 N = 20 βx ©> 1000 $903.00
CU9503A10AN 1400 10u ABS Microfibre LMP9503 N = 20 βx ©> 1000 $1,655.00
Note: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.6 bar.

Features

  • The microfibre elements offer extremely efficient filtration and excellent dirt holding capacity with a Beta ratio of 1000.
  • Utilises the differential type indicators available.
  • Available in 2 flange sizes to suit most high flow applications.
  • Maintenance from bowl allows for quick and easy replacement of elements with minimal oil loss.

Applications

  • Designed for use on large industrial applications.
  • Suited to lubrication systems, production machinery and other industrial applications where superior filtration is required for maximum equipment efficiency

Performance

Flow Rating Up to 1400 Ipm
Max. Working Pressure 30 bar
Temperature Range  – 25 C to + 110 C
Filtration 10 micron
Construction Aluminium
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators Differential
Bypass Pressure 3.5 bar +/- 10%

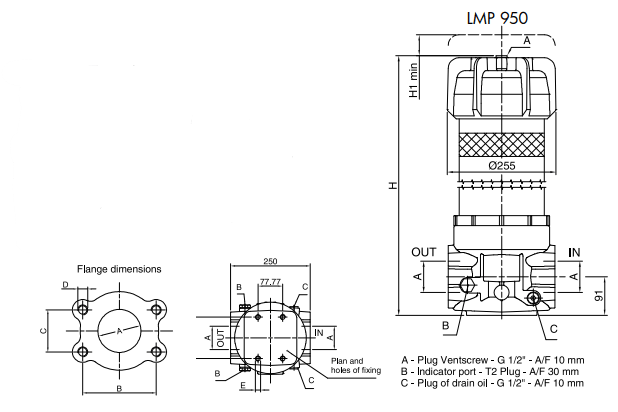

Dimensions

Filter Lengths

Type H(mm) H1 (mm)
LMP9502 680 350
LMP9503 1230 900

Flange Connections

Type “A” Connection B (mm) C (mm) D E
F1 3″ SAE – 3000 PSI/M 106.38 61.93 M16 M16
F3 4″ SAE – 3000 PSI/M 130.18 77.77 M16 M16

Pressure Filters (FMP Series )

Filter Technical Specifications

Part Number Flow Rate (IPm) Options Seals Port Type Indicator Price (Ex. GST)
FMP0653BAG6T2 52 – 94 B = Bypass 6 bar A = Buna G6 = SAE 12 T2 = Plug (std) $360.00
FMP1351BAG1T2 50 – 171 B = Bypass 6 bar A = Buna G1 = 3/4″ BSP T2 = Plug (std) $490.00
FMP1352BAG2T2 91-230 B = Bypass 6 bar A = Buna G2 = 1″ BSP T2 = Plug (std) $582.00

Element Technical Specifications

Part Number Flow Rate (IPrn) Element Type Suits Filter Housing Collapse Rating (bar) Beta Ratio Price (Ex. GST)
HP0371A25AN 54 25u ABS Microfibre FMP0381 20 βx © > 1000 $62.00
HP0371P1OAN 45 10u Nom Paper FMP0381 20 βx © > 1000 $42.00
HP0371P25AN 54 25u Nom Paper FMP0381 20 βx © > 1000 $42.00
HP0372A03AN 40 3u ABS Microfibre FMP0382 20 βx © > 1000 $129.00
HP0372A10AN 58 10u ABS Microfibre FMP0382 20 βx © > 1000 $115.00
HP0372A25AN 71 25u ABS Microfibre FMP0382 20 βx © > 1000 $90.00
HP0651A03AN 23 3u ABS Microfibre FMP0651 20 βx © > 1000 $99.00
HP0651A1 OAN 48 10u ABS Microfibre FMP0651 20 βx © > 1000 $82.00
HP0651A25AN 72 25u ABS Microfibre FMP0651 20 βx © > 1000 $71.00
HP0652A03AH 30 3u ABS Microfibre FMP0652 210 βx © > 1000 $270.00
HP0652A03AN 31 3u ABS Microfibre FMP0652 20 βx © > 1000 $110.00
HP0652A06AN 45 6u ABS Microfibre FMP0652 20 βx © > 1000 $109.00
HP0652A10AH 57 10u ABS Microfibre FMP0652 210 βx © > 1000 $227.00
HP0652A10AN 60 10u ABS Microfibre FMP0652 20 βx © > 1000 $92.00
HP0652A25AH 77 25u ABS Microfibre FMP0652 210 βx © > 1000 $190.00
HP0652A25AN 82 25u ABS Microfibre FMP0652 20 βx © > 1000 $73.00
HP0653A03AN 53 3u ABS Microfibre FMP0653 20 βx © > 1000 $160.00
HP0653A10AH 78 10u ABS Microfibre FMP0653 210 βx © > 1000 $294.00
HP0653A10AN 79 10u ABS Microfibre FMP0653 20 βx © > 1000 $140.00
HP0653A25AN 94 25u ABS Microfibre FMP0653 20 βx © > 1000 $110.00
HP1351A03AH 50 3u ABS Microfibre FMP 1351 210 βx © > 1000 $375.00
HP1351A03AN 69 3u ABS Microfibre FMP1351 20 βx © > 1000 $139.00
HP1351A10AH 98 10u ABS Microfibre FMP 1351 210 βx © > 1000 $277.00

Features

  • Interchangeable indicator and bypass valve positions.
  • Microfibre elements have superior dirt holding capacity and a Beta ratio of 1000.
  • Differential indicators, available as visual, electrical or visual/ electrical.
  • Absolute rated elements are available in either 20 bar or 210 bar collapse pressure.

Applications

  • Designed for industrial and mobile applications, agricultural machinery, power units, die casting and injection moulding equipment.
  • Mining and corrosive environments.

Performance

Flow Rating Up to 230 Ipm
Max. Working Pressure 280 bar
Temperature Range -25 Cto+ 110 C
Filtration 3,6,10,25 and 60 micron
Construction Cast Iron
Fluid Compatibility Mineral & synthetic oils,water based emulsions
Indicators Differential
Bypass Pressure 6 bar +/- 10%

Element Technical Specifications (continued)

Part Number Flow Rate (IF>m) Element Type Suits Filter Housing Collapse Rating (bar) Beta Ratio Price (Ex. GST)
HP1351A10AN 120 10u ABS Microfibre FMP1351 20 βx © > 1000 $119.00
HP1351A25AH 156 25u ABS Microfibre FMP1351 210 βx © > 1000 $220.00
HP1351A25AN 171 25u ABS Microfibre FMP1351 20 βx © > 1000 $98.00
HP1352A03AH 91 3u ABS Microfibre FMP1352 210 βx © > 1000 $535.00
HP1352A03AN 110 3u ABS Microfibre FMP1352 20 βx © > 1000 $201.00
HP1352A10AH 136 10u ABS Microfibre FMP1352 210 βx © > 1000 $397.00
HP1352A10AN 148 10u ABS Microfibre FMP1352 20 βx © > 1000 $160.00
HP1352A25AH 175 25u ABS Microfibre FMP 1352 210 βx © > 1000 $305.00
HP1352M60AN 230 60u Nom Wire Mesh FMP1352 20 Nominal $185.00
Note: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 1.5 bar.

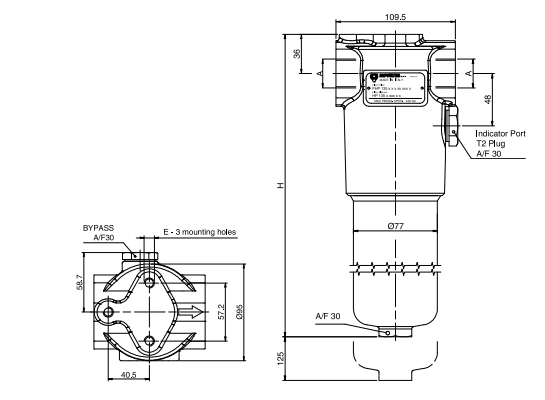

Dimensions - FMP 065

Filter Lengths

Type H (mm)
FMP0653 303

Thread Connections

Type “A” Connection 12mm
G6 SAE 16 – 1-1/16″-12UN 5/16″ UNC

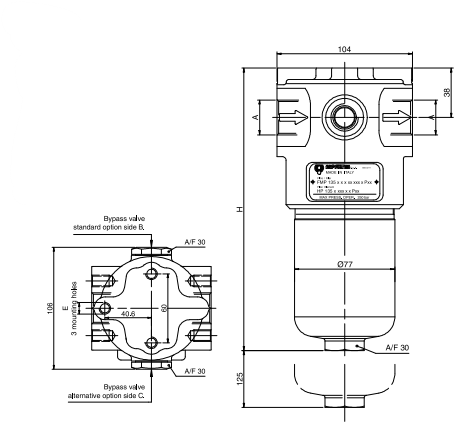

Dimensions - FMP 135

Filter Lengths

Type H (mm)
FMP1352 335
FMP1351 222

Thread Connections

Type ‘A” Connection E Depth 12mm
G2 G 1″ M10
G1 G 3/4″ M10

Pressure Filters (FMM-050 Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) Options Seals Port size Indicator Price (Ex. GST)
FMM0502BACT2 53 – 140 B = Bypass 6 bar A = Buna C = 1/2″ BSP T2 = Plug (std) $275.00
FMM0504BADT2 85-145 B = Bypass 6 bar A = Buna D = 3/4″ BSP T2 = Plug (std) $294.00

Element Technical Specifications

Part Number Flow Rate (Ipm) Element Type Suits Filter Housing Collapse Rating (bar) Beta Ratio Price (Ex. GST)
HF’0502A10AN 87 10u ABS Microfibre FMM0502 20 βx © > 1000 $92.00
HP0504A10AN 118 10u ABS Microfibre FMM0504 20 βx © > 1000 $145.00

Features

  • Available in 1/2″ and 3/4″ BSP port sizes.
  • Filters are constructed of chemical heat treated cast iron.
  • Low cost, light weight and compact design.

Applications

  • High pressure applications.
  • Industrial and mobile applications, agricultural machinery, machine tools and transmission applications.

Performance

Flow Rating Up to 145 Ipm
Max. Working Pressure 280 bar
Temperature Range – 25 C to + 110 C
Filtration 10 micron Absolute Microfibre
Construction Cast Iron & Steel
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators Differential
Bypass Pressure 6 bar +/- 10%

Dimensions

Filter Lengths

Type H (mm)
FMM0502 195
FMM0504 285

Thread Connections

Type “A” Connection E Depth 12mm
C G 1/2″ M10
D G 3/4″ M10

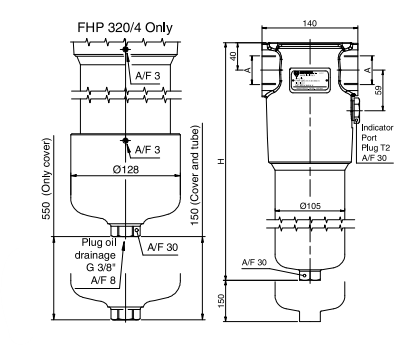

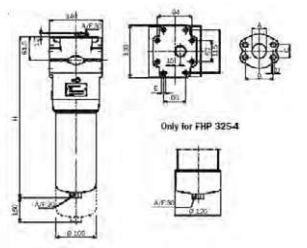

Pressure Filters (FHP Series)

Filter Technical Specifications

Part Number Flow Rate  (Ipm) Options Seals Port size Indicator Price  (Ex. GST)
FHP1352BAG1T2 91-230 B = Bypass 6 bar A = Buna 01 = 3/4″ BSP T2 = Plug (std) $670.00
FHP1352BAG2T2 91-230 B = Bypass 6 bar A = Buna G2 = 1″ BSP T2 = Plug (std) $691.00
FHP3202BAG1T2 192-445 B = Bypass 6 bar A = Buna GI= 1-1/4″ BSP T2 = Plug (std) $1,061.00
FHP3202BAG2T2 192-445 B = Bypass 6 bar A = Buna G2 = 1-1/2″ BSP T2 = Plug (std) $1,061.00
FHP3203BAG2T2 255 – 465 B = Bypass 6 bar A = Buna G2 = 1-1/2″ BSP T2 = Plug (std) $1,200.00
FHP3253BAF2T2 312 – 480 B = Bypass 6 bar A = Buna F2 = 2″ SAE FLANGE T2 = Plug (std) $1,250.00
Note: SAE flange ports are code 61 rated at 3000 PSI

Element Technical Specifications

Part Number Flow Rate  (Ipm) Options Seals Port size Indicator Price (Ex. GST)
FHP3202RAG1T2 192-445 R = Reverse flow A = Buna Gl= 1-1/4″ BSP T2 = Plug (std) $1,360.00
FHP3203RAG2T2 255-465 R = Reverse flow A = Buna Gl= 1-1/4″ BSP T2 = Plug (std) $1,440.00

Reverse Flow Element Technical Specifications

Part Number Flow Rate (Ipm) Element Type Suits Filter Housings Collapse Rating (bar) Beta Ratio Price (Ex. GST)
HP3202A10AS 300 10u ABS Microfibre Reverse flow FHP3202R, FHP3253R 210 bx © > 1000 $723.00
HP3203A10AS 357 10u ABS Microfibre Reverse flow FHP3203R, FHP3253R 210 bx © > 1000 $94,000

Features

  • High flow rate bypass valve as standard and reverse flow valve option is available on FHP 320/325 filters.
  • Filters are constructed of chemical heat treated cast iron.
  • Microfibre elements have superior dirt holding capacity with a Beta ratio of 1000.
  • Utilises the differential type indicators available.
  • Absolute rated elements are available in either 20 bar or 210 bar collapse pressure.

Applications

  • Designed for industrial, mobile and power pack applications.
  • Ideal for high pressure applications.
  • Mining and earth moving equipment, drilling rigs, plant machinery and hydrostatic circuits (with reverse flow valve).

Performance

Flow Rating Up to 465 Ipm
Max. Working Pressure 420 bar
Temperature Range – 25 C to + 110 C
Filtration 3, 6, 10, 25 and 60 micron
Construction Cast Iron
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators Differential
Bypass Pressure 6 bar +/- 10%

FHP Series (continued)

Part Number Flow Rate (Ipm) Element Type Suits Filter Housings Collapse Rating (bar) Beta Ratio Price (Ex. GST)
HP0651A03AN 23 3u ABS Microfibre FHP0651 20 bx © > 1000 $99.00
HP0651A 10AN 48 10u ABS Microfibre FHP0651 20 bx © > 1000 $82.00
HP0651A25AN 72 25u ABS Microfibre FHP0651 20 bx © > 1000 $71.00
HP0652A03AH 30 3u ABS Microfibre FHP0652 210 bx © > 1000 $270.00
HP0652A03AN 31 3u ABS Microfibre FHP0652 20 bx © > 1000 $110.00
HP0652A06AN 45 6u ABS Microfibre FHP0652 20 bx © > 1000 $109.00
HP0652A10AH 57 10u ABS Microfibre FHP0652 210 bx © > 1000 $227.00
HP0652A10AN 60 10u ABS Microfibre FHP0652 20 bx © > 1000 $92.00
HP0652A25AH 77 25u ABS Microfibre FHP0652 210 bx © > 1000 $190.00
HP0652A25AN 82 25u ABS Microfibre FHP0652 20 bx © > 1000 $73.00
HP0653A03AN 53 3u ABS Microfibre FHP0653 20 bx © > 1000 $160.00
HP0653A10AH 78 10u ABS Microfibre FHP0653 210 bx © > 1000 $294.00
HP0653A10AN 79 10u ABS Microfibre FHP0653 20 bx © > 1000 $140.00
HP0653A25AN 94 25u ABS Microfibre FHP0653 20 bx © > 1000 $110.00
HP1351A03AH 50 3u ABS Microfibre FHP1351 210 bx © > 1000 $375.00
HP1351A03AN 69 3u ABS Microfibre FHP1351 210 bx © > 1000 $139.00
HP1351A10AH 98 10u ABS Microfibre FHP1351 210 bx © > 1000 $277.00
HP1351A10AN 120 10u ABS Microfibre FHP1351 20 bx © > 1000 $119.00
HP1351A25AH 156 25u ABS Microfibre FHP1351 210 bx © > 1000 $220.00
HP1351A25AN 171 25u ABS Microfibre FHP1351 20 bx © > 1000 $98.00
HP1352A03AH 91 3u ABS Microfibre FHP1352 210 bx © > 1000 $535.00
HP1352A03AN 110 3u ABS Microfibre FHP1352 20 bx © > 1000 $201.00
HP1352A10AH 136 10u ABS Microfibre FHP1352 210 bx © > 1000 $397.00
HP1352A10AN 148 10u ABS Microfibre FHP1352 20 bx © > 1000 $160.00
HP1352A25AH 175 25u ABS Microfibre FHP1352 210 bx © > 1000 $305.00
HP1352M60AN 230 60u ABS Microfibre FHP1352 20 Nominal $185.00
HP3201A03AN 126 3u ABS Microfibre FHP3201, FHP3251 20 bx ©> 1000 $215.00
HP3201A10AH 185 10u ABS Microfibre FHP3201, FHP3251 210 bx © > 1000 $435.00
HP3201A10AN 230 10u ABS Microfibre FHP3201, FHP3251 20 bx ©> 1000 $177.00
HP3201A25AN 330 25u ABS Microfibre FHP3201, FHP3251 20 bx ©> 1000 $132.00
HP3202A03AN 248 3u ABS Microfibre FHP3202, FHP3252 20 bx ©> 1000 $335.00
HP3202A10AH 300 10u ABS Microfibre FHP3202, FHP3252 210 bx ©> 1000 $560.00
HP3202A10AN 376 1 Ou ABS Microfibre FHP3202, FHP3252 20 bx ©> 1000 $273.00
HP3202A25AN 440 25u ABS Microfibre FHP3202, FHP3252 20 bx ©> 1000 $203.00
HP3202M60AN 450 60u ABS Microfibre FHP3202, FHP3252 20 Nominal $356.00
HP3203A03AN 319 3u ABS Microfibre FHP3203, FHP3253 20 bx ©> 1000 $425.00
HP3203A10AN 427 10u ABS Microfibre FHP3203, FHP3253 20 bx ©> 1000 $387.00
HP3203A25AN 450 25u ABS Microfibre FHP3203, FHP3253 20 bx ©> 1000 $309.00
HP3204A03AN 354 3u ABS Microfibre FHP3204, FHP3254 20 bx © > 1000 $640.00
HP3204A06AH 320 6u ABS Microfibre FHP3204, FHP3254 210 bx © > 1000 $1,400.00
HP3204A 10AN 430 10u ABS Microfibre FHP3204, FHP3254 20 bx ©> 1000 $529.00
HP3204A25AN 467 25u ABS Microfibre FHP3204, FHP3254 20 bx © > 1000 $444.00

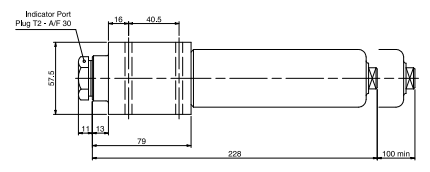

Dimensions - FHP065

Filter Lengths

Type H (mm)
FHP0653 330

Thread Connections

Type “A” Connection E Depth 12mm
G1 G 1/2′ M8

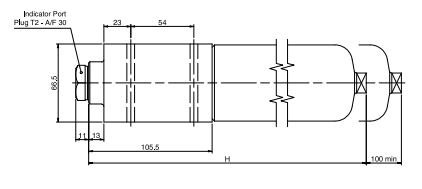

Dimensions - FHP135

Filter Lengths

Filter Lengths H (mm)
FHP1352 375

Thread Connections

Type “A” Connection E Depth 12mm
G1 G 3/4″ M10

Dimensions - FHP320

Filter Lengths

Type H (mm)
FHP3202 425
FHP3203 560

Thread Connections

Type “A” Connection E Depth 12mm
GI G 1-1/4″ MI 2
G2 G 1-1/2″ M12

Flange Connections

Type “A” Connection B (mm) C (mm) D (mm) Depth
F1 1-1/4″ SAE – 3000 PSI/M 58.72 30.18 M16 M12
F2 1-1/2″ SAE – 3000 PSI/M 69.85 35.71 M16 M12

Dimensions - FHP325

Filter Lengths

Type H (mm)
FHP3253 589

Flange Connections

Type “A” Connection B (mm) C (mm) D (mm) E Depth 15
F2 2″ SAE – 3000 PSI/UNC 77.77 42.88 1/2″ unc 1/2″ unc

Cetop Mount Pressure Filters (FHM Series)

Filter Technical Specifications

Part Number Flow Rate (Ipm) Options Seals Port Type Indicator Price (Ex. GST)
FHM0061SAG1T2 9-17 S = Without bypass A = Buna Cetop 3 T2 = Plug (std) $630.00
FHM0103SAG1T2 24 – 31 S = Without bypass A = Buna Cetop 5 T2 = Plug (std) $1,122.00

Element Technical Specifications

Part Number Flow Rate (Ipm) Element Type Suits Filter Housing Collapse Rating (bar) Beta Ratio Price (Ex. GST)
HP0113A06AH 10 6u ABS Microfibre FHM0061 210 βx © > 1000 $214.00
HP0653A06AH 26 6u ABS Microfibre FHM010 210 βx © > 1000 $399.00
Note: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 1.5 bar.

Features

  • Directly mounted to Cetop valves to provide ultimate protection of sensitive equipment.
  • Constructed of chemically heat treated steel suitable for use in extreme environments.
  • The microfibre elements have superior dirt holding capacity with a Beta ratio of 1000 and collapse pressure of 210 bar.

Applications

  • Ideally suited for the protection of proportional and servo valves.
  • Component protection for sensitive equipment.

Performance

Flow Rating Up to 31 Ipm
Max. Working Pressure 320 bar
Temperature Range -25 Cto+ 110 C
Filtration 6 micron Absolute Microfibre
Construction Steel
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators Differential
Bypass Pressure No Bypass

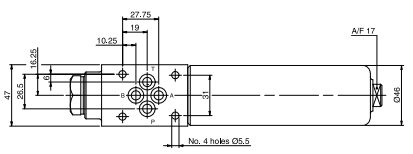

Dimensions - FHM 006

Filter Lengths

Type H (mm)
FHM0061 228

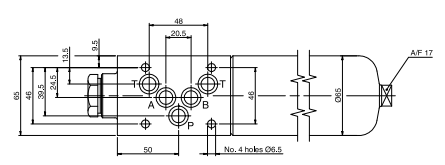

Dimensions - FHM 010

Filter Lengths

Type H (mm)
FHM0103 380

Indicators (Clogging & Differential)

Visual/Electric Series

Part Number Style Type Function Thread Rating (bar) Suits Filter Price (Ex. GST)
1E Switch Visual/Electric Differential 1/2″ BSP 1.2 MPS-(051, 071,101) $253.00
E6 Switch Visual/Electric Differential 1/2″ BSP 2 MPS-(051, 071,101), IMP, MSH $263.00
E7 Switch Visual/Electric Differential 1/2″ BSP 5 FHM, FHP, FMM, FMP $263.00
E8 Switch Visual/Electric Differential 1/2″ BSP 7 FHM, FHP $245.00
E9 Switch Visual/Electric Differential 1/2″ BSP 10 FHM, FHP $245.00

Features

  • Available as Clogging or Differential.
  • Avoid unnecessary costs of changing elements too soon or too late by installing an indicator.
  • Available in a number of styles and configurations including gauges, popup style, electric switching and combinations of electric and visual.

Applications

  • Suits all MP Filtri Housings

Performance

Temperature Range – 35 C to + 11 0 C
Max. Working Pressure Up to 420 bar
Construction Brass
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Indicators Clogging & Differential

Visual/Electric Series

Part Number Style Type Function Thread Rating (bar) Suits Filter Price (Ex. GST)
E1 Switch  Electric N/0 & N/C contacts 1/4″ BSP 20 KPA SF2-250 & SF2-500 Series $222.00

Electric Series

Part Number Style Type Function Thread Rating (bar) Suits Filter Price

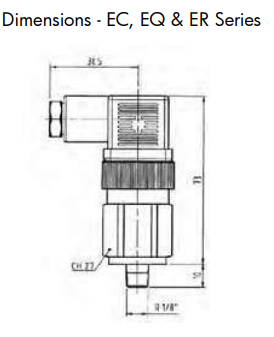

EQ Switch Electric N/O & N/C contacts 1/8″ BSP 0.6 MPH $129.00
ER Switch Electric N/O & N/C contacts 1/8″ BSP 1.5 MPF, MPH, MPS-(050, 070,100,200,300) $129.00

Electric Series

Part Number Style Type Function Thread Rating (bar) Suits Filter Price (Ex. GST)
N6 Switch Electric Differential 1/2″ BSP 2 LMP, MPS-(051, 071,101),MSH $205.00
N7 Switch Electric Differential 1/2″ BSP 5 FHM, FHP, FMM, FMP $204.00
N8 Switch Electric Differential 1/2″ BSP 7 FHM, FHP, FMM, FMP $200.00
N9 Switch Electric Differential 1/2″ BSP 10 FHM, FHP $200.00

Visual Series

Part Number Style Type Function Thread Rating (bar) Suits Filter Price (Ex. GST)
1V Popup Visual Differential 1/2″ BSP 1.2 MPS-(051, 071,101) $165.00
V6 Popup Visual Differential 1/2″ BSP 2 LMP, MSH, MPS-(051, 071,101) $168.00
V7 Popup Visual Differential 1/2″ BSP 5 FHM, FHP, FMM, FMP $174.00
V8 Popup Visual Differential 1/2″ BSP 7 FHM, FHP, FMM, FMP $174.00
V9-1 Popup Visual Differential 1/2″ BSP 10 FHM, FHP $168.00

Visual Series

Part Number Style Type Thread Rating (bar) Suits Filter Price (Ex. GST)

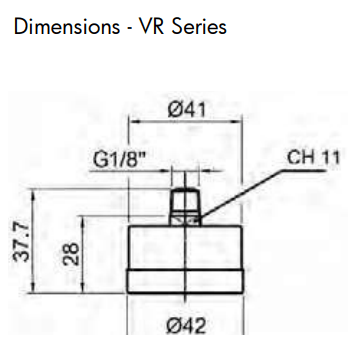

VR Gauge Visual 1/8″ BSP 0.6 MPF-184, MPT, MPH, MST, MPS-(050, 070, 100, 200,300) $39.00

Visual Series

Part Number Style Type Thread Rating (bar) Suits Filter Price (Ex. GST)
V Gauge Visual 11/4″ BSP 20 KPA  SF2-250 & SF2-500 SERIES $46.00

Visual Series

Part Number Style Type Thread Rating (bar) Suits Filter Price (Ex. GST)
V1 Gauge  Visual Visual 11/8″ BSP 0-6 MPF, MPH $37.00

Visual Series

Part Number Style Type Thread Rating (bar) Suits Filter Price (Ex. GST)
VS Gauge Visual 1/8″ BSP 0-76  cm Hg MPS-(050, 070,100,200,300) $39.00
VT Gauge Visual 1/8″ BSP 0 – 3 MPH $37.00

Visual Series

Part Number Style Type Thread Rating (bar) Suits Filter Price (Ex. GST)
Z1 Gauge Visual 1/2″ BSP 1.2 MPS-(051, 071,101) $124.00

Will Fit Elements (Hydac Compatible)

Element Technical Specifications

Part Number Hydac Part Number Element Type Suits Filter Housing Price (Ex. GST)
D0030A05NNA 0030D005BN3HC 5u ABS Microfibre DF, DFF, DFDK, DFM, DF, MA, DF.. .QE, DFP, DFZ, HFM,LF, LFM, LPF, MDF, MFM, LPF,DA. $61.00
D0030A1ONHA 0030D010BN3HC 10u ABS Microfibre $58.00
D0060A06NHA 0060D005BN3HC 6u ABS Microfibre $85.00
D0060A1ONHA 0060D010BN3HC 10u ABS Microfibre $82.00
D0110A05NHA 0110D005BN3HC 5u ABS Microfibre $104.00
D0110A1ONHA 0110D010BN3HC 10u ABS Microfibre $99.00
DO 140A1ON HA 0140D010BN3HC 10u ABS Microfibre $112.00
D0140A25NHA 0140D020BN3HC 25u ABS Microfibre $112.00
D0160A1ONHA 0160D010BN3HC 10u ABS Microfibre $121.00
D0160A25NHA 0160D020BN3HC 25u ABS Microfibre $121.00
D0240A1ONHA 0240D010BN3HC 10u ABS Microfibre $148.00
D0240A25NHA 0240D020BN3HC 25u ABS Microfibre $143.00
D0280A1ONHA 0280D010BN3HC 10u ABS Microfibre $271.00
D0280A25NHA 0280D020BN3HC 25u ABS Microfibre $271.00
D0330A06NHA 0330D005BN3HC 6u ABS Microfibre $219.00
D0330A1ONHA 0330D010BN3HC 10u ABS Microfibre $203.00
D0660A1ONHA 0660D010BN3HC 10u ABS Microfibre $396.00
D0660A25NHA 0660D020BN3HC 25u ABS Microfibre $396.00
R0030A1ONA 0030R010BN3HC 10u ABS Microfibre NF, NFD, RF, RFD, RFL, RFLD, RFM $55.00
R0030A25NA 0030R020BN3HC 25u ABS Microfibre $55.00
R0060A1ONHA 0060R010BN3HC 10u ABS Microfibre $76.00
R0060A25NHA 0060R020BN3HC 25u ABS Microfibre $76.00
R0110A1ONHA 0110R010BN3HC 10u ABS Microfibre $91.00
R0110A25NHA 0110R020BN3HC 25u ABS Microfibre $91.00
R0160A1ONHA 0160R010BN3HC 10u ABS Microfibre $107.00
R0160A25NHA 0160R020BN3HC 25u ABS Microfibre $107.00
R0240A1ONHA 0240R010BN3HC 10u ABS Microfibre $152.00
R0240A25NHA 0240R020BN3HC 25u ABS Microfibre $152.00
R0330A1ONHA 0330R010BN3HC 10u ABS Microfibre $221.00
R0330A25NHA 0330R020BN3HC 25u ABS Microfibre $221.00
R0660A1ONHA 0660R010BN3HC 10u ABS Microfibre $370.00
R0660A25NHA 0660R020BN3HC 25u ABS Microfibre $370.00
R0950A1ON HA 0950R010BN3HC 10u ABS Microfibre $801.00
R0950A25NHA 0950R020BN3HC 25u ABS Microfibre $801.00
DK320A020ANCP01 1300R020BN3HC 20u ABS Microfibre $780.00
R1300S25 1300R025WHC 25u Nominal Wire mesh $1,752.00

Features

  • High quality Italian made replacement elements to suit Hydac Return and Pressure filters.
  • Element made of absolute rated inorganic microfbre with Beta ratio of β© > 200.
  • Suitable for over 20 types of filter housings.

Applications

  • Replacement elements to suit Hydac return and pressure filters.

Performance

Flow Rating Up to 950 Ipm
Collapse Pressure 20 bar
Fluid Compatibility Mineral & synthetic oils, water based emulsions
Filtration 5, 6, 10 & 25 micron Absolute rated
Construction norganic microfibre

Retention Capacity

Filter Element Dimension for β valve Filtration ratio Final ∆P (bar
β ≥ 2 50% β ≥ 20 95% β ≥ 75 98.7% β ≥ 200 99.5% β2 β10 β20
A03 – 2 2.4 3 20 >10000 >10000 7
A06 – 3 4.6 6 8 >20000 >10000 7
Al 0 3 6 7.8 10 1.5 >200 >1000 7
A16 7 9 12 16 – >25 >5000 7
A25 13 19 22 25 – >1.5 >35 7
P10 10 >30 >30 – 1 2 4.5 4
P25 25 >30 >30 – 1 1 1.3 4

Filter Cross Reference

Donaldson

Donaldson Part Number THW Part Number
CA160.1 CS100P10A
P16-2766 CG050P10A
P16-4348 CG050P25A
P16-4352 CG070P25A
P16-5875 CGIO0A03A
P16-5877 CG100P10A
P16-5878 CG100P10A
P16-5879 CG100P25A
P16-5880 CG150P25A
P17-1502 MF0301A25HB
P17-1503 MF0301P1ONB
P17-1504 MF0301P25NB
P17-1519 MF1001A1OHB
P17-1521 MF1001P1ONB
P17-1522 MF1001P1ONB
P17-1525 MF1001A1OHB
P17-1527 MF1001P1ONB
P17-1528 MF1001P1ONB
P17-1531 MF1002A1OHB
P17-1532 MF1002A25HB
P17-1533 MF1002P1ONB
P17-1534 MF1002P25NB
P17-1537 MF1801A1OHB
P17-1539 MF1801P1ONB
P17-1540 MF1801P25NB
P17-1561 MF4002A1OHB
P17-1562 MF4002A25HB
P17-1563 MF4002P1ONB
P17-1567 MF4002A1OHB
P17-1568 MF4002A25HB
P17-1569 MF4002P1ONB
P17-1575 MF4003P1ONB

Donaldson

Donaldson Part Number THW Part Number
P17-1581 MF7501P1ONB
P17-1602 CS050A10A
P17-1605 CS050P10A
P17-1606 CS050P25A
P17-1613 CS I 00A10A
P17-1615 CS100P10A
P17-1616 CS100P25A
P17-1620 CS150P10A
P17-1621 CS150P25A
P17-1622 CS150M60A
P17-1665 CU250A1ON
P17-1673 CU630A25N
P17-1685 SF505M90
P17-1689 SF510M90
P17-1693 SF503M90
P17-1697 SF504M90
P17-1703 HP0371A25AN
P17-1704 HP0371P1OAN
P17-1708 HP0372A10AN
P17-1709 HP0372A25AN
P17-1714 HP0651A10AN
P17-1715 HP0651A25AN
P17-1719 HP0652A06AN
P17-1720 HP0652A10AN
P17-1721 HP0652A25AN
P17-1726 HP0653A10AN
P17-1727 HP0653A25AN
P17-1735 HP1351A10AN
P17-1736 HP1351A25AN
P17-1738 HP1352A10AN
P-171741 HP3201A 1 OAN
P-171742 HP3201A25AN

Donaldson

Donaldson Part Number THW Part Number
P17-1744 HP3202A10AN
P17-1745 HP3202A25AN
P17-1747 HP3203A10AN
P17-1748 HP3203A25AN
P17-1814 MR2504P10A
P17-1828 MR2504A10A
P17-1837 MF1801P25NB
P17-1840 MF1801P1ONB
P17-1846 MF1801A1OHB
P550148 CS100P10A
P55-0268 CS050P10A

Eaton

Eaton Part Number THW Part Number
MP-0020 CS050A10A
MP-0023 CS050P10A
MP-0024 CS050P25A
MP-0025 CS 100A10A
MP-0027 CS 100M90A
MP-0028 CS100P25A
MP-0029 CS150P10A
MP-0031 MPS10ORGIT
MP-0033 MPSO5ORG1T
MP-0036 MPS050SG1T
MP-0037 CU250M25N
MP-0044 MF0301P1ONB
MP-0045 MF1001A1OHB
MP-0047 MF1001P1ONB
MP-0048 MF1002A1OHB
MP-0049 MF1002A25HB
MP-0050 MF1002P1ONB
MP-0051 MF1002P25NB

Eaton

Eaton Part Number THW Part Number
MP-0052 MF4002A1OHB
MP-0053 MF4002A25HB
MP-0054 MF4002P10NB
MP-0056 HP1352A10AH
MP-0069 HP0651A1 OAN
MP-0071 HP0651A25AN
MP-0072 HP1351A03AH
MP-0073 HP1351A10AH
MP-0074 HP1351A10AN
MP-0075 HP1351A25AH
MP-0076 HP1351A25AN
MP-0077 HP1352A03AH
MP-0079 HP1352A10AN
MP-0080 HP1352A25AH
MP-0082 HP3201A1 OAN
MP-0083 HP3203A10AN
MP-0096 HP0372A03AN
MP-0097 HP0372A10AN
MP-0098 HP0372A25AN
MP-0105 HP0652A03AH
MP-0106 HP0652AIOAH
MP-0173 STR0502SG1M90
MP-0174 STR0702SG1M90
MP-0175 STR0704SG1M90
MP-0177 STR1001SG1M90
MP-0179 STR1003SG1M90
MP-0180 STR1004BG1M90
MP-0181 STR1004SG1M90
MP-0182 STR1401SG1M90
MP-0184 STR1402SG1M90
MP-0185 SIR] 404SG1M90
MP-0187 STR1405SG1M90
MP-0189 STR1406SG1M90
MP-0197 V7
MP-0198 E7
MP-0199 V6
MP-0200 E6
MP-0201 SF540M90
MP-0239 HP0651A03AN
MP-0246 SF510M90
MP-0254 CS 100PIOA
MP-0271 MF1003P1ONB
MP-0273 V
MP-0300 HP1351A03AN
MP-0303 HP0371P10AN

Eaton

Eaton Part Number THW Part Number
MP-0304 SF505M90
MP-0343 MF0301 P25NB
MP-0344 MF4003P1ONB
MP-0346 MF1001P25NB
MP-0347 HP0652A25AH
MP-0365 MF0301A25HB
MP-0427 MF1801P1ONB
MP-0428 MF1801P25NB
MP-0429 MF1801A1OHB
MP-0439 HP0371A25AN
MP-0473 MSH050BAG1T2
MP-0508 CU630A25N
MP-0513 STR1005SG1M90
MP-0516 HP3202A10AN
MP-0526 STR1003BG1M90
MP-0533 CS150P25A
MP-0534 HP3201A10AH
MP-0568 CS050A03A
MP-0619 CU250A1ON
MP-0624 STR0701SG1M90
MP-0626 STR1403SG1M90
MP-0637 CS150M60A
MP-0640 MPS300SG1T
MP-0641 MPS30ORG1T
MP-0646 MPF0301AG1BT
MP-0647 MPF1001AG1BT
MP-0648 MPF1002AG2BT
MP-0649 MPF1801AG1BT
MP-0650 MPF4002AG1BT
MP-0652 MPF4003AG3BT
MP-0655 FHP1352BAG1T2
MP-0679 FHP0652BAG1T2
MP-0686 SF250M9ON
MP-0693 CH150A10A
MP-0695 V8
MP-0697 FHM0061SAGIT2
MP-0706 STR1005BG1 M90
MP-0708 FMP0652BAG1T2
MP-0710 FMP1351BAG1T2
MP-071 1 FMP1352BAG1T2
MP-0717 N7
MP-0718 N8
MP-0723 CH050A10A
MP-0727 SF2503AF1KT1
MP-0728 SF2504AF1KT1

Eaton

Eaton
Eaton Part Number THW Part Number
MP-0733 SF503M90
MP-0734 SF504M90
MP-0740 MPH2504BDSAG1 T
MP-0741 MR2504P10A
MP-0748 CH150P10A
MP-0751 CH050A25A
MP-0752 MR2504A10A
MP-0776 El
MP-0798 FMP0382BAG1T2
MP-0822 HP3201A25AN
MP-0830 HP0652A10AN
MP-0908 VR
MP-0925 HP3202A10AH
MP-0931 V9
MP-0933 MF7501P1ONB
MP-0934 MF0202P1ONB

Fairey Arlon

Fairey Arlon Part Number THW Part Number
FA35-25 CG050P25A
FA511-10 CG150P10A
FA511-10 CW150P10A
FA511-25 CG150P25A
FA57-10 CG100P10A
FA57-25 CG100P25A
R750-H-0403A CGIO0A03A
R920-H-0812H HP0653A10AN
R920-H-0825H HP0653A25AN
R921-H-0403H HP0652A03AH
R921-H-0415H HP0652A25AH
ST65-49 CG050A03A

Filtrec

Eaton Part Number THW Part Number
MP-0052 MF4002A1OHB
MP-0053 MF4002A25HB
MP-0054 MF4002P10NB
MP-0056 HP1352A10AH
MP-0069 HP0651A1 OAN
MP-0071 HP0651A25AN
MP-0072 HP1351A03AH
MP-0073 HP1351A10AH
MP-0074 HP1351A10AN
MP-0075 HP1351A25AH
MP-0076 HP1351A25AN
MP-0077 HP1352A03AH
MP-0079 HP1352A10AN
MP-0080 HP1352A25AH
MP-0082 HP3201A1 OAN
MP-0083 HP3203A10AN
MP-0096 HP0372A03AN
MP-0097 HP0372A10AN
MP-0098 HP0372A25AN
MP-0105 HP0652A03AH
MP-0106 HP0652AIOAH
MP-0173 STR0502SG1M90
MP-0174 STR0702SG1M90
MP-0175 STR0704SG1M90
MP-0177 STR1001SG1M90
MP-0179 STR1003SG1M90
MP-0180 STR1004BG1M90
MP-0181 STR1004SG1M90
MP-0182 STR1401SG1M90
MP-0184 STR1402SG1M90
MP-0185 SIR] 404SG1M90
MP-0187 STR1405SG1M90
MP-0189 STR1406SG1M90
MP-0197 V7
MP-0198 E7
MP-0199 V6
MP-0200 E6
MP-0201 SF540M90
MP-0239 HP0651A03AN
MP-0246 SF510M90
MP-0254 CS 100PIOA
MP-0271 MF1003P1ONB
MP-0273 V
MP-0300 HP1351A03AN
MP-0303 HP0371P10AN

Filtrec

Eaton Part Number THW Part Number
MP-0304 SF505M90
MP-0343 MF0301 P25NB
MP-0344 MF4003P1ONB
MP-0346 MF1001P25NB
MP-0347 HP0652A25AH
MP-0365 MF0301A25HB
MP-0427 MF1801P1ONB
MP-0428 MF1801P25NB
MP-0429 MF1801A1OHB
MP-0439 HP0371A25AN
MP-0473 MSH050BAG1T2
MP-0508 CU630A25N
MP-0513 STR1005SG1M90
MP-0516 HP3202A10AN
MP-0526 STR1003BG1M90
MP-0533 CS150P25A
MP-0534 HP3201A10AH
MP-0568 CS050A03A
MP-0619 CU250A1ON
MP-0624 STR0701SG1M90
MP-0626 STR1403SG1M90
MP-0637 CS150M60A
MP-0640 MPS300SG1T
MP-0641 MPS30ORG1T
MP-0646 MPF0301AG1BT
MP-0647 MPF1001AG1BT
MP-0648 MPF1002AG2BT
MP-0649 MPF1801AG1BT
MP-0650 MPF4002AG1BT
MP-0652 MPF4003AG3BT
MP-0655 FHP1352BAG1T2
MP-0679 FHP0652BAG1T2
MP-0686 SF250M9ON
MP-0693 CH150A10A
MP-0695 V8
MP-0697 FHM0061SAGIT2
MP-0706 STR1005BG1 M90
MP-0708 FMP0652BAG1T2
MP-0710 FMP1351BAG1T2
MP-071 1 FMP1352BAG1T2
MP-0717 N7
MP-0718 N8
MP-0723 CH050A10A
MP-0727 SF2503AF1KT1
MP-0728 SF2504AF1KT1

Filtrec

Eaton
Eaton Part Number THW Part Number
MP-0733 SF503M90
MP-0734 SF504M90
MP-0740 MPH2504BDSAG1 T
MP-0741 MR2504P10A
MP-0748 CH150P10A
MP-0751 CH050A25A
MP-0752 MR2504A10A
MP-0776 El
MP-0798 FMP0382BAG1T2
MP-0822 HP3201A25AN
MP-0830 HP0652A10AN
MP-0908 VR
MP-0925 HP3202A10AH
MP-0931 V9
MP-0933 MF7501P1ONB
MP-0934 MF0202P1ONB

Fairey Arlon

Fairey Arlon Part Number THW Part Number
FA35-25 CG050P25A
FA511-10 CG150P10A
FA511-10 CW150P10A
FA511-25 CG150P25A
FA57-10 CG100P10A
FA57-25 CG100P25A
R750-H-0403A CGIO0A03A
R920-H-0812H HP0653A10AN
R920-H-0825H HP0653A25AN
R921-H-0403H HP0652A03AH
R921-H-0415H HP0652A25AH
ST65-49 CG050A03A

Product Enquiry

Eg. 5x Part Number
Please enter your physical address for your us to quote on freight delivery.
=

Lot 25, Mannanarie Road, JAMESTOWN SA
PO Box 178 , JAMESTOWN South Australia 5491

Call Charles 0418 641 566

© 2025 Catford Engineering. All Rights Reserved.
Website by Tracey Dewell Designs
Login to your account
