At Catford Engineering we offer a wide range of hydraulic products. Browse our hydraulic control valves specifications and pricing below.

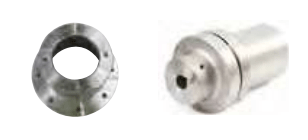

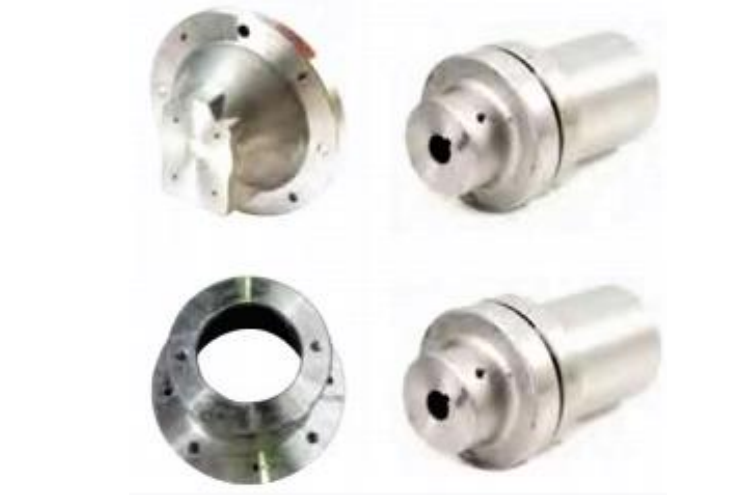

**Electric Motor to DIN Mount Pumps**Electric Motor to SAE Mount Pumps
Due to fluctuations in the Australian dollar and the economic climate, please be advised that all prices are subject to change. Please contact us to confirm pricing.

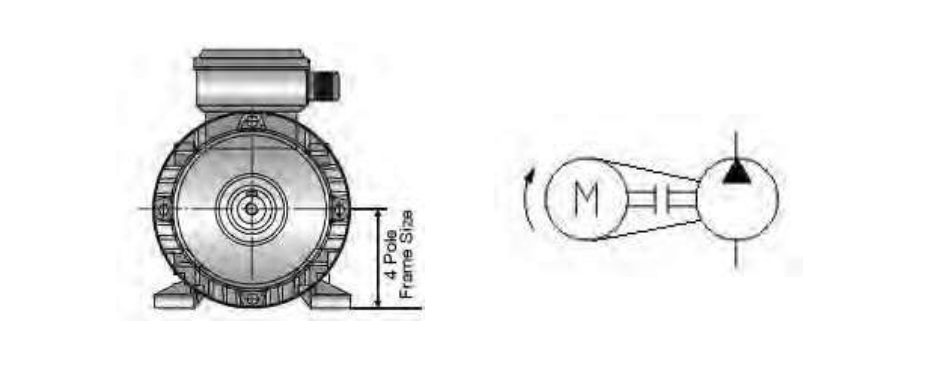

| Electric Motor (hp/kW) | 4 Pole Frame (mm) | Bell Housing | Electric Motor Shaft Size (mm) | Motor Half Coupling | Pump Shaft | Pump Half Coupling | Spider | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | ||||
| 1 / 0.75 | 80 | LBH 12BA | $50.00 | 19 | LC48M12 | $15.00 | 1:8 Taper | LC48TB | $12.00 | LC48S | $4.00 |
| 2/ 1.5 | 90 | LBH12BA | $50.00 | 24 | LC65M13 | $18.00 | 1:8 Taper | LC65TB | $17.00 | LC65S | $6.00 |
| 5.5 / 4.0 | 100 | LBH14BA | $70.00 | 28 | LC65M14 | $22.00 | 1:8 Taper | LC65TB | $17.00 | LC65S | $6.00 |
| 5.5 / 4.0 | 112 | LBH 14BA | $70.00 | 28 | LC65M14 | $22.00 | 1:8 Taper | LC65TB | $17.00 | LC65S | $6.00 |

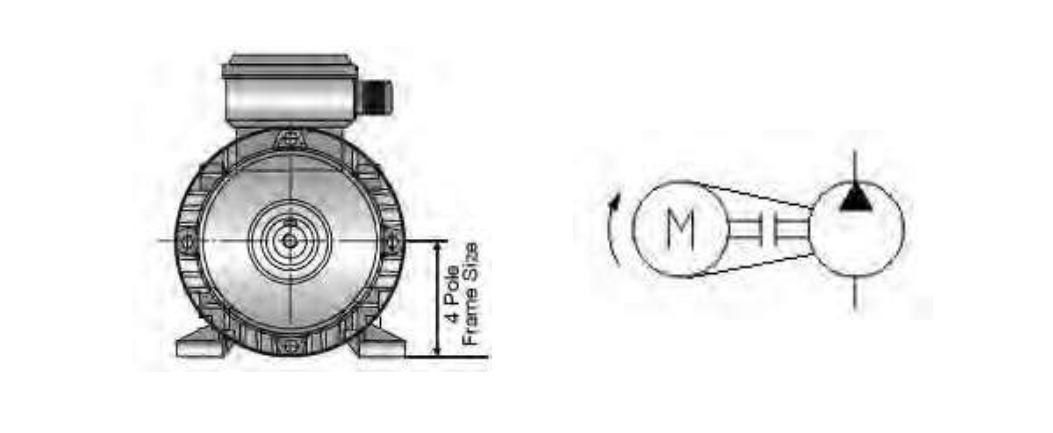

| Electric Motor (hp/kW) | 4 Pole Frame (mm) | Bell Housing | Electric Motor Shaft Size (mm) | Motor Half Coupling | Pump Shaft | Pump Half Coupling | Spider | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | ||||
| 1 / 0.75 | 80 | LBH12CA | $52.00 | 19 | LC65M12 | $17.00 | 1:8 Taper | LC65TC | $17.00 | LC65S | $6.00 |
| 2/ 1.5 | 90 | LBH12CA | $52.00 | 24 | LC65M13 | $18.00 | 1:8 Taper | LC65TC | $17.00 | LC65S | $6.00 |
| 5.5 / 4.0 | 100 | LBH 14CA | $70.00 | 28 | LC86M14 | $38.00 | 1:8 Taper | LC86TC | $26.00 | LC86S | $9.00 |
| 5.5 / 4.0 | 112 | LBH 14CA | $70.00 | 28 | LC86M14 | $38.00 | 1:8 Taper | LC86TC | $26.00 | LC86S | $9.00 |
| 13.4 / 10.0 | 132 | LBH16CA | $115.00 | 38 | LC86M16 | $56.00 | 1:8 Taper | LC86TC | $26.00 | LC86S | $9.00 |
| 20.0 / 15.0 | 160 | LBH17CA | $210.00 | 42 | LC108M17 | $102.00 | 1:8 Taper | LC108TC | $43.00 | LC108S | $13.00 |
| 30.0 / 22.0 | 180 | LBH17CA | $210.00 | 48 | LC108M18 | $124.00 | 1:8 Taper | LC108TC | $43.00 | LC108S | $13.00 |
| Electric Motor (hp/kW) | 4 Pole Frame (mm) | Bell Housing | Electric Motor Shaft Size (mm) | Motor Half Coupling | Pump Shaft | Pump Half Coupling | Spider | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | ||||
| 1 / 0.75 | 80 | LBS 12A2 | $71.00 | 19 | LC65M12 | $17.00 | 3/4″ | LC65P06 | $30.00 | LC65S | $6.00 |
| 2 / 1.5 | 90 | LBS 12A2 | $71.00 | 24 | LC65M13 | $18.00 | 3/4″ | LC65P06 | $30.00 | LC65S | $6.00 |
| 5.5 / 4.0 | 100 | LBS 14A2 | $107.00 | 28 | LC86M14 | $38.00 | 3/4″ | LC86P06 | $40.00 | LC86S | $9.00 |
| 5.5 / 4.0 | 112 | LBS 14A2 | $107.00 | 28 | LC86M14 | $38.00 | 3/4″ | LC86P06 | $40.00 | LC86S | $9.00 |
| 13.4 / 10.0 | 132 | LBS 16A2 | $145.00 | 38 | LC86M16 | $56.00 | 3/4″ | LC86P06 | $40.00 | LC86S | $9.00 |
| 20.0 / 15.0 | 160 | LBS 17A2 | $203.00 | 42 | LC108M17 | $102.00 | 3/4″ | LC108P06 | $55.00 | LC108S | $13.00 |
| 30.0 / 22.0 | 180 | LBS 17A2 | $203.00 | 48 | LC108M18 | $124.00 | 3/4″ | LC108P06 | $55.00 | LC108S | $13.00 |
| Electric Motor (hp/kW) | 4 Pole Frame (mm) | Bell Housing | Electric Motor Shaft Size (mm) | Motor Half Coupling | Pump Shaft | Pump Half Coupling | Spider | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | Part Number | Price (Ex. GST) | ||||
| 1 / 0.75 | 80 | LBS 12B2 | $105.00 | 19 | LC65M12 | $17.00 | 7/8″ | LC65P07 | $30.00 | LC65S | $6.00 |
| 2 / 1.5 | 90 | LBS 12B2 | $105.00 | 24 | LC65M13 | $18.00 | 7/8″ | LC65P07 | $30.00 | LC65S | $6.00 |
| 5.5 / 4.0 | 100 | LBS 14B2 | $107.00 | 28 | LC86M14 | $38.00 | 7/8″ | LC86P07 | $40.00 | LC86S | $9.00 |
| 5.5 / 4.0 | 112 | LBS 14B2 | $107.00 | 28 | LC86M14 | $38.00 | 7/8″ | LC86P07 | $40.00 | LC86S | $9.00 |
| 13.4 / 10.0 | 132 | LBS 16B2 | $145.00 | 38 | LC86M16 | $56.00 | 7/8″ | LC86P07 | $40.00 | LC86S | $9.00 |
| 20.0 / 15.0 | 160 | LBS 17B2 | $203.00 | 42 | LC108M17 | $102.00 | 7/8″ | LC108P07 | $55.00 | LC108S | $13.00 |
| 30.0 / 22.0 | 180 | LBS 1782 | $203.00 | 48 | LC108M18 | $124.00 | 7/8″ | LC108P07 | $55.00 | LC108S | $13.00 |
